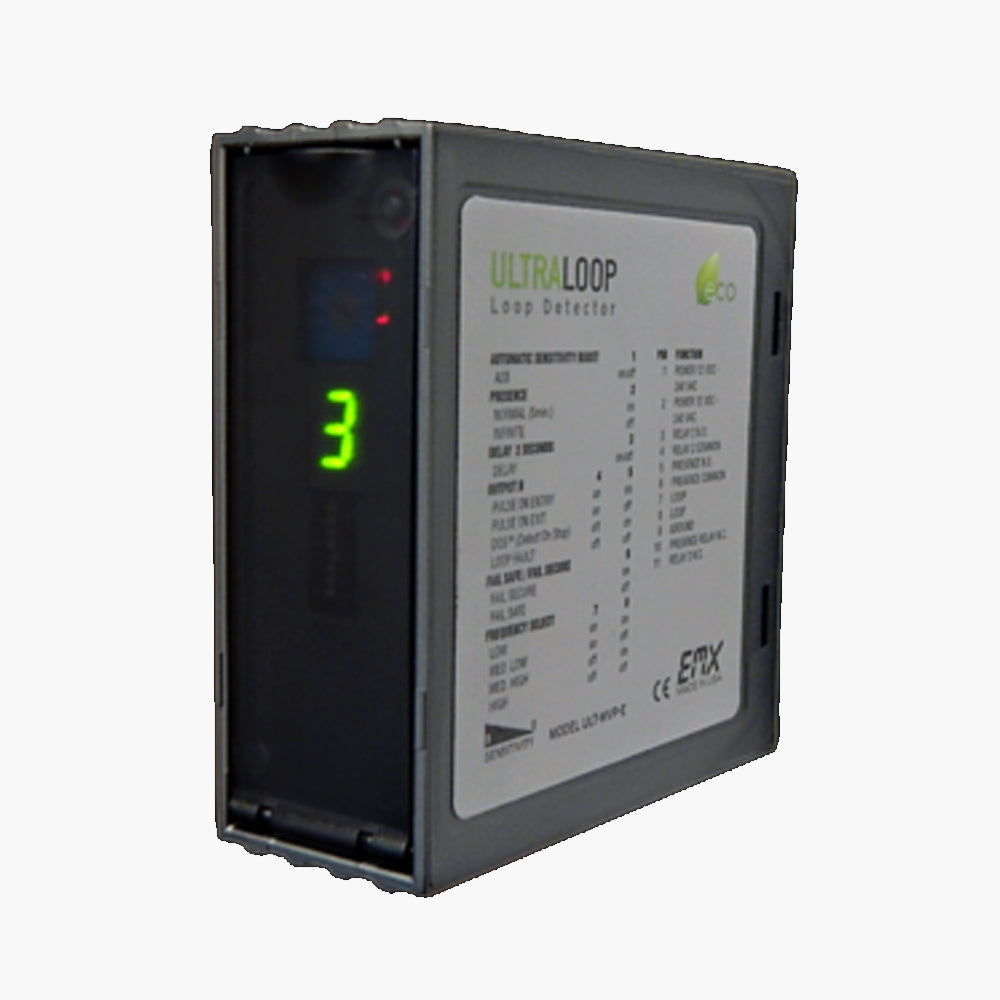

EMX Loop Detector

EMX Loop Detectors are used to detect vehicles as they pass over a wire loop installed in the concrete. The ULT-MVP-E is a two-channel, AB logic (directional mode) and one set of relays for each channel. Each output may be set for presence, normal (5 min.) infinite presence, or DETECT-ON-STOP. It is very compact and has a 12VDC to 240VAC input range.

Features

• Single or dual channel unit for US or EU wiring
• ULTRAMETER™ displays optimum sensitivity setting/crosstalk interference
• 10 sensitivity settings
• 4 operating frequencies
• Automatic sensitivity boost (ASB), delay, fail-safe/fail-secure and infinite or normal (5 min.) presence
• Small size: 73 x 38 x 78mm
• Din Rail Mount
• DETECT-ON-STOP™ technology, which allows detection only when a vehicle has come to a complete stop on the loop. This exclusive feature is unique to EMX and is a major advantage if you want to ignore cross-traffic in tight spaces.

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing our range.

• Download EMX ULT MVP Installation Guide
• Download Loop Installation Guide
