Eyes Photocells

Name: Eyes Photocells
Brand: Edgesmith
SKU: EYES-METAL
Availability: InStock

We apologise for the inconvenience. Our pricing is currently experiencing technical difficulties, and some products may not be available for purchase at this time. We're working to resolve the issue and will update the website as soon as it's fixed. Thank you for your patience.

Brand:

Edgesmith

SKU:

EYES-METAL

Product Type:

Automation Accessories

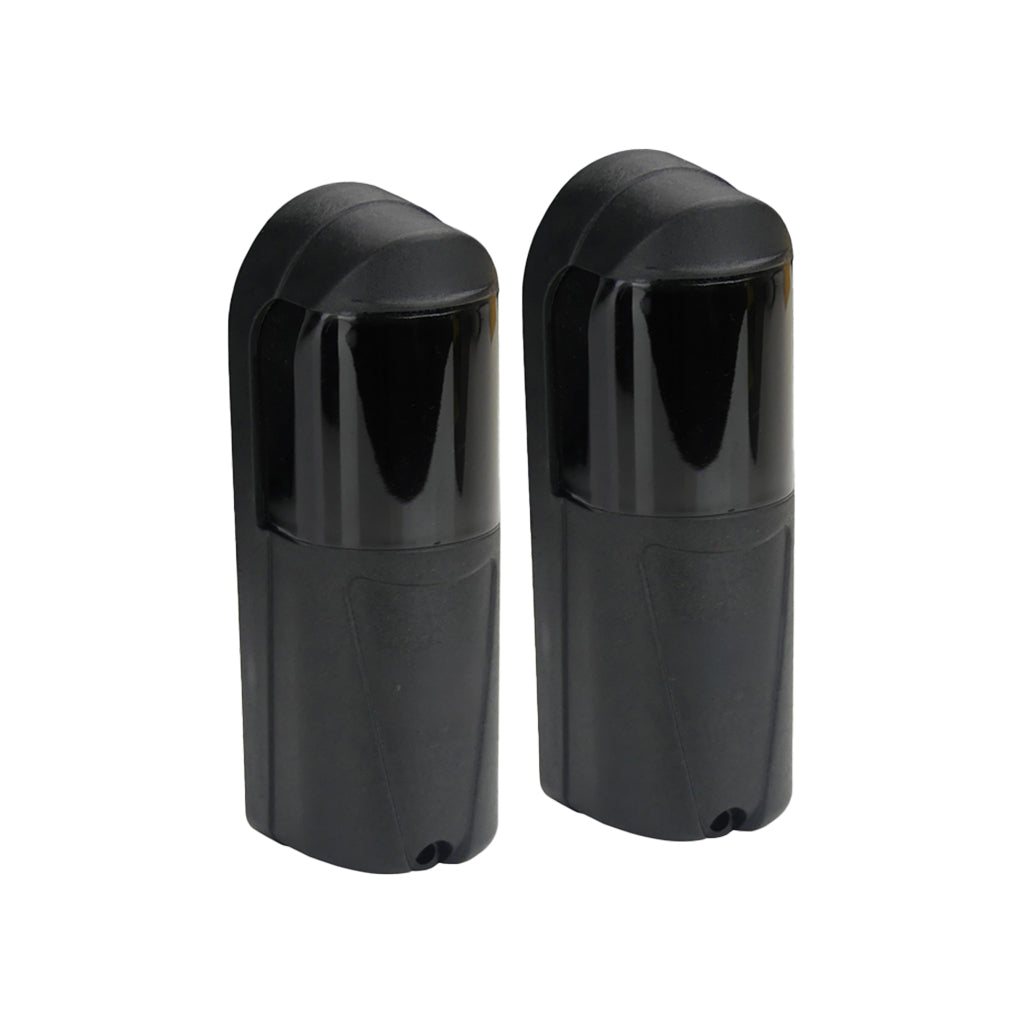

The EYE-METAL safety photocells ensure that the gate won't close on a vehicle or person.

More information

Extended Description

The EYE-METAL safety photocells ensure that the gate won't close on a vehicle or person. Sold in pairs, they are installed on either side of the driveway, facing each other. With an adjustable 210-degree horizontal and 30-degree vertical angle, you can mount them on the outside of the post and tilt the "eye" inward so they align perfectly. The ANTI-VANDAL cover ensures heightened security. 12-24Vdc power required to each photocell

Tech Specifications

Specifications

Range: 30m
Signal: Modulated infrared
Wave Length: 880 nm
Modulation Frequency: 1000 Hz
Supply Voltage: 12 - 24 V / V~
Absorbed Current: 30mA TX; 30mA RX
Temp. Operating Range: -15° C / +60° C
Relay Contact Rating: 1A max; 24V
Humidity: From 5% to 90% no condensation
Dimensions: 129 x 48 x 42 mm
Weather protection: IP45

Documents

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing automation accessories.

Download Product Manual
