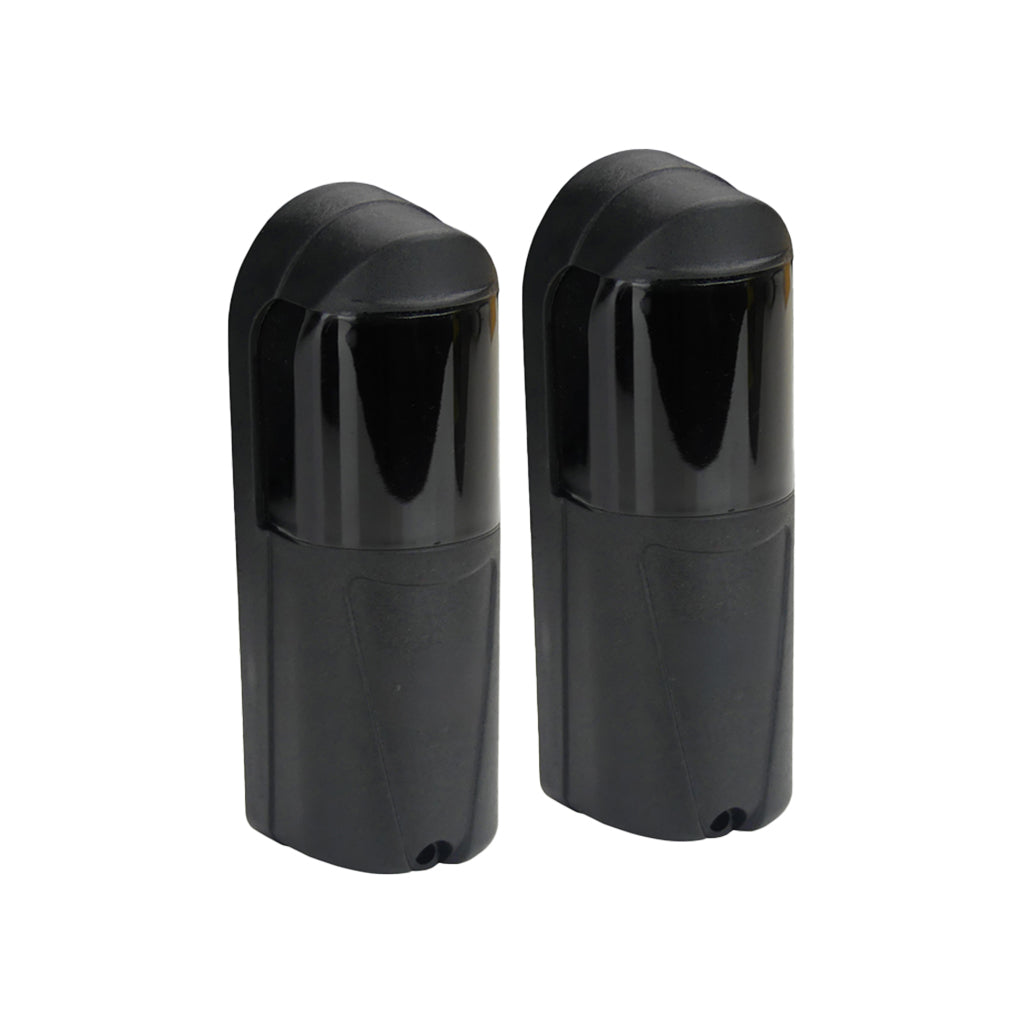

Flips Bat Photocells

The Flips-Bat safety photocells ensure that the gate won't close on a vehicle or person. Sold in pairs, they are installed on either side of the driveway, facing each other. With an adjustable 180-degree angle horizontal and 30-degree vertical angle, you can mount them on the outside of the post and tilt the "eye" inward so they align perfectly. Battery-powered photocells are particularly useful in scenarios where running a cable to the opposite side of the driveway is not feasible. Option of having an ANTI-VANDAL cover to further increase security

Specifications

• Adjustable lens about 30° along the vertical axis and 180° along the horizontal axis
• Ideal for installations on gates with safety edge
• 15 m range
• Weather Protection IP45Battery-powered transmitter (1x3,6V-8,5 Ah)
• Moving sensor for power-saving
• Dimensions: 129x48x42 mm
• 12-24v Vac-Dc power supply for receiver Rx

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing automation accessories.

• Download Product Manual
