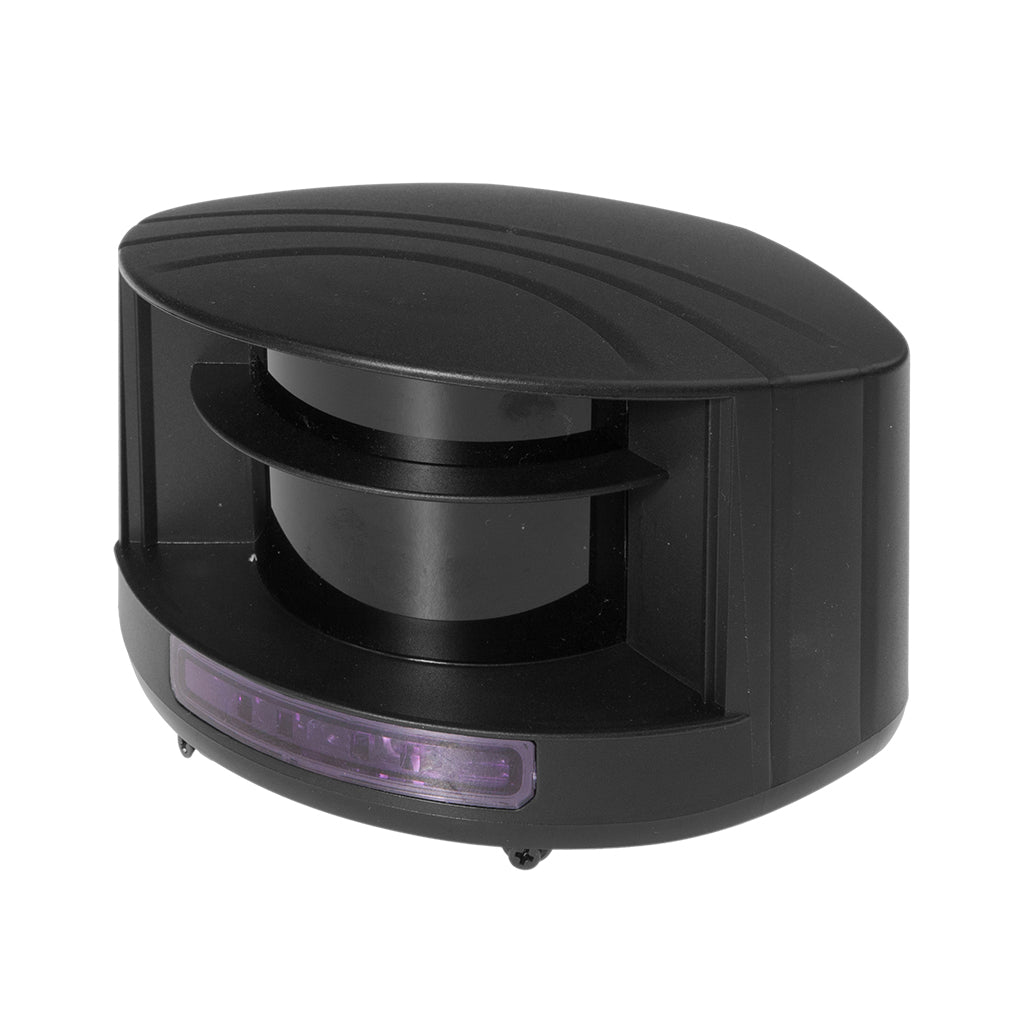

LZR-H100 Laser Sensor

Activation & Safety Sensor for Gates & Barriers

The LZR-H100 is a laser-based sensor designed for gates and barriers, offering a modern alternative to traditional induction loops. It simplifies installation, reliably detects all vehicle types, and provides flexible detection zone customization.

Key Features:

• Versatile Detection: Detects all vehicles, including passenger cars, electric vehicles, composite material vehicles, and trucks with trailers, ensuring accurate barrier activation.
• Customisable Detection Zones: Easily set detection areas up to 9.9 m x 9.9 m for both opening and safety functions. Define vehicle trajectories for precise barrier activation.
• Enhanced Safety: Prevents contact with vehicles or pedestrians in the safety zone when installed with a reference point.
• Pedestrian & Parallel Traffic Filtering: Ignores pedestrians and parallel traffic, ensuring the barrier only opens for approaching vehicles.

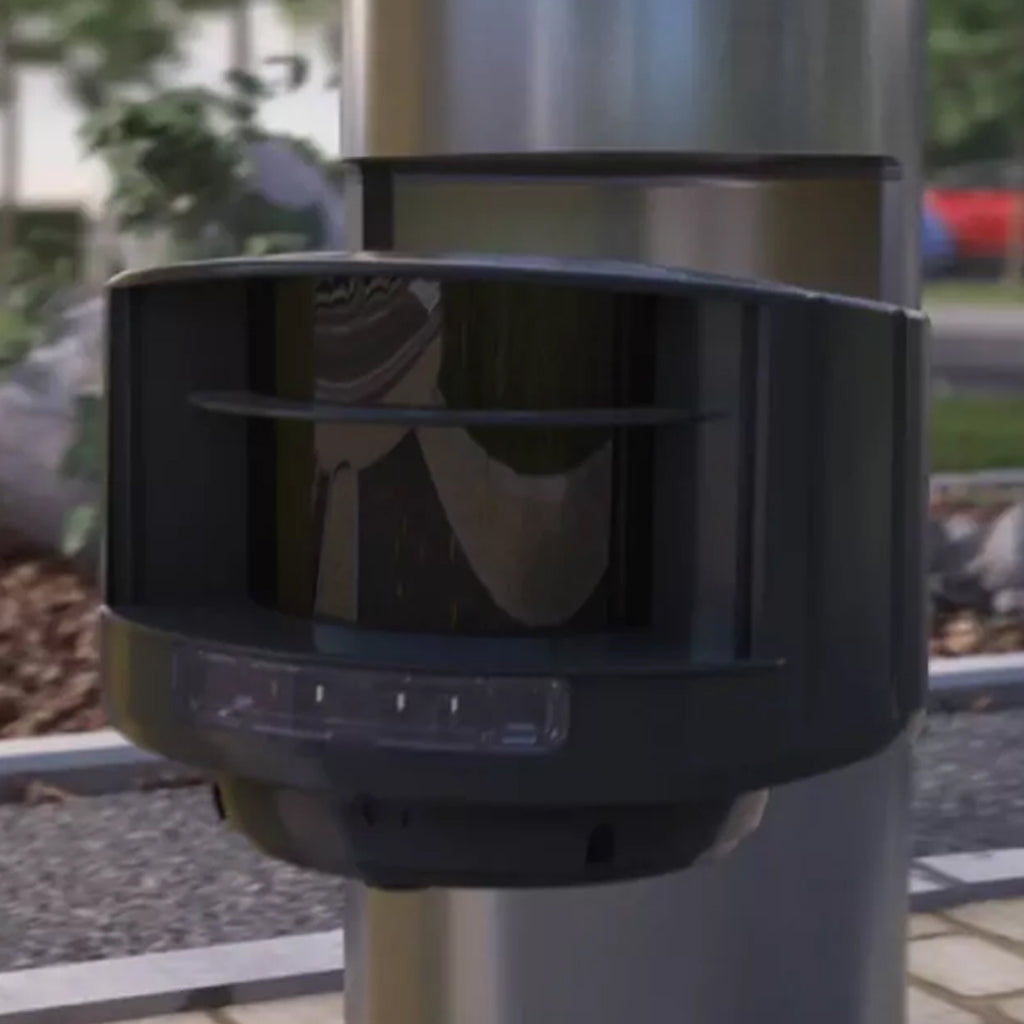

• Easy Installation: Requires no ground alterations, with straightforward setup and adjustable detection fields for maximum adaptability.

Benefits for Installers & Users:

• Saves time compared to installing induction loops.
• Adapts to various environments and vehicle types.
• Ensures safety and reliability with precise detection and flexible configuration.

Features

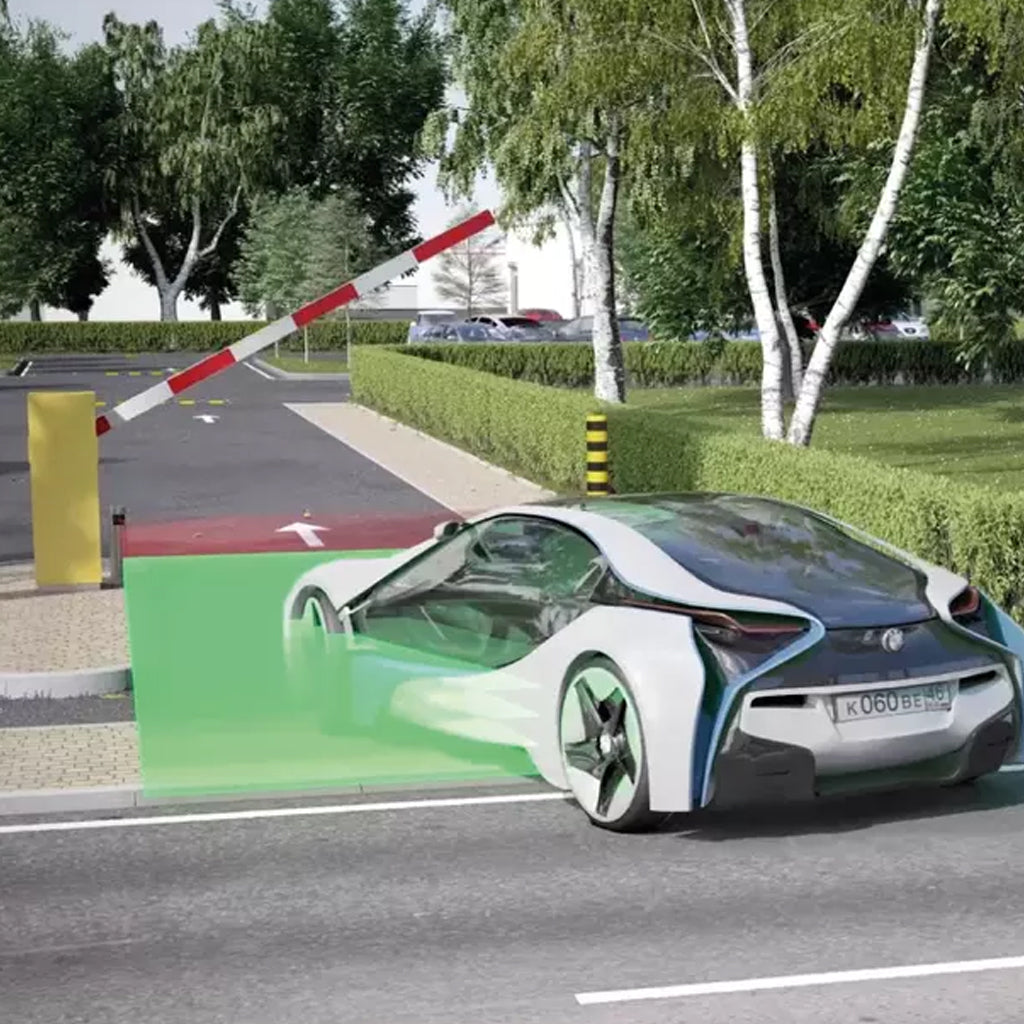

• Comfortable opening: All types of vehicles are detected in the opening field: passenger cars, electrical vehicles, vehicles made of composite materials, trucks with trailers…You can also define the vehicle’s trajectory for targeted opening.
• Pedestrian & cross-traffic filter: The barrier only opens when a vehicle is approaching. Pedestrians and parallell traffic in the opening field are screened.
• Safety of its users: The LZR®-H100 protects vehicles and people that are present in the safety field from contact with the boom (installation with reference point).
• Easy installation: Installation of the product without any impact on the surrounding ground and unrestricted and easy definition of the detection fields.

Specifications

• Technology: Laser scanner, time-of-flight measurement (4 laser curtains)
• Detection mode: Motion and presence
• Max. detection range: 9.6 m × 9.6 m (≈ 32 ft × 32 ft)
• Remission factor: > 2 %
• Angular resolution: 0.3516°
• Optical characteristics (IEC/EN 60825‑1):
• Supply voltage: 10–35 V DC at sensor side (must use SELV-compatible power supplies)
• Power consumption: < 5 W
• Peak current at power-on: 1.8 A (max. 80 ms @ 35 V)
• Cable length: 5 m standard, up to 10 m max ()
• Response time:
• Outputs:
• Test input:
• LED signals:

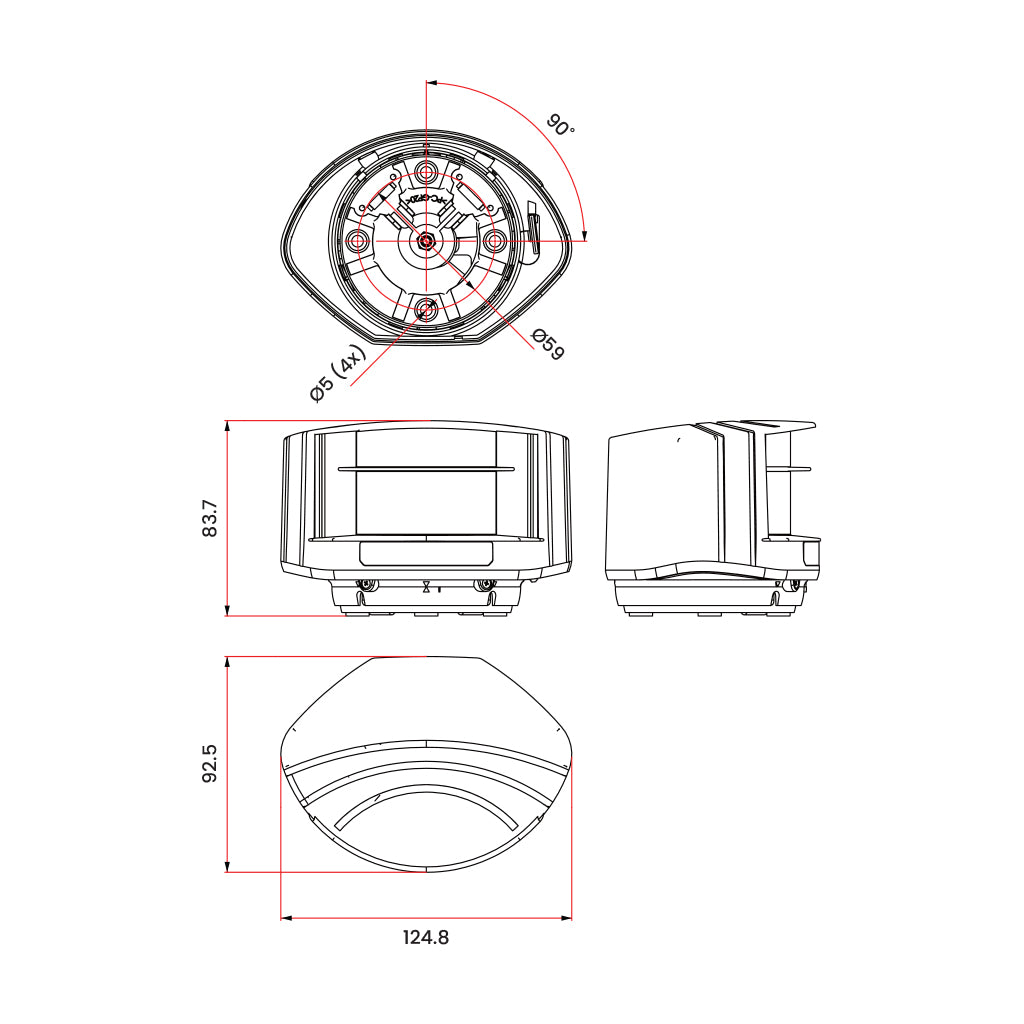

• Dimensions: 125 mm (D) × 93 mm (W) × 70 mm (H) (including mounting bracket + 14 mm)
• Material: PC/ASA; Colour: Black
• Mounting angles (bracket): -45°, 0°, +45°
• Rotation angles (bracket): -5° to +5° (lockable)
• Tilt angles (bracket): -3° to +3°
• Protection degree: IP65 (NEMA 4)
• Temperature range:
• Vibrations: < 2 G
• Pollution on front screens: max. 30%; homogeneous
• Conformity: Complies with applicable EU directives (e.g., EMC, LVD, RoHS, MD) and standards (IEC 60825‑1, ISO 13849‑1 PL “d” CAT 2, IEC 62061 SIL 2); see Declaration of Conformity for full details
