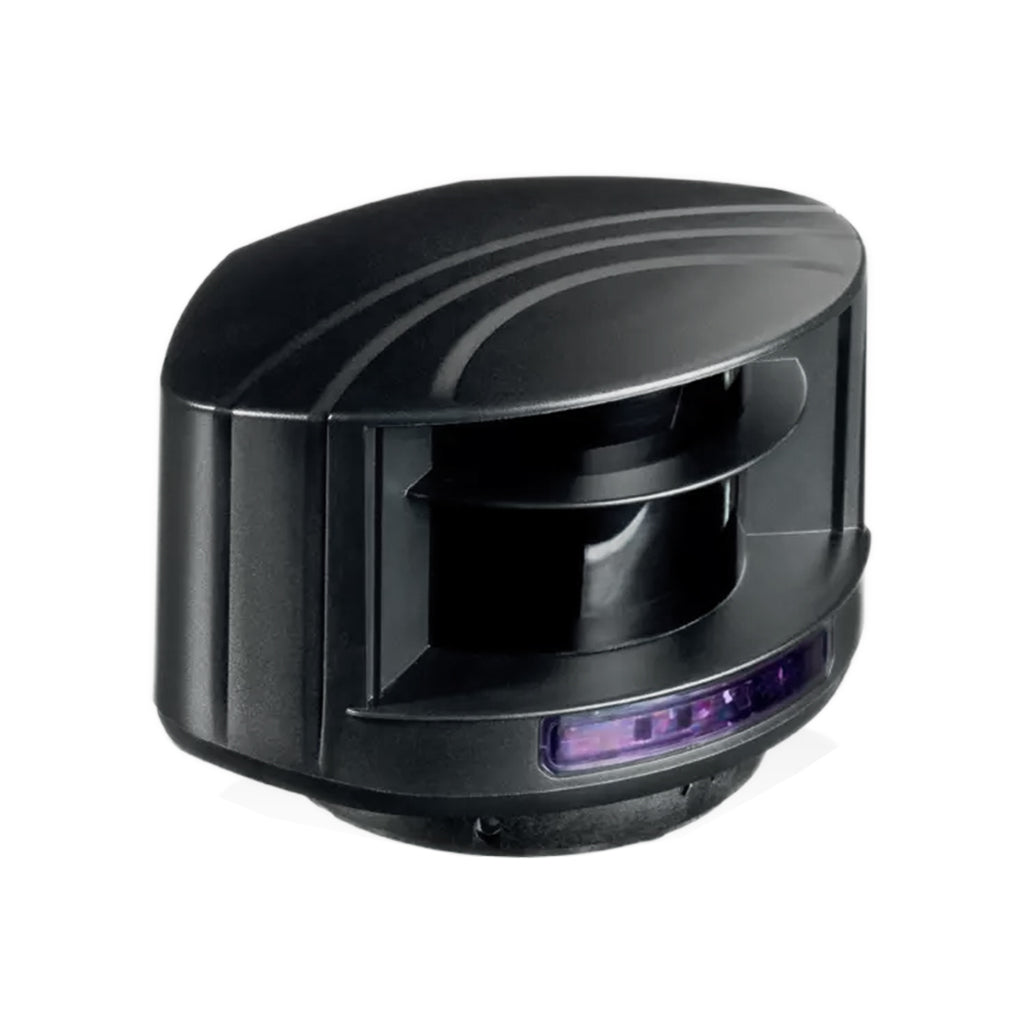

LZR-I100 Safety Sensor

Safety sensor for industrial doors

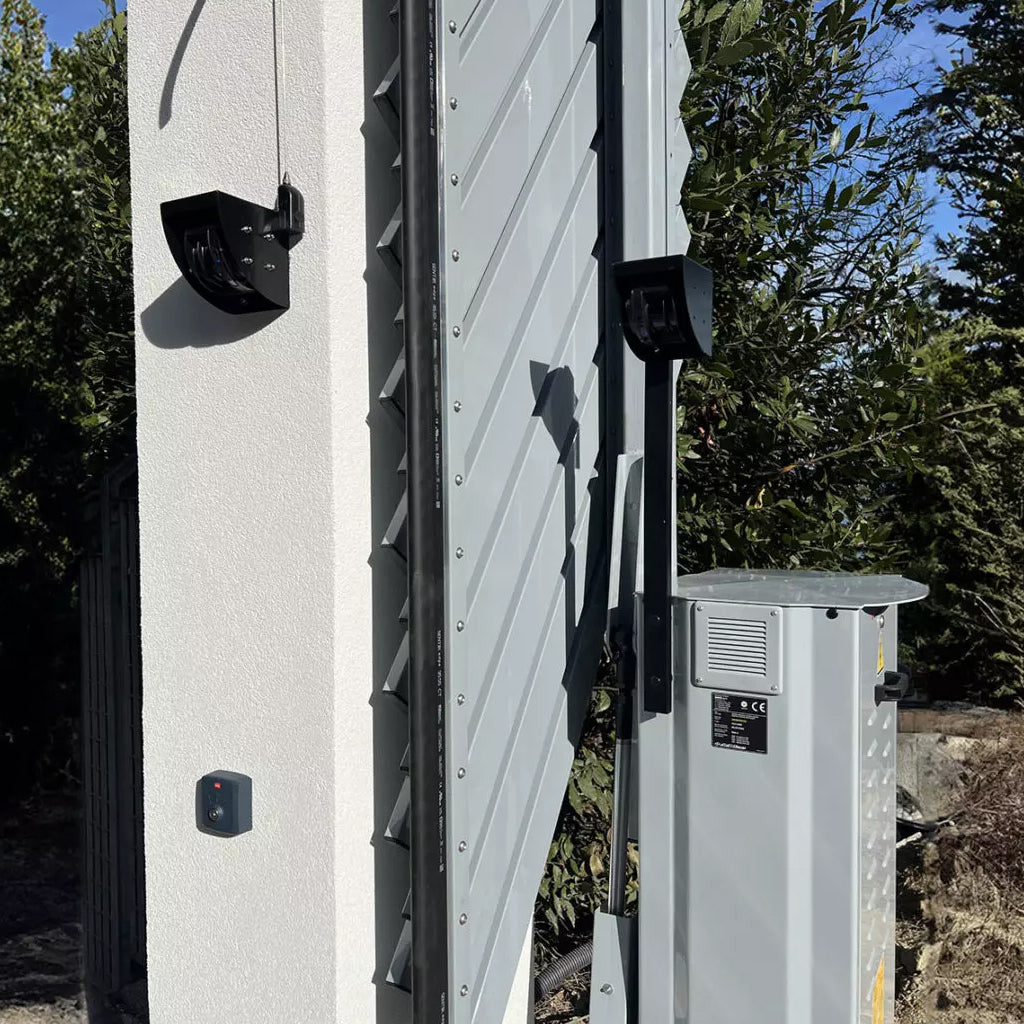

The LZR®-I100 works according to the principle of time of flight. This high-precision technology and the dynamic orientation of the LASER beams on 4 planes offer optimal safety in the door threshold and its proximity. The sensor is adapted to industrial environments and has a max. detection range of 9.9 m x 9.9 m.

Features

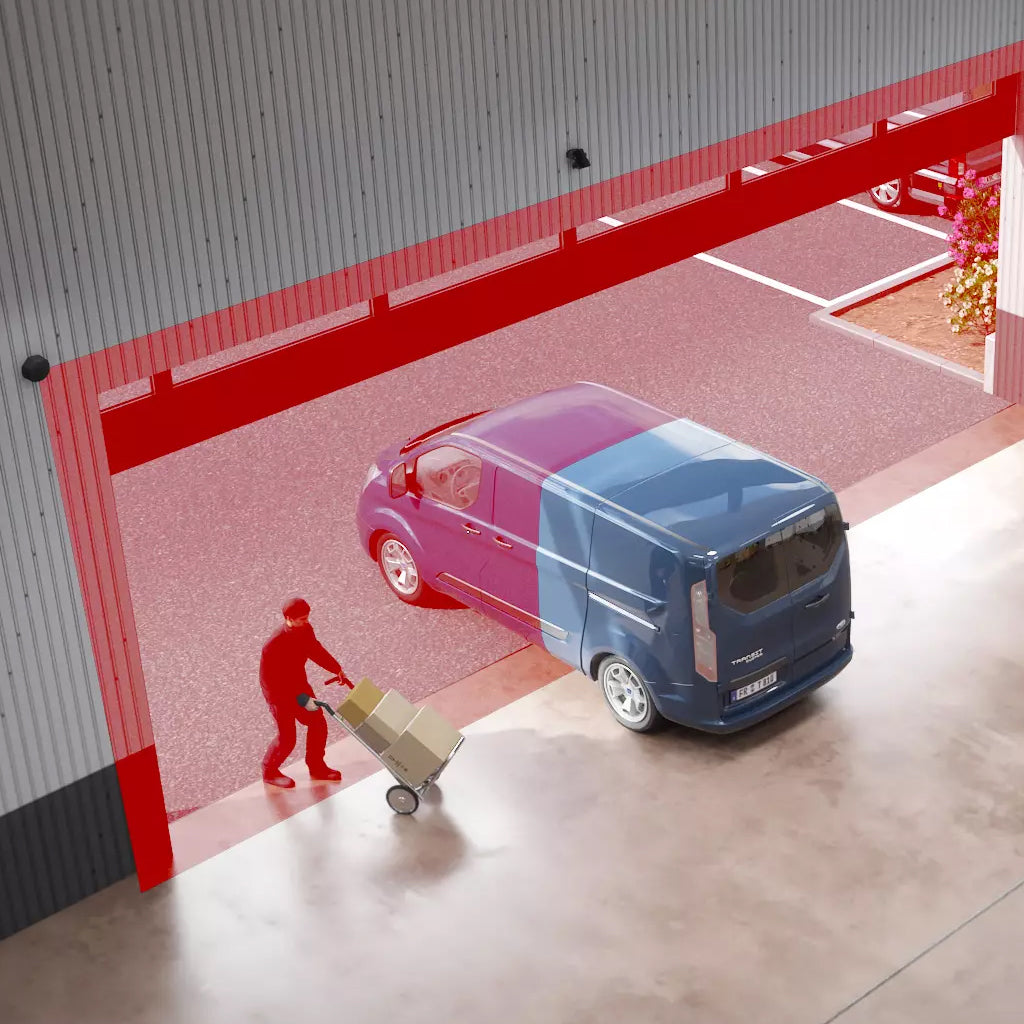

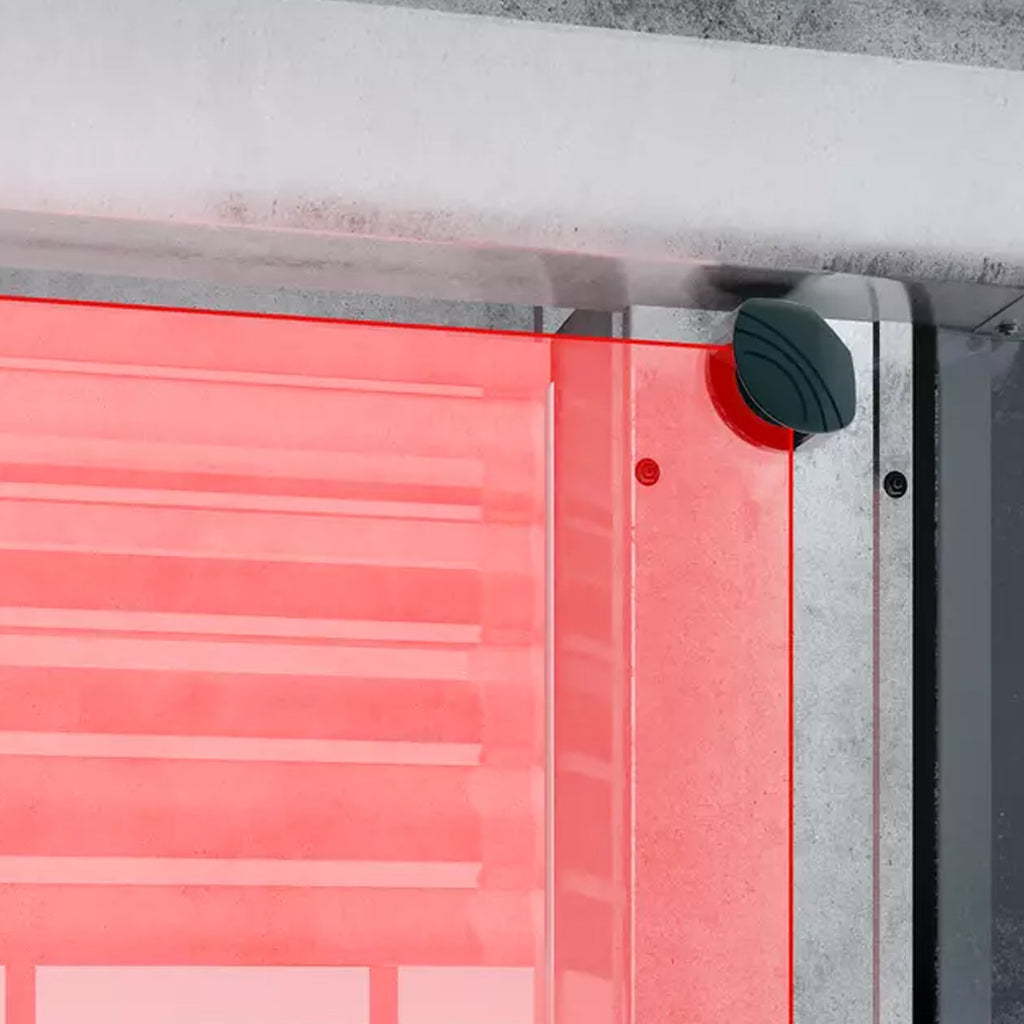

• Two separate detection areas: Safety at the opening and the closing of the door thanks to 2 separate detection areas.
• Optimized for industrial environments: IP65, 10 m cable, filters door vibrations and environmental interferences.
• Virtual opening buttons: Possibility to create 2 virtual push buttons to open the door.
• Alternative: Replaces the current solutions such as contact edges, light beams and lightgrids.

Specifications

• Technology: LASER scanner, time-of-flight measurement
• Detection mode: Presence (EN 12453 Type E)
• Max. detection range: 9.9 m × 9.9 m
• Remission factor: > 2 %
• Angular resolution: 0.3516°
• Typical minimum object size: 2.1 cm @ 3 m / 3.5 cm @ 5 m / 7 cm @ 10 m
• Testbody (EN 12445): 700 mm × 300 mm × 200 mm
• Emission characteristics:
• Supply voltage: 10–35 V DC @ sensor terminal
• Power consumption: < 5 W
• Response time: Typical 20 ms; max 80 ms
• Outputs:
• LED signals:

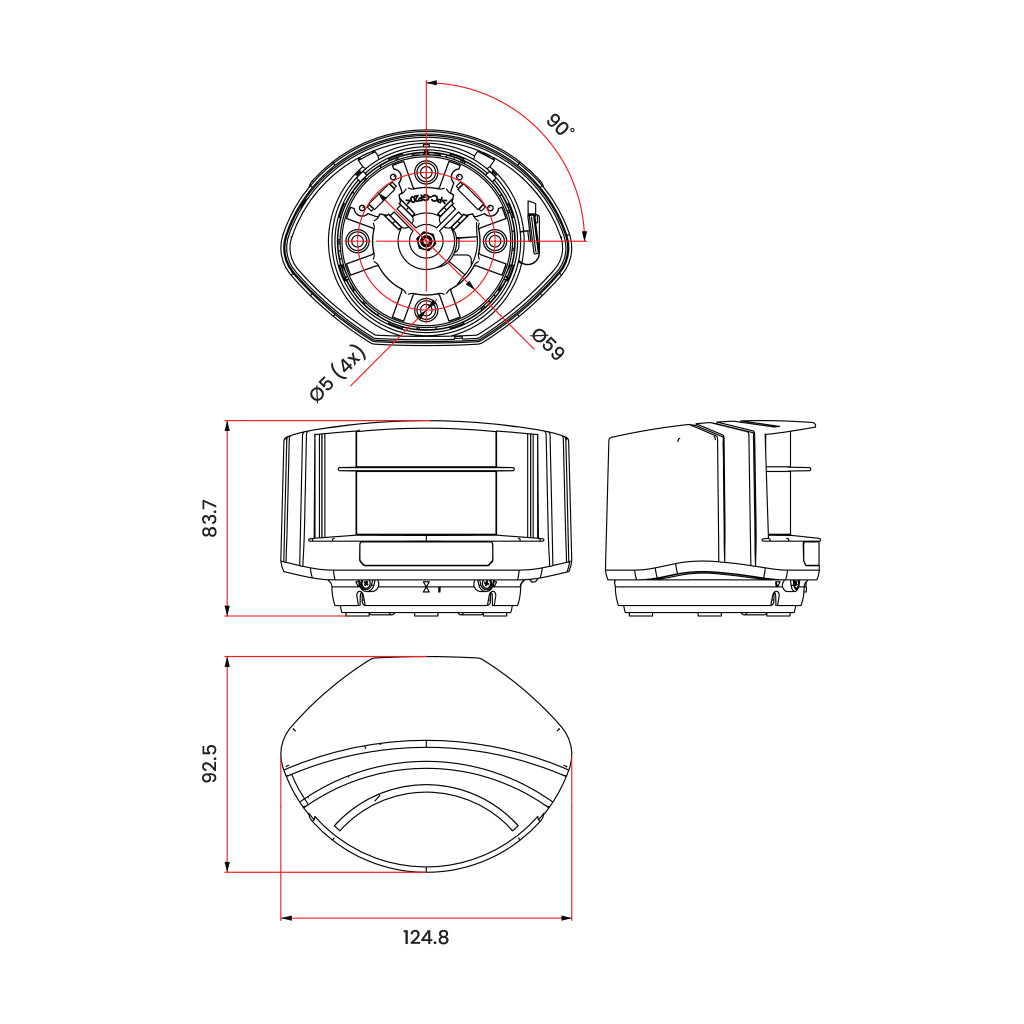

• Dimensions: 125 mm (L) × 93 mm (D) × 70 mm (H) (mounting bracket +14 mm)
• Material / Colour: PC/ASA; available in black
• Rotation angles (bracket): –5° to +5° (lockable)
• Tilt angles (bracket): –3° to +3°
• Protection degree: IP65
• Temperature range: –30 °C to +60 °C (powered)
• Humidity: 0–95 %, non-condensing
• Vibrations: < 2 G
• Norm conformity: Complies with relevant EU standards (EN 12453 E, EN 12978, EN ISO 13849‑1 PL “d” CAT 2, IEC 60825‑1, etc.)
