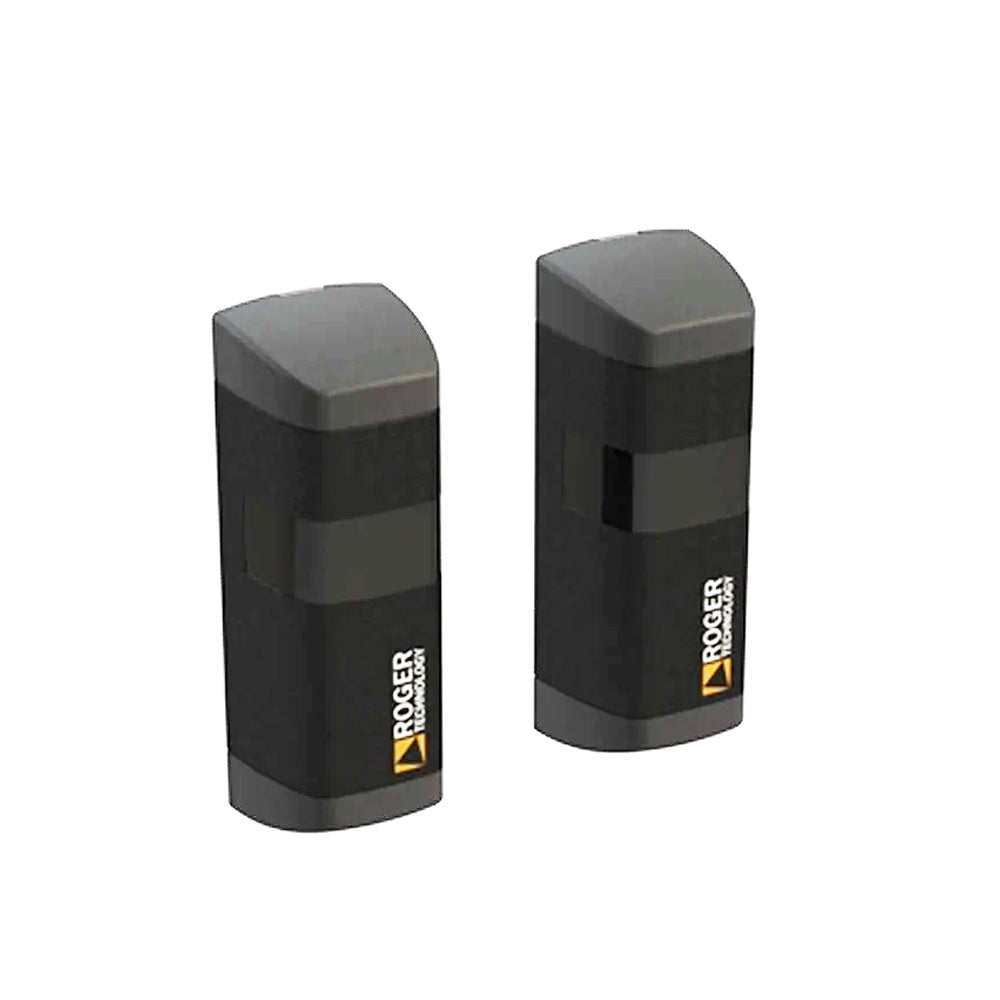

M90 Hardwired Photocells

Name: M90 Hardwired Photocells
Brand: Roger Automation
SKU: M90-F2ESO
Availability: InStock

We apologise for the inconvenience. Our pricing is currently experiencing technical difficulties, and some products may not be available for purchase at this time. We're working to resolve the issue and will update the website as soon as it's fixed. Thank you for your patience.

Brand:

Roger Automation

SKU:

M90-F2ESO

Product Type:

Automation Accessories

Roger's hardwired photocells have a range of 10-15m, powered 12/24v.

More information

Extended Description

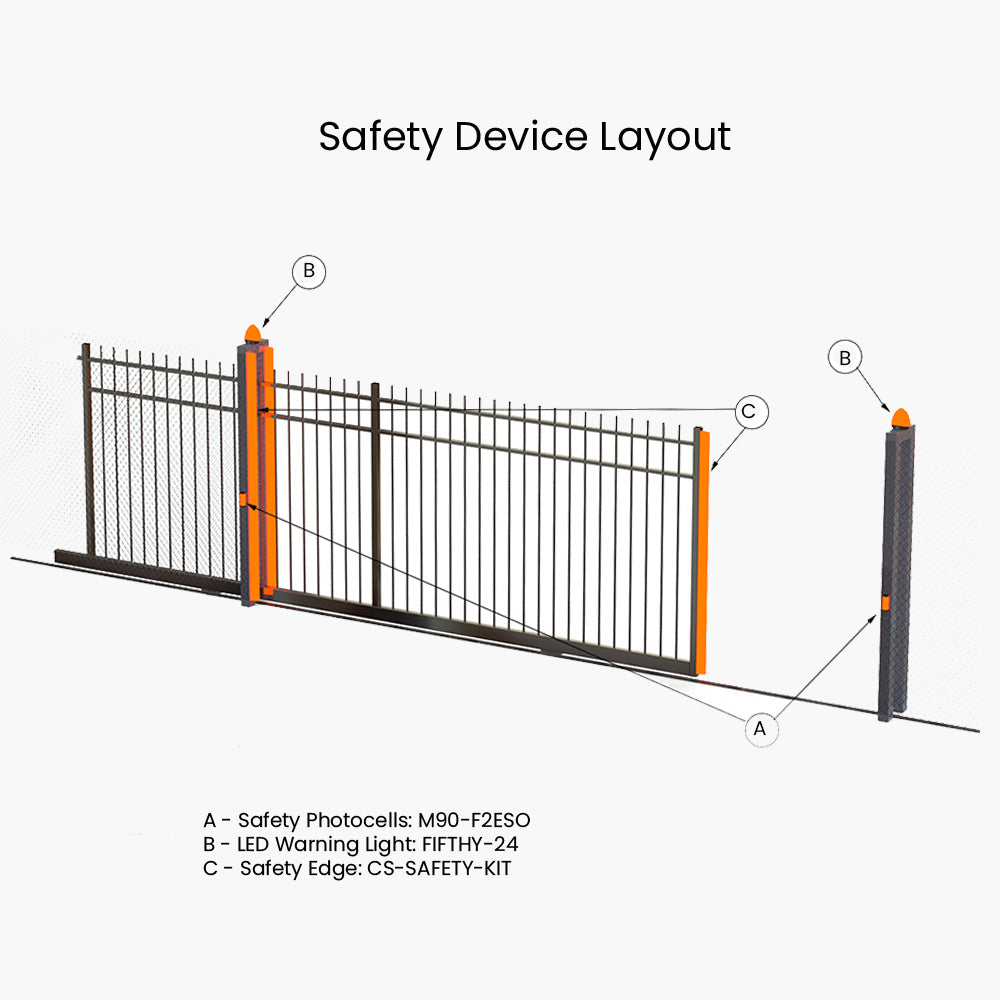

Roger M90 Hardwired Photocells are designed to prevent gates from closing on pedestrians or vehicles. They offer:

Vertical Adjustment: 15 degrees, allowing installation at uniform heights on sloped driveways.
Horizontal Adjustment: 270 degrees, enabling mounting directly onto guide posts without additional brackets.

For comprehensive safety:

Flashing lights alert of gate movement.
Safety edges at entrapment points are recommended.

Tech Specifications

Specifications

Standard power: 12/24V AC 50Hz - 12/24V DC
Absorption: TX=19mA, RX=20mA
Operating temperature: -20+55°C
Protection level: IP55
Maximum distance in open field: 10 - 15 m
Maximum number of photocells synchronised: 2
Orientation angle: 210 ° horizontal - 15 ° vertical
Relay contacts max current, voltage: 0,5A RX, 30V

Documents

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Roger Automation.

Download Quick Start Guide
