Navi for Doors, 300kg, 100% Duty Cycle

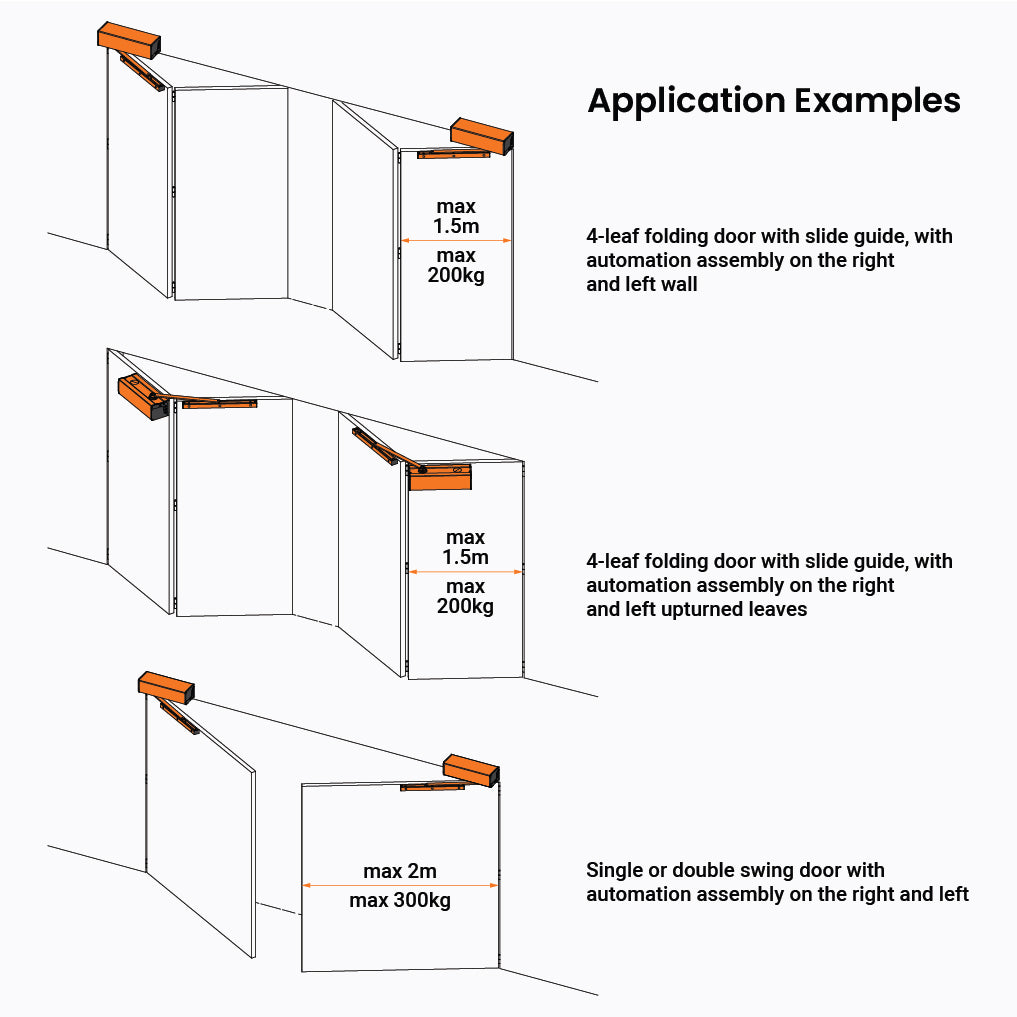

Navi is automation for industrial doors up to 1.5m, 200kg for bifold doors (each leaf) and 2m/300kg for single doors.

Brushless IPU Technology combined with low voltage electromechanical gear motor for intensive use, irreversible, on-board power inverter with integrated digital encoder, ideal for single-wing and double-wing doors, mechanical stop on opening. Without slide arm, pre-assembled gear motor for right installation.

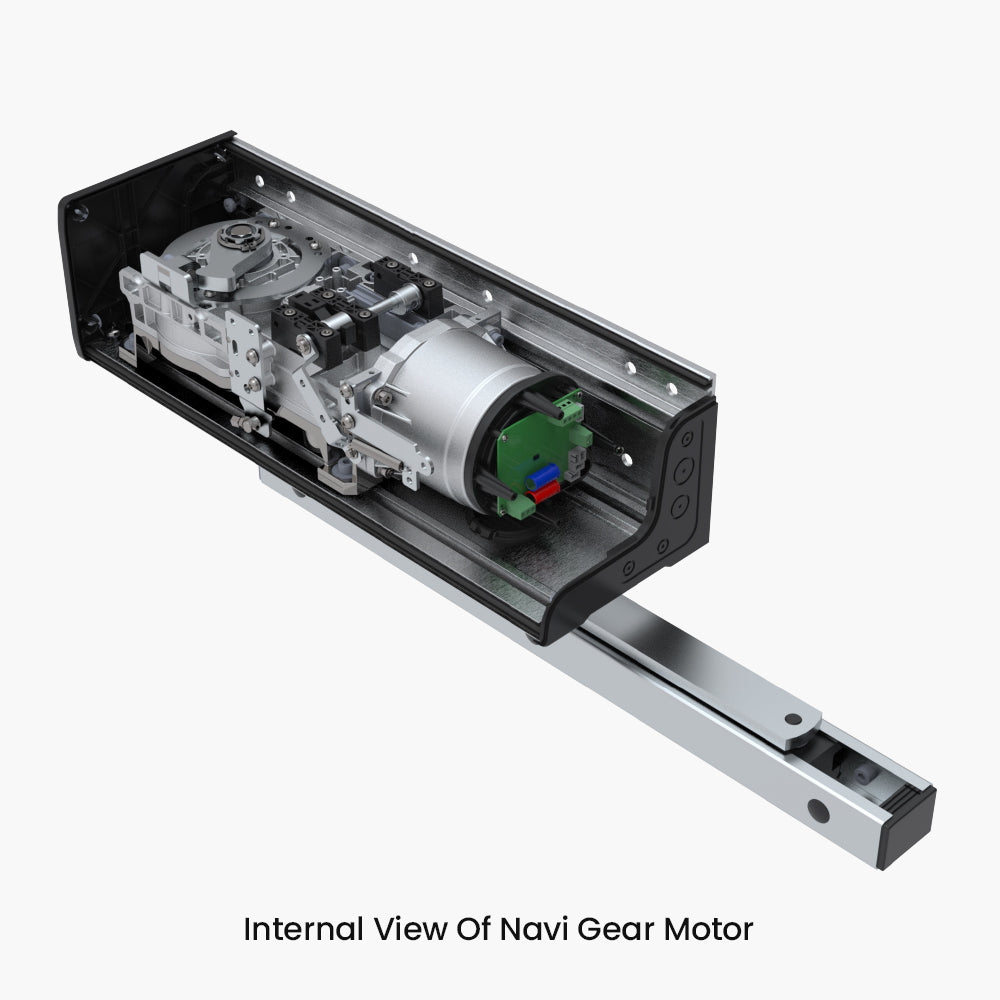

Gear Motor with Perfect Gears Navi is made entirely of aluminium, steel and bronze. All reduction gears are helical, treated with a temperature process and assembled with high-quality bearings. This ensures excellent, noiseless performance.

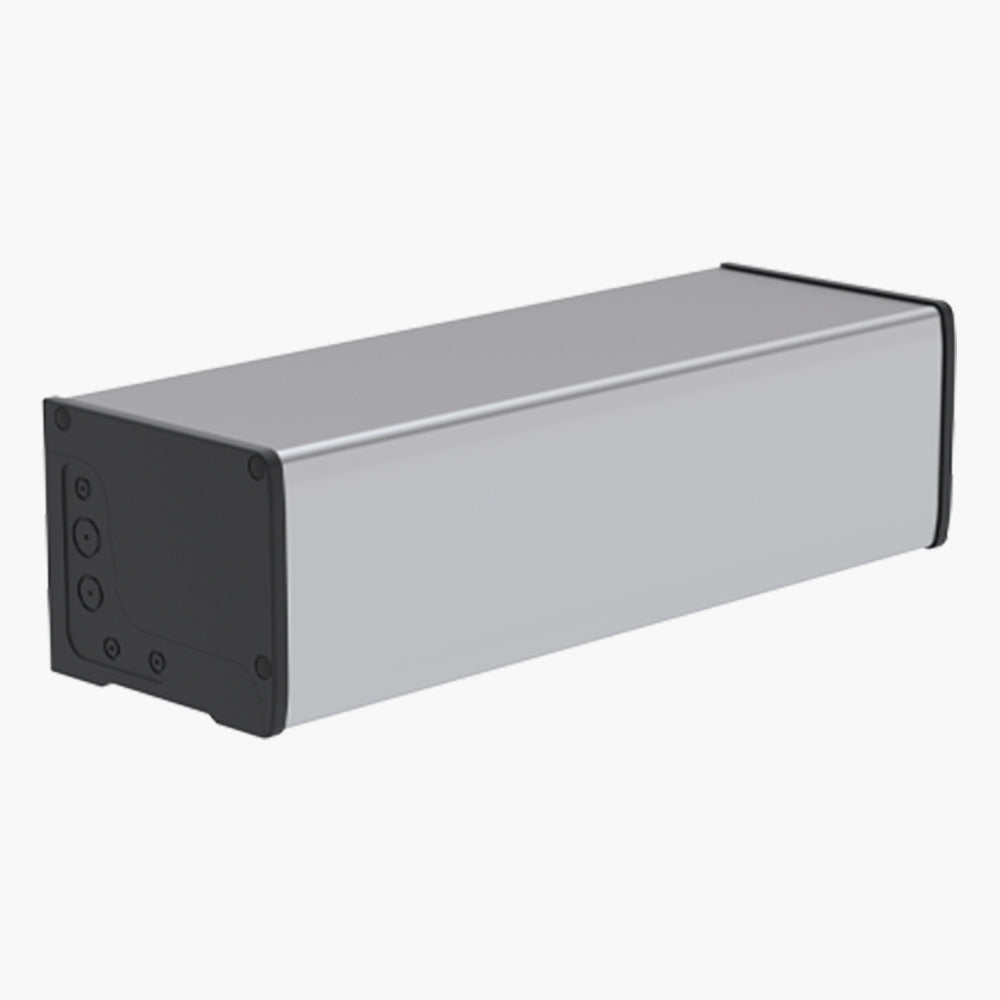

Aluminium-Titanium Body The gear motor is housed in two titanium-reinforced aluminium die castings. We machine all supporting surfaces to place the gasket and make the gear motor watertight. Absolute precision between the axes is ensured by machining the bearing seats.

Digital Brushless Motor with low voltage 36Vpermanent magnetic field. Extremely compact and powerful, it operates at ambient temperature, making it suitable for extremely intense use with low energy consumption.

Roger Technology's brushless operators undeniably stand as the industry's pinnacle. Roger's brushless innovation has sparked a revolution within the automation sector, and its unmistakable Italian design and manufacturing heritage ensure unrivalled quality and style.

Why opt for brushless technology? It boasts unparalleled power, unwavering reliability, and an exceptionally low energy footprint.

Models:

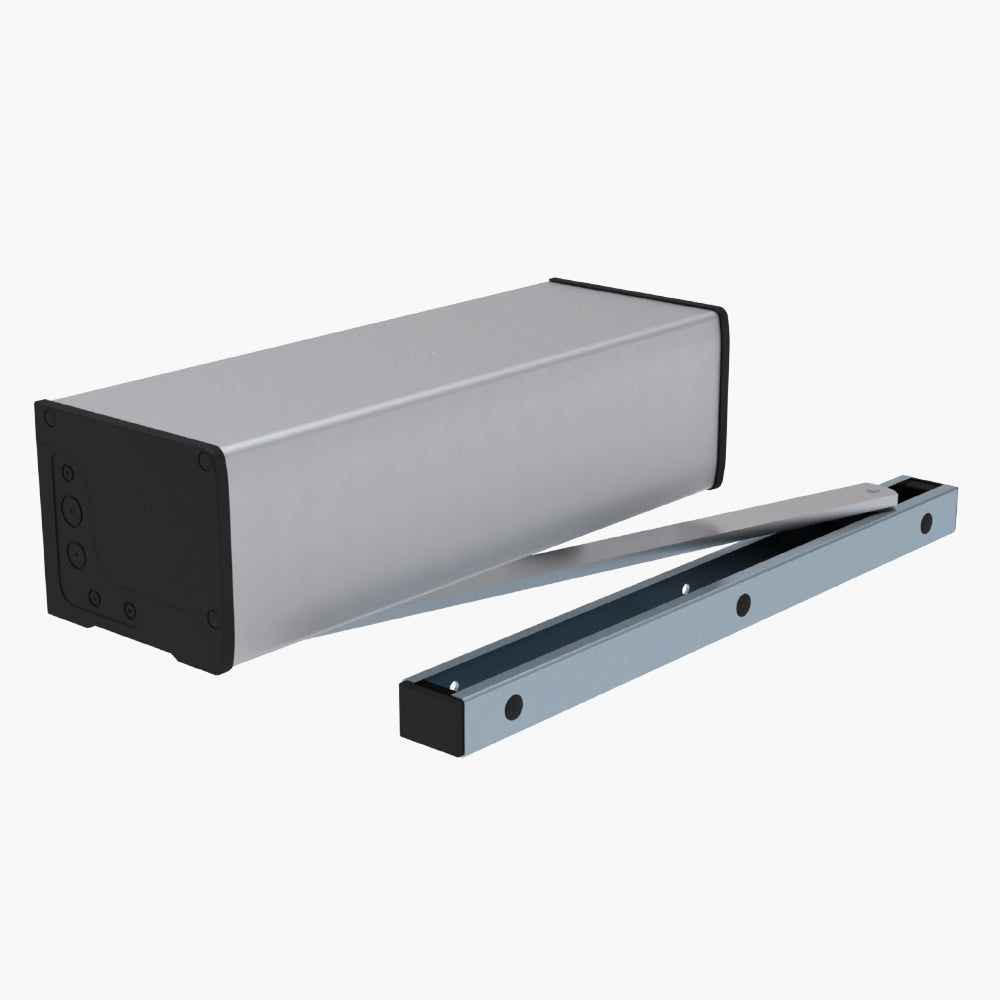

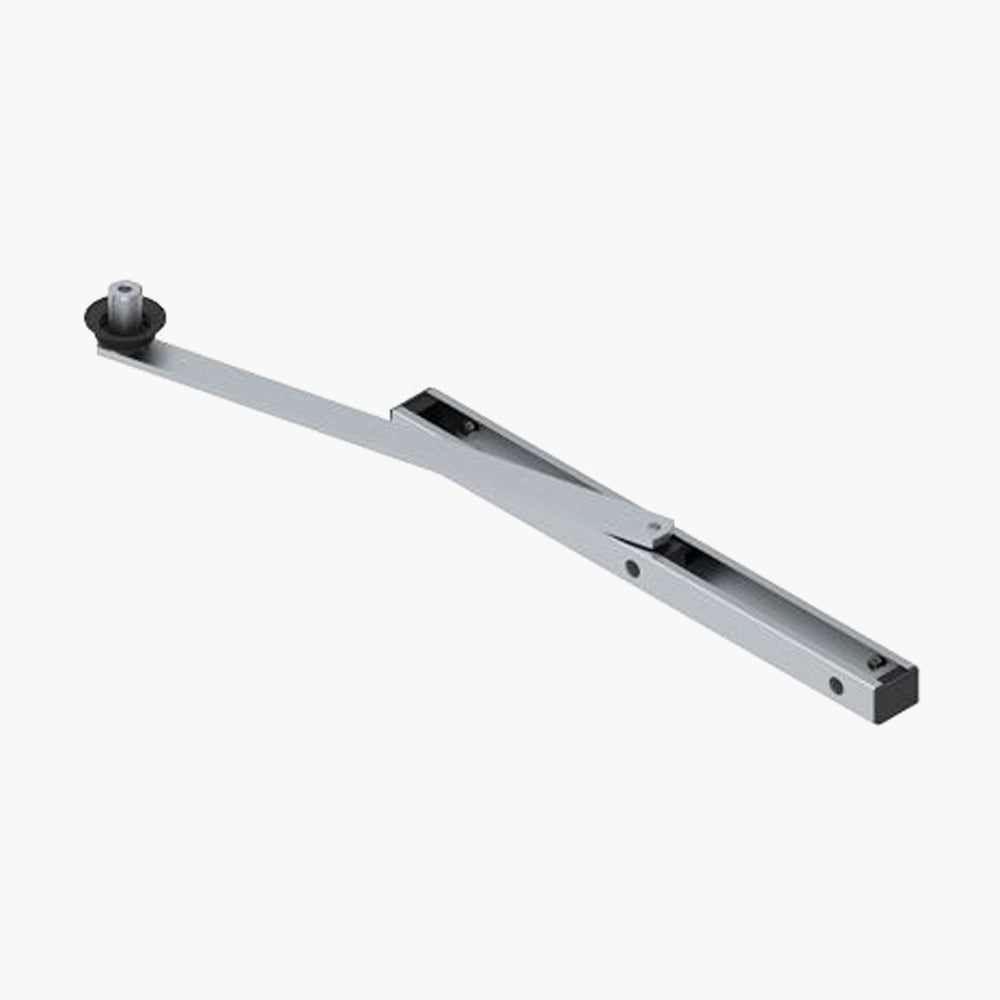

Navi is ordered as a pair, or individually as left or right. Each Navi is supplied with a slide arm and external controller.

Specifications:

• Motor type:  Brushless, Irreversible
• Power line supply:   230V AC 50Hz
• Motor power supply:   36V
• Power rating:   240W
• Frequency of use:   Intensive use
• Torque:   240 Nm
• Operating temperature:   -20+55° C
• Protection level:   IP44
• Manoeuvre speed:   0.75 - 2.8 Rpm
• Opening time:   10sec
• Limit switch:   Mechanical stopper in opening
• Recommended digital controllers:   F70/IPU36/BOX/P - F70/IPU36/BOX/SL
• Encoder:   Digital magnetic encoder sensored, 4096 PPR

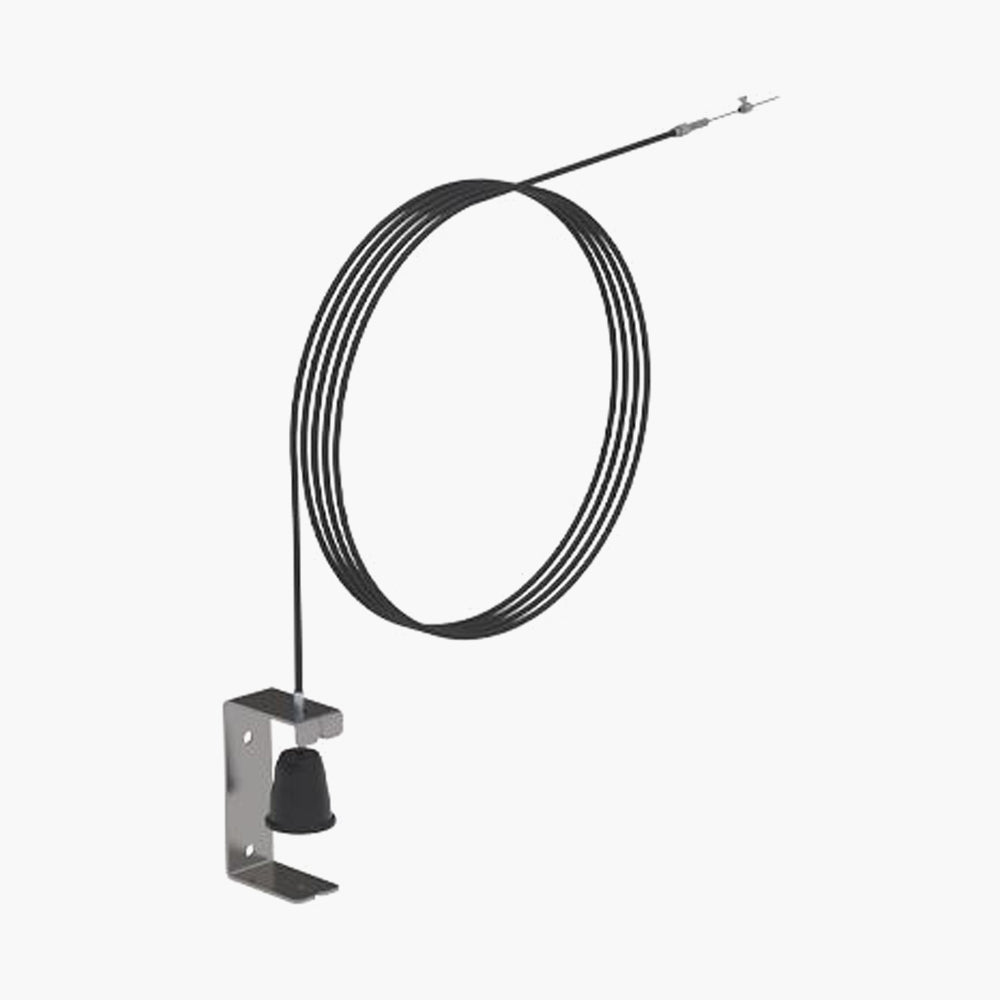

• Release system:   External lever with cord
• Battery backup:  3 external 12V DC 4.5 Amp/h (in external box) - optional
• Operating cycles per day (24 hours non-stop): 500 open-close

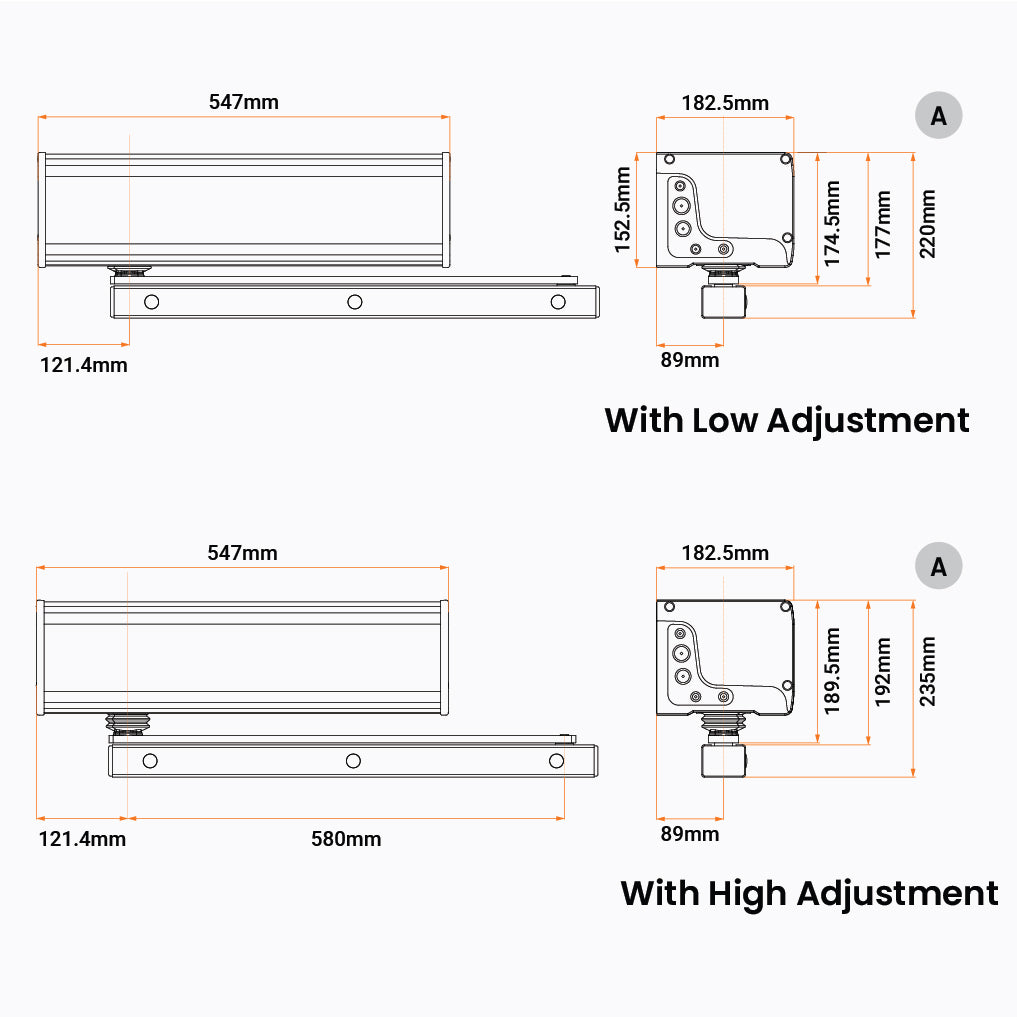

• Dimensions (L x W x H):   547 x 182.5 x 152.5
• Product weight packed:   18.2 Kg

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Roger Automation.

• Download Navi Operator Manual
• Download Navi Operator Brochure
