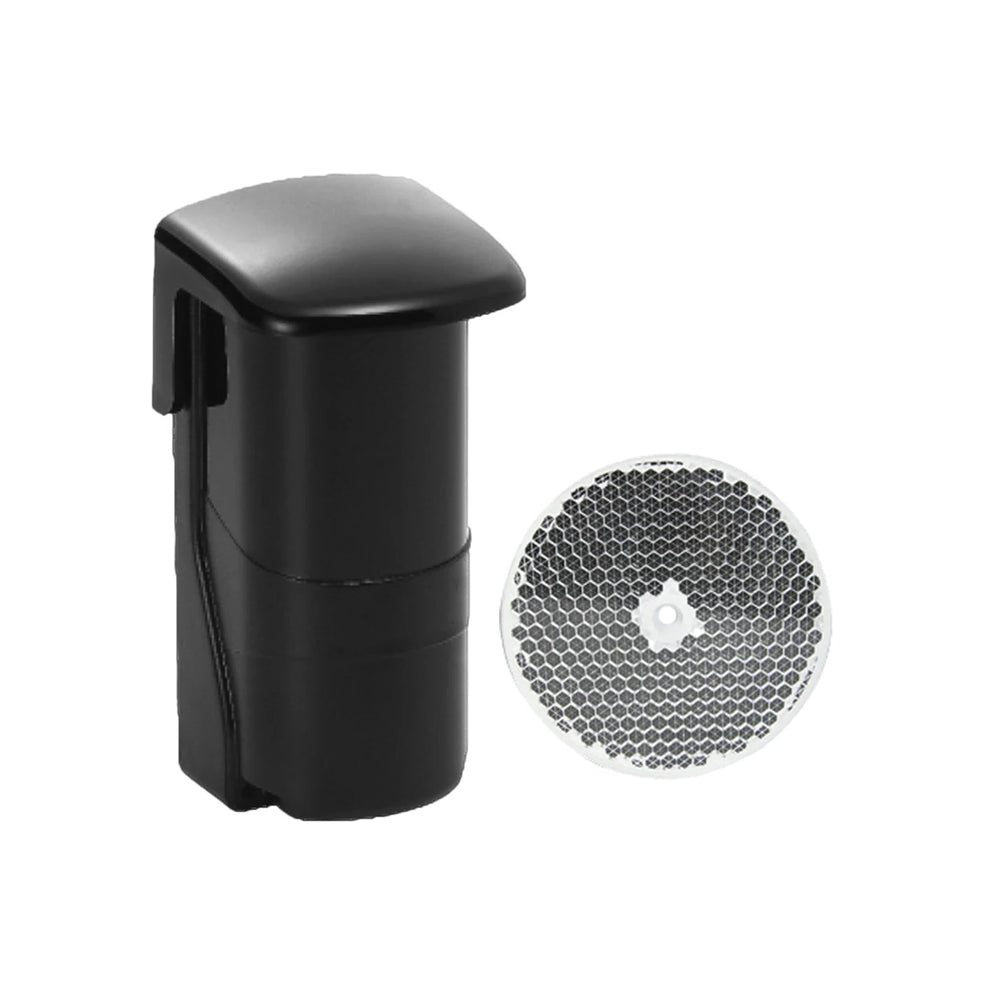

Reflective Photocell

Name: Reflective Photocell
Brand: Edgesmith
SKU: REFLEX-180
Availability: InStock

We apologise for the inconvenience. Our pricing is currently experiencing technical difficulties, and some products may not be available for purchase at this time. We're working to resolve the issue and will update the website as soon as it's fixed. Thank you for your patience.

Brand:

Edgesmith

SKU:

REFLEX-180

Product Type:

Automation Accessories

The REFLEX-180 safety photocells ensure that the gate won't close on a vehicle or person.

More information

Extended Description

The REFLEX-180 safety photocells ensure that the gate won't close on a vehicle or person. The Photocell must face the reflector and be on the same level as the photocell. With an adjustable 180-degree angle, you can mount them on the outside of the post and tilt the "eye" inward so they align perfectly. Reflective photocells are particularly useful in scenarios where running a cable to the opposite side of the driveway is not feasible.

Tech Specifications

Specifications

Input Voltage: 12-30V DC/AC 60 Hz (Non-Polarity)
Current consumption: 100 mA
Tx LED Element: Infrared LED/Wave length 740 nm
Beam Spreading angle: 5°
Contact Capacity: 30VDC/AC, 0.5A
Response Time: 10 msec
Delay Time of Relay: 100 msec
Weather protection: IP-55
Environment: -35°C 80°C
Dimension: 122 (L) 61 (W) 62 (D) mm
Cable: 2517 / 24AWG / 5~7 cores

Documents

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing automation accessories.

Download Product Manual

Reflective Photocell
