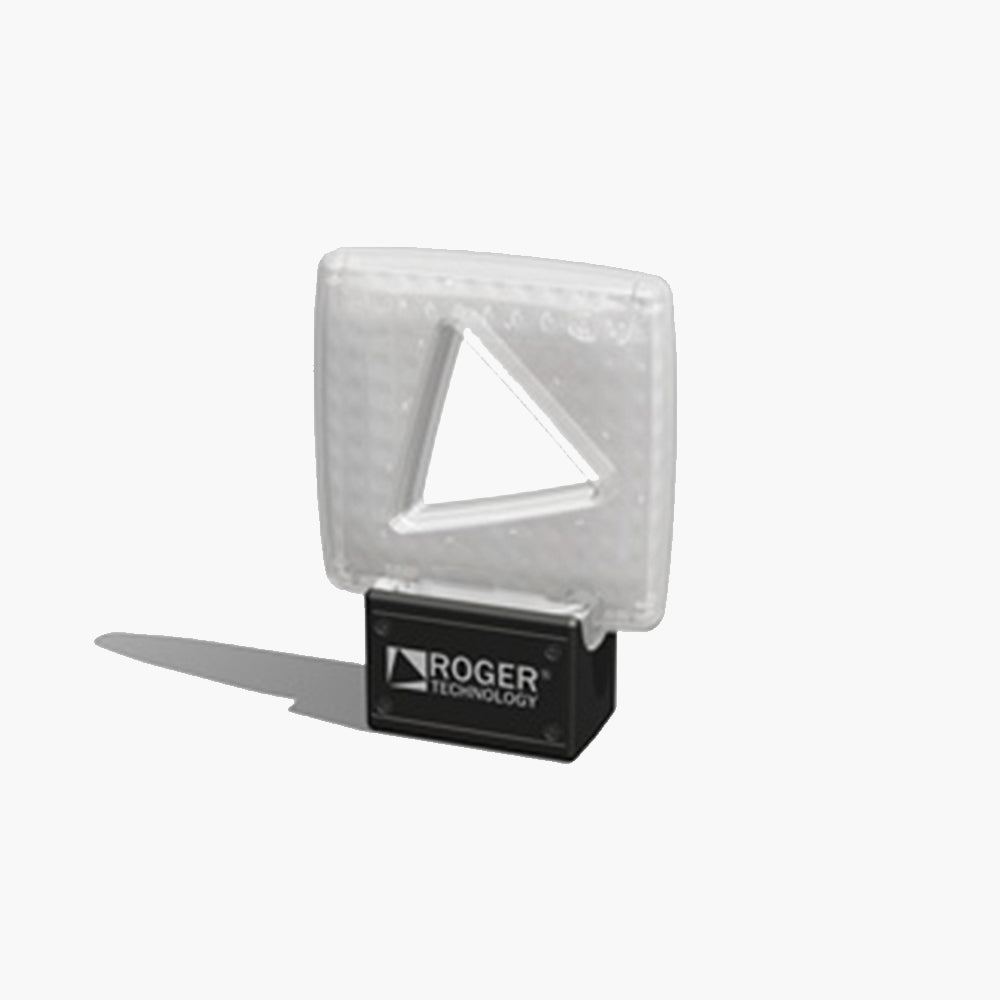

Roger Fifthy Safety Warning Light

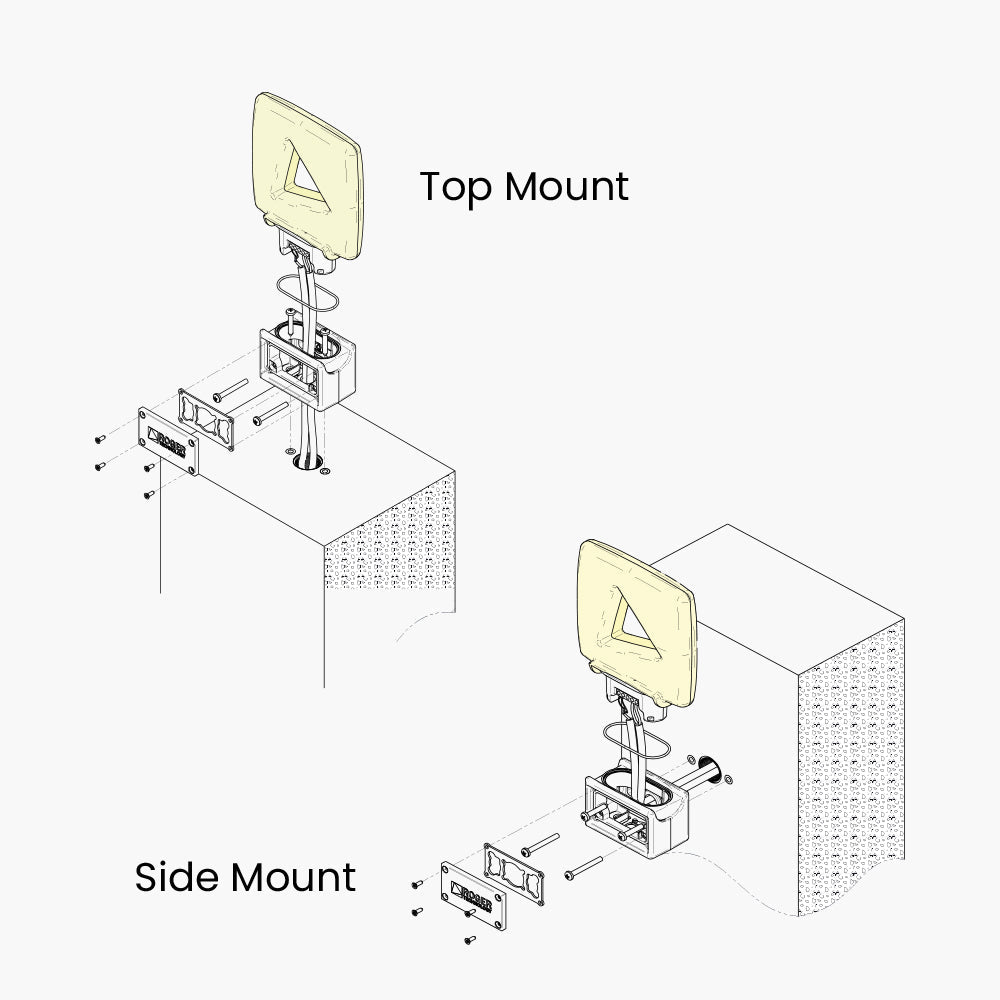

Roger Fifthy is a very bright safety warning light that flashes before the gate starts moving with a built-in antenna. It should be mounted so it is visible from inside and outside the property.

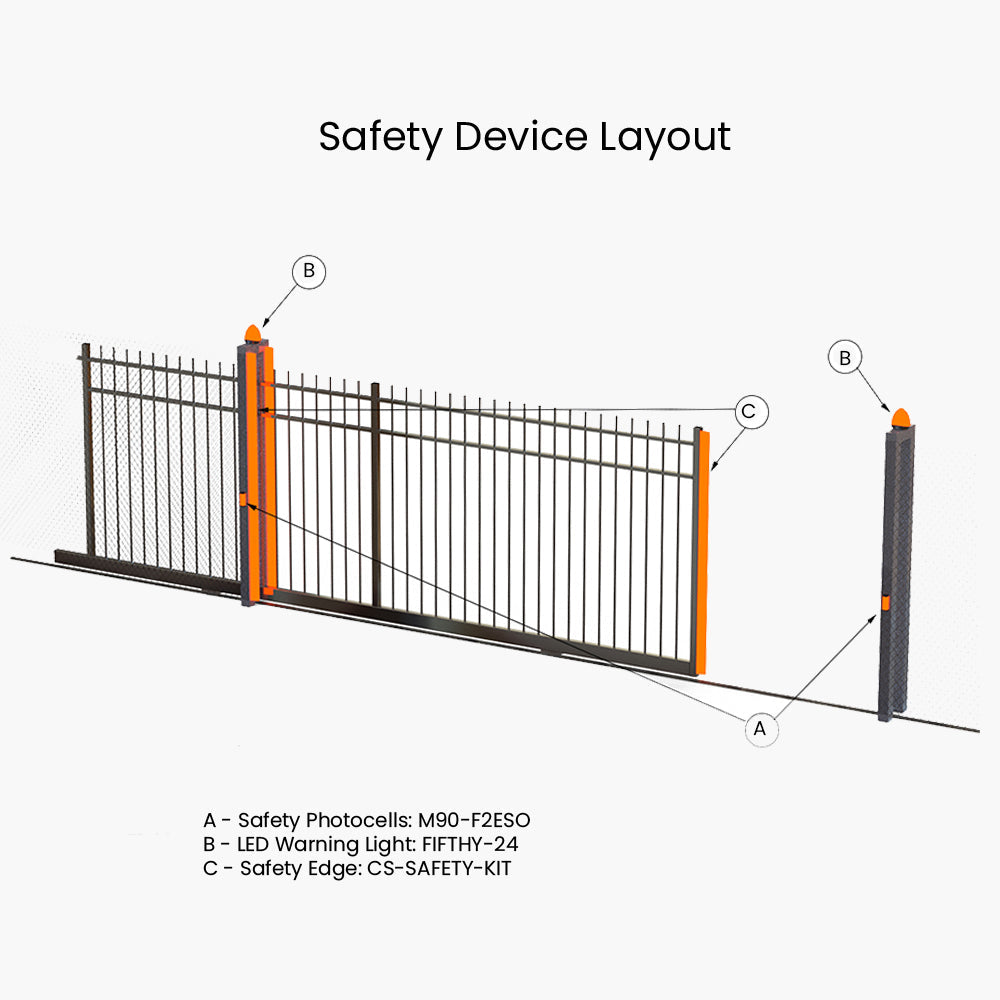

For a full safety configuration see the schematic in the images. Flashing lights warn of impending gate movement, photocells stop the gate from hitting a vehicle and a safety edge on entrapment points is the best practice for public parks and schools or if the homeowner is concerned with their children playing on their automated gate.

Specifications

• Standard power: 24V AC/DC
• Max flashing light charge: 6.5W
• Operating temperature: -20+55°C
• Protection level: IP55
• Type of light: 24 LED

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Roger Automation.

• Download Warning Light Installation Guide
