Safety Edge Profile

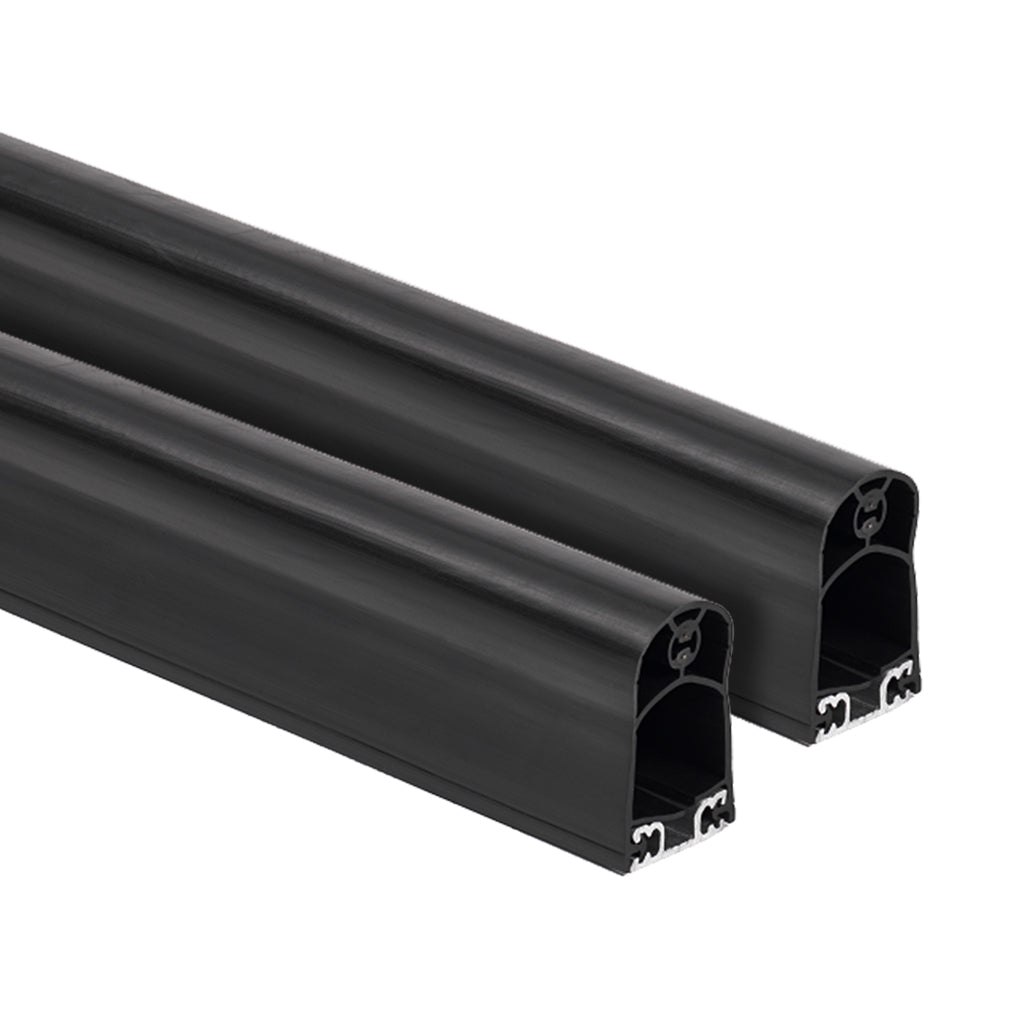

SP Sensor Profile Range by Mayser

Mayser has tailored a system specifically for the door and gate market with its SP sensor profile range. Here are the key features:

Ease of Use: Our sensor profiles are co-extruded, ensuring straightforward handling and offering high flexibility.

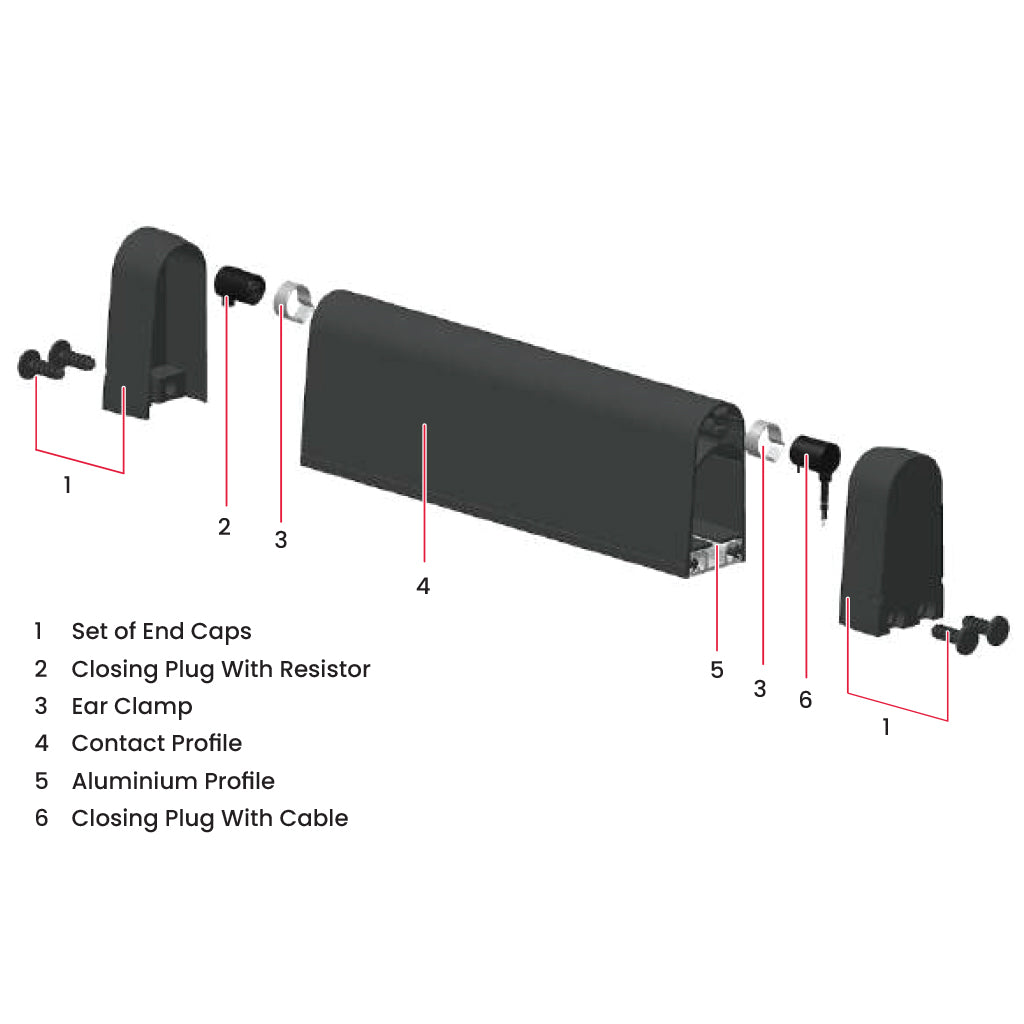

Modular Design: The profiles can be effortlessly combined with end caps and variable aluminium profiles. They hand-assemble quickly into fully functional safety edges using a smart plug-in system, eliminating the need for adhesives or tools.

Durability and Security: Plugs and resistors are designed with high pull-out forces and a non-slip texture, ensuring a secure and precise fit.

The system boasts an IP67 protection class, making it fully protected against dust, contact, and water jets from any direction.

Compatibility: Our sensor profiles work seamlessly with conventional gate control systems and transmission systems that have an 8k2 evaluation unit.

This system not only enhances safety but does so with an emphasis on user-friendly installation and robust environmental protection.

Closing edge protection at main and secondary closing edges in the following areas:

• Sliding Gates
• Revolving Doors
• Overhead Sectional Doors
• Roller Gates
• Folding Gates
• Crossing Gates / Barriers

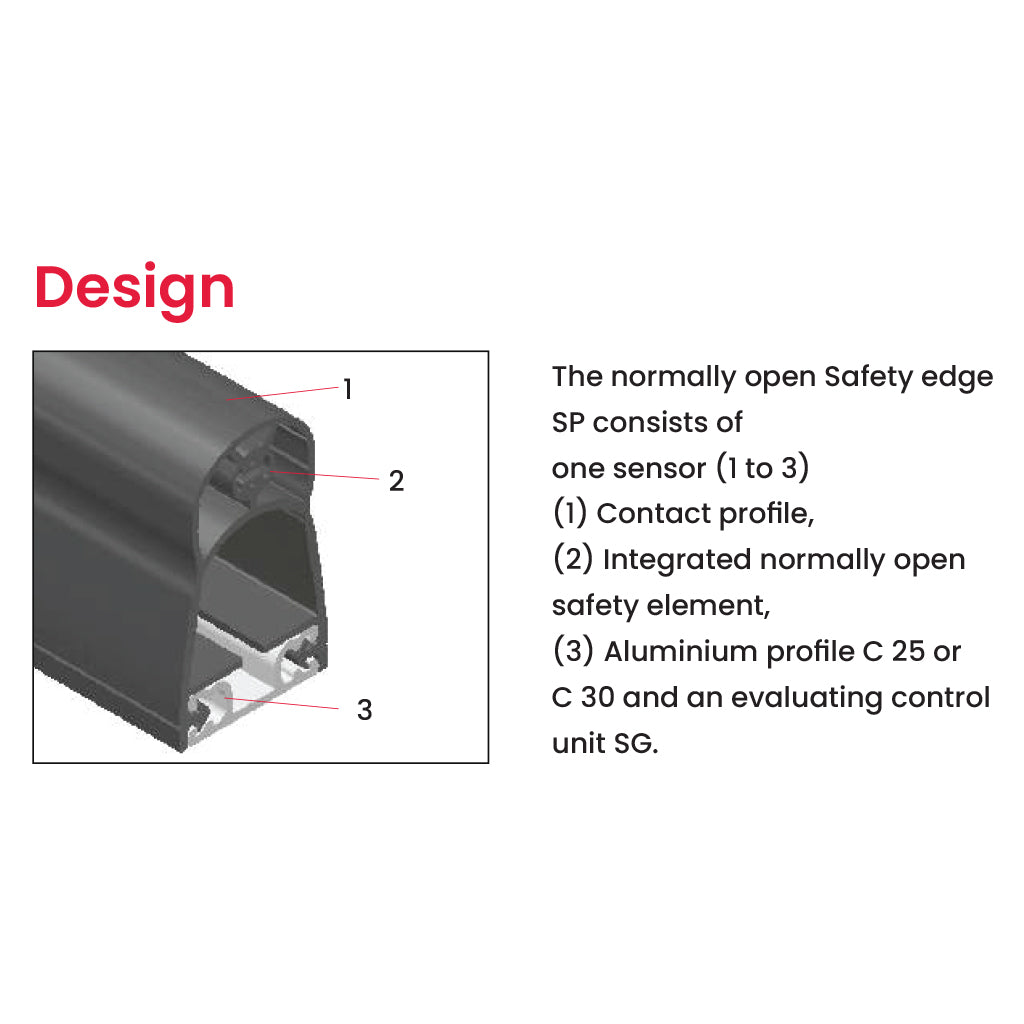

Operation: Pressure-sensitive, NO contact principle

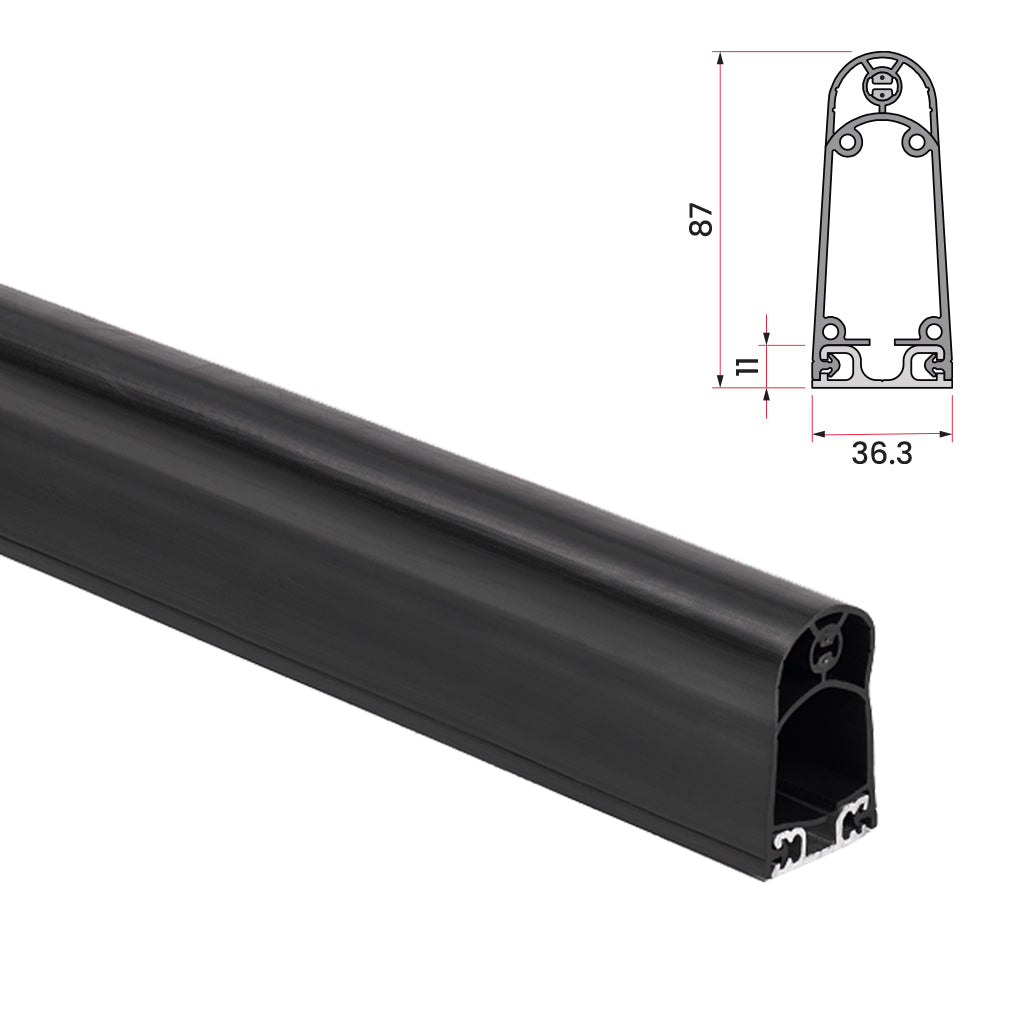

Overall height: 58 – 87 mm

Actuation angle: ±45° to ±50°

Applied standards:

• EN 12978
• ISO 13856-2
• ISO 13849-1

Degree of protection: IP67

Operating temperature: Min. –25°C max. +55°C

Actuation distance: 5–10 mm at 100 mm/s depending on profile

Over-travel distance: 1.4–52 mm depending on profile

Material: TPE

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Mayser.
