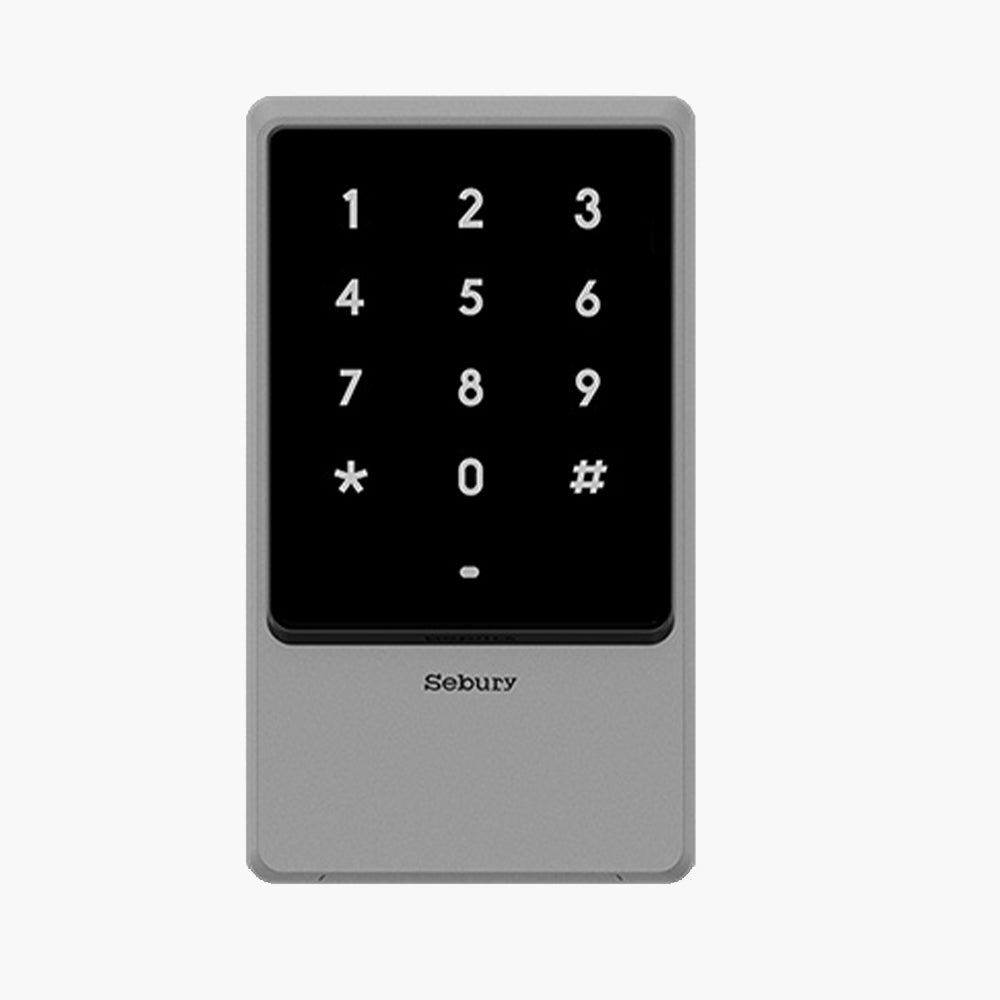

Glass-Touch Keypad

Name: Glass-Touch Keypad
Brand: Sebury
SKU: S-TOUCH2
Price: 228.18 AUD
Availability: InStock

Enquiry for Price

Brand:

Sebury

SKU:

S-TOUCH2

Product Type:

Automation Accessories

More information

Description

The Sebury Glass-touch Touch Keypad is engineered with a sophisticated design, making it the perfect choice for residential access control systems for gates and doors. This keypad stands out with its:

High-End Aesthetics: Its sleek, modern appearance seamlessly integrates with any architectural style.
Anti-Vandal Construction: Built to withstand tampering, ensuring durability and longevity.
Waterproof Design: Reliable performance in all weather conditions, from rain to snow.
Versatile Access Methods: Supports multiple entry options including PIN code, Card access, or a combination of PIN+Card for enhanced security.

Extended Description

The Sebury Glass Touch Keypad is ideal for access control of gates and doors. It is anti-vandal, waterproof and supports PIN, Card or PIN+Card. Wiegand 26 output & input make it can be used as controller and slave reader.

Features

Metal structure, high strength wear-resistant reinforced glass panel, capacitive touch keypad.
125KHz and 13.56MHz dual-band antenna, support EM/HID/MF/NFC cards.
A standalone mode, anti-passback mode: Wiegand input, an external card reader can be connected.
The backlight can be set to normal ON, normal OFF or automatic mode.
Reader mode: Wiegand output, LED and Buzzer control input.
Fully potted process, IP68.

Tech Specifications

Specifications

Material: Zinc Alloy+ Reinforced Glass
Input Voltage: DC12~24V
Idle Current: ≤50mA
Card Reading Type:125KHz: EM/HID 13.56MHz: MF/CPU/NFC (ISO14443A)
Reading Card Distance: 125KHz: ≤5cm 13.56MHz: ≤2cm
Output Format: Card: Wiegand 26-37 bit (HID card output Wiegand 26-37 automatically.) Keypad: 4-bit, 8-bit, virtual card number
Working Temperature:-20~60° C
Working Humidity:0~95% (no condensation)

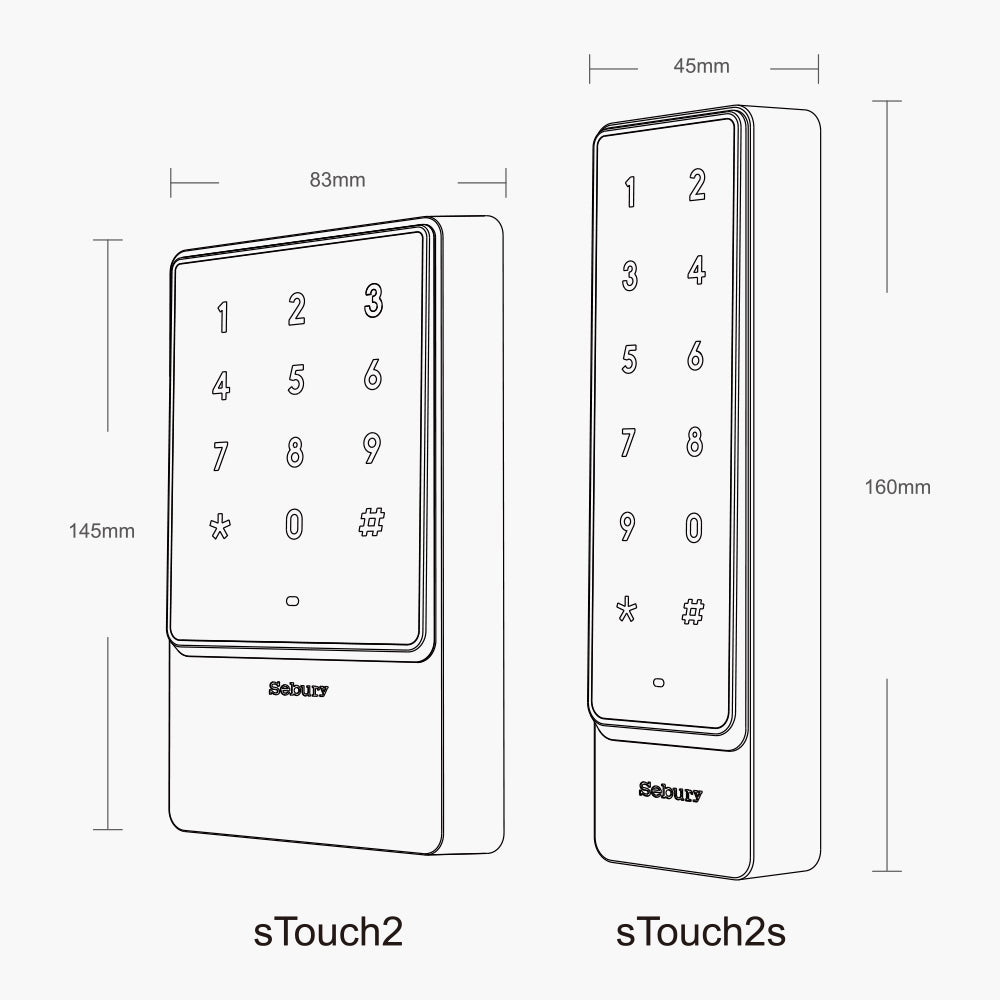

Product Dimension:160 x 45 x 26mm

Documents

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Automation.

Download Installation Guide
