E D G E S M I T H ' S
T O W E R P R O
Designed by Edgesmith. Powered by Roger Technology.

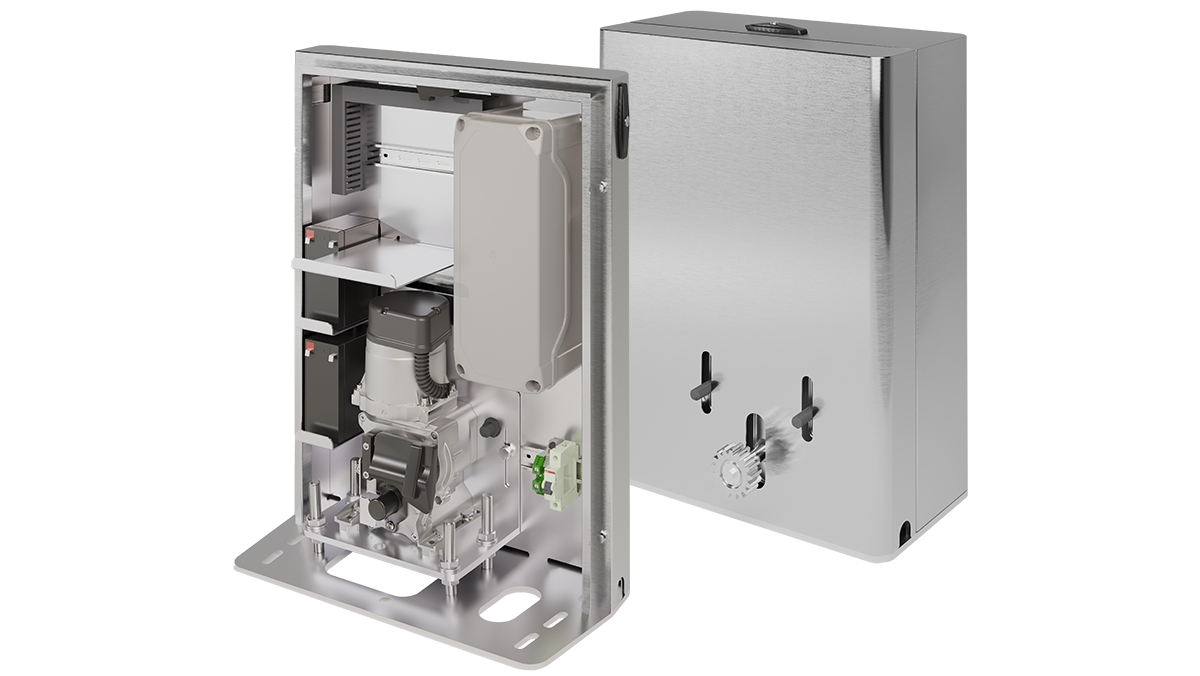

The TOWER PRO is a unique industrial gate operator developed by Edgesmith Australia, featuring the advanced Roger Technology Brushless TOWER110 motor.TW110 with digital controller in pre-wired box, for gates up to 2000kg.
It’s a low-voltage system capable of driving gates up to 2000kg, combining industrial power with modern efficiency.
Unlike traditional three-phase high-voltage motors, the TOWER PRO includes a built in battery backup system, ensuring your gate remains fully operational even during power outages.
Thanks to Roger’s Brushless Digital Technology, the motor delivers a 100% duty cycle, allowing continuous, non-stop operation.
It also provides exceptional control over speed, soft start and slowdown, and precise obstacle detection — all managed through an ultra-sensitive encoder for maximum safety and performance.
Key Features
The TOWER PRO delivers smooth, powerful performance with its brushless digital motor, high-resolution encoder, and true 100% duty cycle.
It features a stainless steel enclosure, adjustable motor height, clean cable management, easy conduit access, photocell support, manual override,
and a built-in battery backup to keep gates operating during power outages.

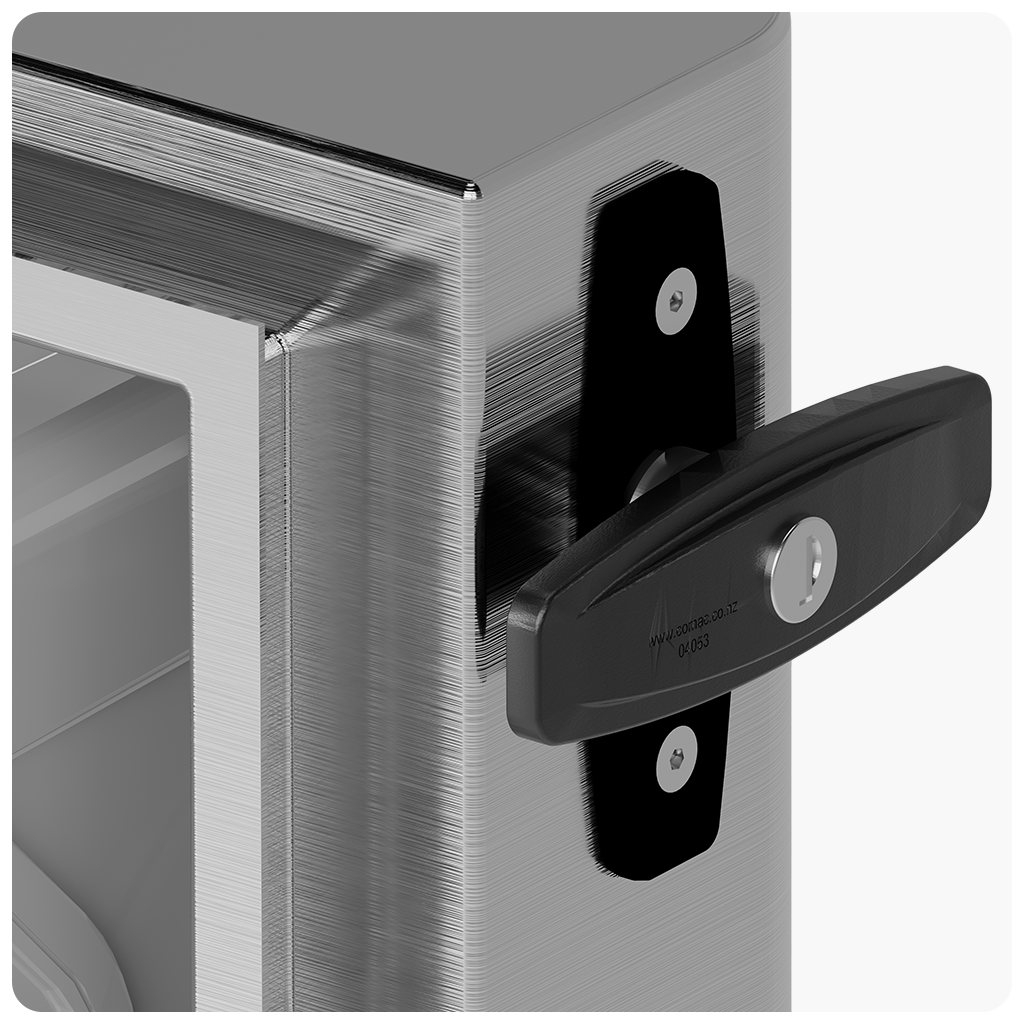

External Manual Override
Allows quick, safe manual gate operation during emergencies or maintenance.

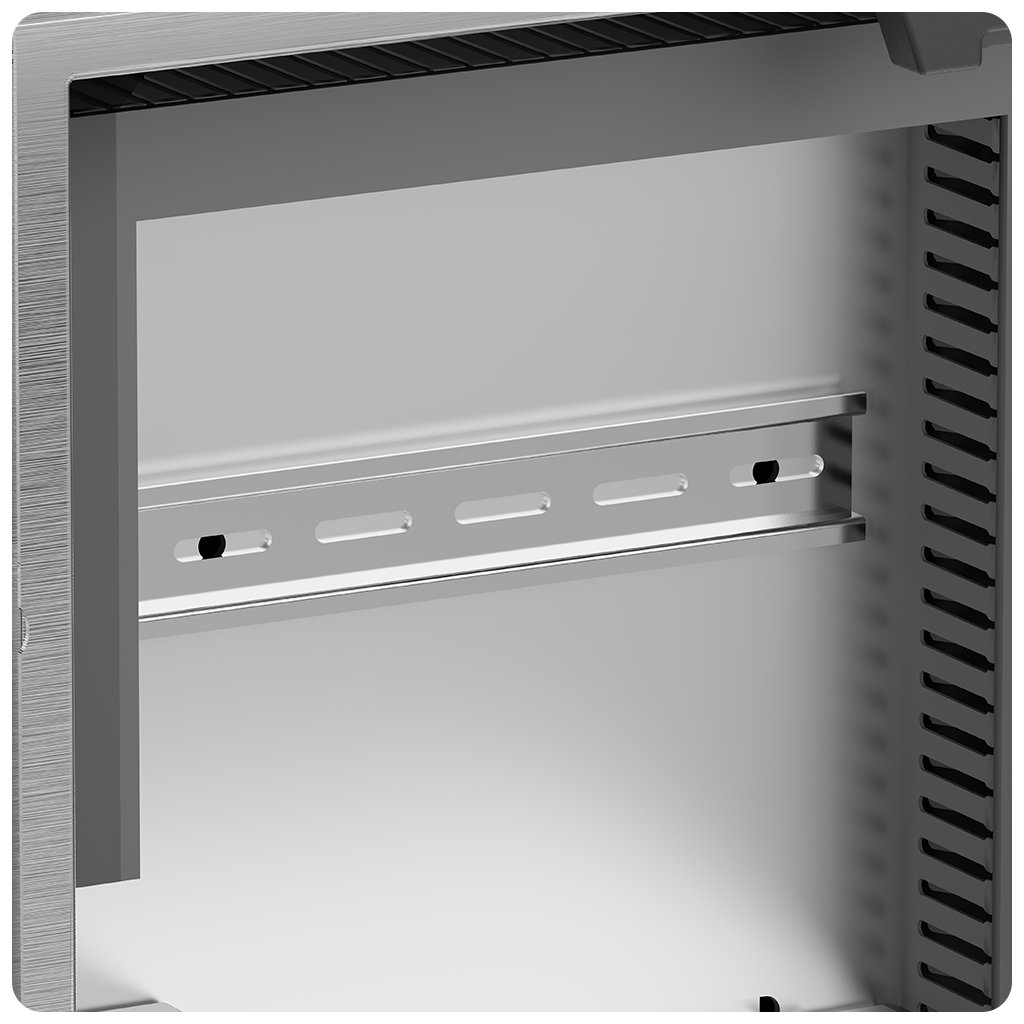

Clean Cable Management
DIN rail, trunking and cable duct keep wiring organised for a tidy, professional installation.
Stainless Steel Enclosure
Durable, weather-resistant housing protects the operator in harsh environments.

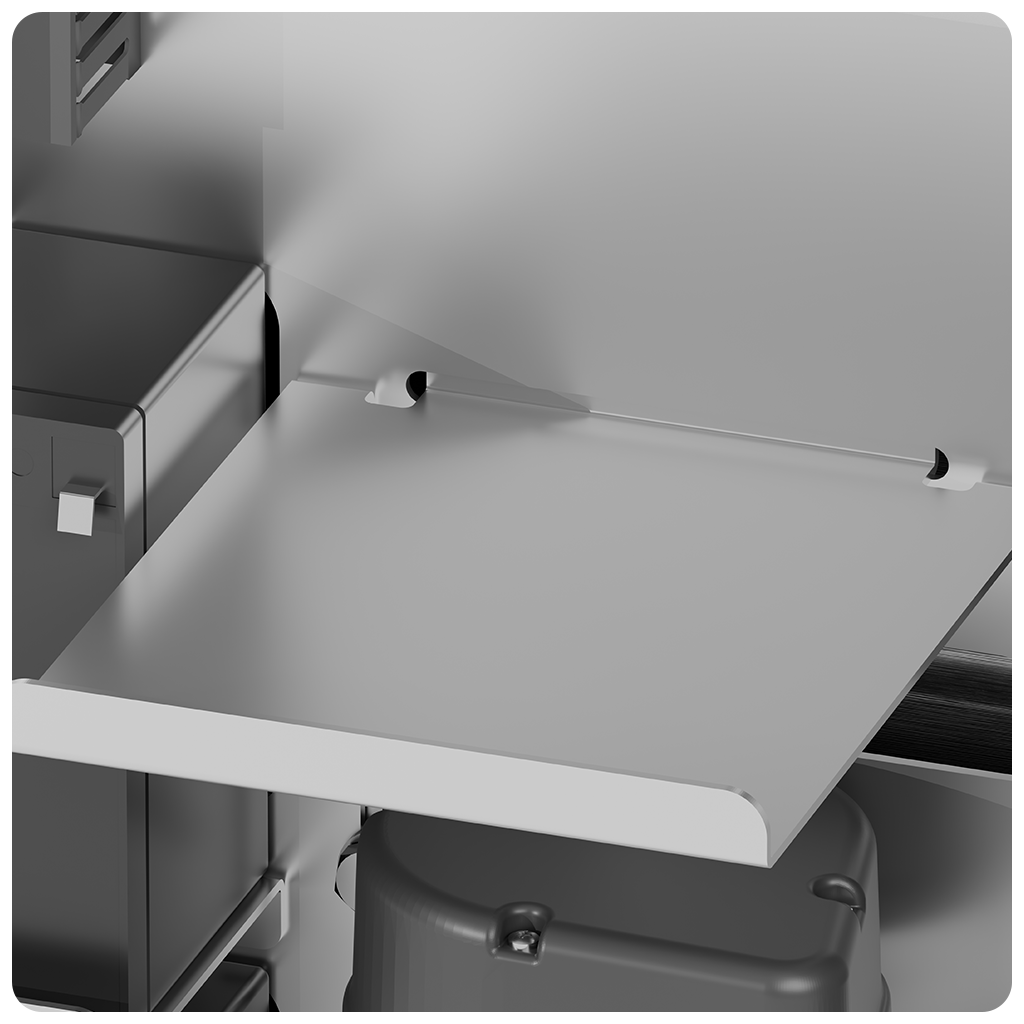

Accessory Mounting Plate
Provides extra space to easily fit additional components and upgrades.
Optional Wide Pinion Upgrade
Standard pinion can be replaced with a 50mm pinion for more flexibility during install.

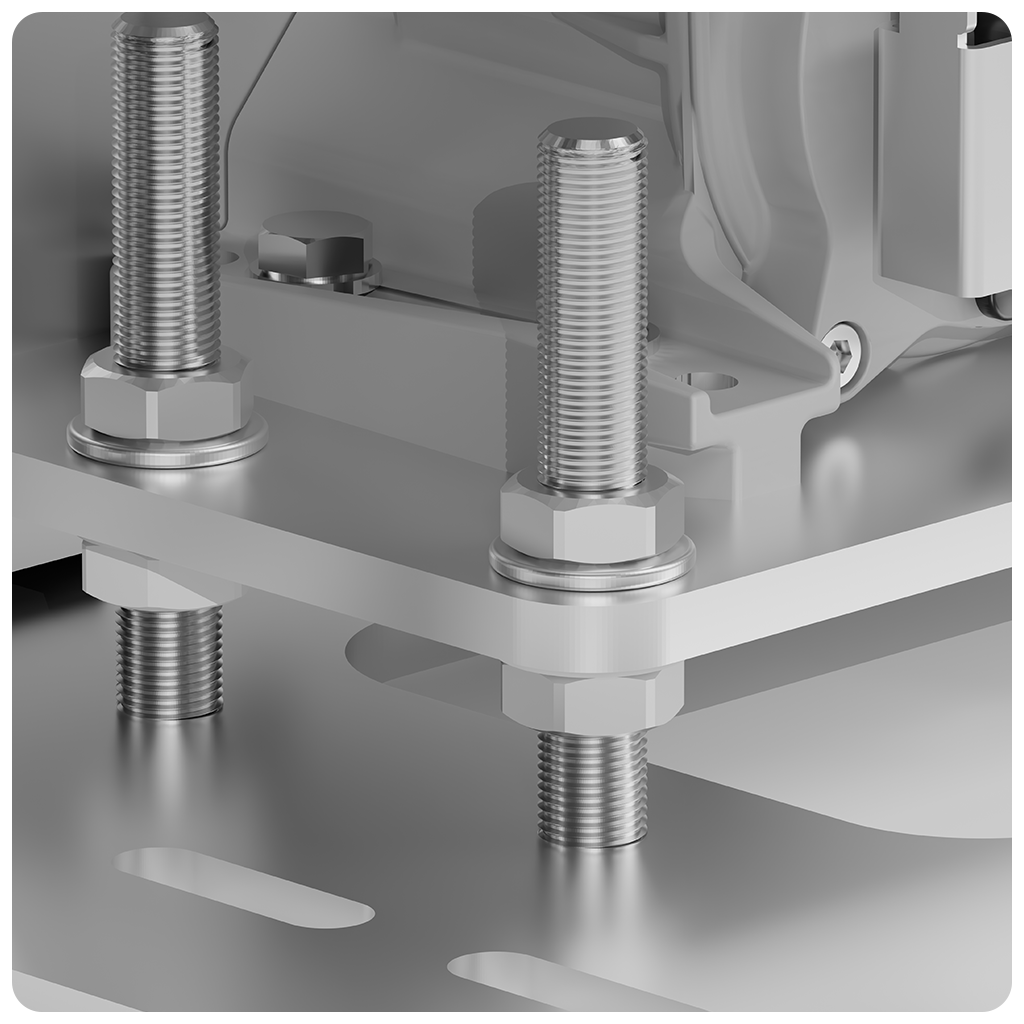

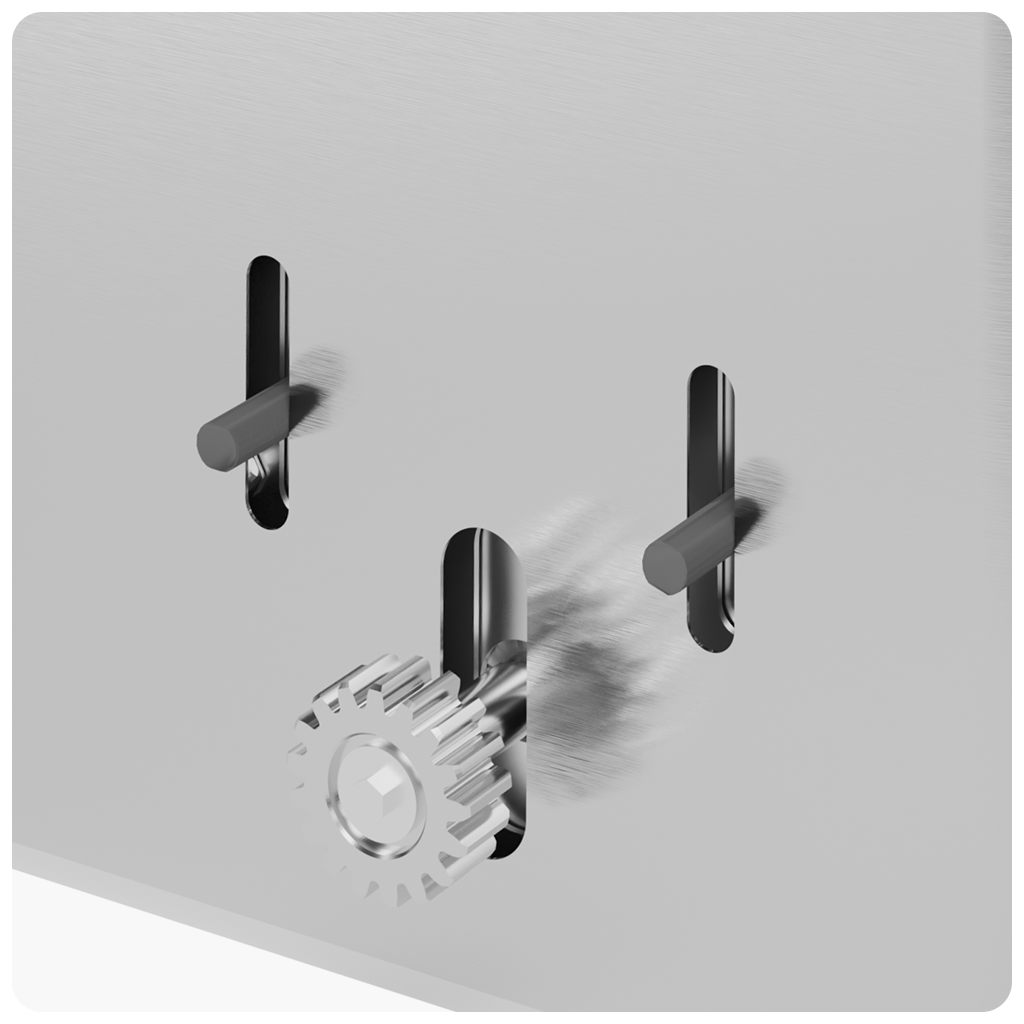

Adjustable Motor Height
Motor height and distance from the gate can be fine-tuned for perfect alignment.

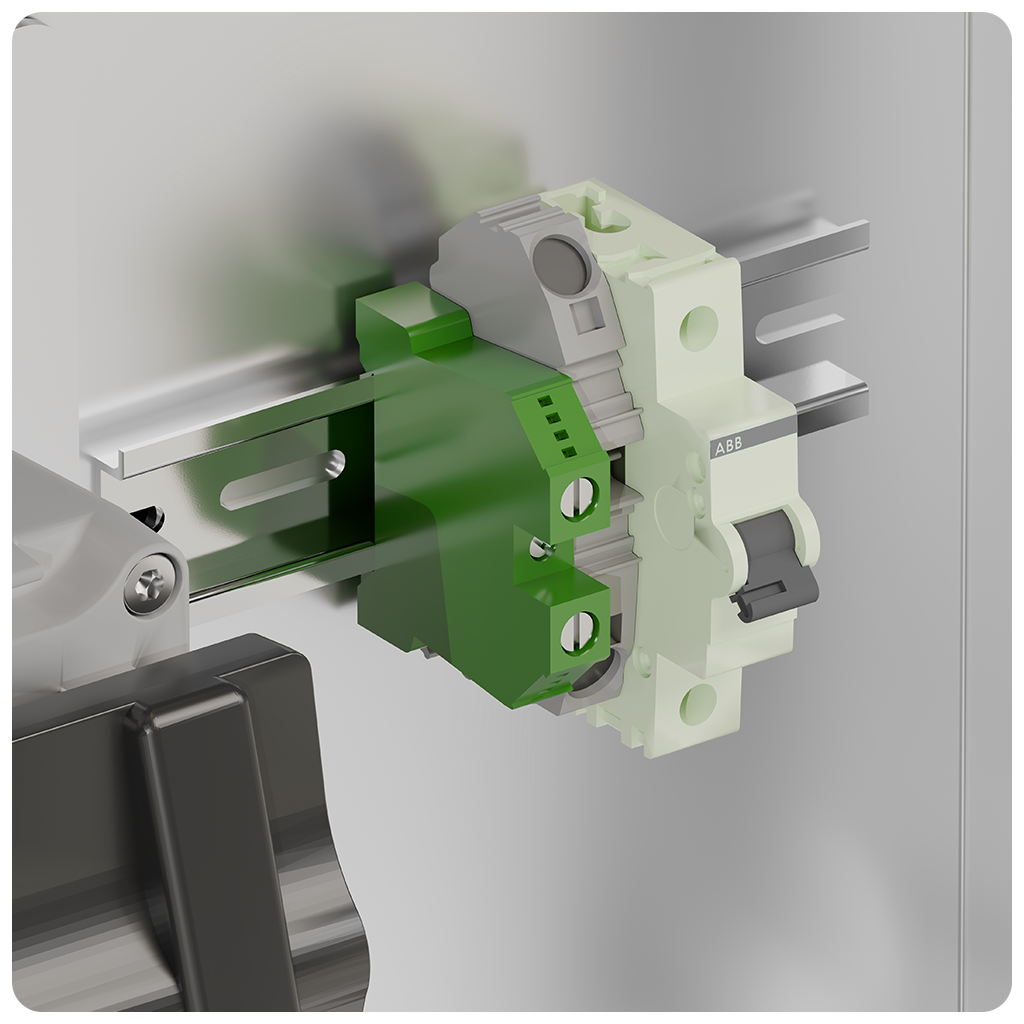

Integrated Circuit Breaker
Included for convenience.

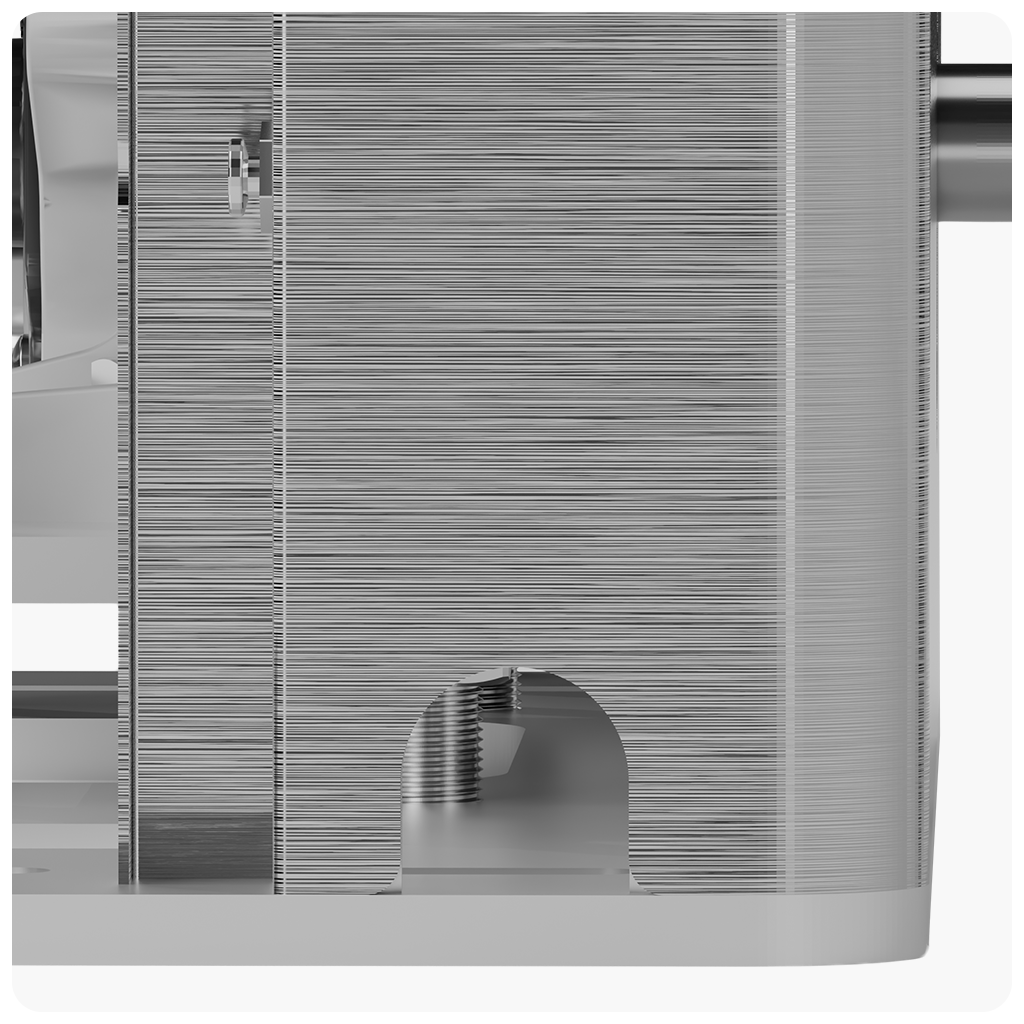

Side Conduit Access
Up to 32mm conduit entry points make wiring faster and easier during installation.
1000kg
1600kg
2000kg
20m
20m
20m
25m/min (0.42m/s)
21m/min (0.35m/s)
12m/min (0.2m/s)
230V AC - 50Hz
230V AC - 50Hz
230V AC - 50Hz
36V AC
36V AC
36V AC
100% Intensive Use
100% Intensive Use
100% Intensive Use
1150N
1250N
1700N
Z20/mod 4
Z17/mod 4
Z17/mod 4
Optional
Optional
Optional
Roger Technology
Tower Pro, 1000-2000kg

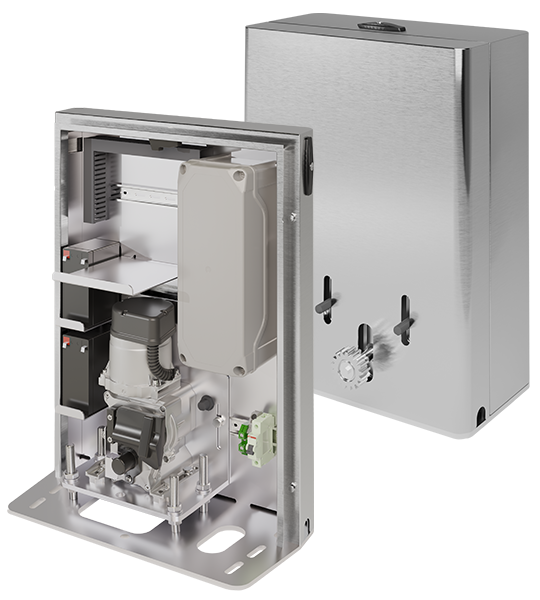

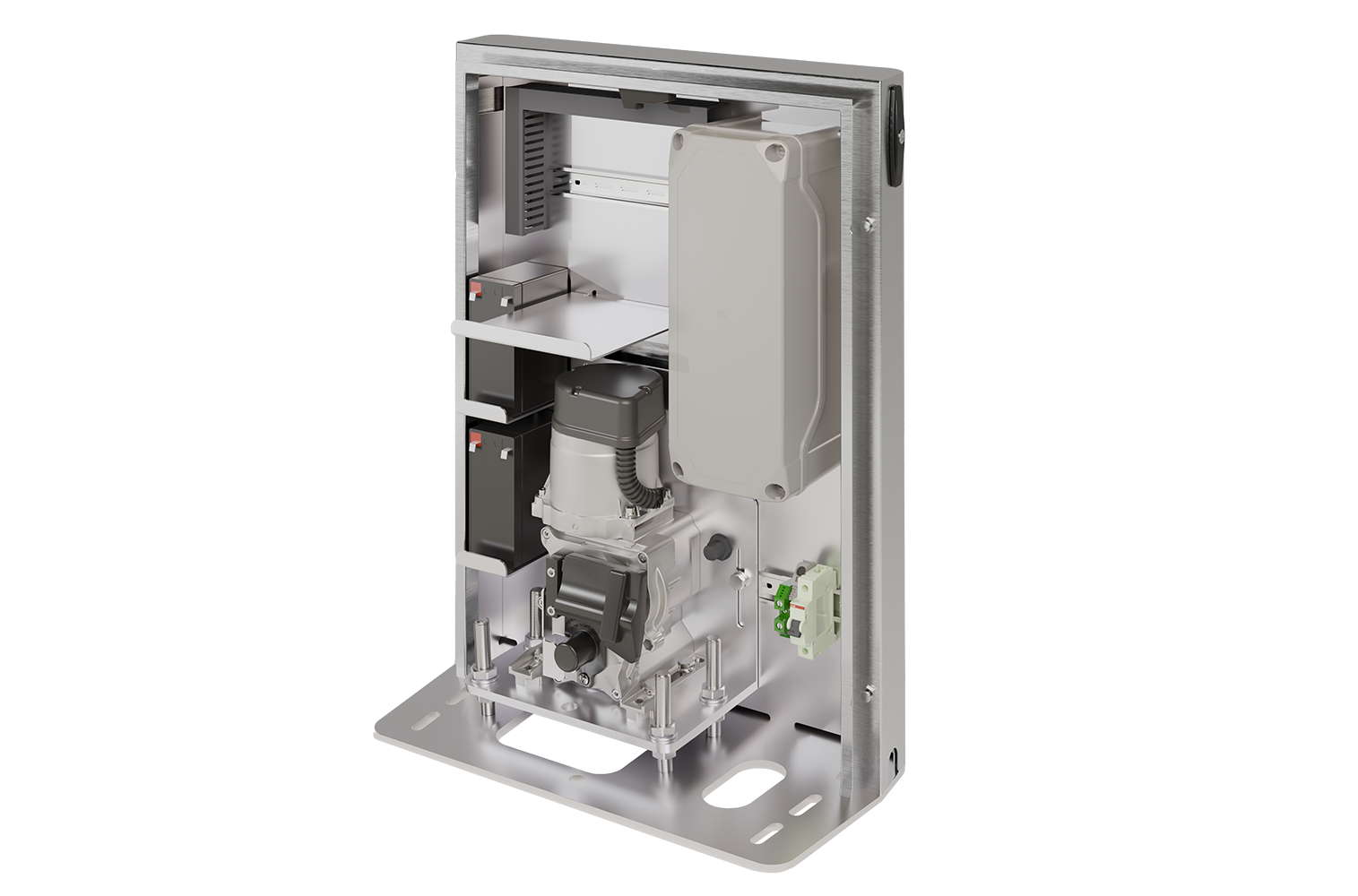

The Tower Pro, designed by Edgesmith, enhances the Tower operator by Roger Technology. Its purpose-built stainless steel enclosure, a commercial gate solution, is crafted to house backup batteries, among other features.
Available in 1000kg, 1600kg, and 2000kg models, all with 100% duty cycle.
Download PDF

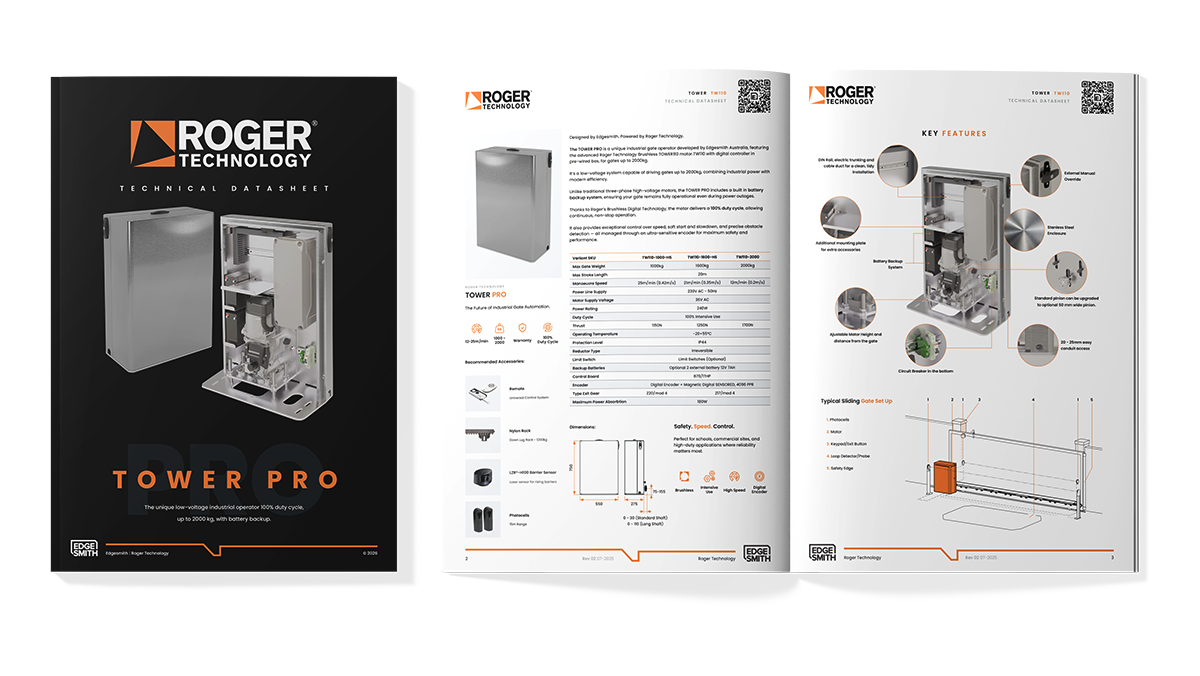

TOWER PRO Technical Datasheet
Get the full technical specifications, performance details, dimensions, and installation information for the TOWER PRO industrial sliding gate operator. Perfect for installers, engineers, and project planners needing accurate, up-to-date product data.
