Tower Pro, to 2000kg

Tower Pro Cabinet with Integrated Tower Operator

Created for commercial gate automation, the Tower Pro, is designed and engineered by Edgesmith. This innovative system seamlessly integrates the reliable Roger Technology Tower operator with a custom-designed, high-performance cabinet, creating the ultimate solution for commercial applications.

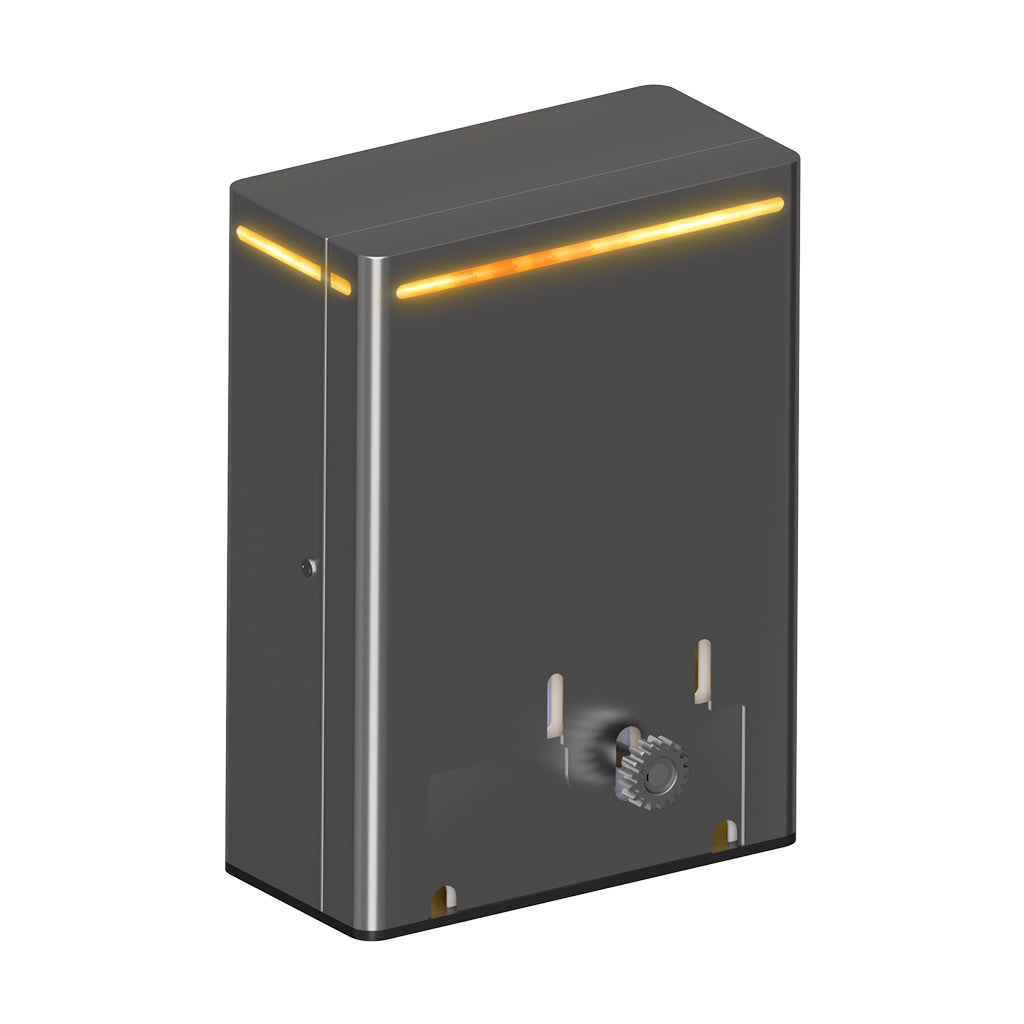

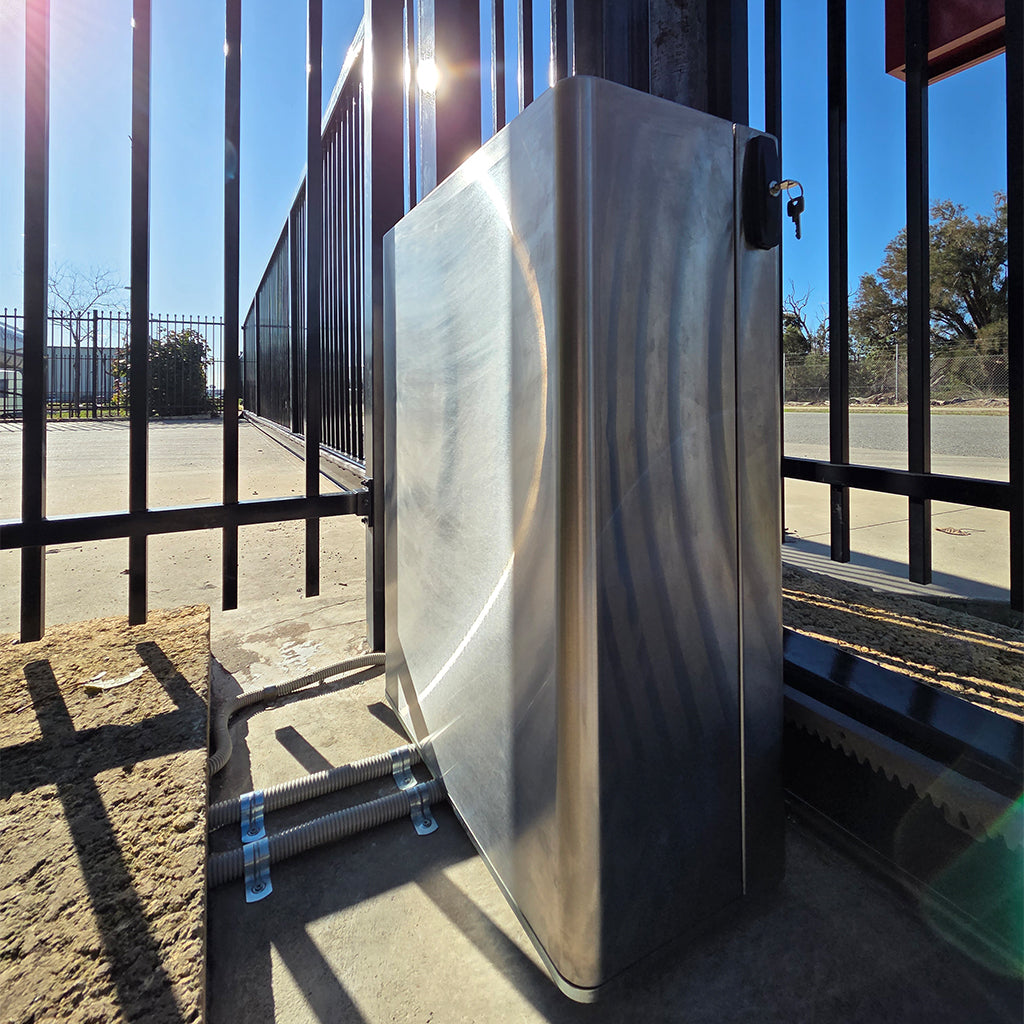

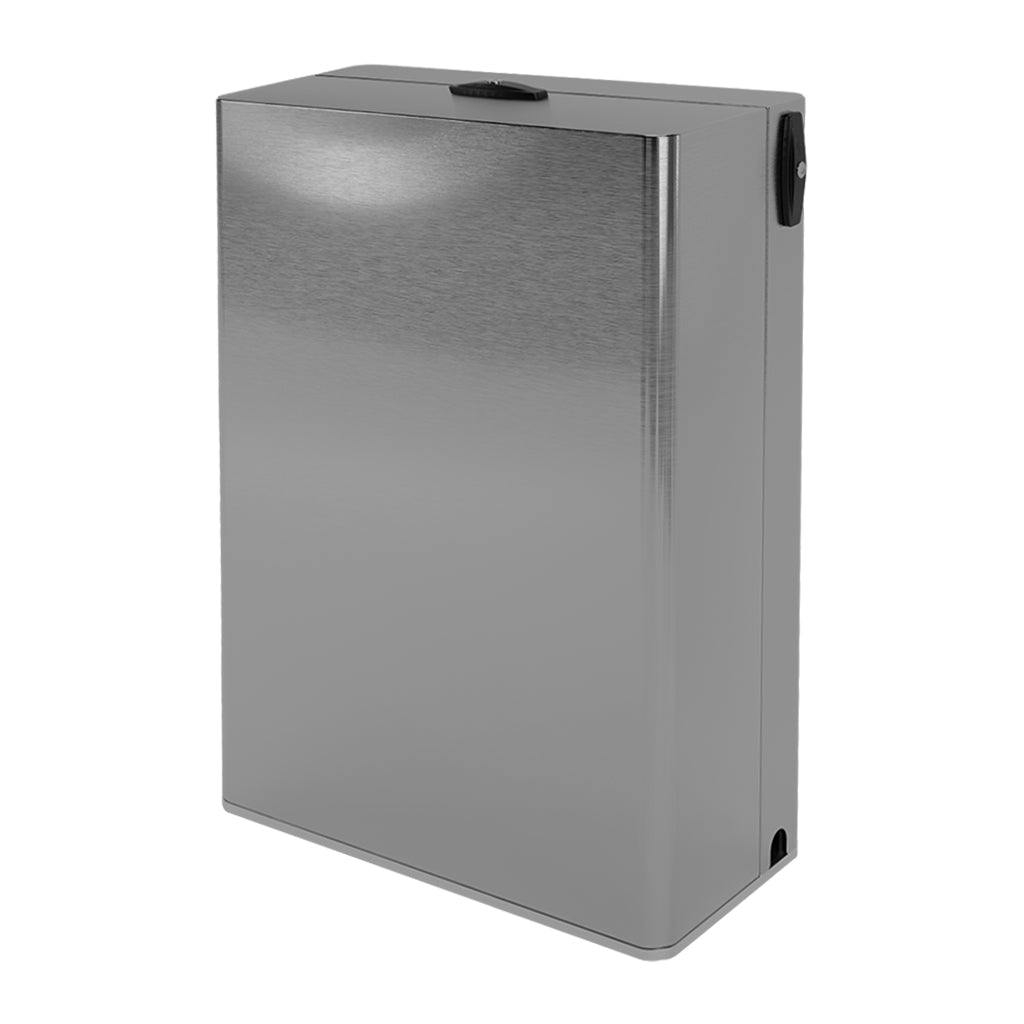

The Tower Pro enhances the standard Tower operator by encasing it in a robust, brushed stainless steel cabinet, offering both durability and a sleek, professional aesthetic. This thoughtfully designed housing provides the installer with a unique product designed surpass the value and capabilities of other operators, making it the perfect choice for high-traffic commercial environments.

Available in three powerful models—1000kg, 1600kg, and 2000kg—the Tower Pro delivers exceptional performance with gate speeds of up to 25m/min. Powered by a 36V low-voltage, super-intensive motor, each model boasts a 100% duty cycle, ensuring uninterrupted operation even under the most rigorous conditions.

Choose Tower Pro for a premium, reliable, and stylish gate automation solution that redefines commercial access control.

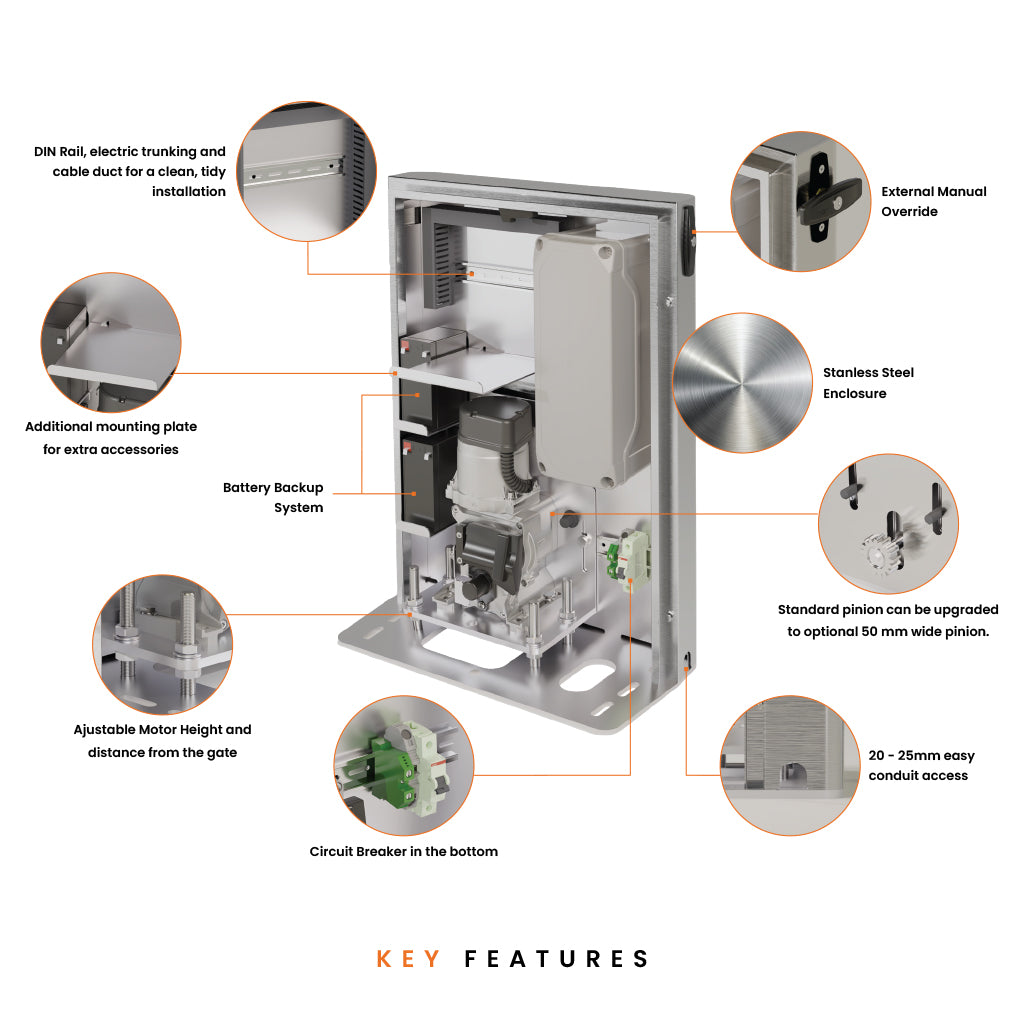

Features

1. Brushed stainless steel

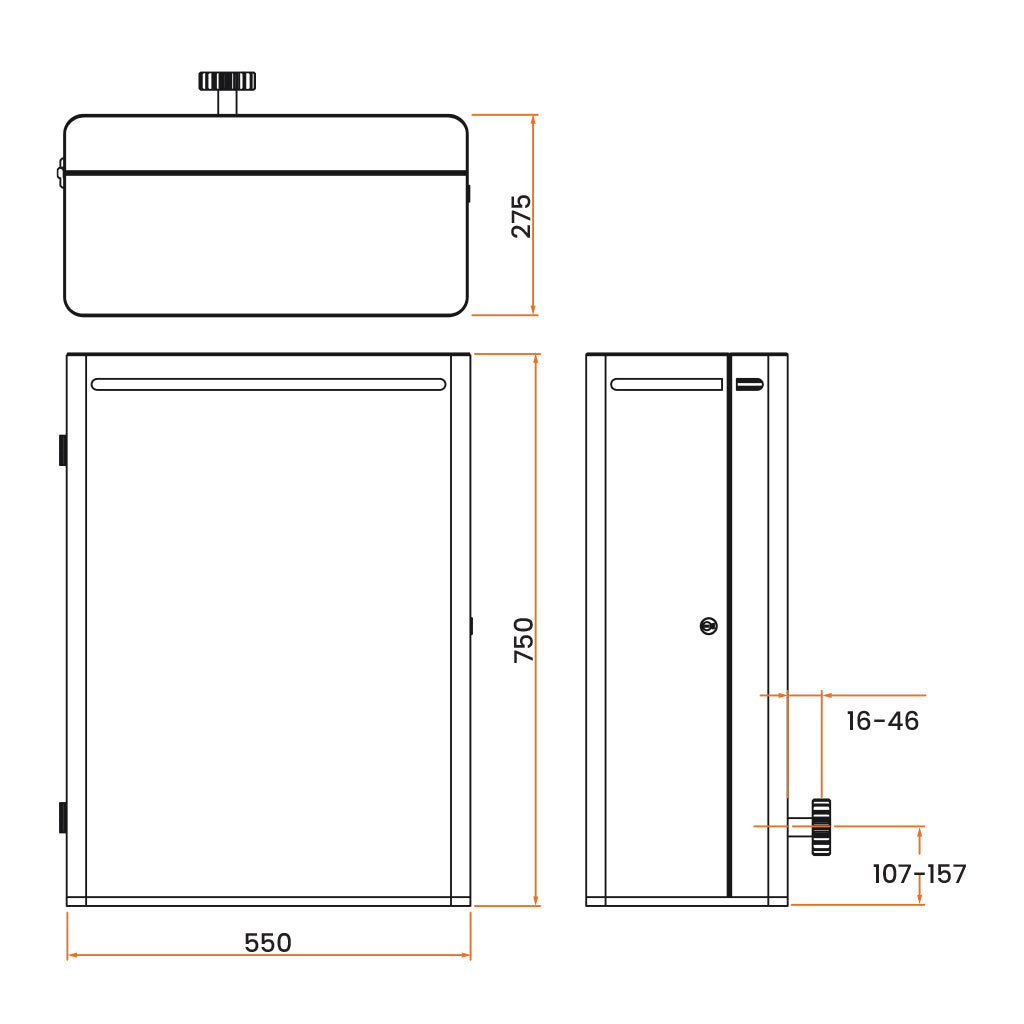

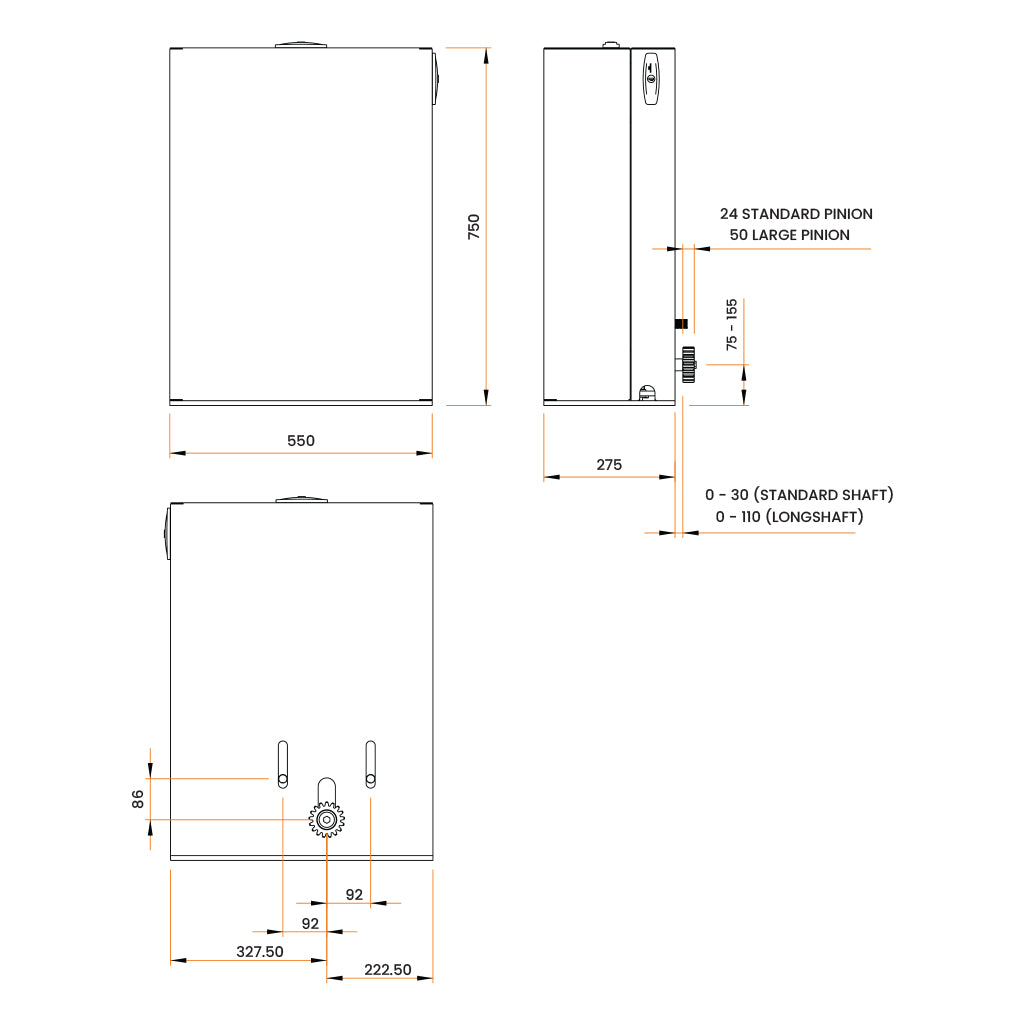

2. Variable pinion: 50mm height adjustment and 30mm in-out for perfect rack alignment

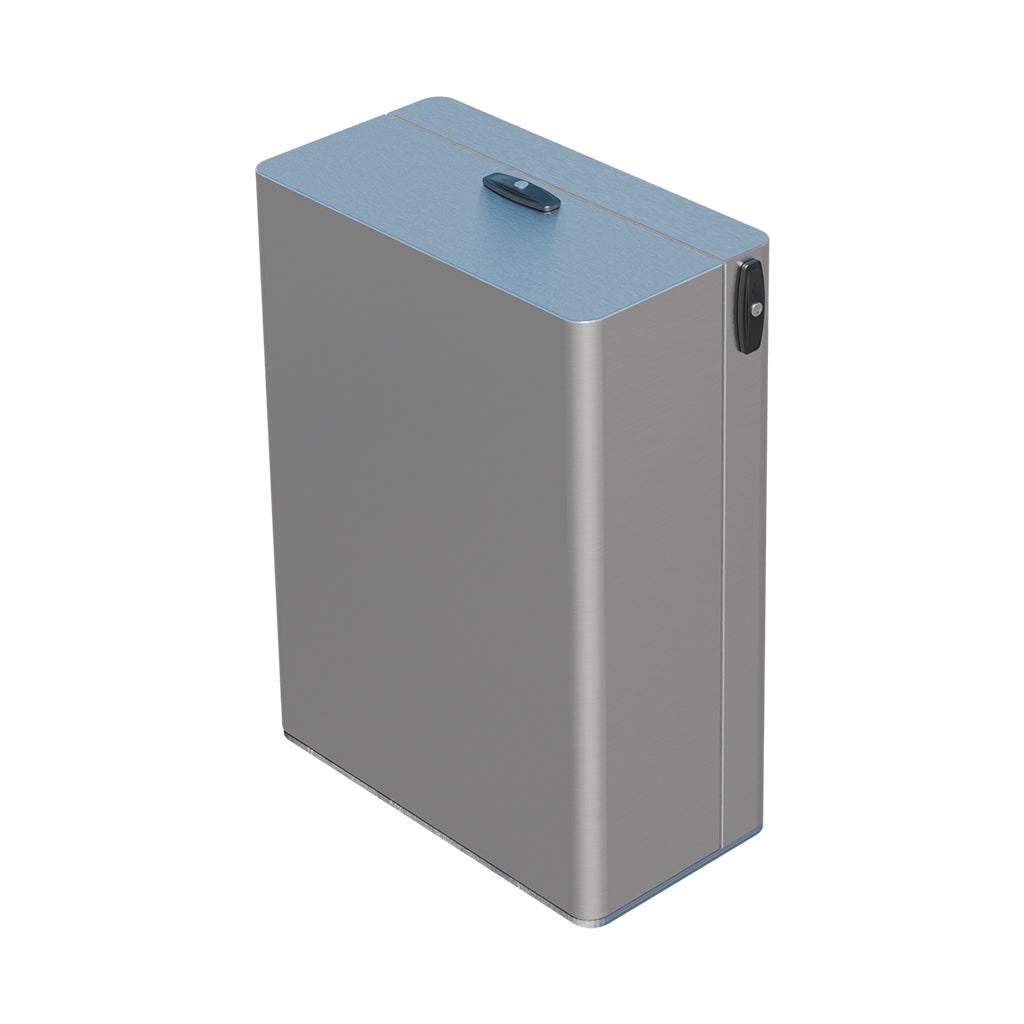

3. Lockable cover

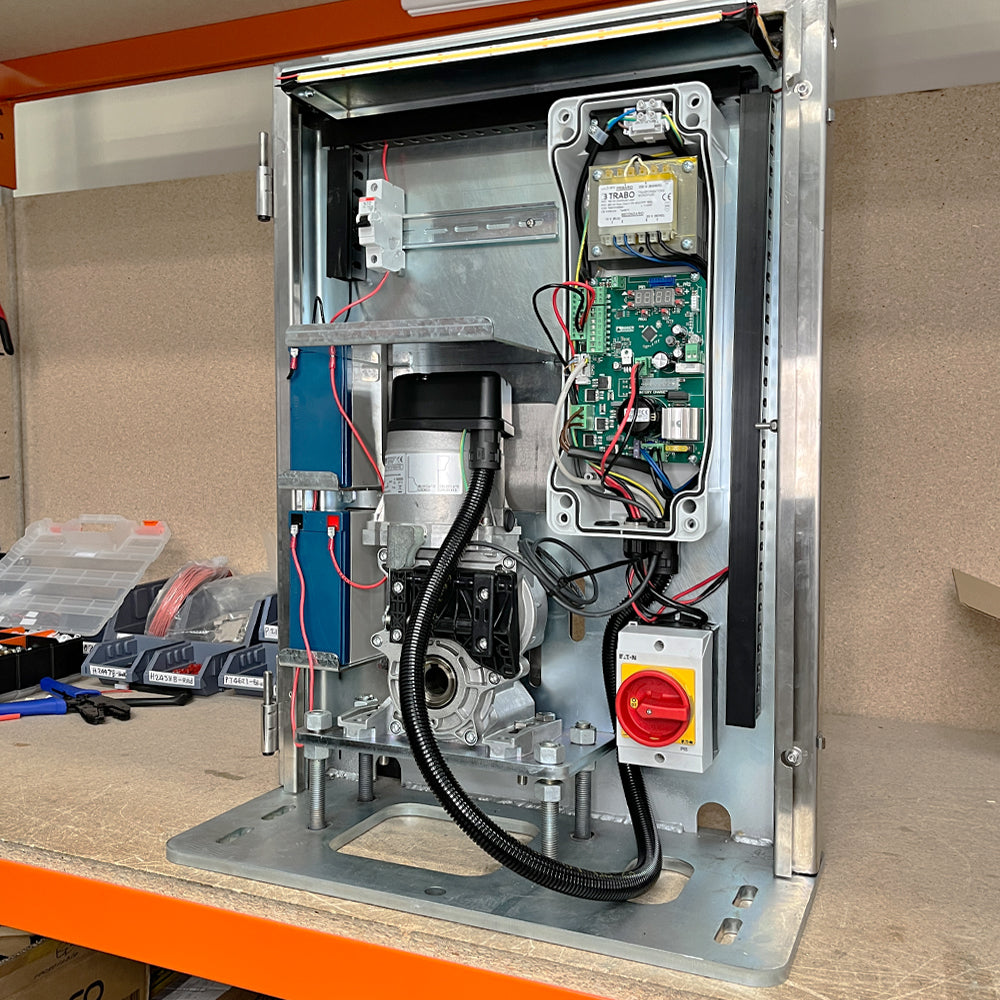

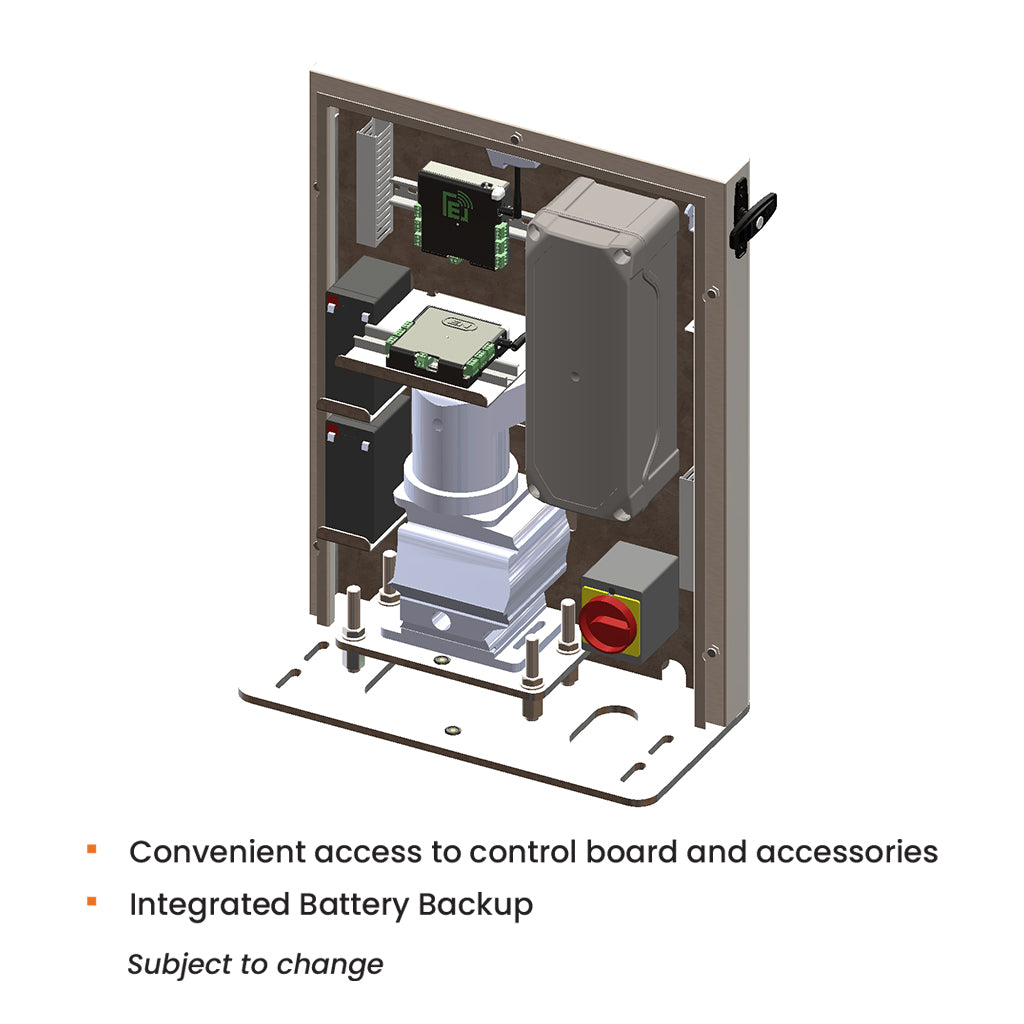

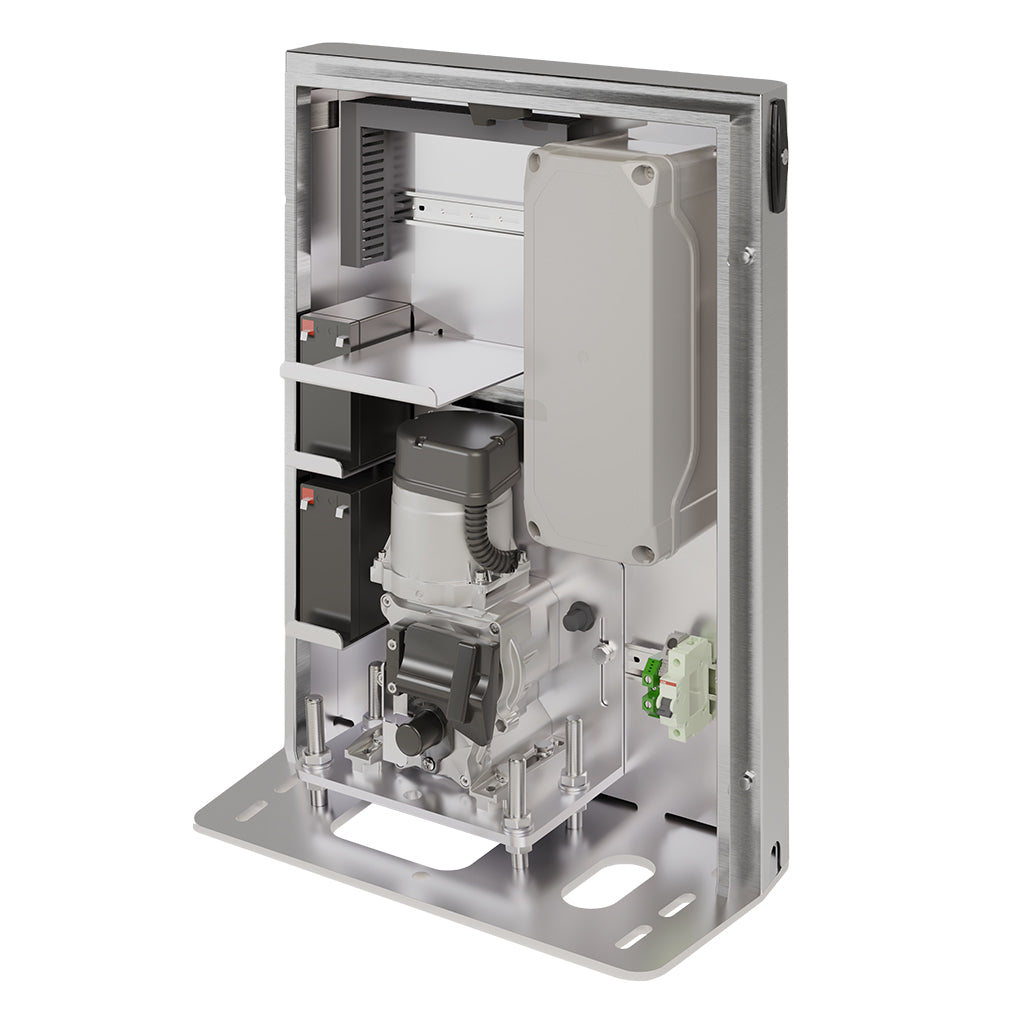

4. Battery holders for two backup batteries

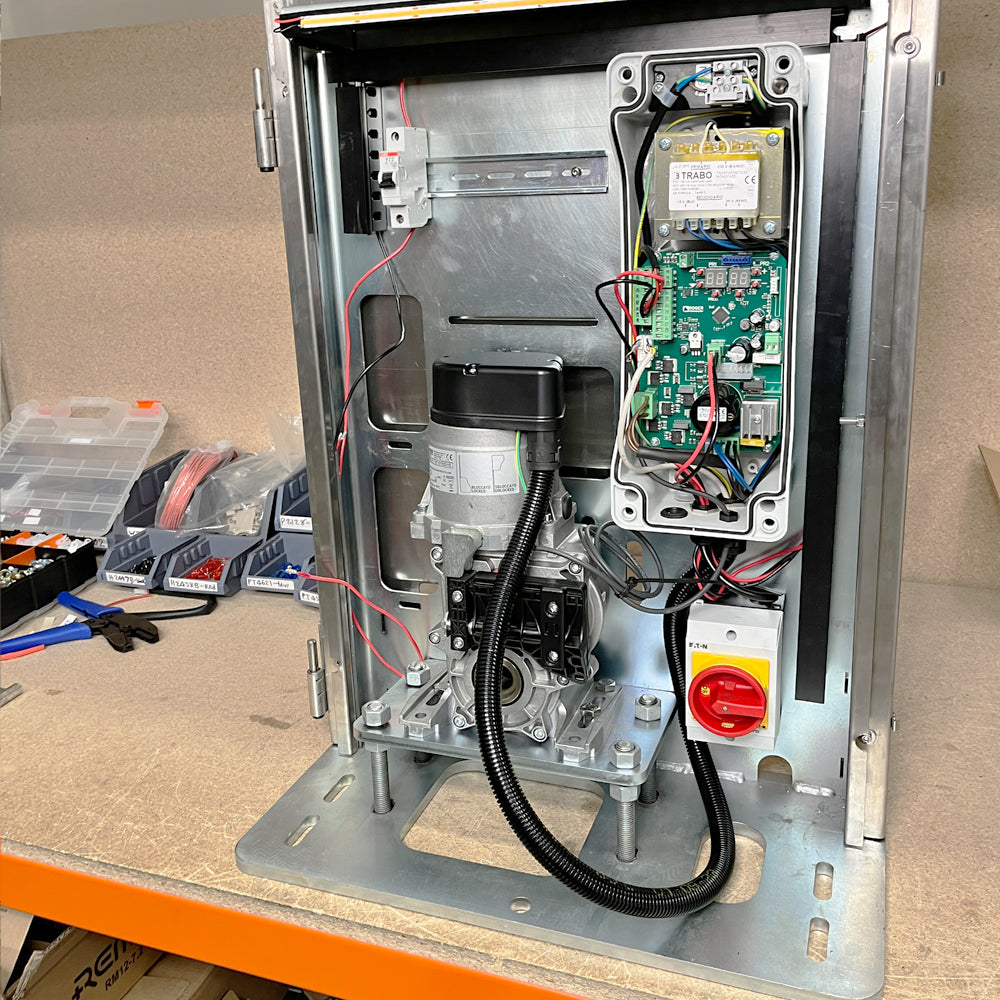

5. Dedicated DIN rail to mount accessories

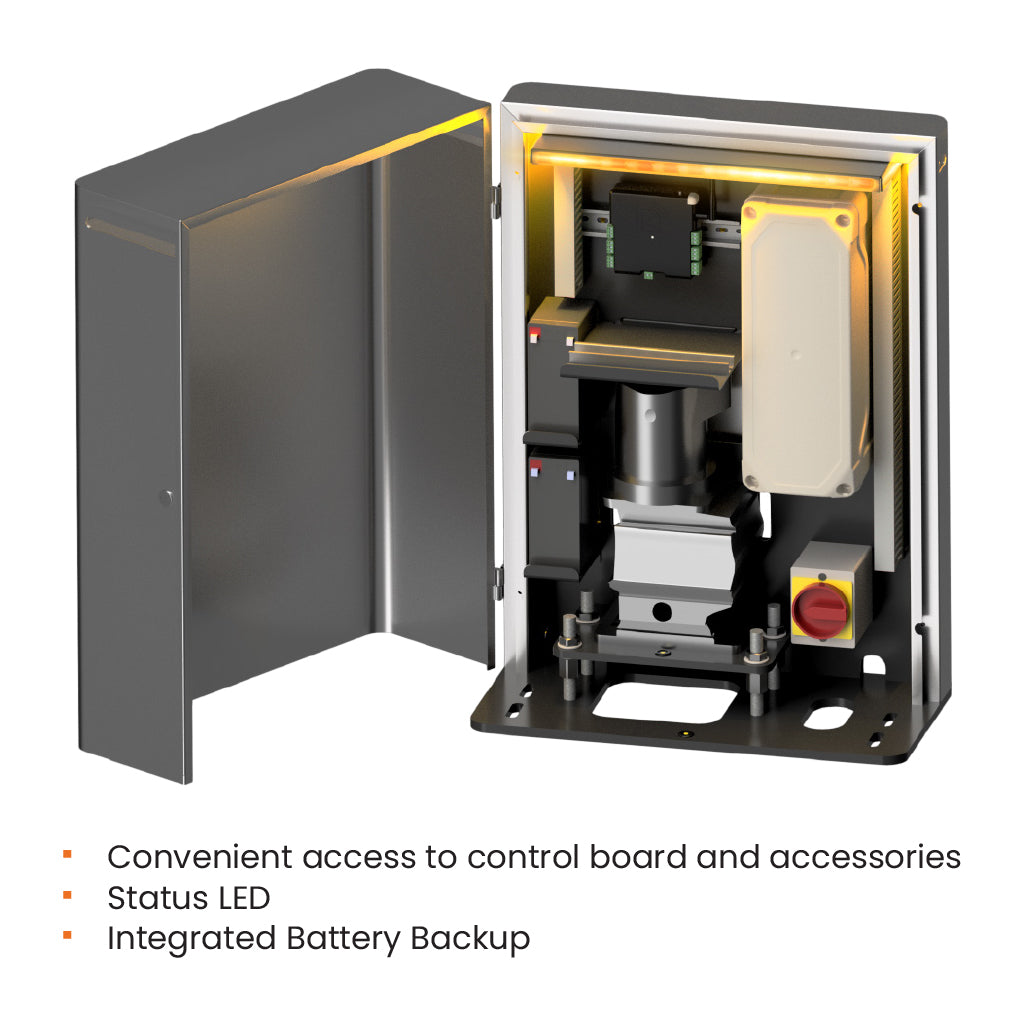

6. Easy access control board in sealed cover
7. LED lighting stripe on all sides
8. Easy and accessible cable entry and internal cable management

Roger Technology Tower TW110 Specifications

• Input Power - 230V AC
• Motor Power - 240W, 36V brushless
• Magnetic Limits are not necessary (optional)
• Control Board - B70-1THP

Power Options

• Mains - the most reliable option if it is possible to get 230v out to the gate.
• Battery Backup inside the cabinet
• External Transformer - put a transformer inside the house or garage and run low-voltage AC out to the gate using a garden light cable.
• Solar - Brushless Automation is very energy efficient and suits solar power. The specification of your panel(s) and batteries depends on your application and we will help you select the right solar solution.

Why Choose a Roger?

High torque to weight ratio – these low voltage motors can now be applied to applications that were once only served by larger 230v / 415v motors.

Increased efficiency – Significantly reduced losses due to the motor construction. The omission of brushes and the fact that the motor windings are supported by the motor housing, any heat generated is cooled by conduction resulting in ultra-low power consumption and a super-intensive duty cycle.

Longer lifetime, increased reliability and reduced noise – This is achieved due to the elimination of brush or commutator erosion, ionizing sparks and the overall reduction of electromagnetic interference.

Higher speeds – Brushless motors are capable of higher speeds without the loss of torque. Brushed motors develop maximum torque when stationary, linearly decreasing as velocity increases.

Superior control & motor positioning – Utilising the pulses from the undriven coils within the brushless motor and the technology incorporated in the controller the motor is capable of achieving precise control and positioning. One obvious advantage to this is significantly reduced stresses to the motor and gearbox resulting in the overall longevity, sustainability and reliability of the unit.

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Roger Automation.
