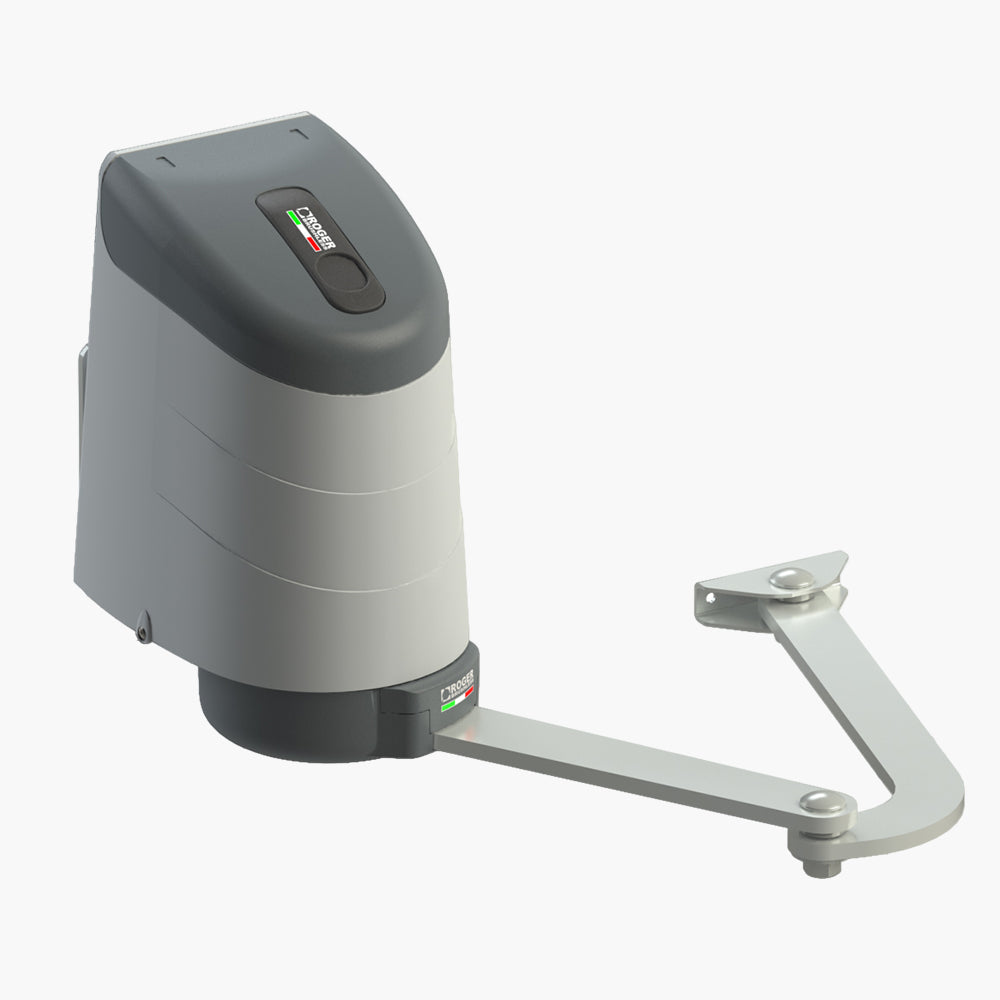

Ayron 2.5m, 250kg, 100% Duty Cycle

Roger's Ayron can be used with gates up to 250kg or 2.5m per leaf. The powerful 24V brushless motors are capable of opening times as low as 10 seconds and can be operated up to 1000x per day. An operator without compromise.

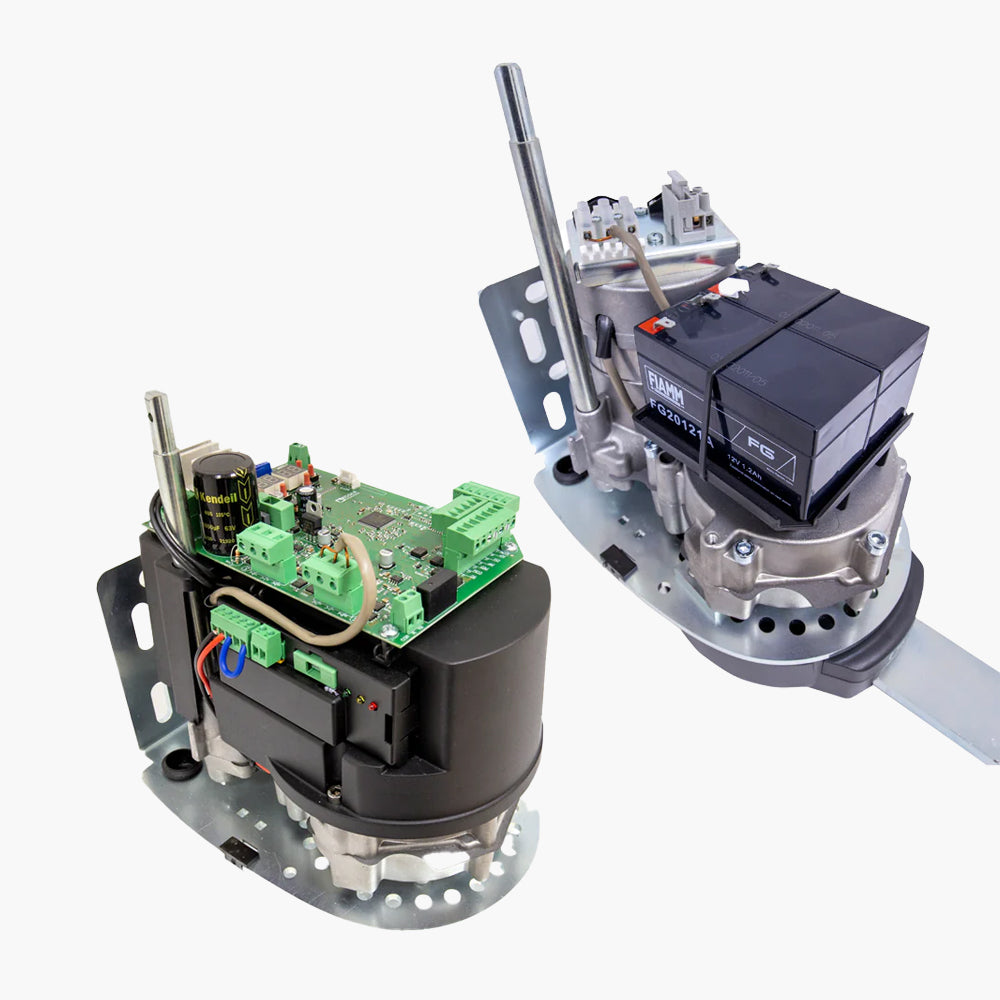

Ayron, where simplicity meets functionality. With an onboard controller and backup batteries seamlessly integrated, there's no need for cumbersome additional boxes. Experience an installation that is not only streamlined but also free from the intrusion of large plastic enclosures. Ayron brings you a clean and efficient solution for a clutter-free environment.

Specifications:

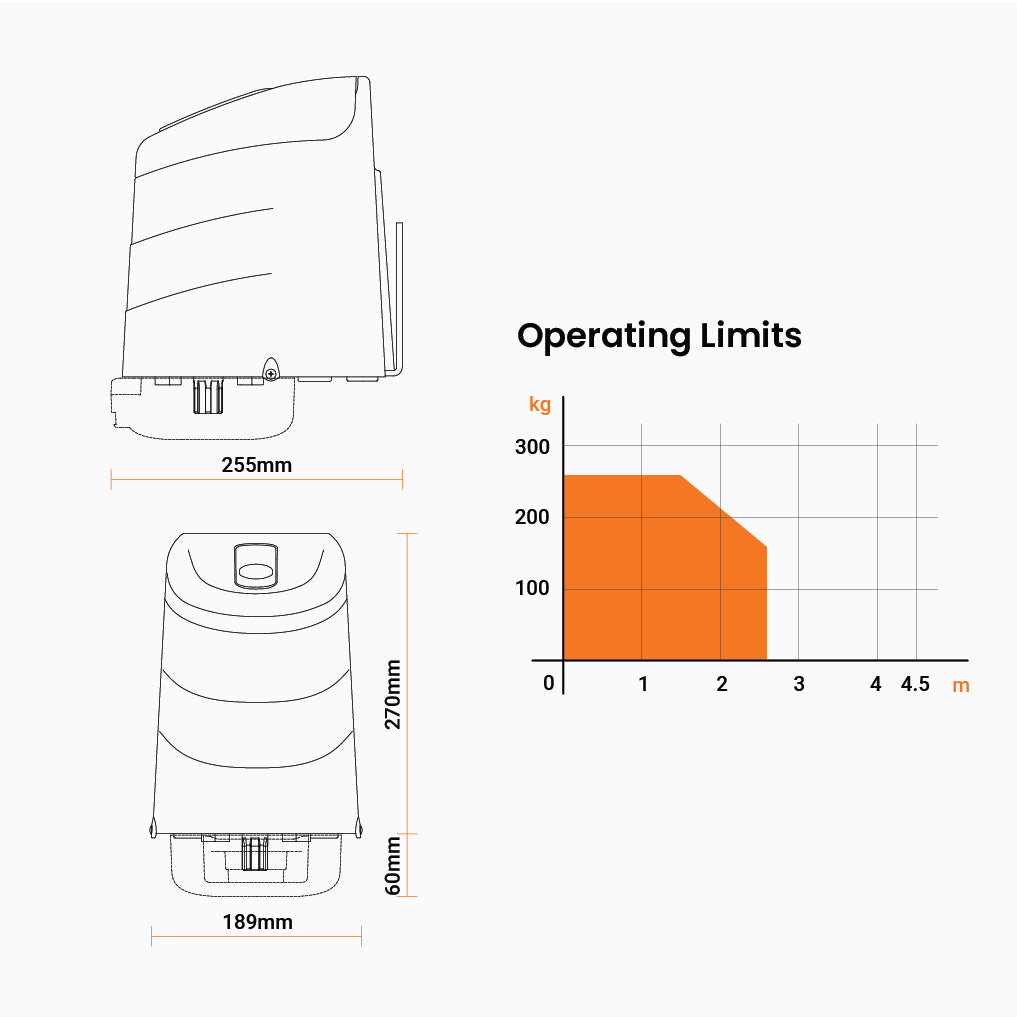

• Max Gate Size - up to 2.5m or 250kg per leaf (see table)
• Input Power - 230V AC
• Motor Power - 160W, 24V brushless
• Max Torque- 280 Nm
• Speed - 10 - 16 sec to 90 deg
• End Stops - inbuilt mechanical stops in open and closed positions
• Control Board - B70-2ML

Power Options:

• Mains - the most reliable option if it is possible to get 230v out to the gate.
• External Transformer - put a transformer inside the house or garage and run low-voltage AC out to the gate using a garden light cable.
• Solar - Roger Automation is very energy efficient and suits solar power. The specification of your panel(s) and batteries depends on your application and we will help you select the right solar solution.
• Read more about power options on our Learning Page.

The Roger Automation range of brushless gate operators offers huge advantages over traditional brushed motors.

• High torque to weight ratio – these low voltage motors can now be applied to applications that were once only served by larger 230v / 415v motors.
• Increased efficiency – Significantly reduced losses due to the motor construction. With the omission of brushes and the fact that the motor windings are supported by the motor housing, any heat generated is cooled by conduction resulting in ultra-low power consumption and a super intensive duty cycle.
• Longer lifetime, increased reliability and reduced noise – This is achieved due to the elimination of brush or commutator erosion, ionizing sparks and the overall reduction of electromagnetic interference.
• Higher speeds – Brushless motors are capable of higher speeds without the loss of torque. Brushed motors develop maximum torque when stationary, linearly decreasing as velocity increases.
• Superior control & motor positioning – Utilising the pulses from the undriven coils within the brushless motor and the technology incorporated in the controller the motor is capable of achieving precise control and positioning. One obvious advantage to this is significantly reduced stresses to the motor and gearbox resulting in the overall longevity, sustainability and reliability of the unit.

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Roger Automation.
