Adjustable Drop Bolt Ground Stop

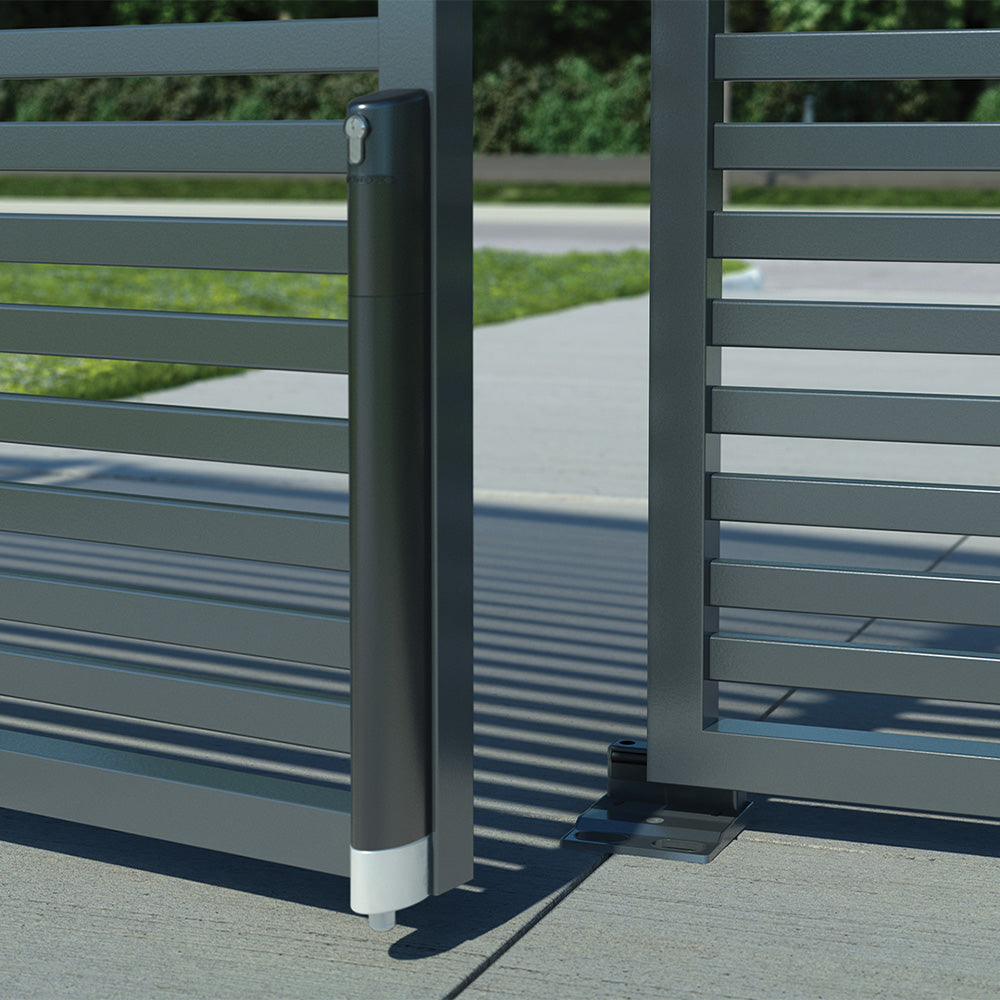

Strong surface mounted ground stop for double wing gates. Drop bolts with a maximum axle of Ø20 mm are the perfect fit. The Back stop position is adjustable to allow for different width gate frames and height adjustable to allow for a lower profile fitting.

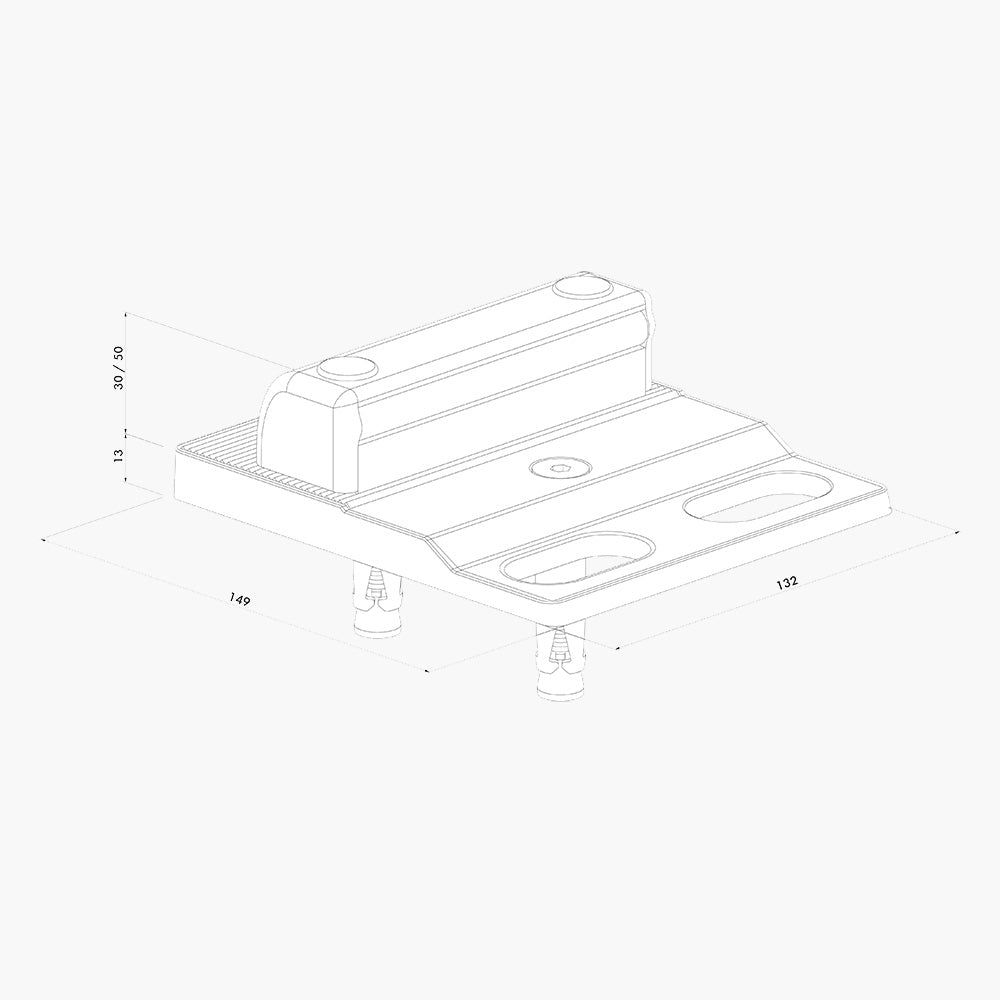

Specifications:

• Surface mounted design, suitable for surface mounted drop bolts

• Maximum drop bolt axle diameter: Ø 20 mm

• Adjustable in height: distance between finished ground level & bottom of the gate: 20 to 45 mm

• Adjustable in depth, different gate profiles possible: Electradrop: 40 to 50 mm

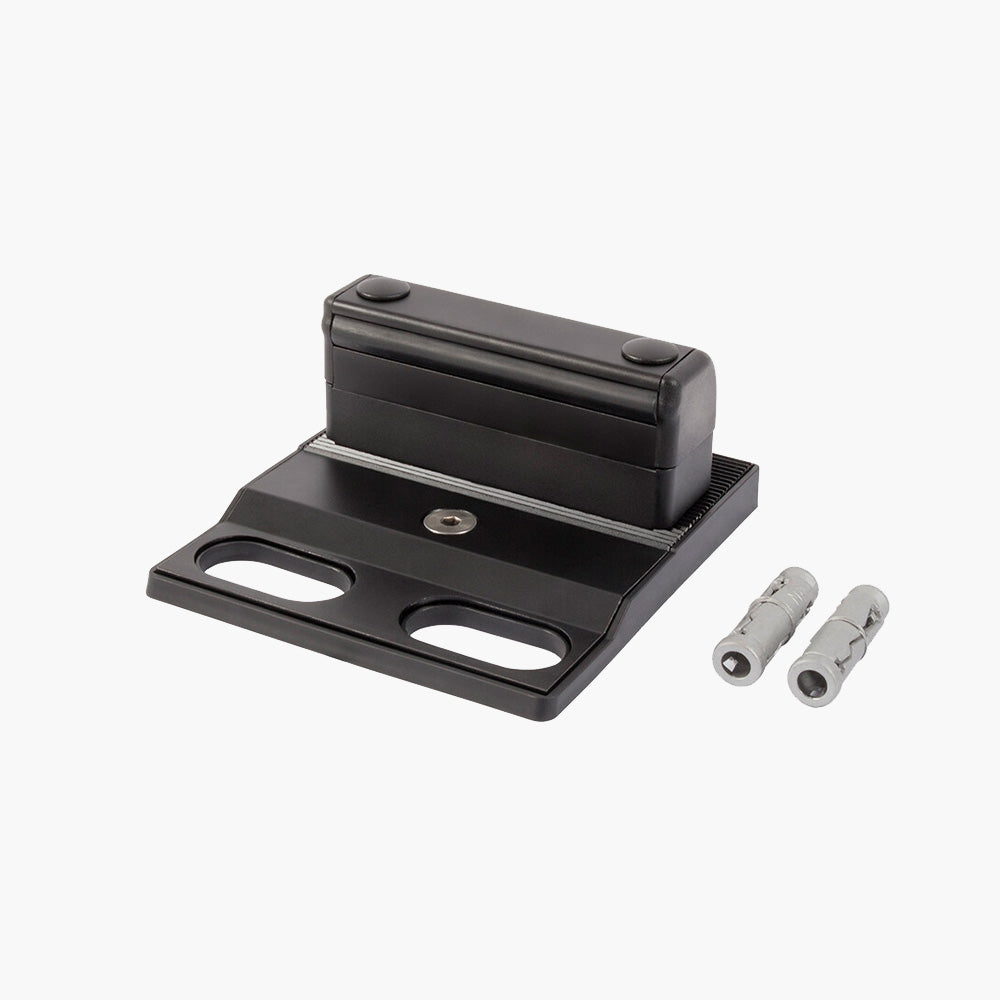

• Anchor pins included

• Material: black anodized aluminium top plate

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing.

• Download Installation Guide
