e-Loop Mini

Introducing a new concept in wireless vehicle detection. The e-Loop replaces traditional wired inductive loops, saving time and money while increasing reliability.

E-Loop Mini wireless is an exit sensor designed for domestic installs. The compact wireless unit securely mounts on the driveway, communicating with a transceiver at distances of up to 50m. Add an external antenna to extend the range up to 100m.

Notes: Mini works with the e-Trans-50 transceiver.
The controller must have a dedicated open input and auto-close function to enable

Kit Contains

• 1 x e-Loop Mini wireless detection module

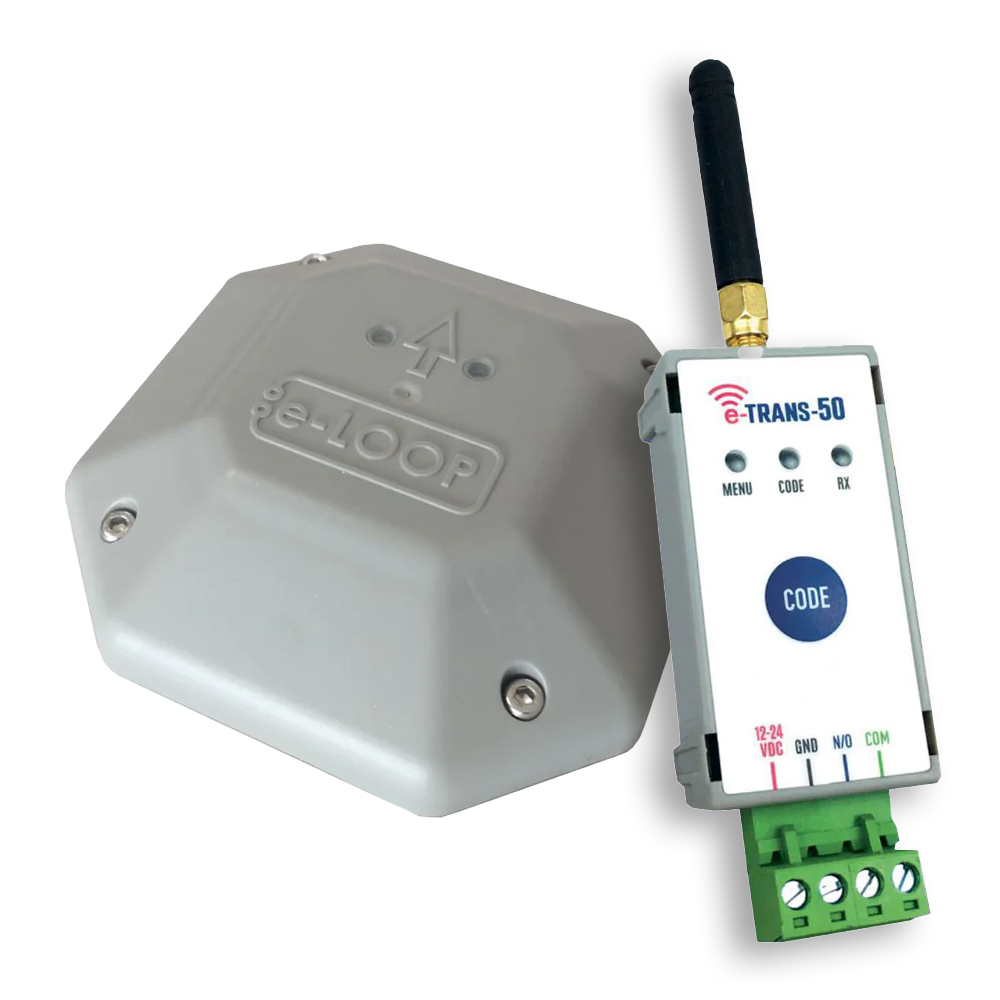

• 1 x E-Trans50 Transceiver
• 2 x Dyna bolts

How it works

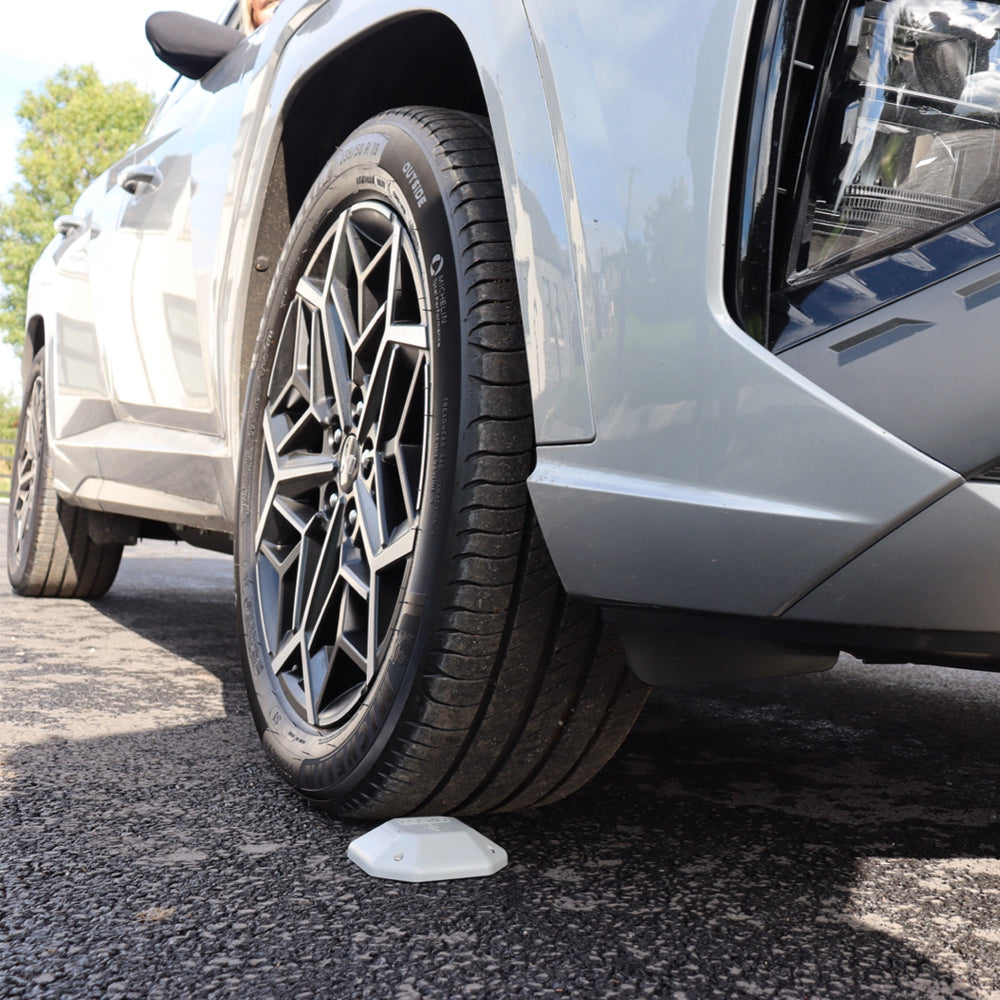

Position the e-Loop Mini Residential Wireless Sensor in the centre of the driveway, allowing vehicles to pass over without impact. Its durability accommodates most cars and trucks, up to approximately 2500kg.

• Quick and easy installation.
• Small compact design (120mm x 120mm x 30mm high).
•  Static load capacity 2500kg.
• Uses standard 1.5V AA Lithium batteries (included).
•  Providing up to 3-4 years battery life.
•  High-security 128-bit encryption.
•  Range up to 50 meters.

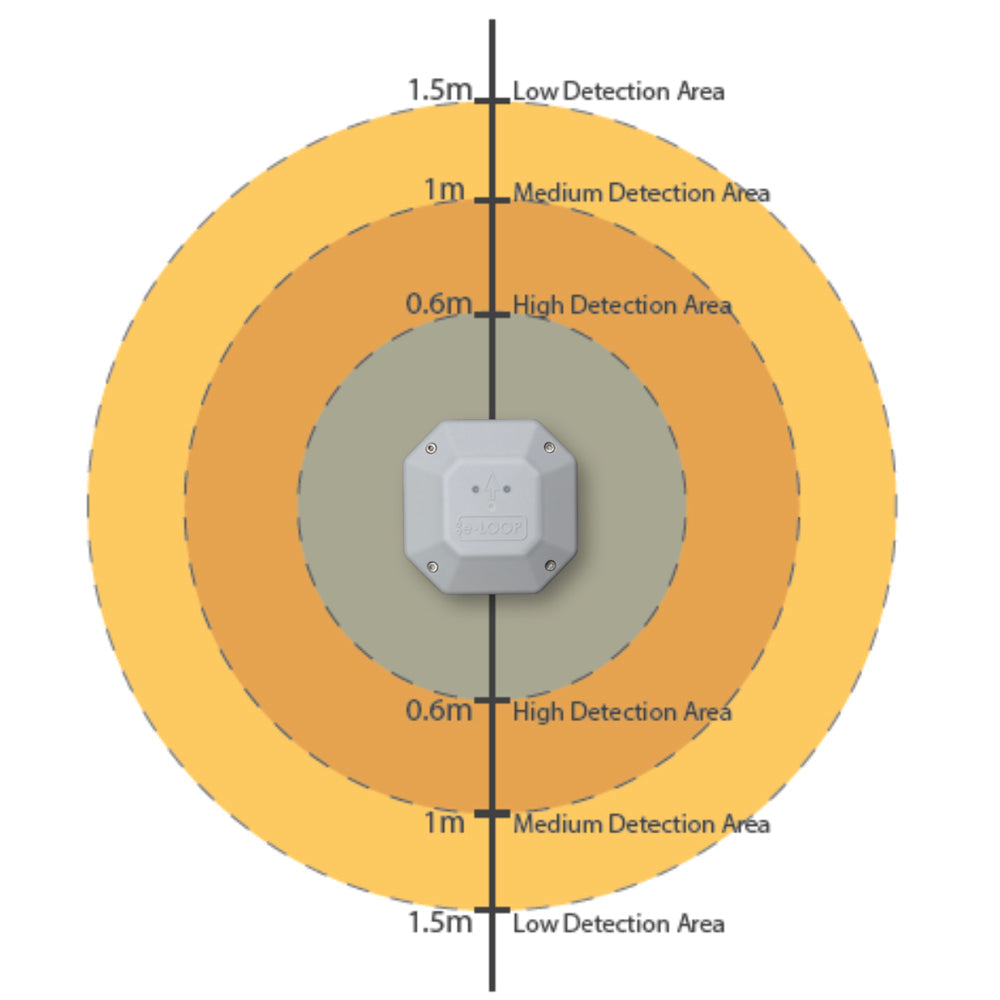

•  Detection Diameter is approximately 1.5m

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing our range.

• Download Mini eLoop Installation Guide
