Insert Lock

Name: Insert Lock
Brand: Locinox
SKU: FORTYLOCK-SET
Price: 190.91 AUD
Availability: InStock

$190.91

Brand:

Locinox

SKU:

FORTYLOCK-SET

Product Type:

Swing Gate Hardware

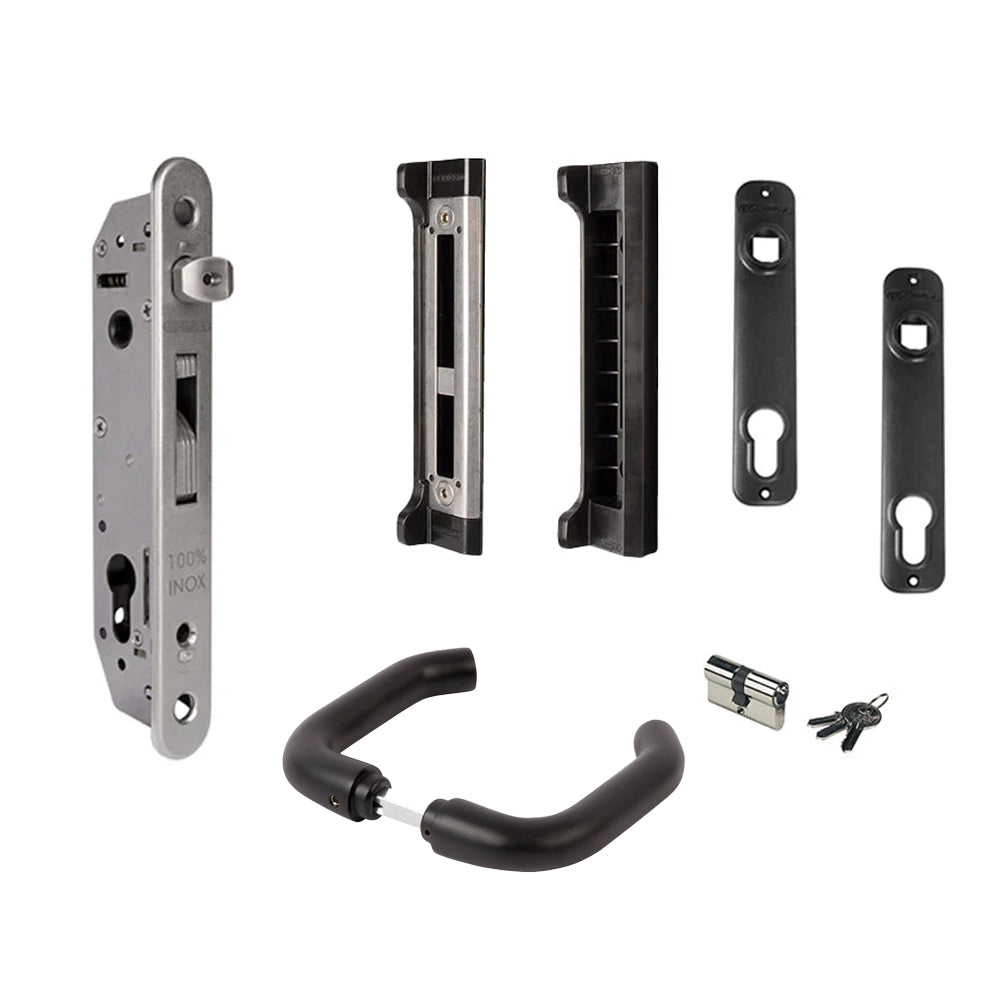

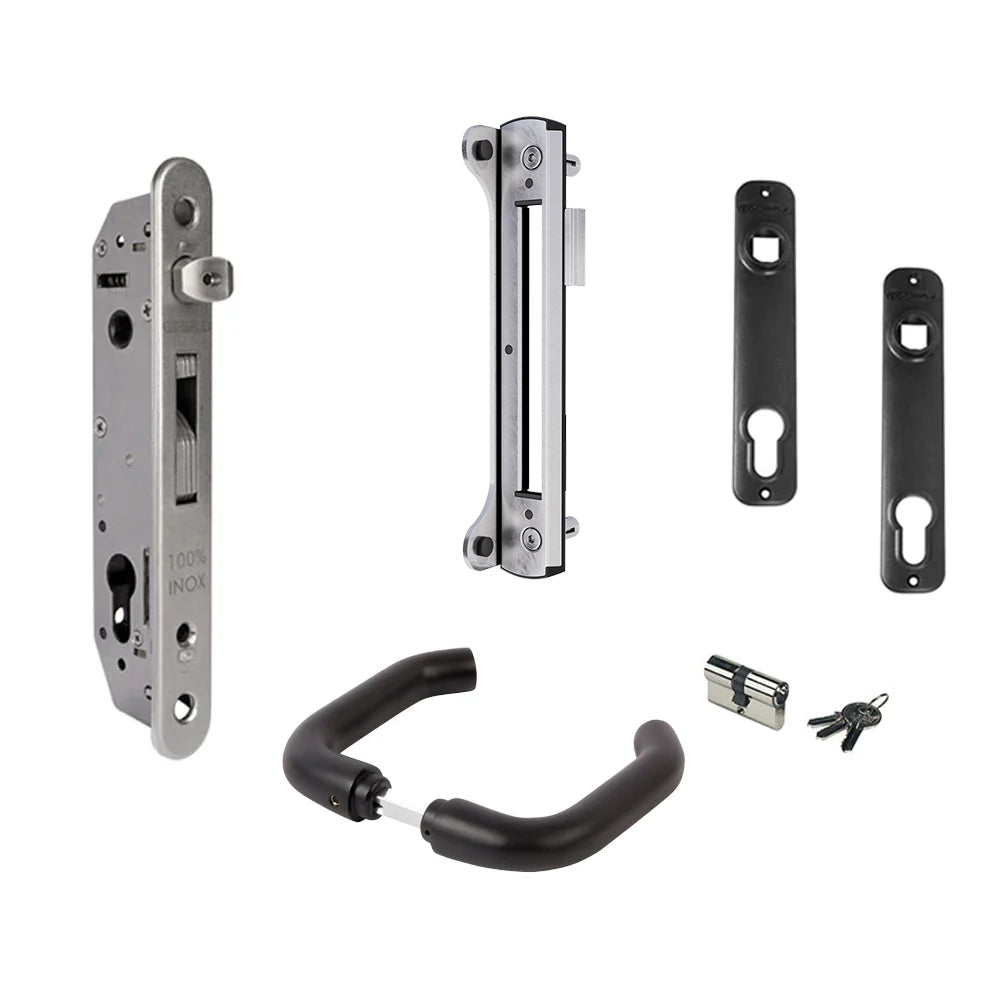

The Insert Lock features stainless-steel body mechanism and comes as a complete kit with everything you need for the installation. Made in Belgium by Locinox.

100% Sealed Stainless Steel Body: Ensures durability and resistance to the elements.
Adjustable Self-Latching Bolt and Hook Lock: Made from stainless steel, it automatically secures the gate.
Matching Keep: Designed to work seamlessly with the bolt and hook, preventing the gate from being pulled apart or forced open.
Versatile Installation: Can be fitted on both steel and aluminium gates.

This lock provides a robust security solution, ensuring a gate remains strongly secured against unauthorised access.

Gate Frame Size:

40 x40mm Frame 50 x50mm Frame

Colour:

Black

Variant

More information

Tech Specifications

Specifications:

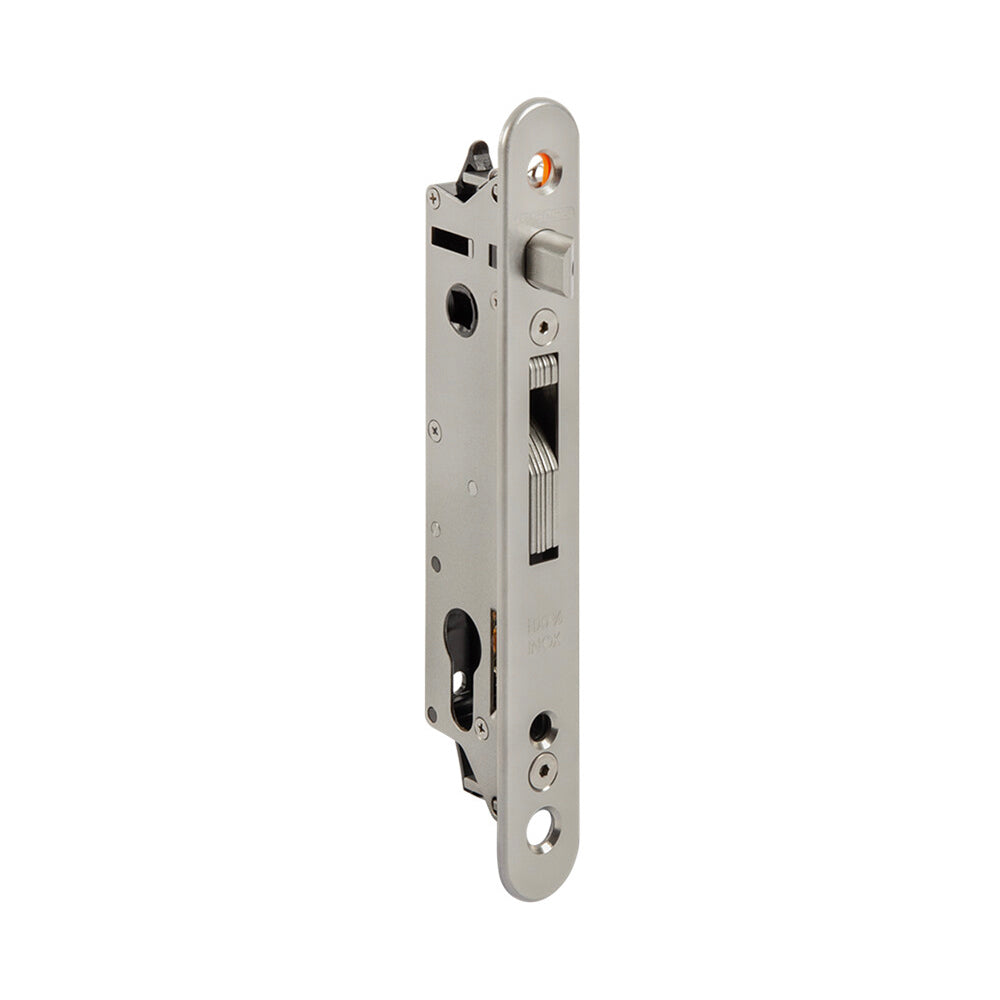

Stainless steel lock mechanism with cover plate against dirt penetration
Mechanism, hook, front plate, latch bolt: stainless steel

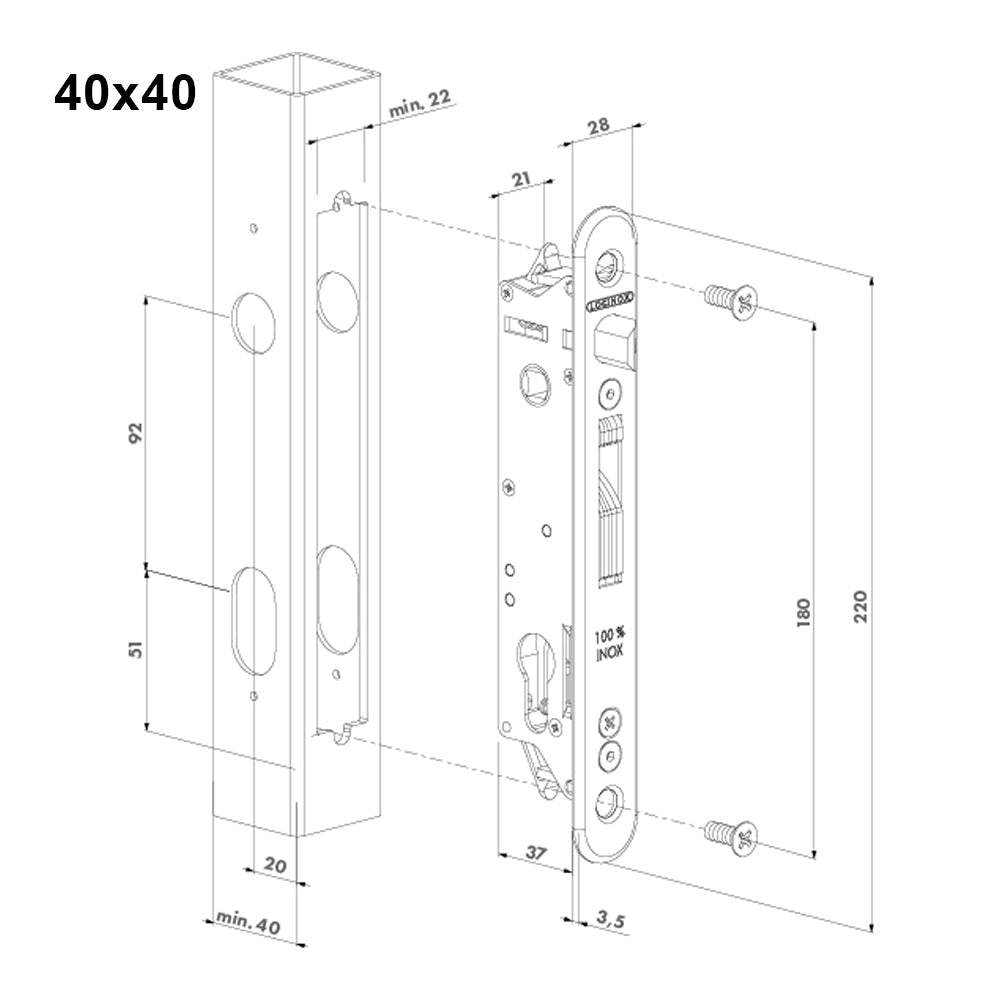

Backset 30 mm, for mounting in profiles of 50 mm depth or more
Continuous adjustment of the bolt up to 10 mm without dismounting the lock box
Key-operated self-latching bolt
Easy left or right changing of the self-latching bolt
Throw of the hook: 21 mm
Center-distance cylinder <=> handles = 92 mm
Compatible with all Euro profile cylinders

Documents

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Locinox Automation.

Download Installation Guide

Videos

Insert Lock

$190.91
