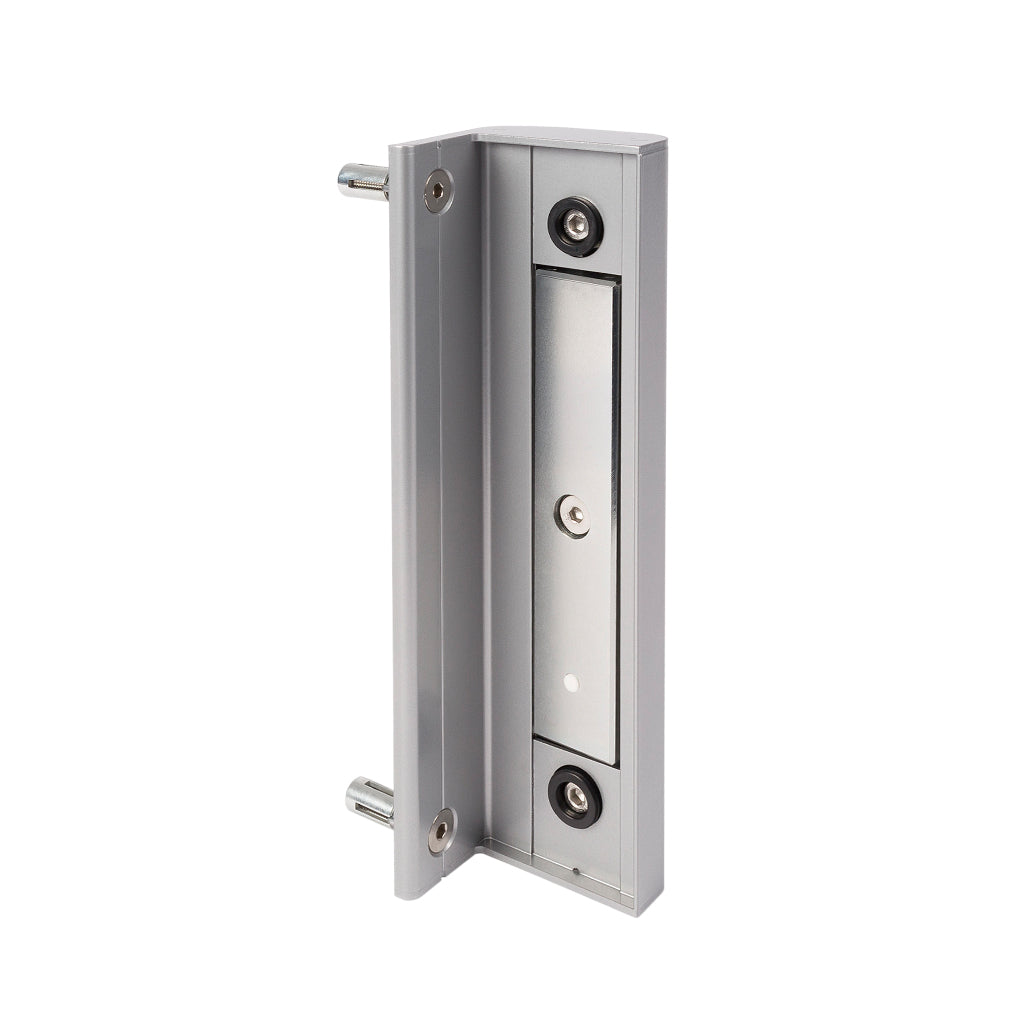

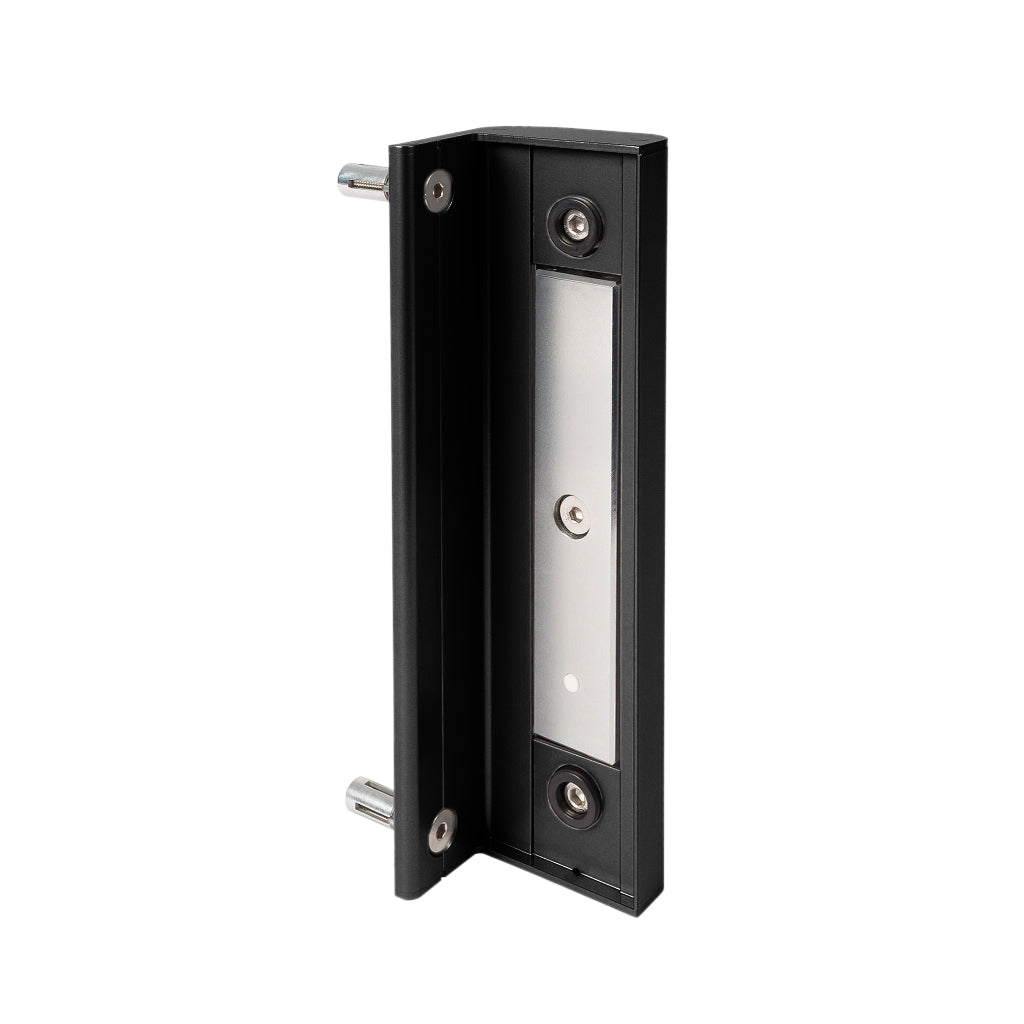

Integrated Mag Lock

Name: Integrated Mag Lock
Brand: Locinox
SKU: B-MAG-SIL
Price: 498.18 AUD
Availability: InStock

$498.18

Brand:

Locinox

SKU:

B-MAG-SIL

Product Type:

Swing Gate Hardware

Integrated Magnet Lock for Swing Gates by Locinox. Use with 12v or 24v.

Colour:

Silver Black

Variant

More information

Extended Description

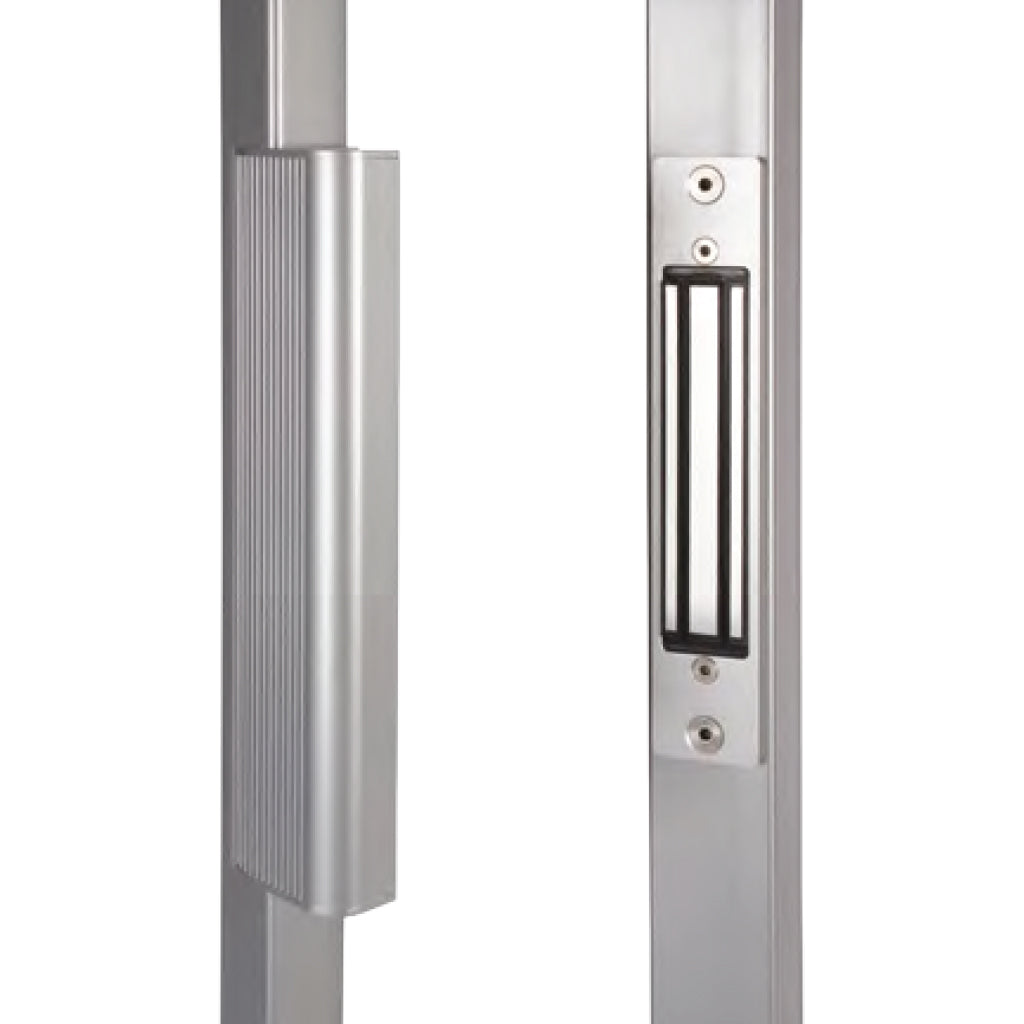

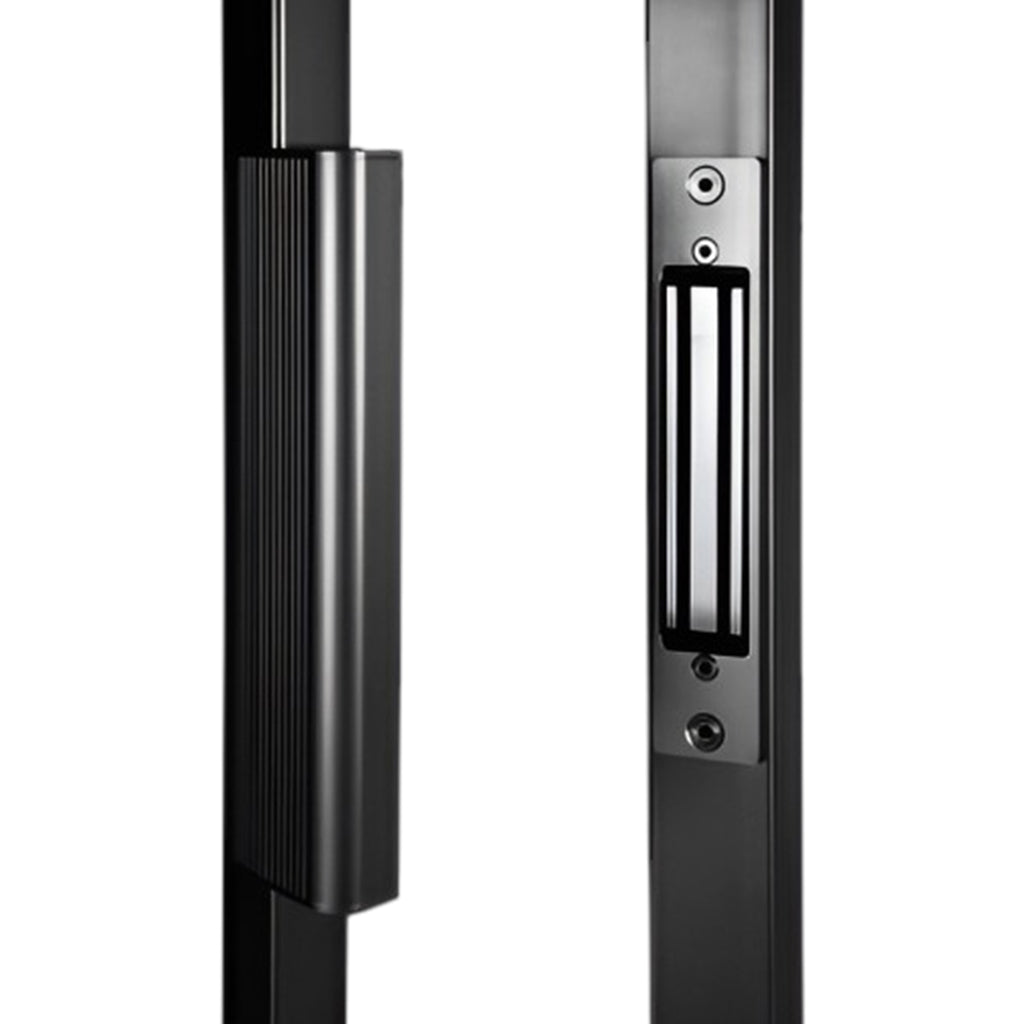

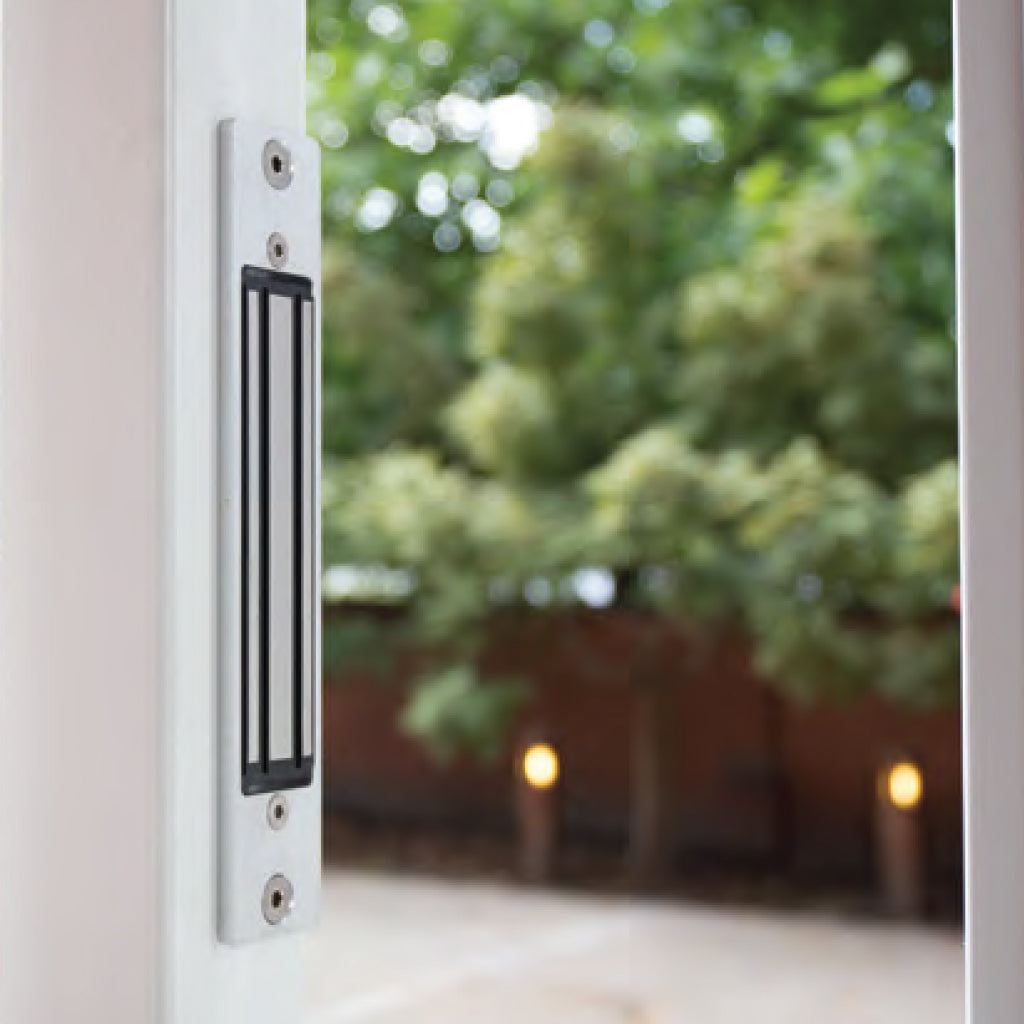

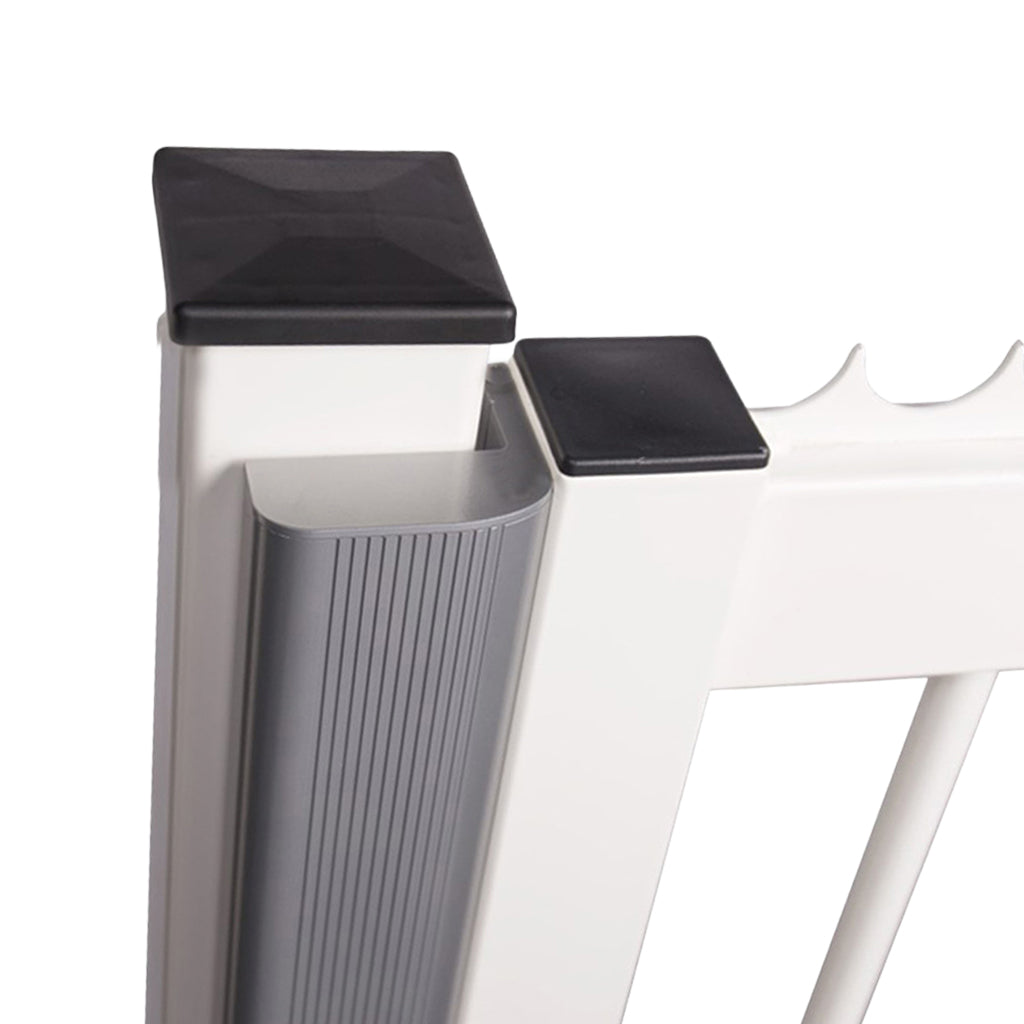

This magnet lock, designed to be fitted within the post, offers an invisible and aesthetically pleasing installation while maximising pedestrian space.
It features:

Quick-Fix assembly for fast installation.
Guaranteed tensile strength of 250 kg.
Resistance to extreme weather conditions.
Rubber bumpers to prevent gate shaking and damage from harsh handling.
Flexible armature plate assembly to provide a perfect surface-to-surface contact even if the gate is not perfectly aligned.
Use with 12v or 24v power supply.

Tech Specifications

Specifications

Guaranteed holding force tested on every magnetic lock
Minimal pulling force: 2500N (250 kg)
500h salt spray resistant! SGS certified (ISO 9227)
Special two-layer protective coating developed for outdoor use
Anti-residual magnetism kick-off system
Current: 460mA / 12V or 230mA / 24V
Voltage: 12V / 24V DC
IP68 rated - Extremely resistant to water and dust

Documents

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Locinox Hardware.

Download Installation Guide
