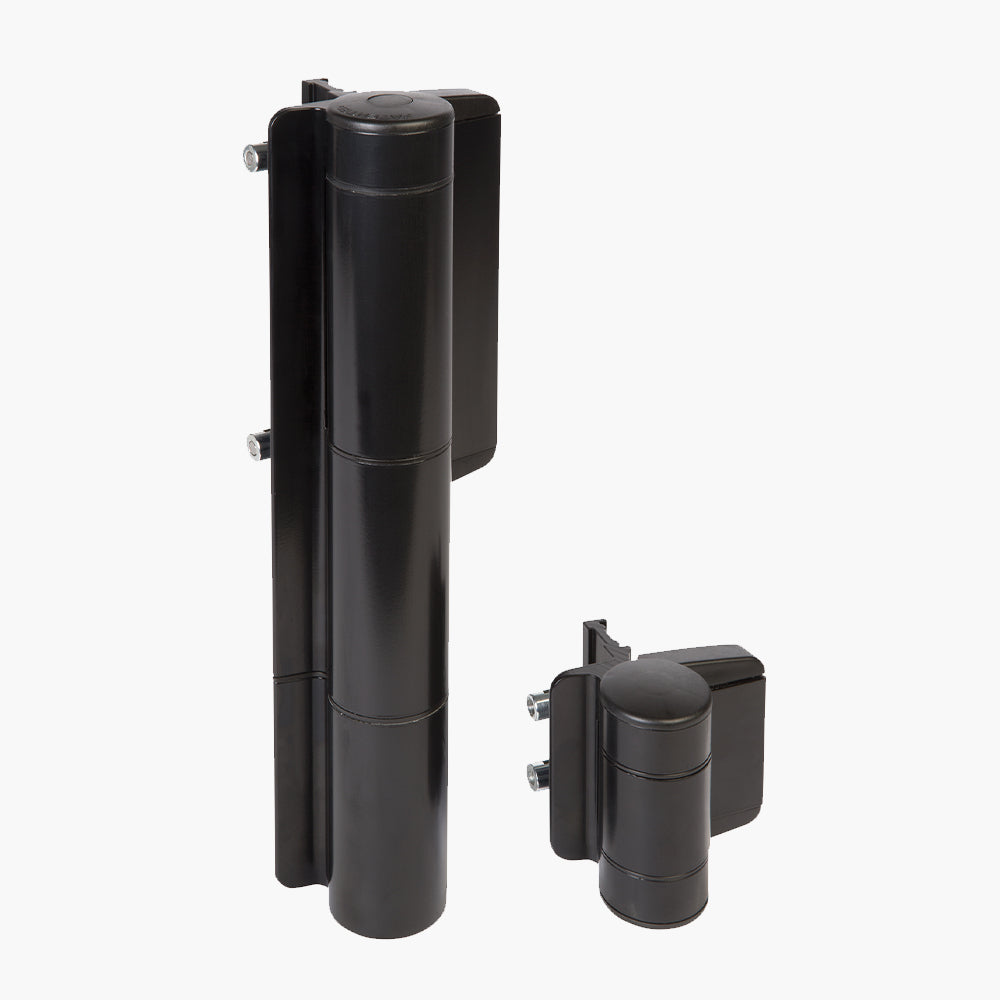

Mammoth Self-Closing Hinge

Name: Mammoth Self-Closing Hinge
Brand: Locinox
SKU: MAMMOTH-180-BLK
Price: 934.55 AUD
Availability: InStock

$934.55

Brand:

Locinox

SKU:

MAMMOTH-180-BLK

Product Type:

Swing Gate Hardware

Mammoth operates 180° on gates to 200kg and 2m wide. Maintenance-free.

Colour:

Black

Option:

Up to 150kg Up to 200kg

Variant

More information

Extended Description

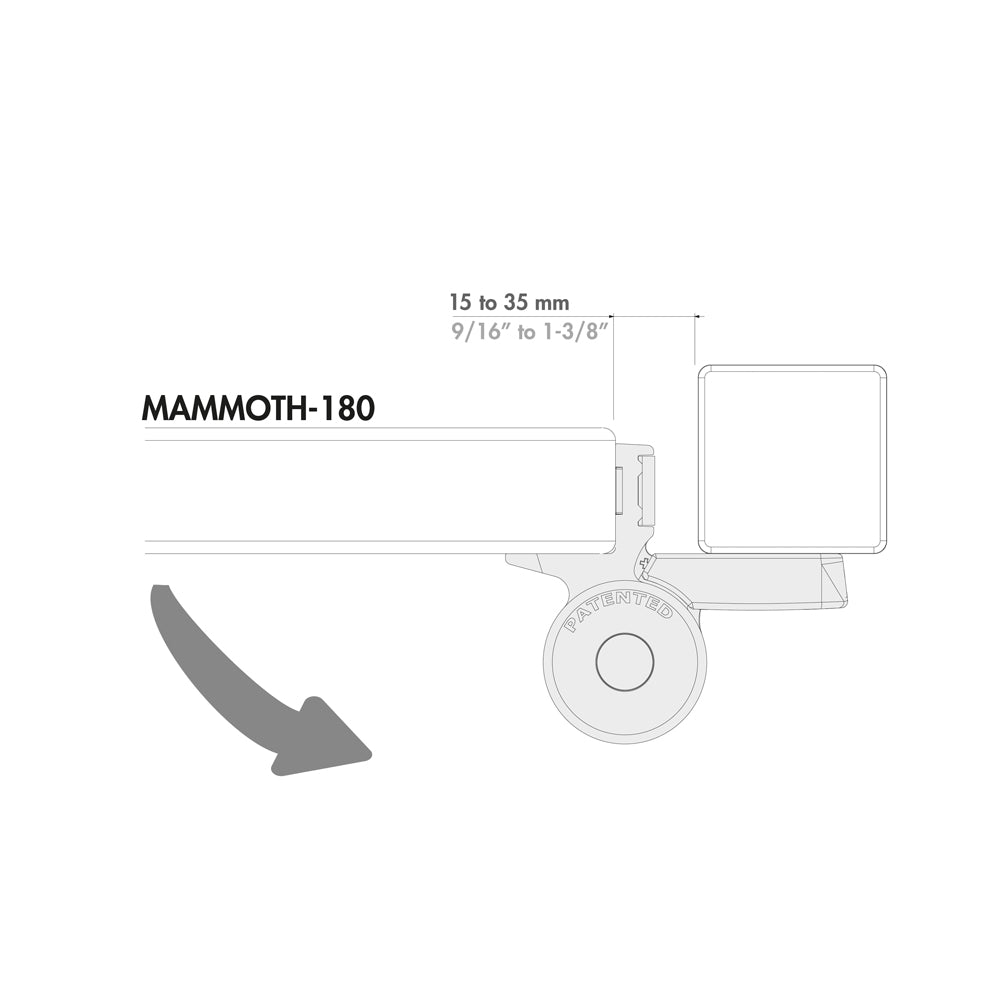

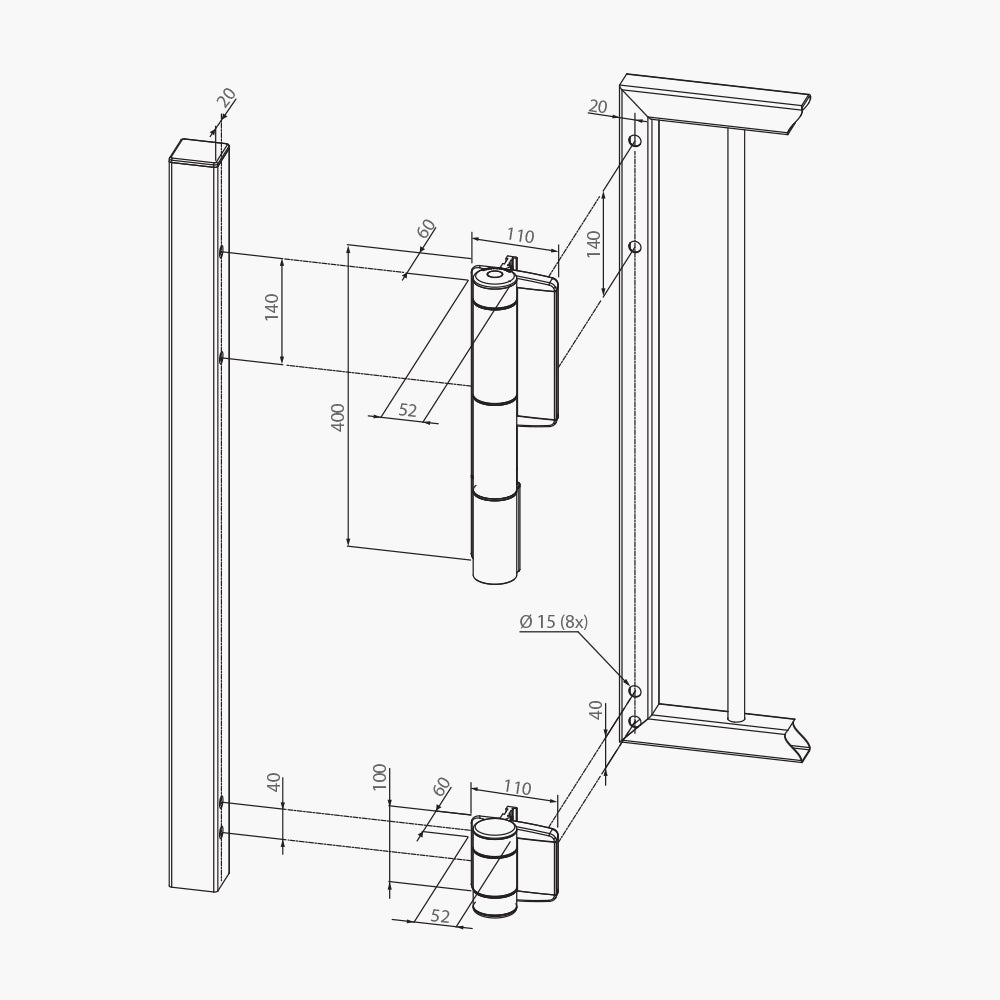

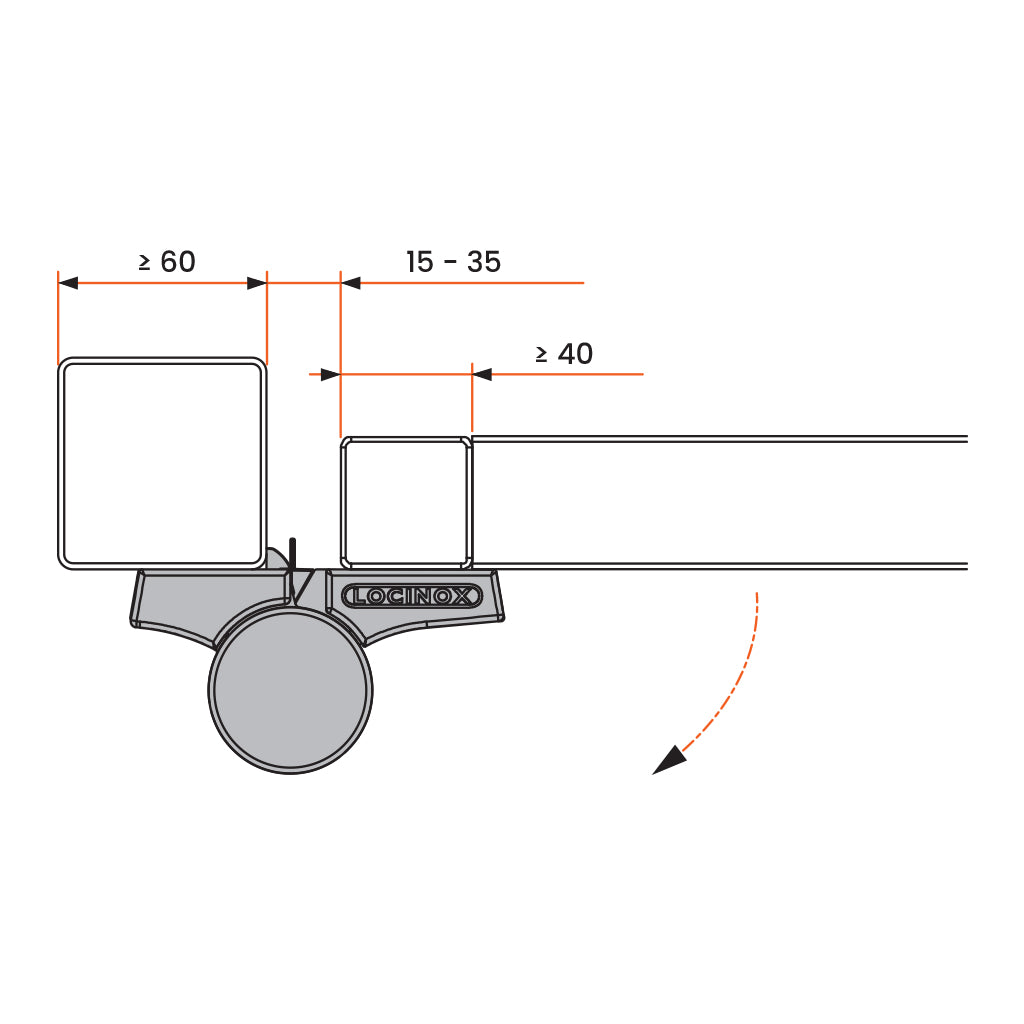

Simple yet powerful 180° self-closing hinge set for min. 40mm frame & 50mm post.

Mammoth has two powerful models, easily opened self-closing hinge with 180° action. Mammoth-180 fits gates up to 150 kg and 1500 mm wide. Mammoth HD handles 200kg gates or gates to 2m wide. Both feature double bearings for exceptional reliability and is maintenance-free.

Mammoth only needs 1.5kg force to open, which means it can be opened by children and elderly.

Tech Specifications

Specifications:

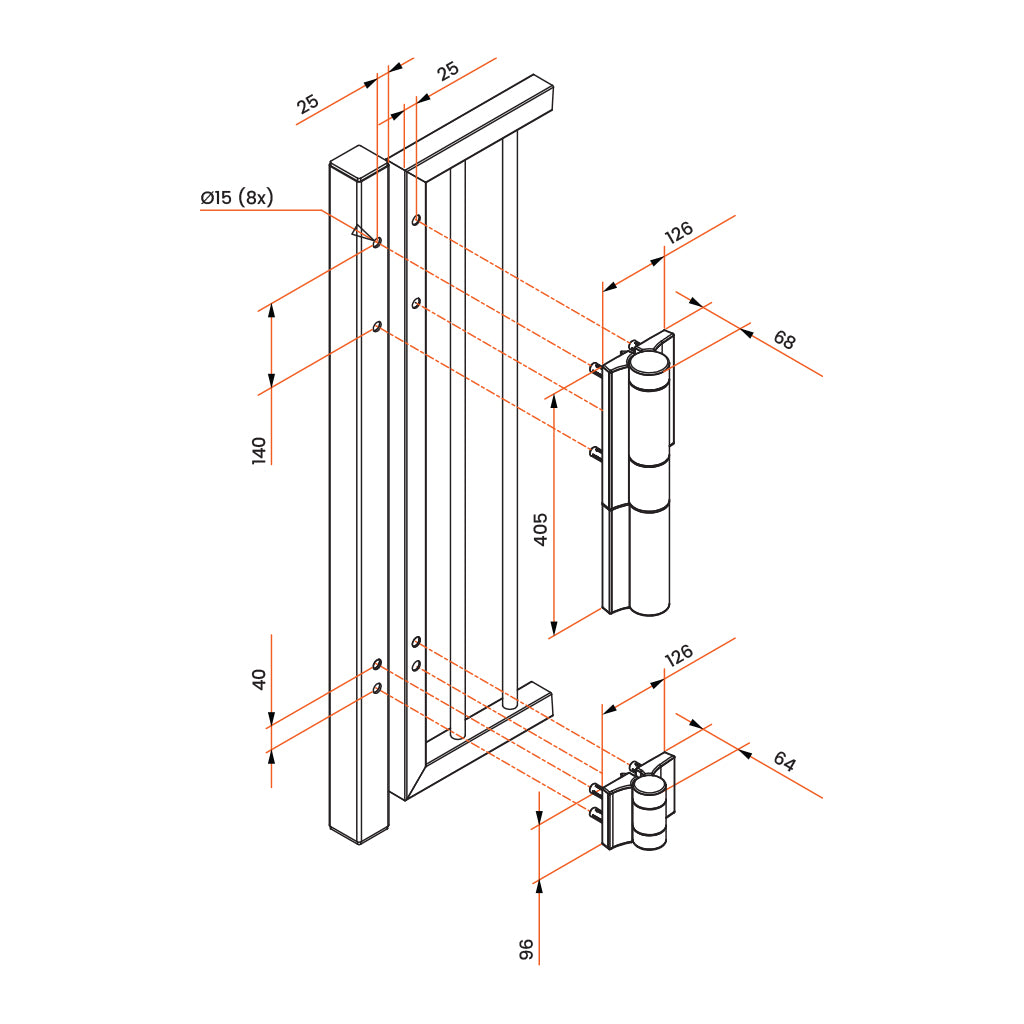

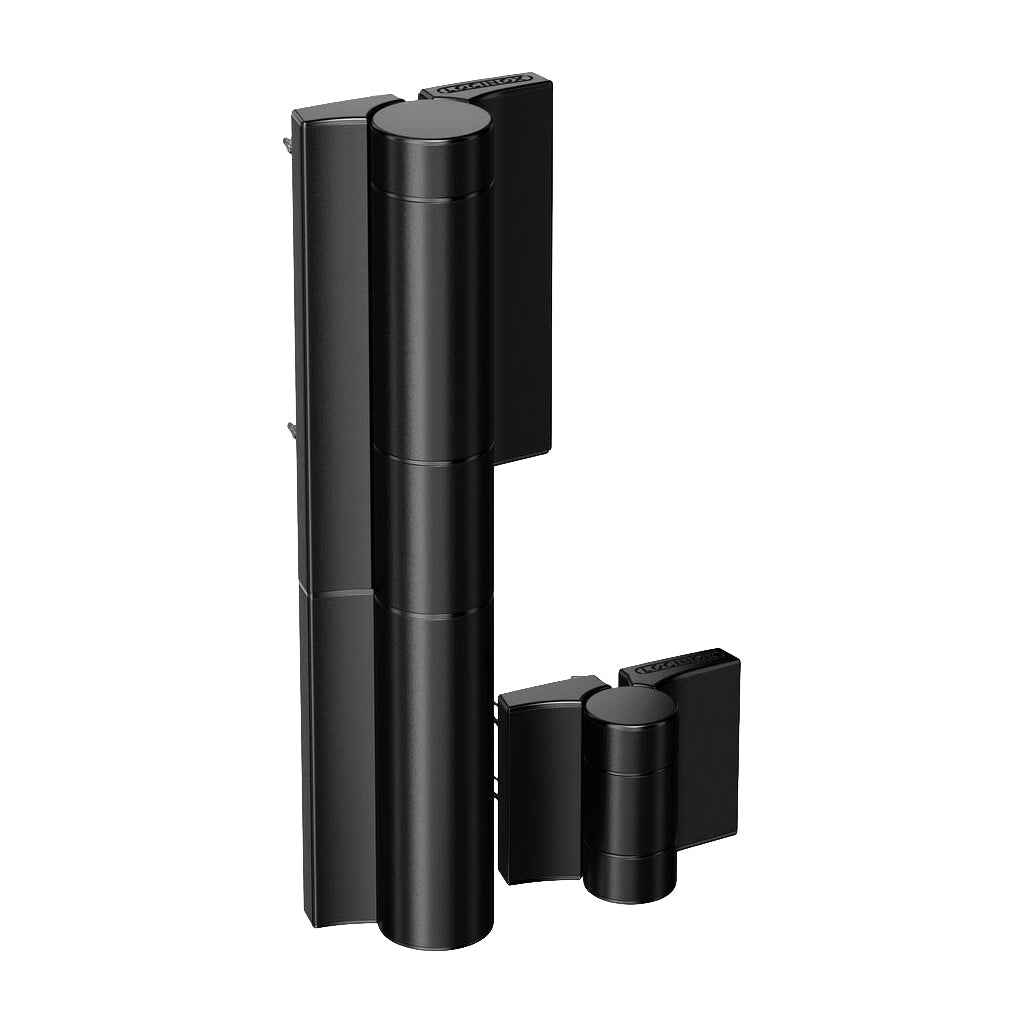

180 Model: Up to 150kg/1.5m

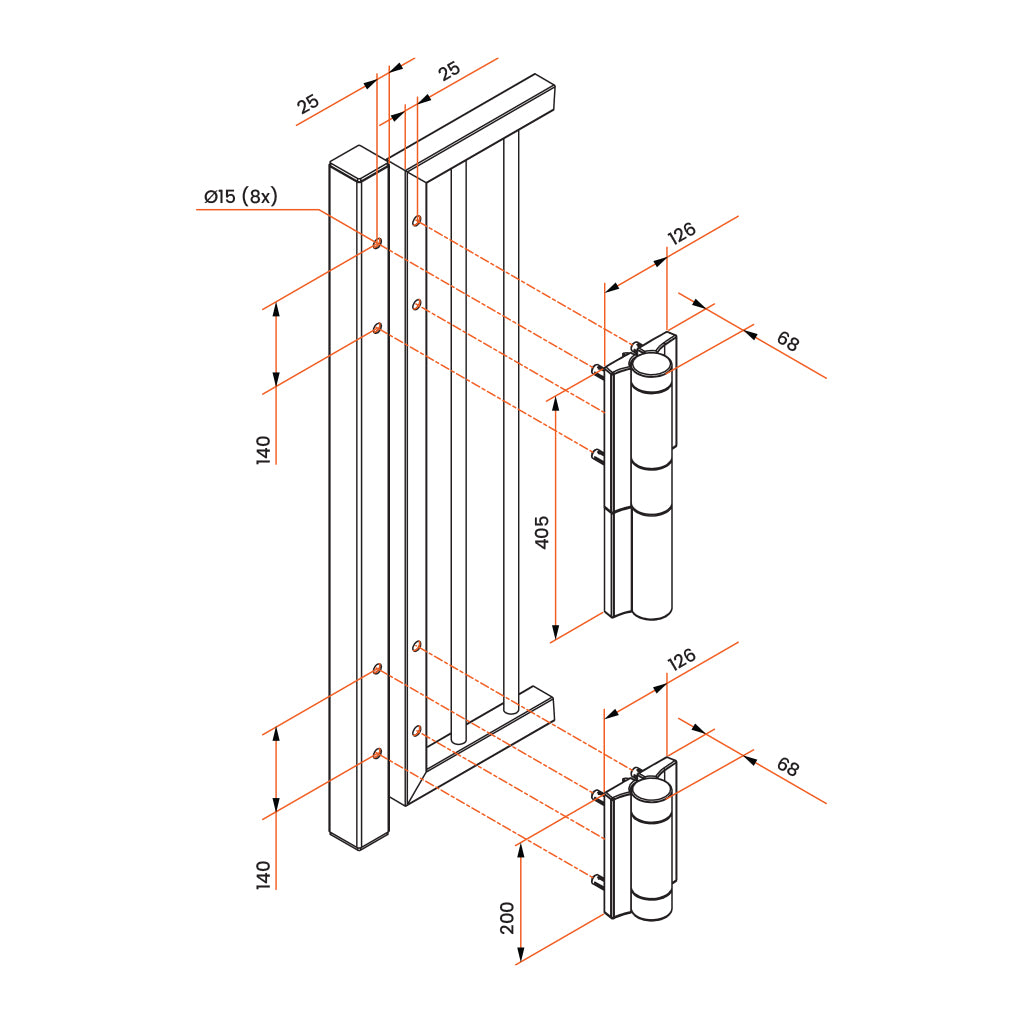

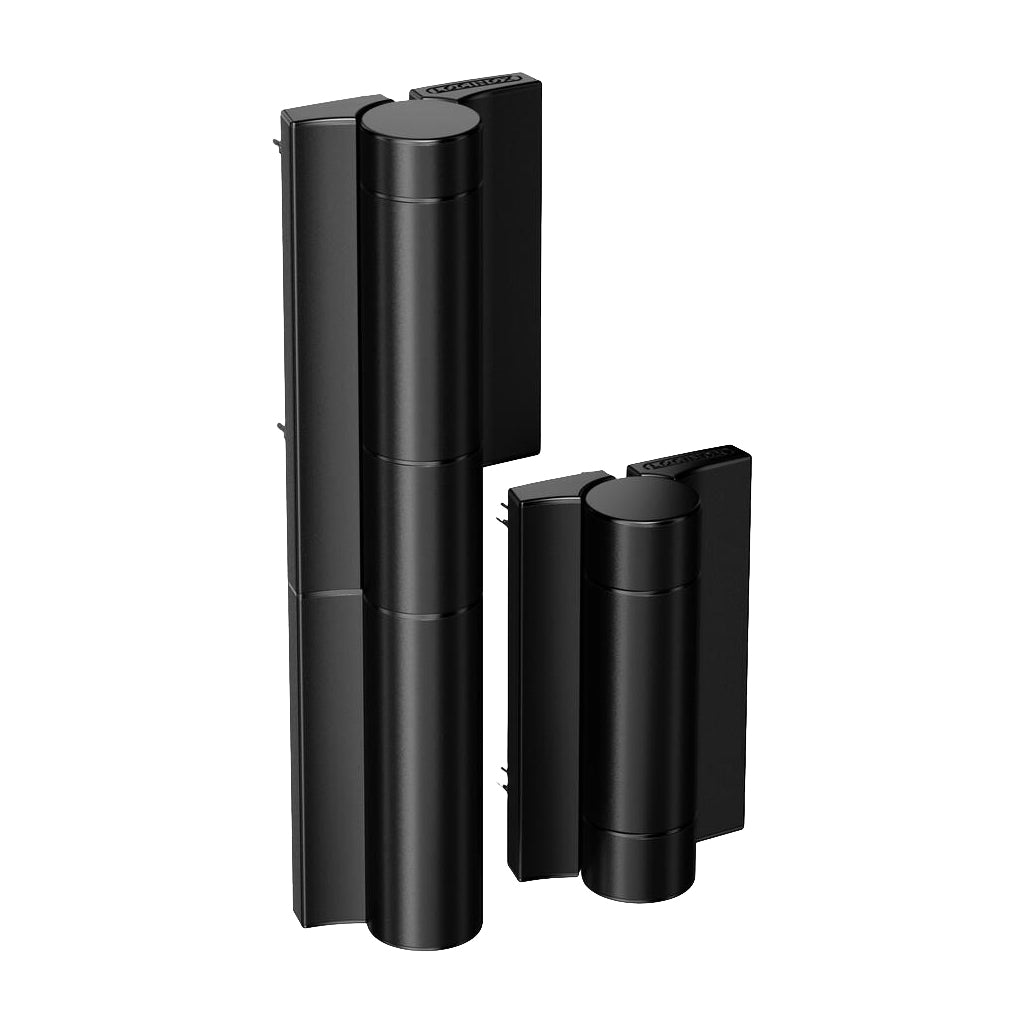

HD Model: Up to 200kg/2m

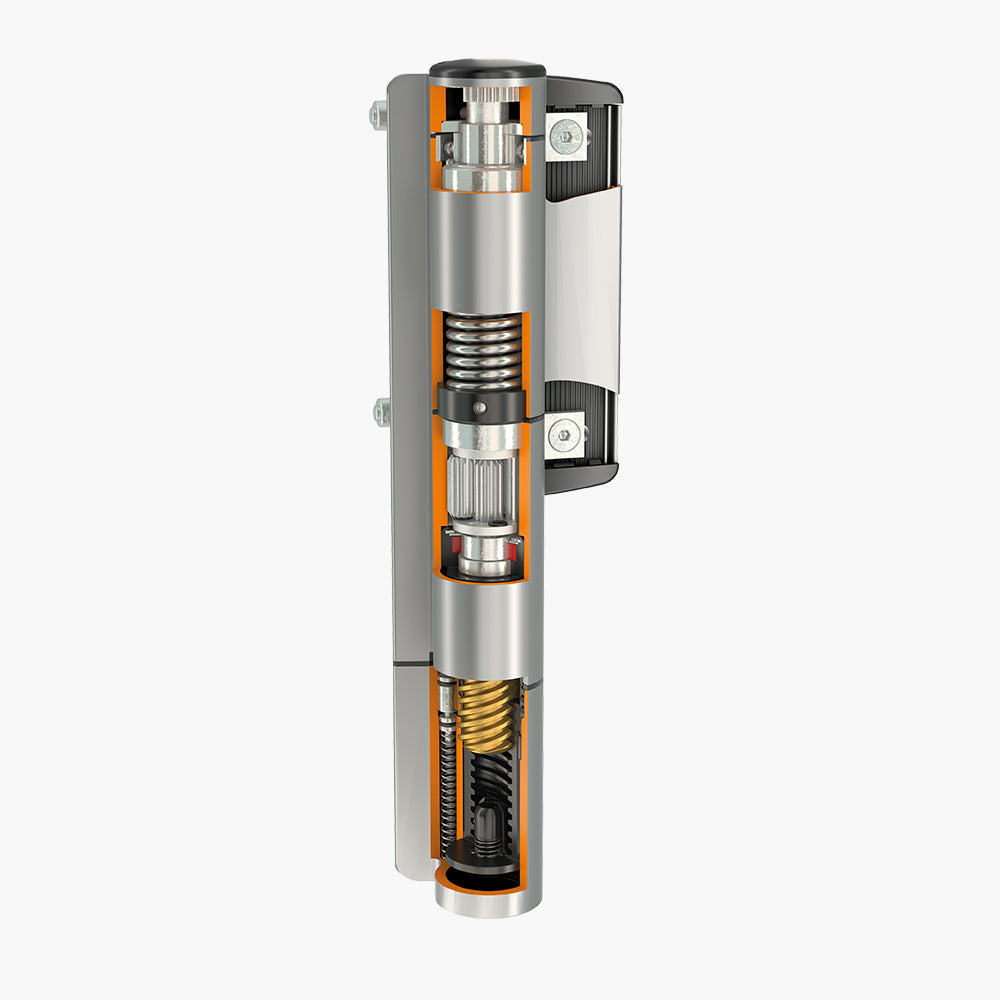

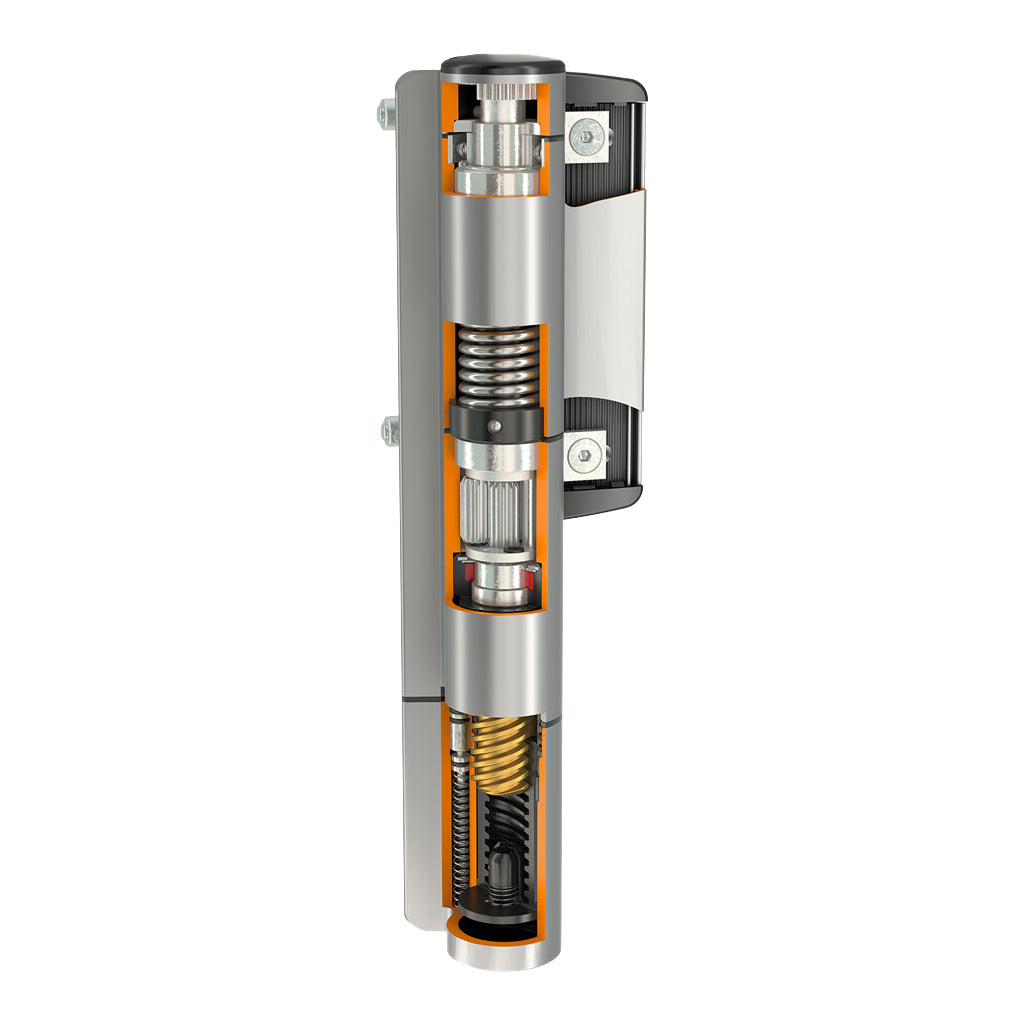

Self-closing hinge with patented hydraulic damping
Powder coated aluminium housing
Closing speed unaffected by temperature changes
Easy to open: Max. 16 Nm
Vandal-proof
For left and right opening gates
Easy mounting with Quick-Fix

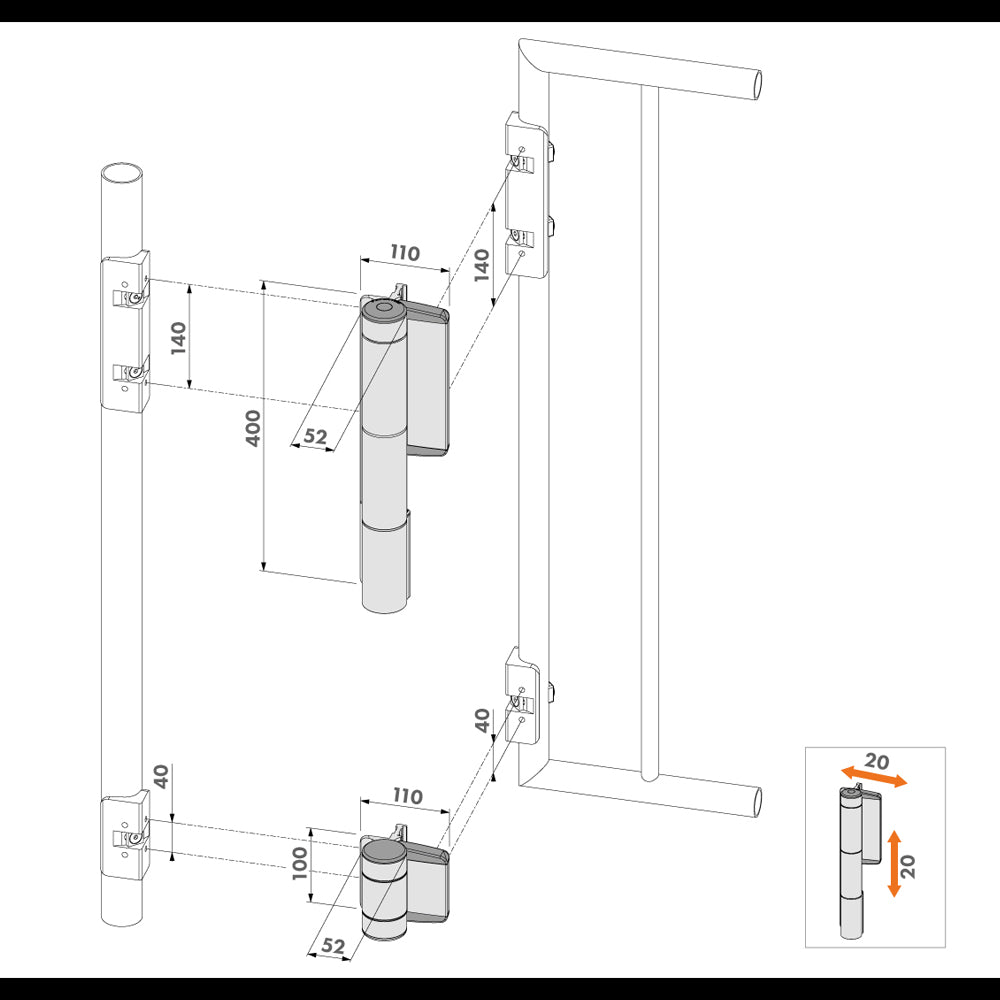

Adjustable up-down and left-right (20 mm)
