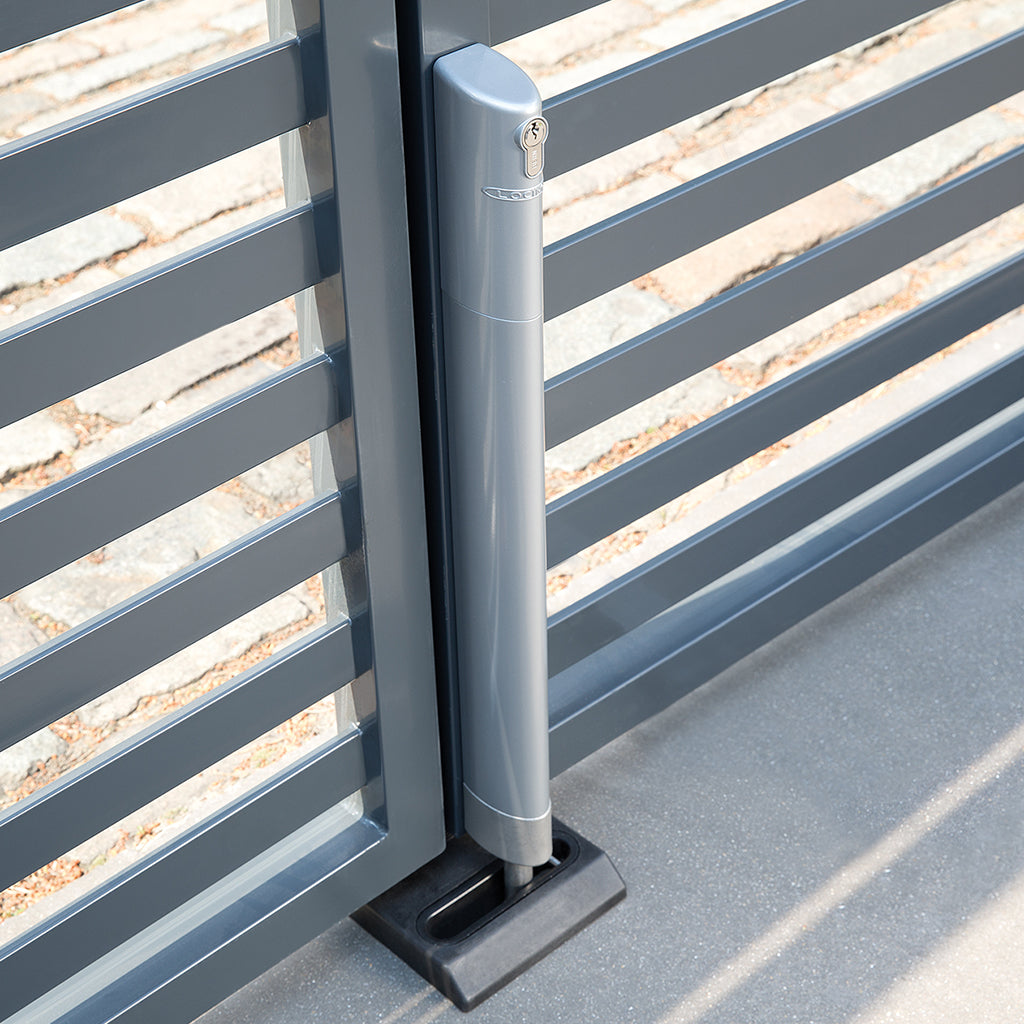

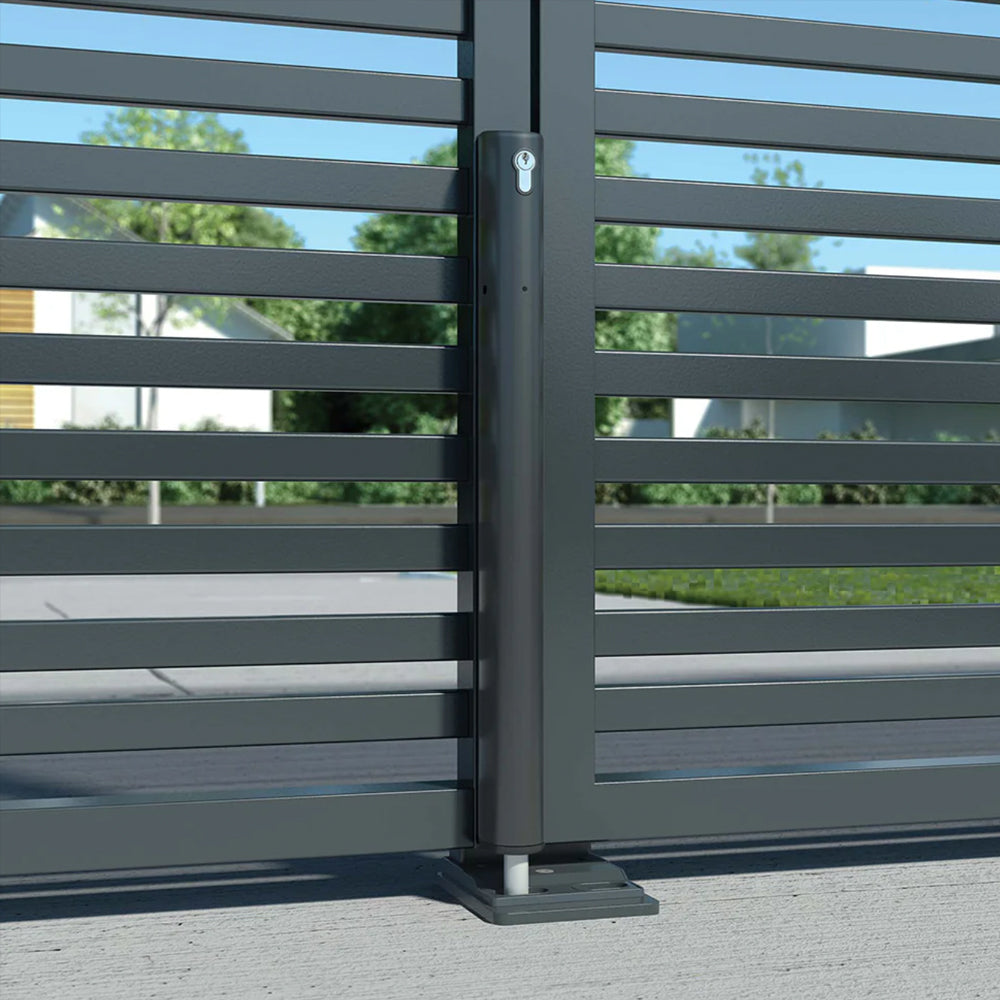

Motorised Drop Bolt

Electric 24V drop bolt with 115 mm throw for safe locking of automated swing gates. By securing your gate with an Electradrop you take the load off the electric gate motors and extend the life of your gate and automation.

Specifications:

• Fail Open variant (R) has batteries to open the lock in the event of  power failure.
• Vandal-proof, powder coated aluminium housing
• To be connected to the warning light on automated gates (min 3 sec prewarning signal) or directly on the gate automation
• Automatic detection and memorisation of the continuous or pulse signal
• Mechanical release possible (by key) in case of emergency
• Fitted with relay for drop bolt detection
• Obstacle detection with automatic stop of the drop bolt in case of a pressure exceeding 18 kg

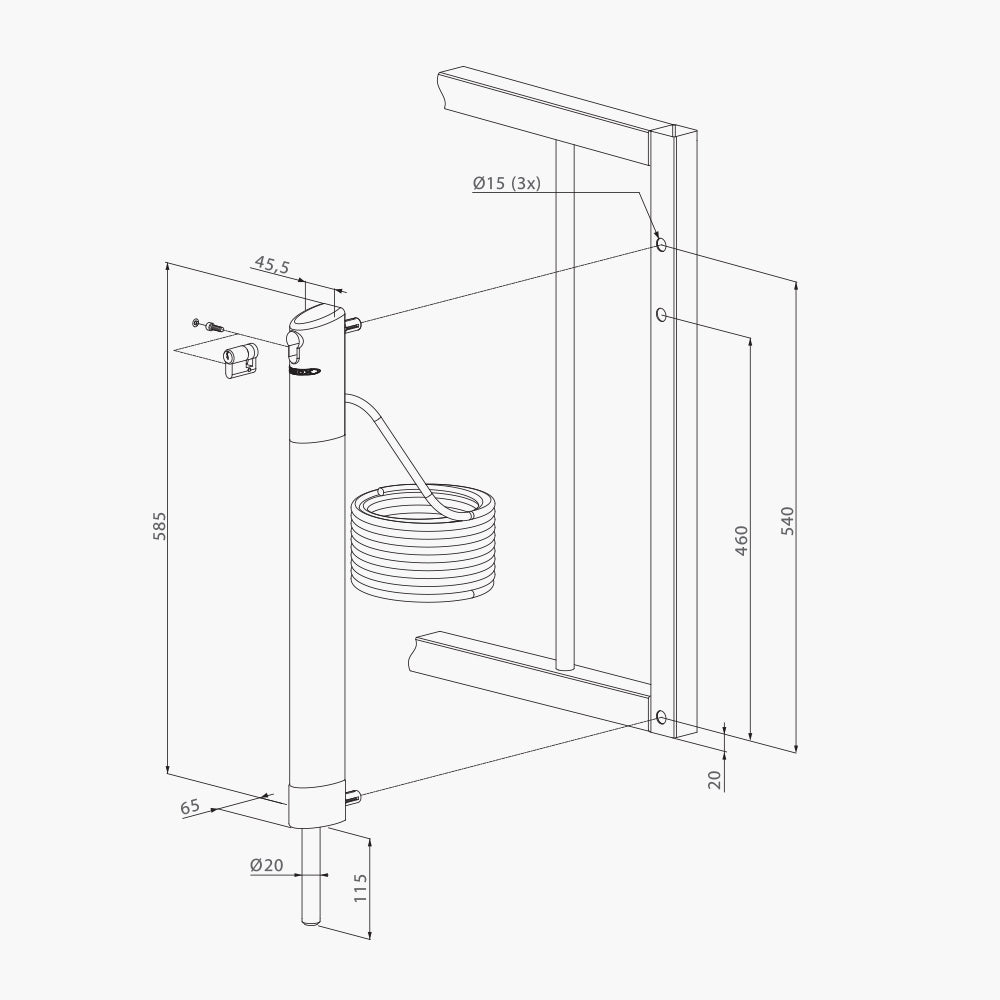

• Throw: 115 mm
• Drop bolt diameter: 20 mm
• For gate profiles: 40 mm or more
• Consumption: 25 W / Standby: 0,2 W
• 5 m cable included
• Included: 3012-37-STD cylinder
• To connect to a Locinox DC-POWER-24V-60W power supply

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Locinox Hardware.

• Download Installation Guide
• Download Architect + Engineering Specs
• Download Product Spec
• Download User Guide
