Rising Hinges

Boss Rising Driveway Hinges allow your gate to swing upward on a sloping driveway.

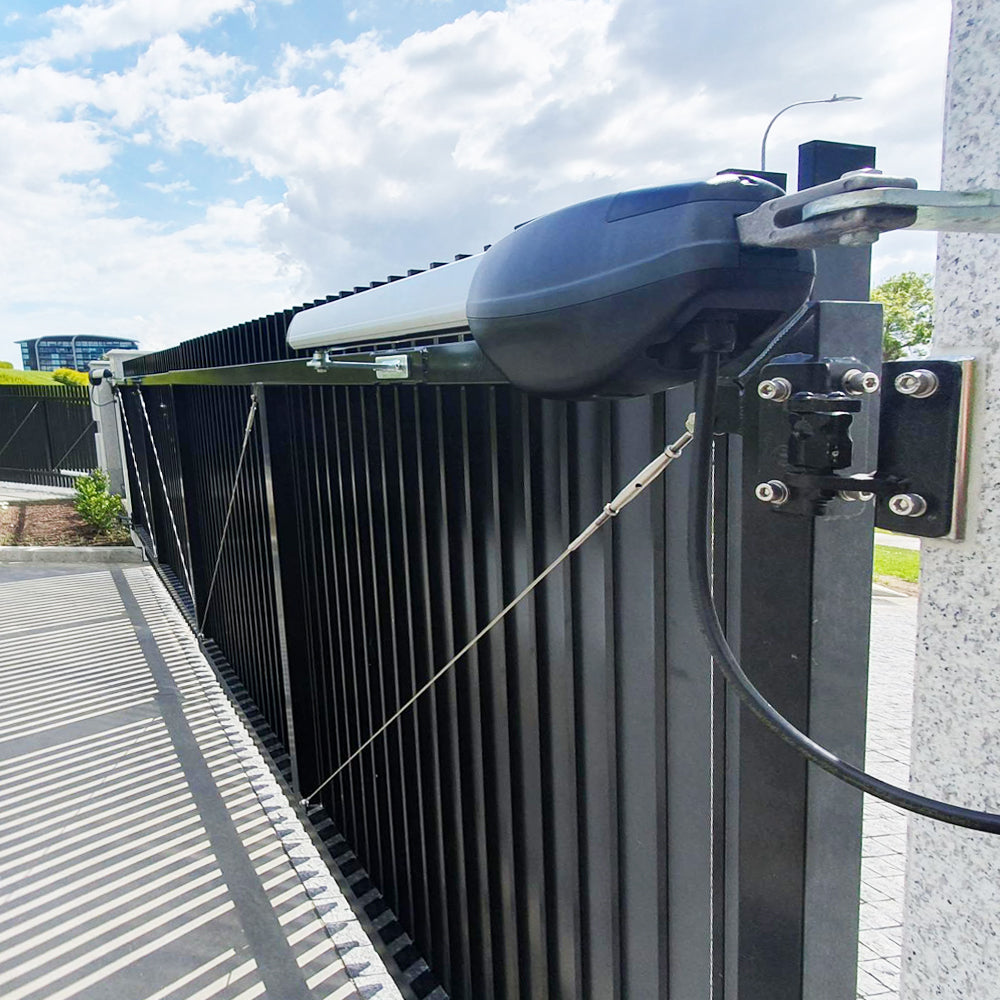

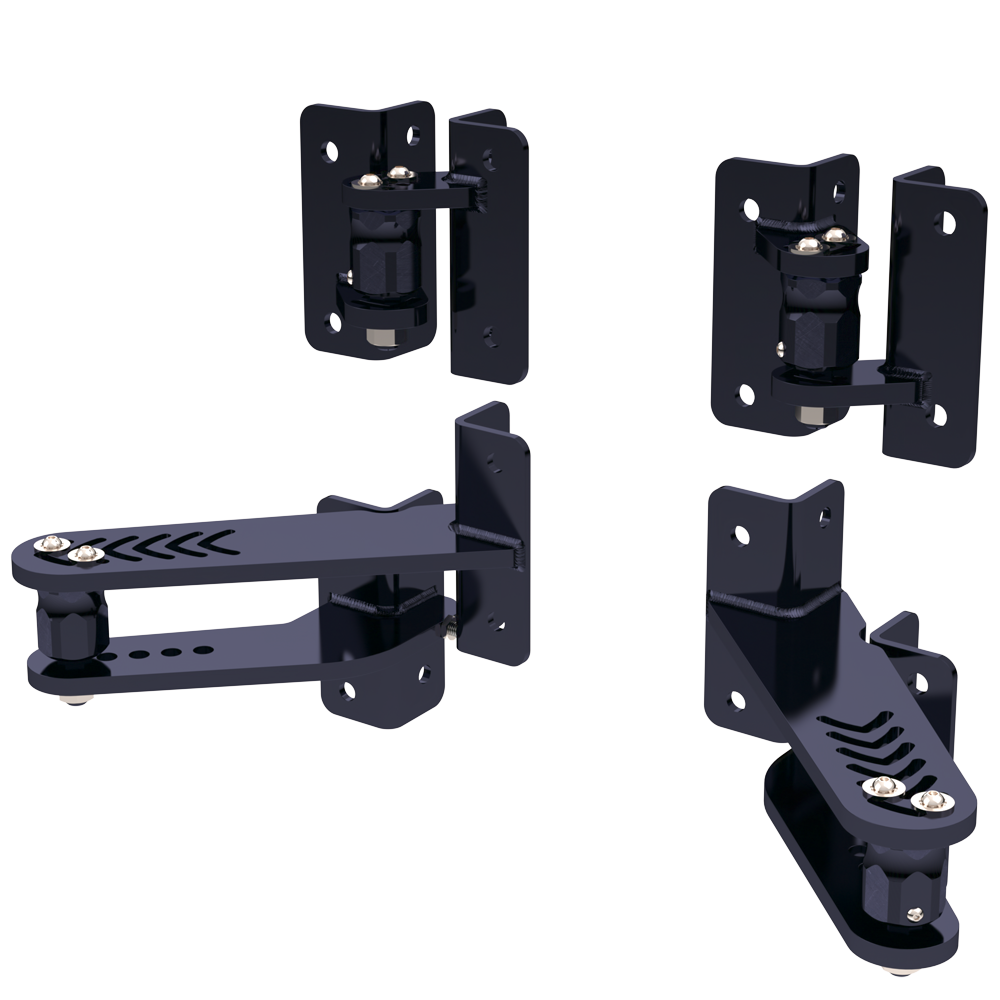

Rising Hinges are sold as a pair of top and bottom hinges. They are universal to fit left or right sides.

Rising Hinges are designed for steel or aluminium gates up to 120kg per leaf.

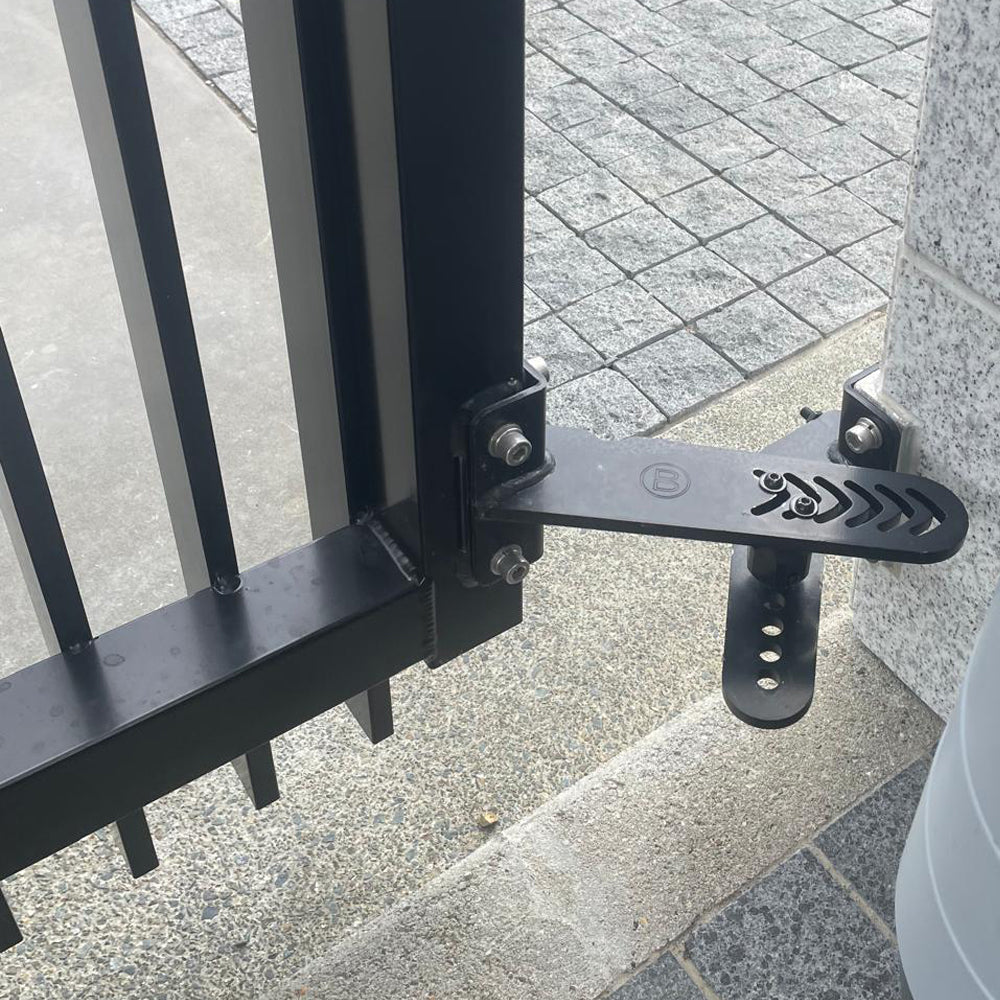

The bottom bracket is adjustable allowing for slopes of up to 14 deg. The hinges make use of a stainless steel ball and socket that has a clever anti-theft mechanism built-in.

See the video below on how to adjust both hinges.

Patented design engineered in-house by Edgesmith.

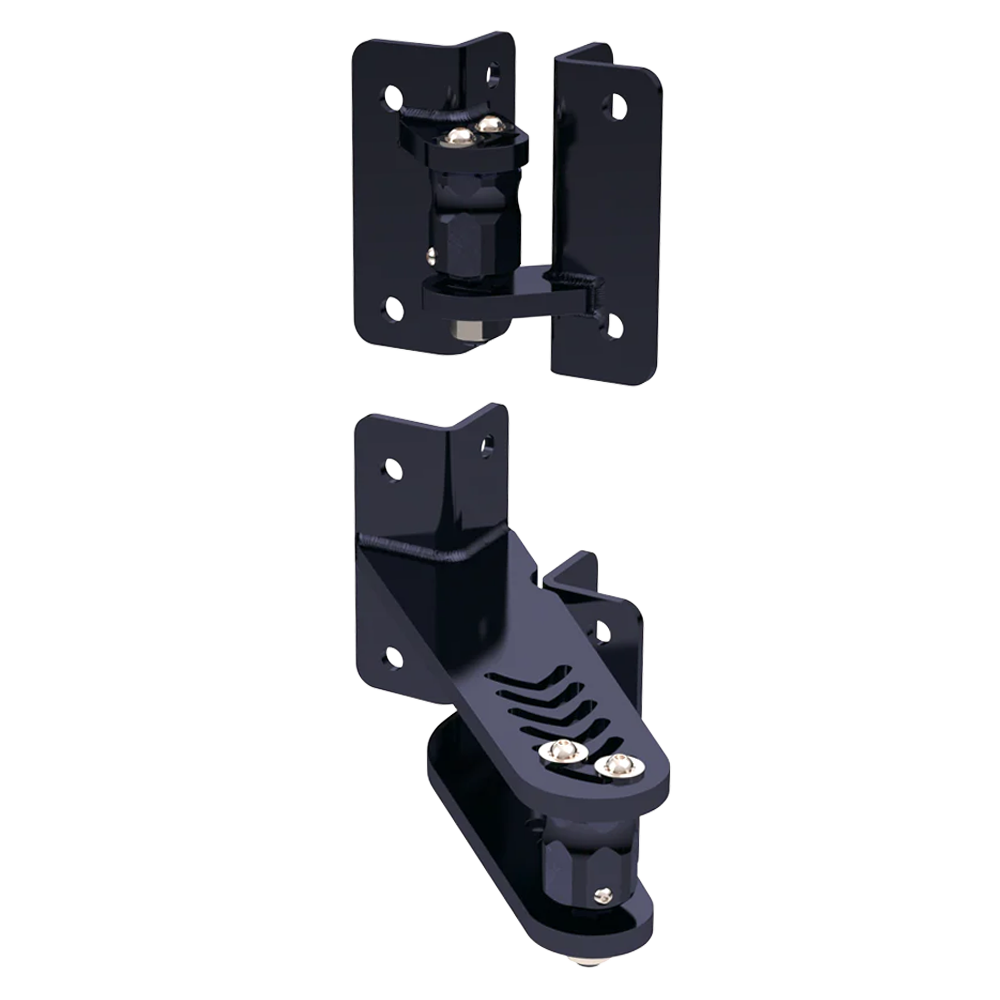

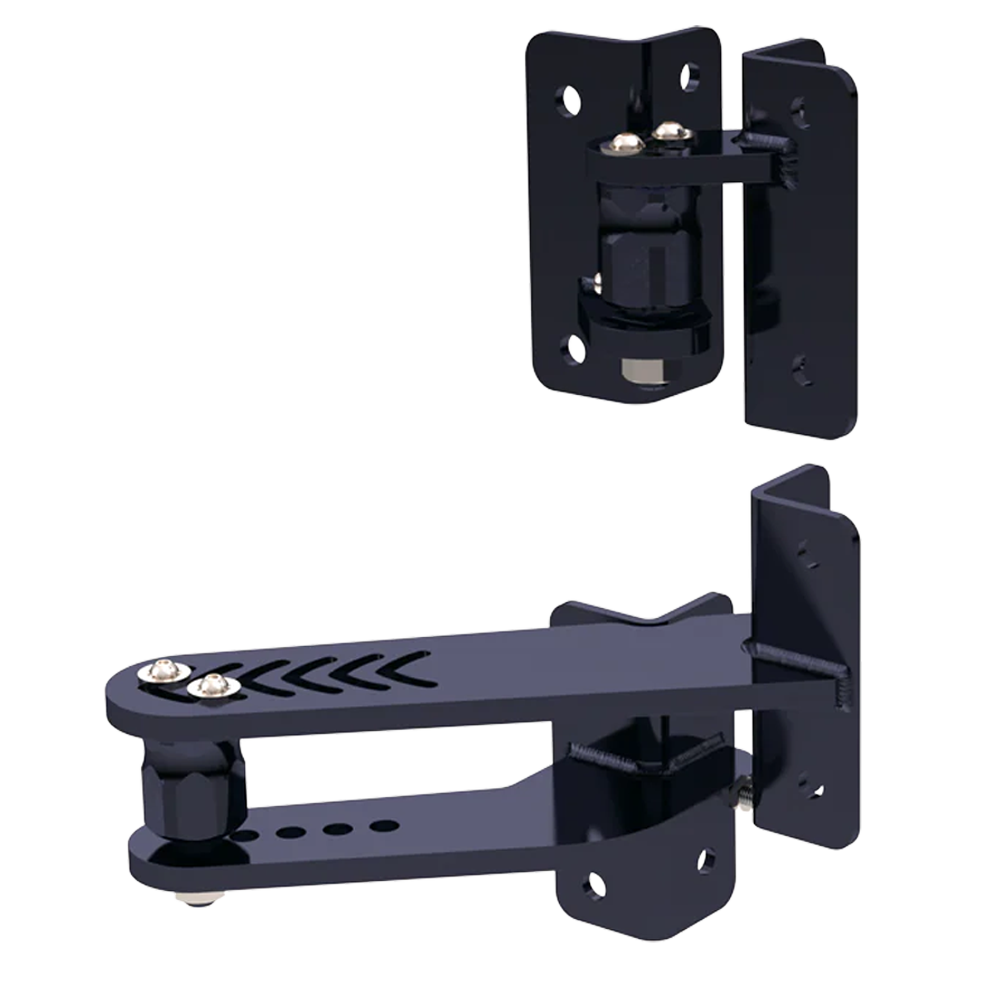

• The hinge can be flipped for Left or Right
• Rated to 120kg per leaf
• Patented adjustment mechanism

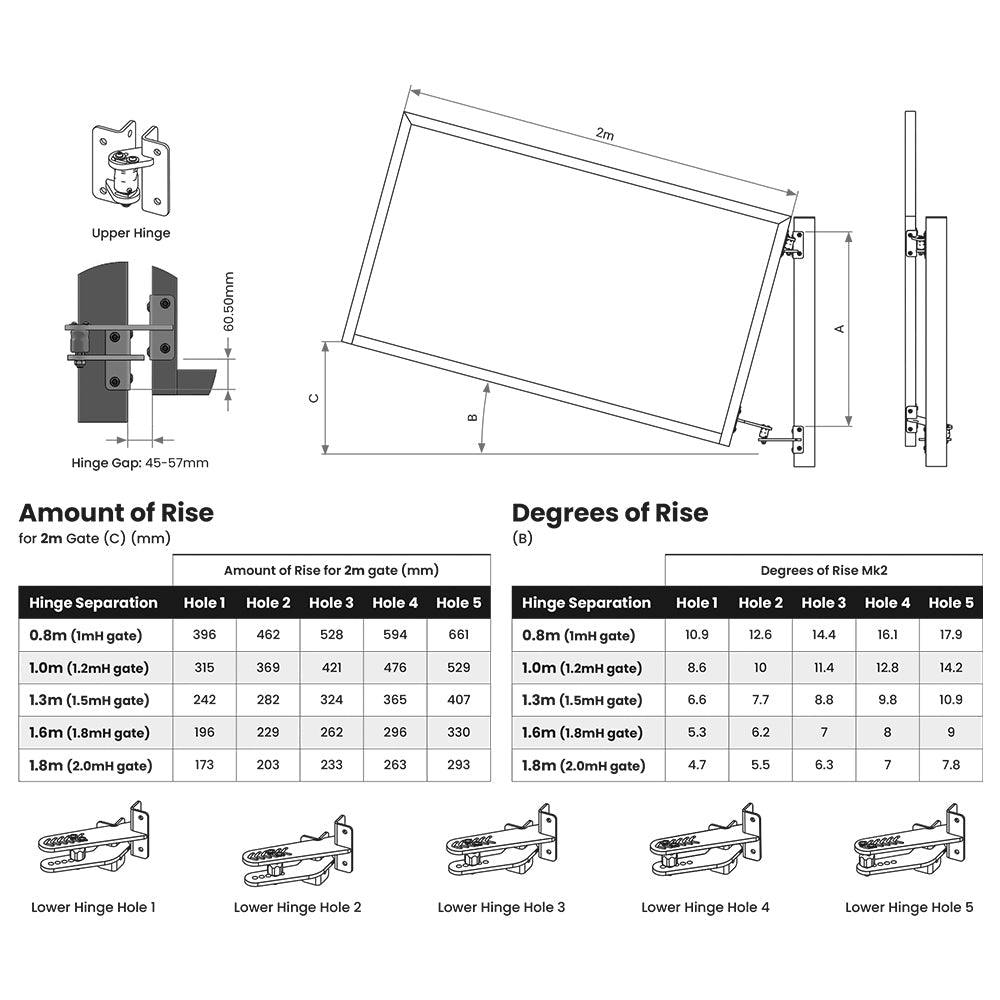

• Slopes of up to 14 deg (depending on gate height - see table)

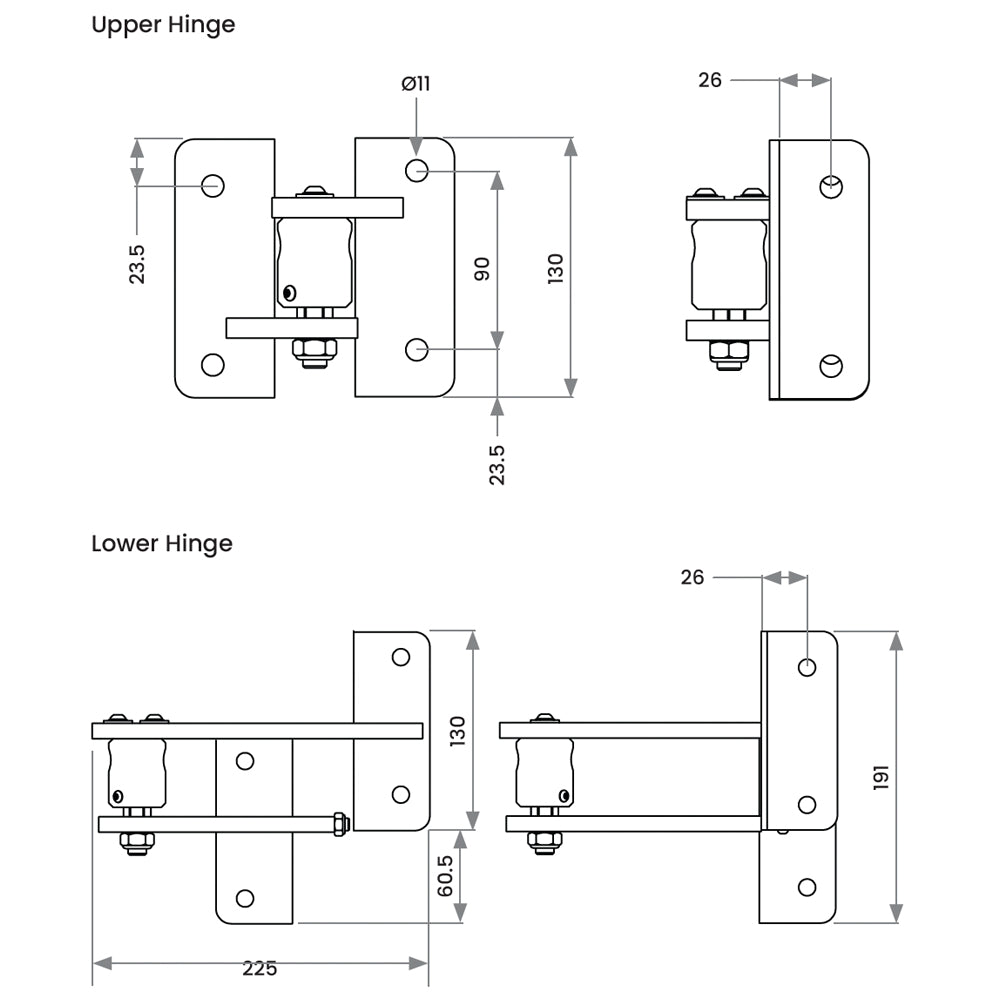

• Hinge gap of 45-57mm
• Only for automated gates
• Note - Gate safety needs to be considered when raising hinge gates. If the gate is released from the automation it will fall under gravity. NEVER key release the gate motor when the gate is open without propping it so that it cannot fall.

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Boss Hardware.

• Download Rising Hinge Spec Sheet
