Underground, 800kg, 100% Duty Cycle

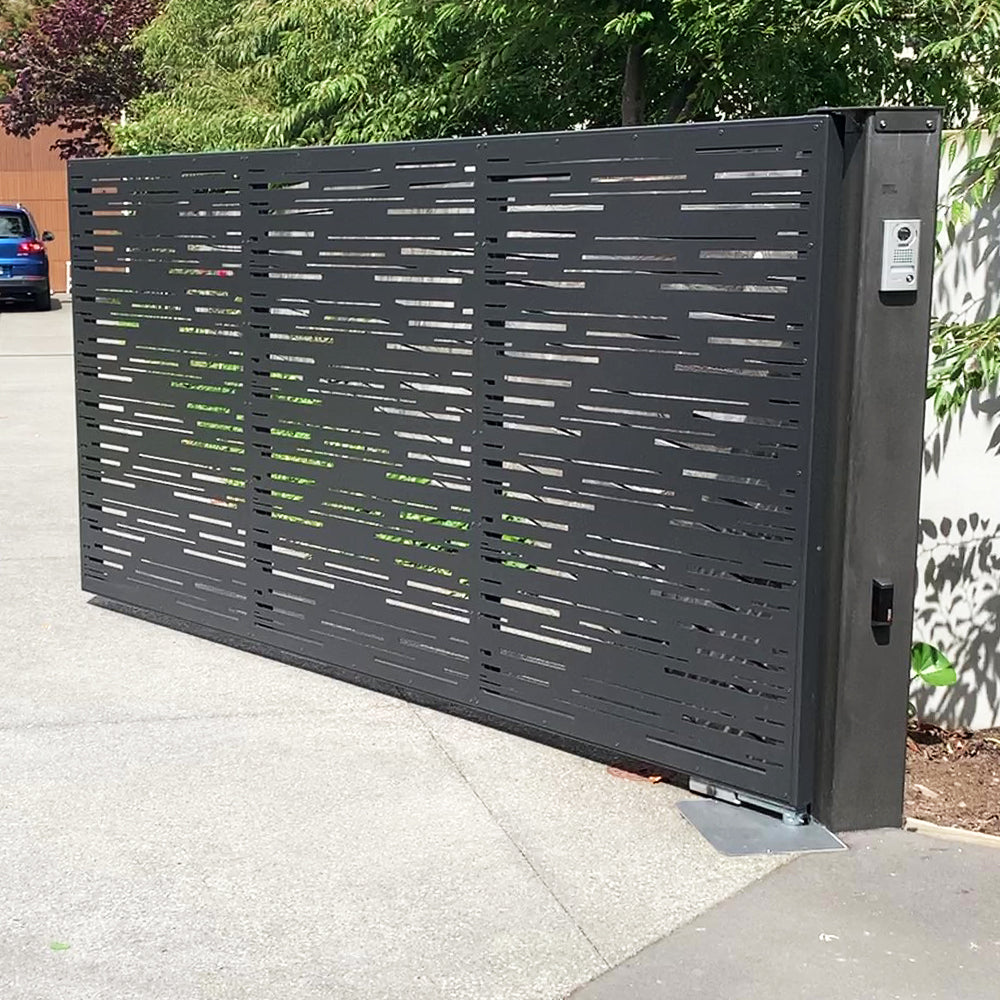

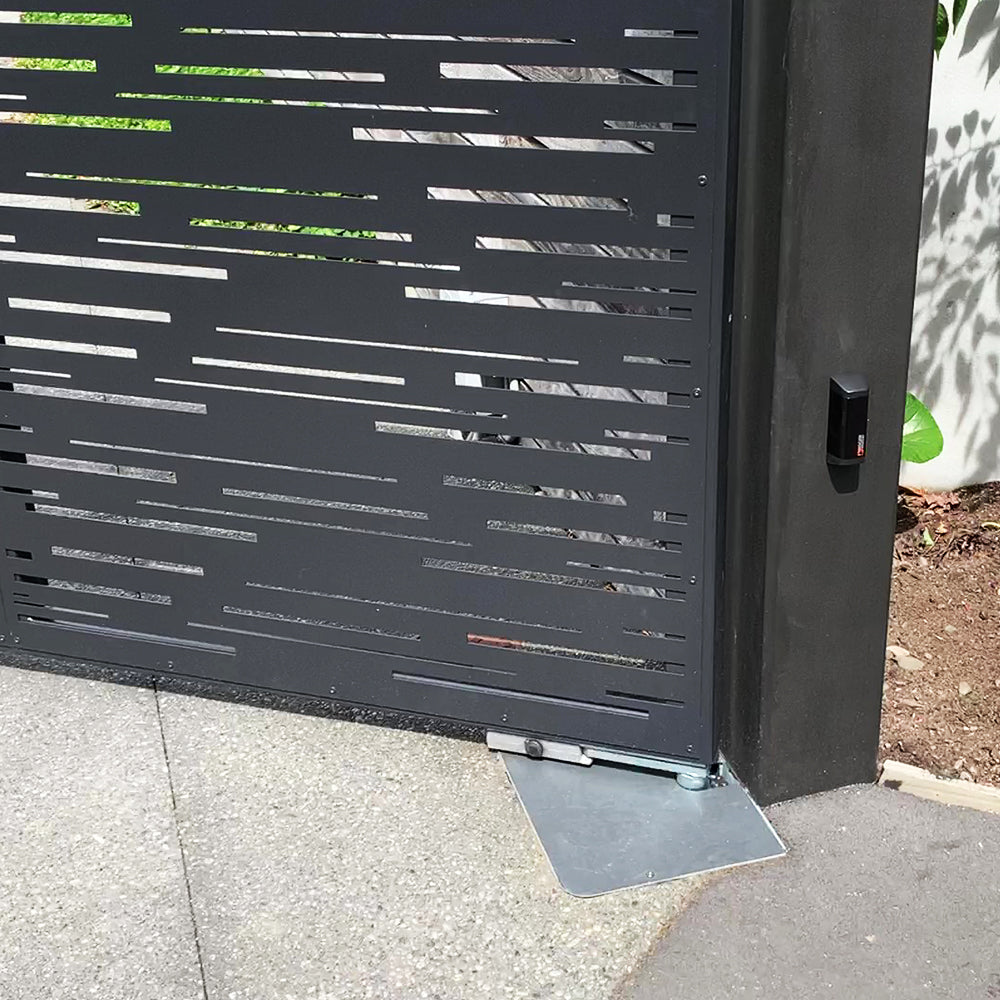

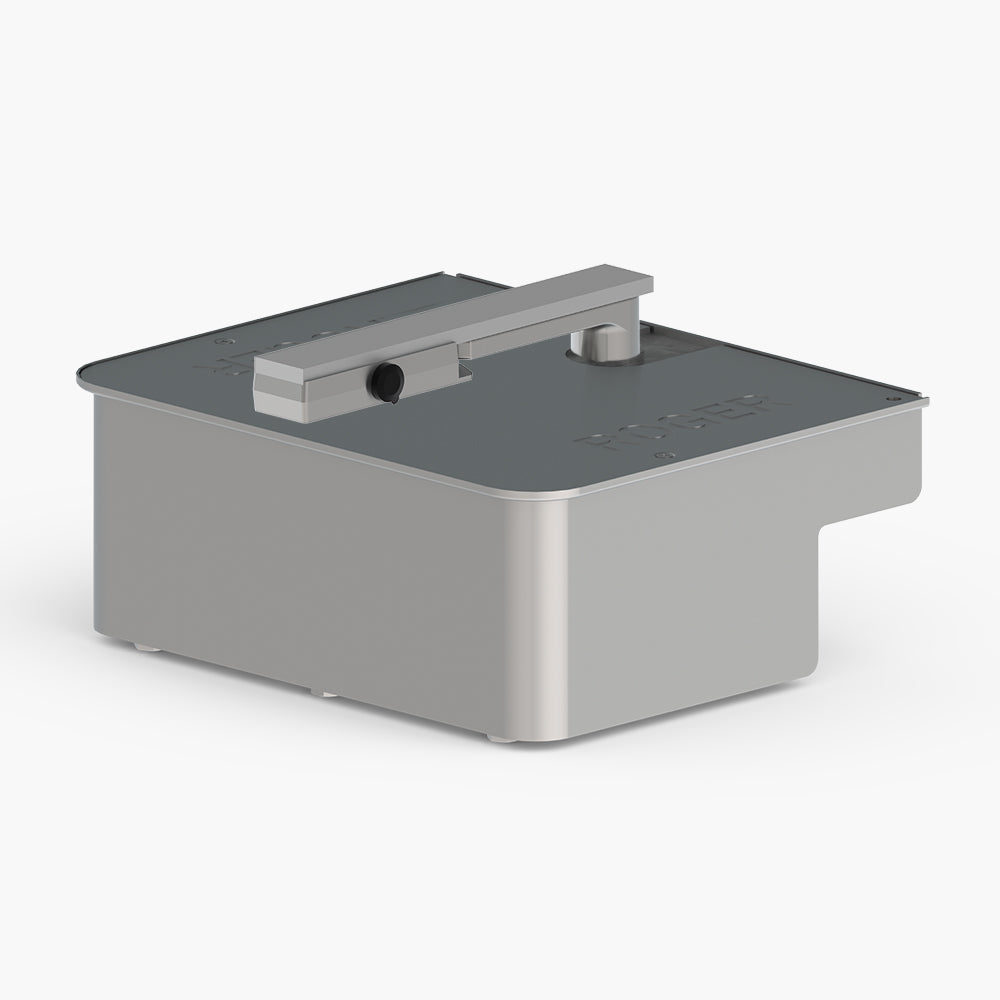

The BR21-351 is a submerged swing gate operator for gates of up to 800kg /4.5m per leaf. The powerful 36v brushless motors are capable of opening times as low as 19 sec on a large gate and can be operated up to 1300x per day. With safety in mind, the Fantasma can detect objects and immediately reverse them. Thanks to the precise engineering, top-quality raw materials and the brushless motor, the Fantasma is the quietest underground motor in the market. An operator without compromise.

Specifications

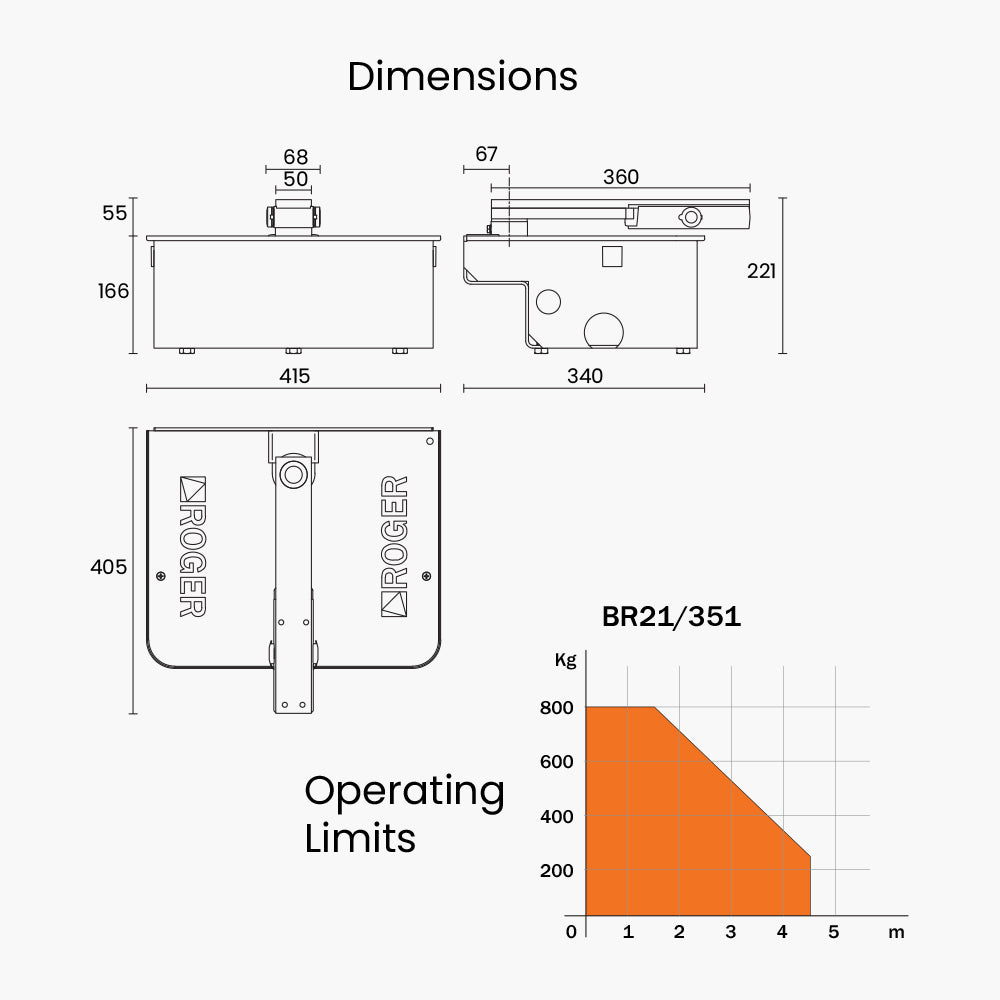

• Max Gate Size - up to 4.5m / 800kg per leaf (see chart)
• Input Power - 230V AC
• Motor Power - 200W, 36V brushless
• Max Torque- 220Nm
• Speed - 19 - 25 sec to 90 deg opening (depends on geometry)
• End Stops - inbuilt mechanical stops in open and closed positions
• Control Board - Edge1
• 360 deg opening can be achieved with the optional 360deg kit

Power Options

• Mains - the most reliable option if it is possible to get 230v out to the gate.
• External Transformer - put a transformer inside the house or garage and run low-voltage AC out to the gate using a garden light cable.
• Solar - Roger Automation is very energy efficient and suits solar power. The specification of your panel(s) and batteries depends on your application and we will help you select the right solar solution.
• Read more about power options on our Learning Page.

The Roger Automation range of brushless gate operators offers huge advantages over traditional brushed motors.

• High torque to weight ratio – these low voltage motors can now be applied to applications that were once only served by larger 230v / 415v motors.
• Increased efficiency – Significantly reduced losses due to the motor construction. The omission of brushes and the fact that the motor windings are supported by the motor housing, any heat generated is cooled by conduction resulting in ultra-low power consumption and a super-intensive duty cycle.
• Longer lifetime, increased reliability and reduced noise – This is achieved due to the elimination of brush or commutator erosion, ionizing sparks and the overall reduction of electromagnetic interference.
• Higher speeds – Brushless motors are capable of higher speeds without the loss of torque. Brushed motors develop maximum torque when stationary, linearly decreasing as velocity increases.
• Superior control & motor positioning – Utilising the pulses from the undriven coils within the brushless motor and the technology incorporated in the controller the motor is capable of achieving precise control and positioning. One obvious advantage to this is significantly reduced stresses to the motor and gearbox resulting in the overall longevity, sustainability and reliability of the unit.

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Roger Automation.

• Download Quick Start Guide
• Download Fantasma Feature and Benefits
• Download Operator Manual
• Download Operator Brochure
• Download Control Board Manual
• Download Synus Remotes Manual
• Download Synus Remote Brochure
• Download Receiver Manual
