Radio Receiver for Roger

2-channel fixed code radio receivers from Roger Technology, designed for gate automation systems. The R93/RX20/U is a standalone terminal block receiver for 24V AC/DC installations, while the H93/RX2LP/I is a plug-in board receiver pre-installed inside Brushless automations equipped with the B70/MODLP low-power module. Both support AM/ASK modulation at 433.92MHz and are compatible with E80 and M80 series transmitters.

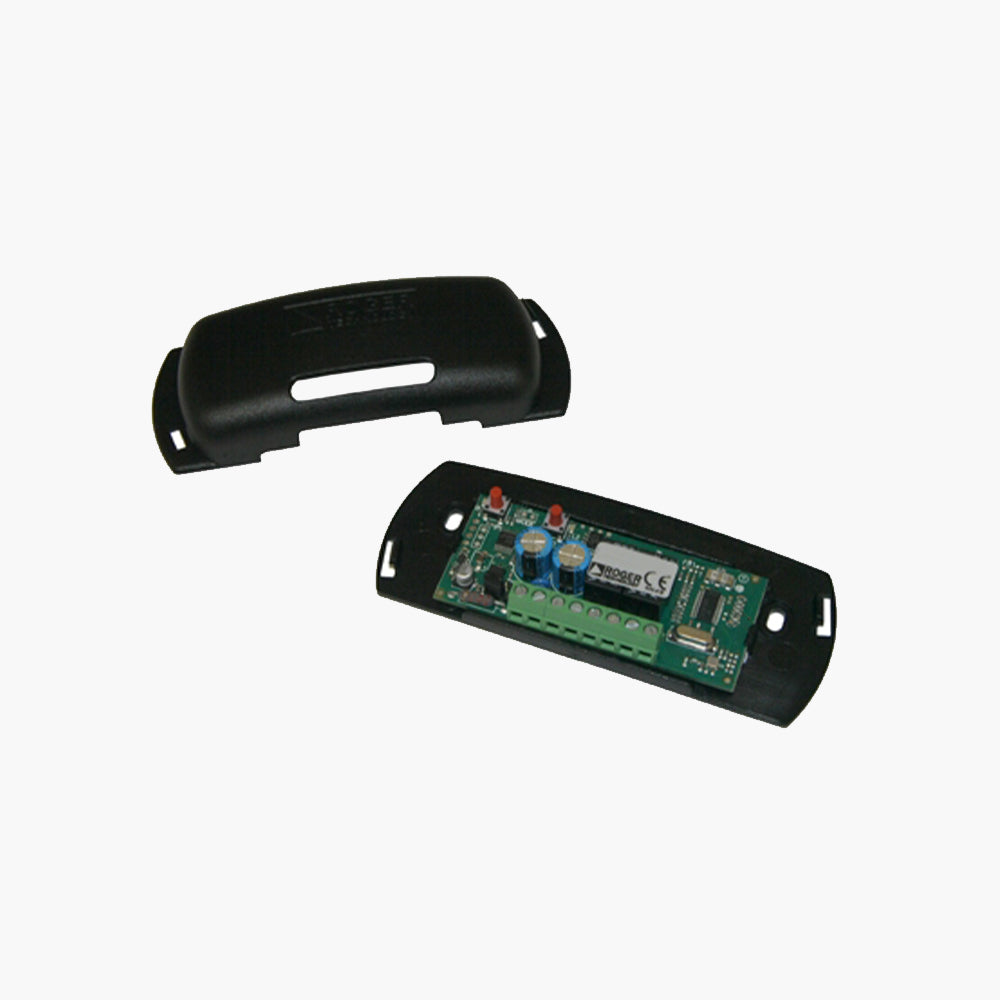

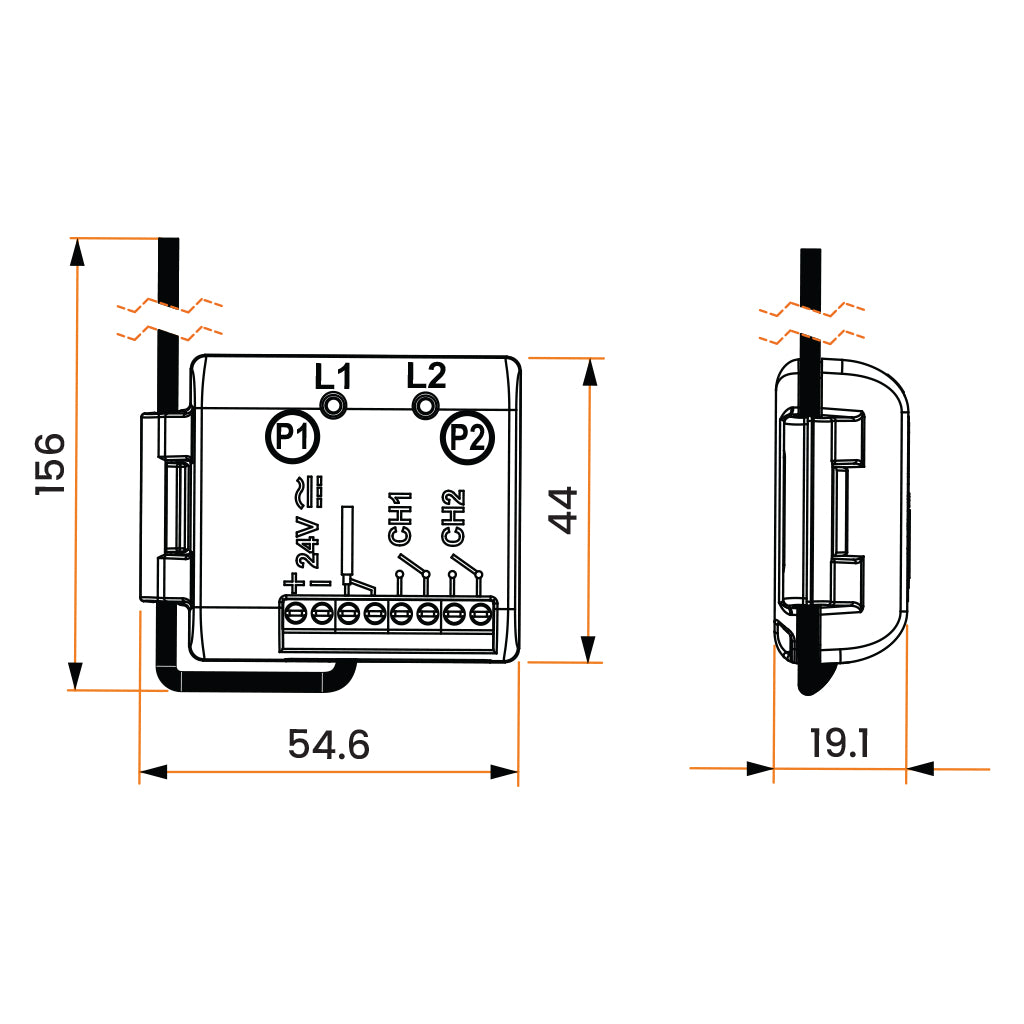

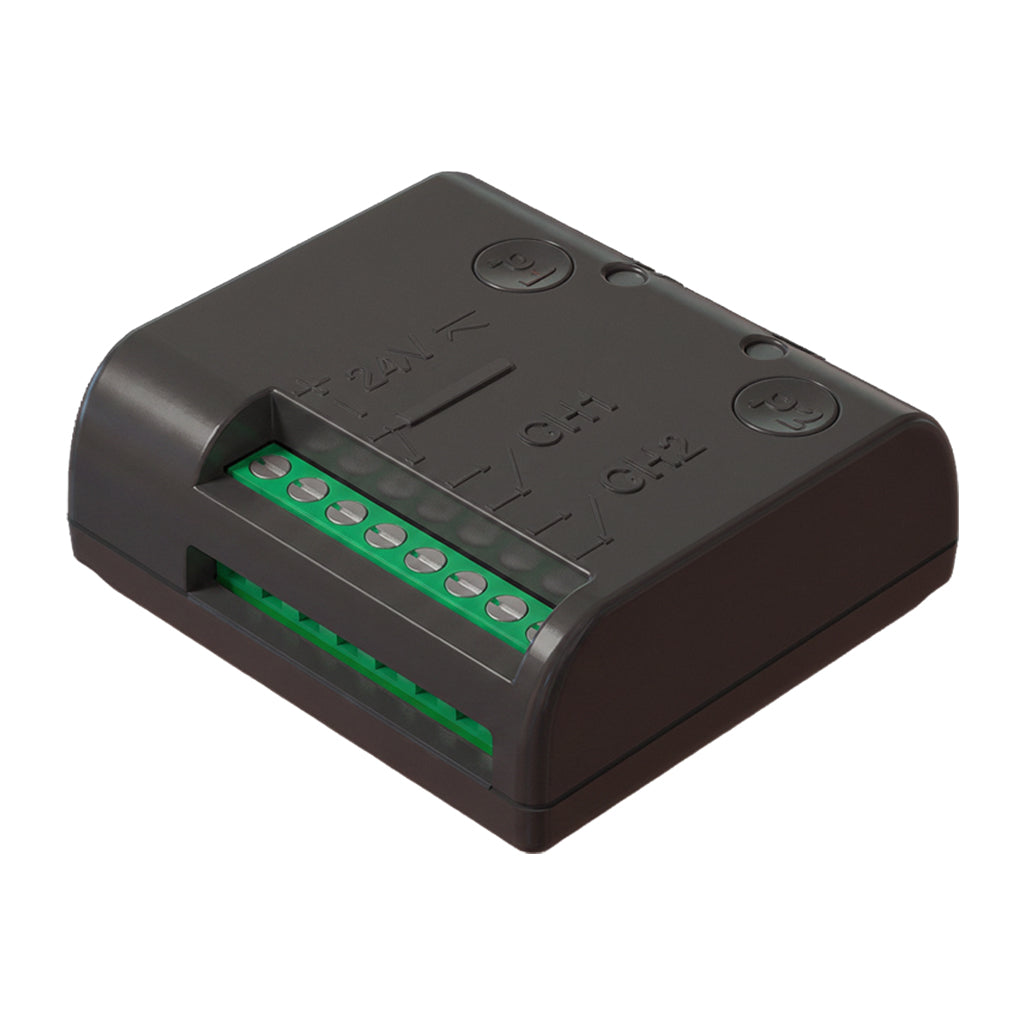

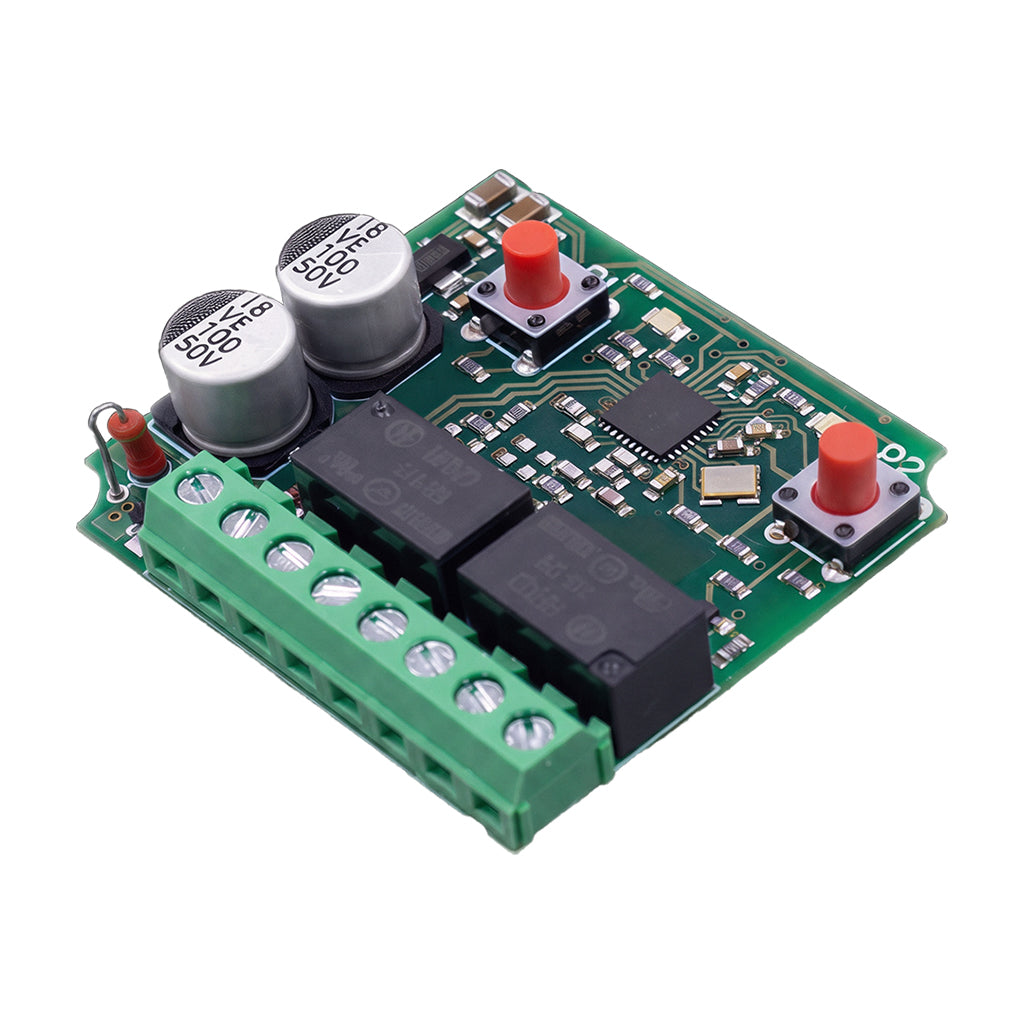

R93/RX20/U:

• Number of Channels: 2
• Codification: Fixed code
• Storable Codes: 50
• Modulation: AM/ASK
• Carried Frequency: 433.92MHz
• Standard Power: 24V AC/DC
• Absorption: 30mA
• Exit Type: Relay
• Relay Contacts Max Current: 0.5A
• Relay Contacts Max Voltage: 24V AC/DC
• Sensibility: -107dBm
• Operating Temperature: -10°C to +55°C

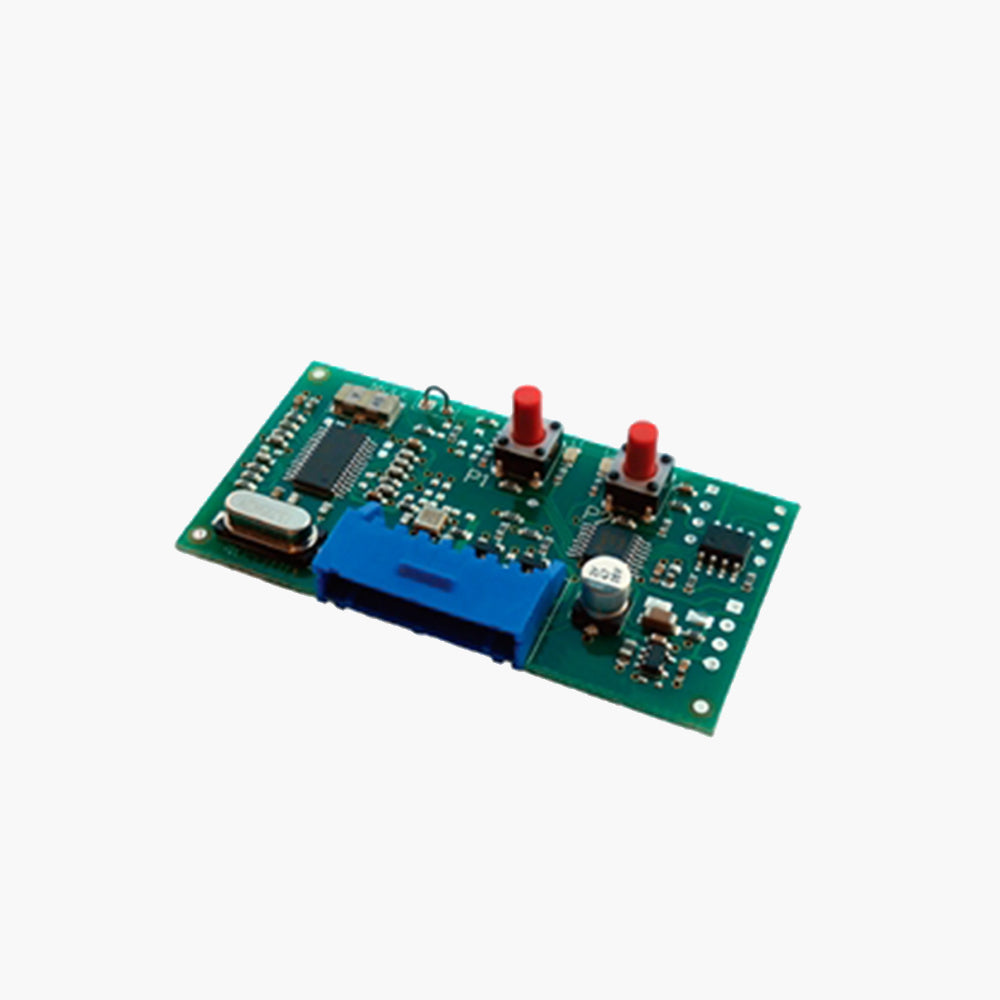

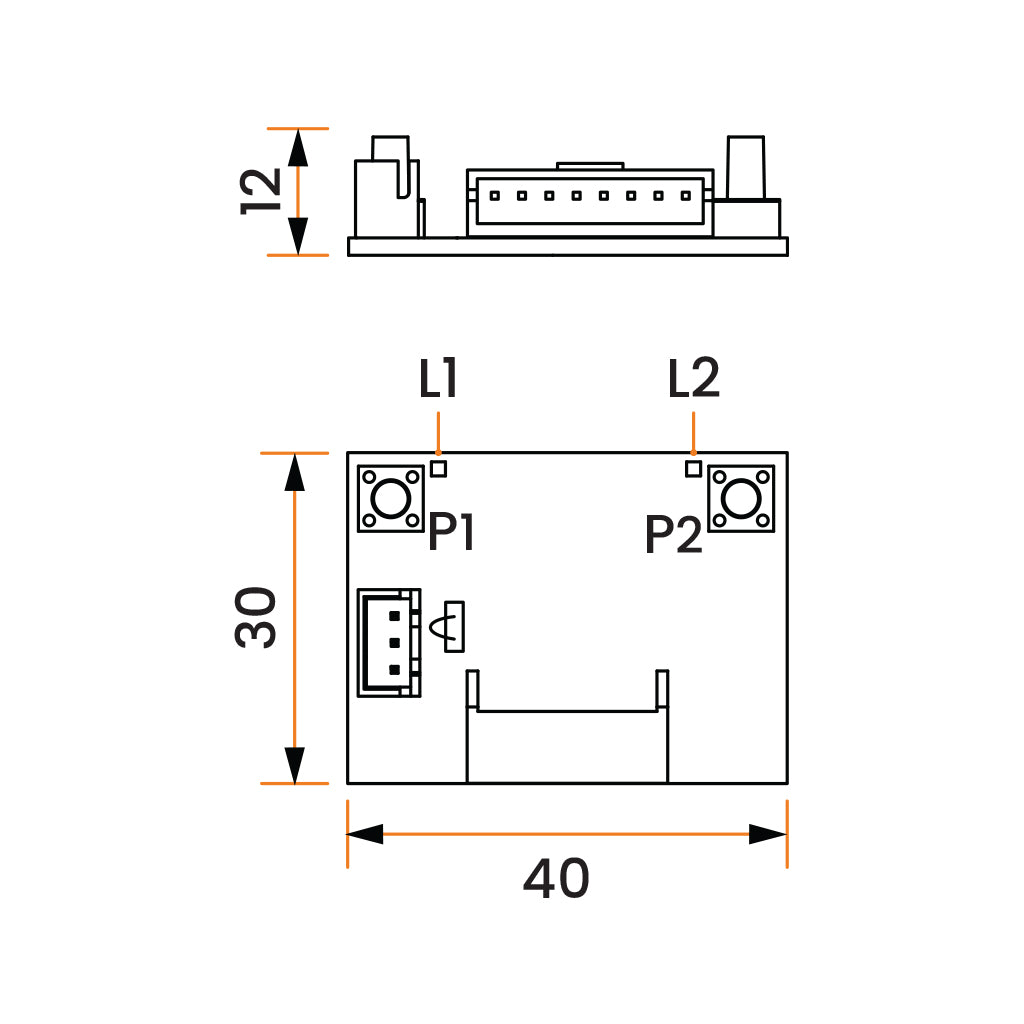

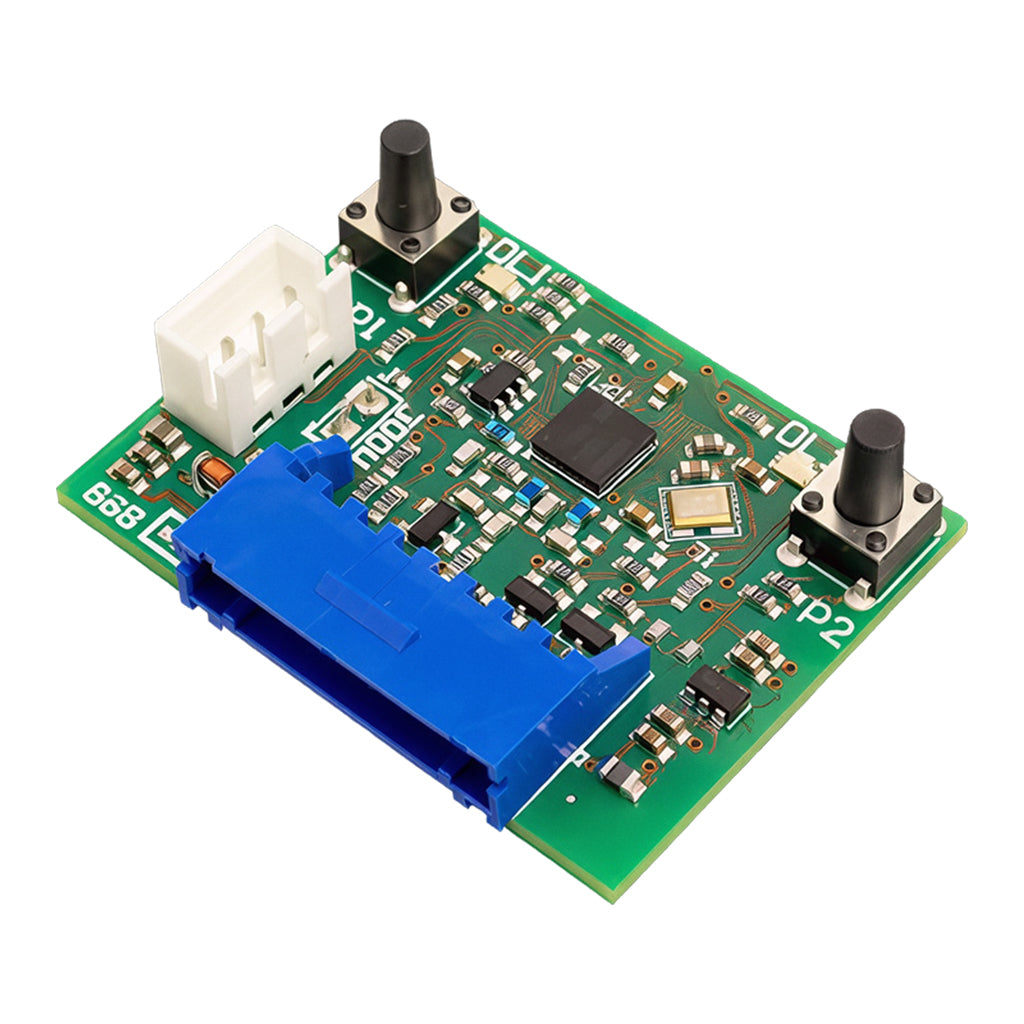

H93/RX2LP/I:

• Number of Channels: 2
• Codification: Fixed code or Rolling Code
• Storable Codes: Fixed code: 1,000 — Rolling code: 250 (basic), 1,000 (advanced)
• Modulation: AM/ASK — FM/FSK
• Carried Frequency: 433.92MHz
• Standard Power: 5V DC
• Absorption: 15mA
• Exit Type: Open collector
• Installation Type: Pre-installed on Brushless automations with B70/MODLP module
• Sensibility: -107dBm
• Operating Temperature: -10°C to +55°

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Roger Automation.

• Download R93 Receiver Manual
• Download H93 Receiver Manual
