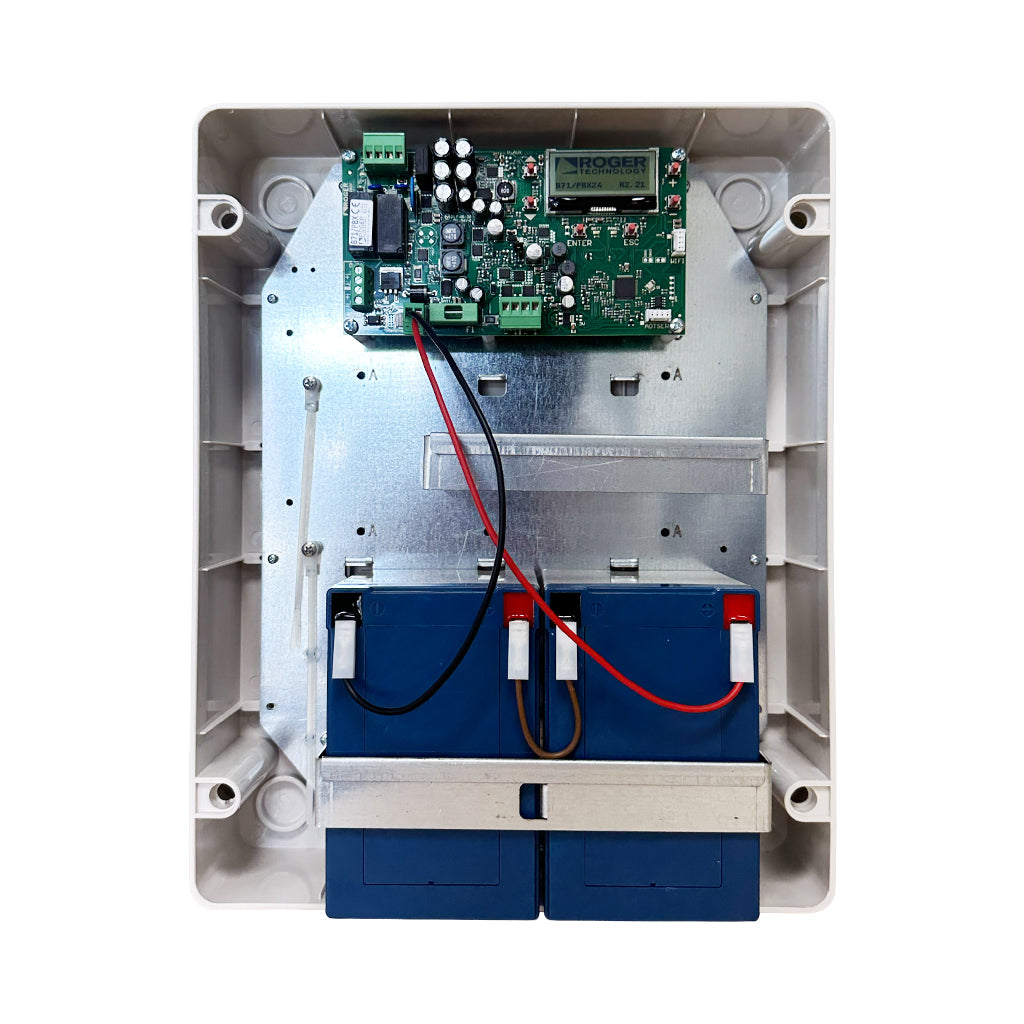

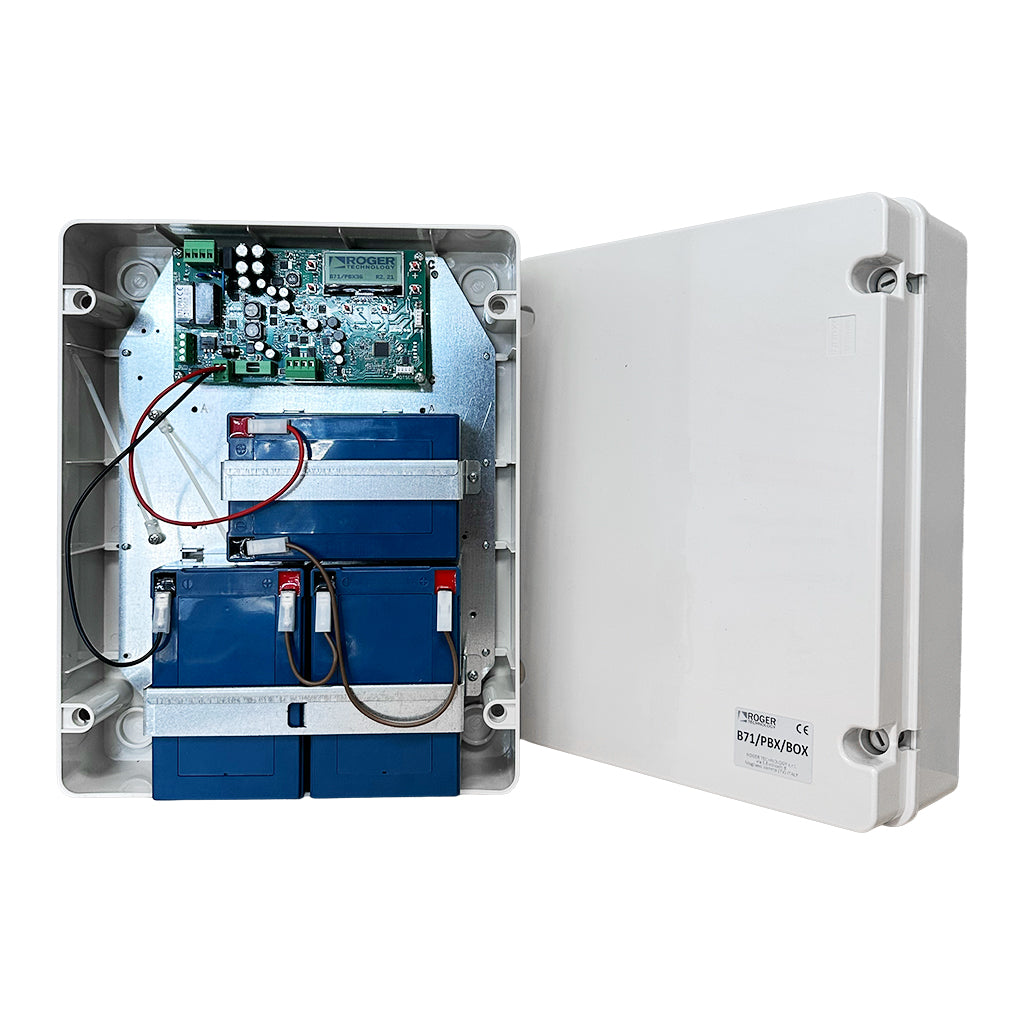

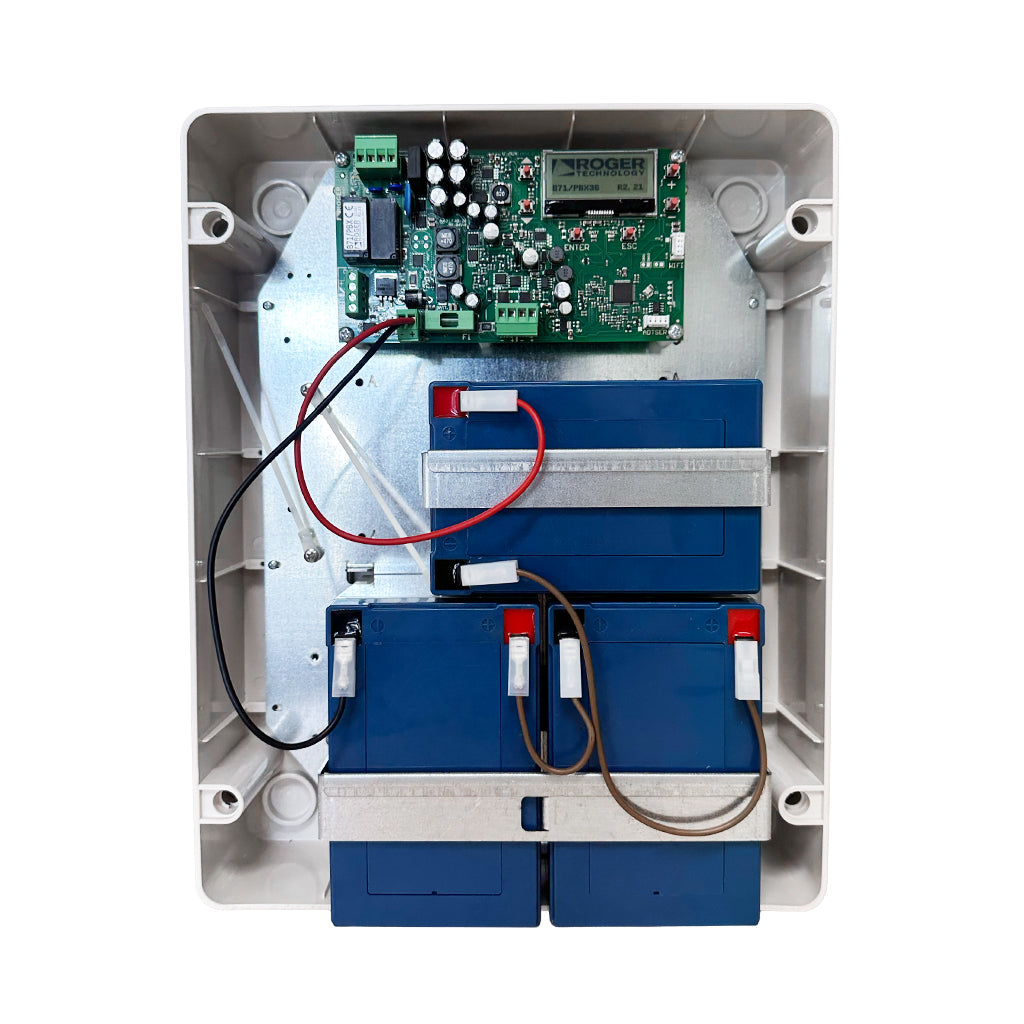

Solar Inverter Box

Hybrid inverter, “Full Solar” version, for powering the automation. Also provides a battery-charger function thanks to the connection to the solar panels for powering the brushless digital controllers.

Automate your gate without connecting to the power grid by harnessing the power of the sun. With a Roger Solar Inverter System when the sun is shining the power goes directly into running the gate motor and accessories.

What leftover power goes into the battery for use when the sun isn’t shining. This preserves the battery life by optimising the charge cycles.

Key Benefits

• Longer Battery Lifespan - Thanks to the digital inverter that manages and optimises battery consumption and recharging in the most intelligent way. The battery lifespan is extended, guaranteeing a higher number of opening and closing cycles even in the absence of solar energy.
• Reduced Consumption - With our complete solar system, your automation can be completely independent of the mains supply, reducing your electricity bill and making everything more environmentally sustainable.
• No Power. No Problem - The technological combination of digital inverter and low brushless motor consumption eliminates any risk of problems and guarantee numerous operating cycles.

Specifications

• Power line supply:   ONLY solar panel
• Operating temperature:   -20°C +55°C
• Protection level:   IP66
• Compatible Digital Controllers:   Brushless 24V DC - Brushless 36V DC
• Backup Batteries:   Brushless 24V DC: 2 x 12V DC - Brushless 36V DC: 3 x 12V DC - USE ONLY AGM BATTERIES TYPE - 12Ah
• Number of photovoltaic panels that can be connected (Not supplied):   2
• Recommended power (photovoltaic panel):   50W
• Maximum voltage from a photovoltaic panel (not charged):   22V DC
• Minimum voltage from a photovoltaic panel (charged):   18V DC

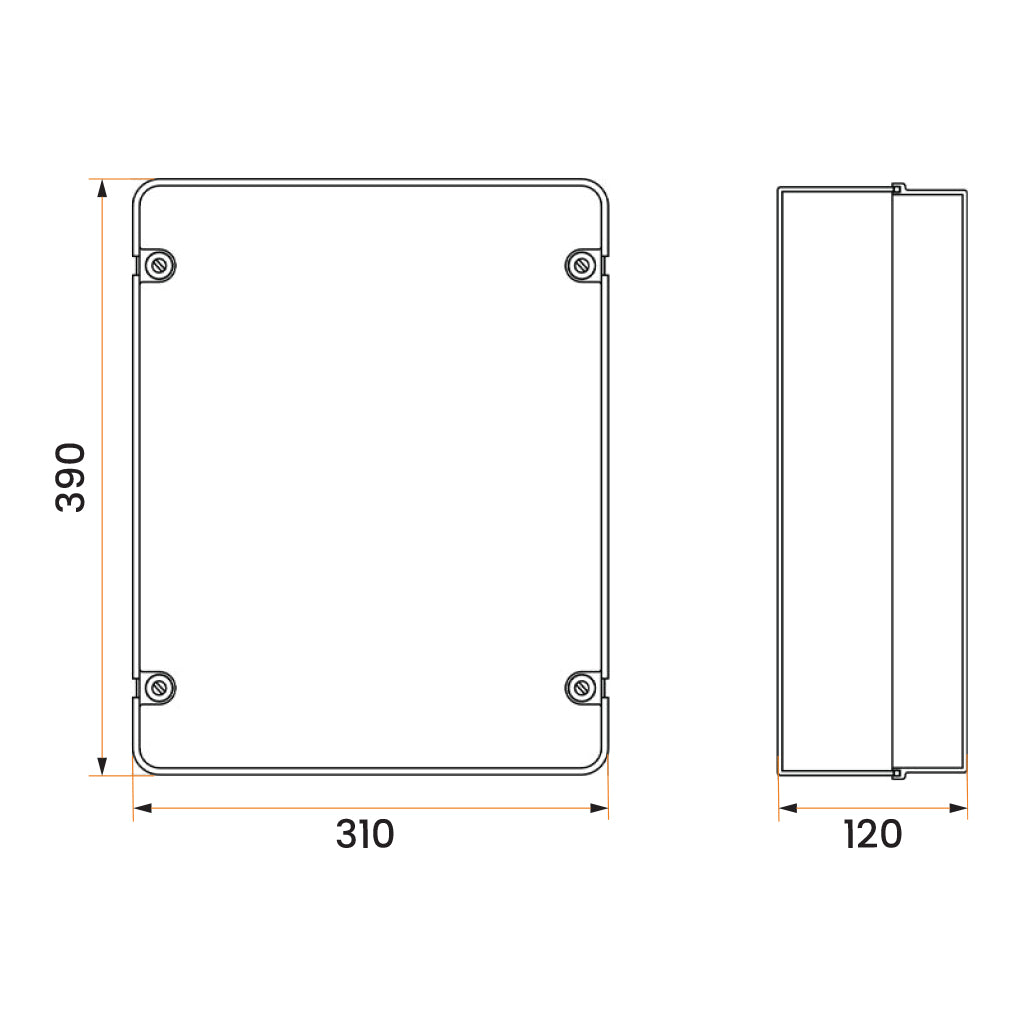

• Maximum dimension product in mm (L x W x H):   310 x 120 x 390

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Roger Automation.

• Download B71-PBX-BOX Manual
