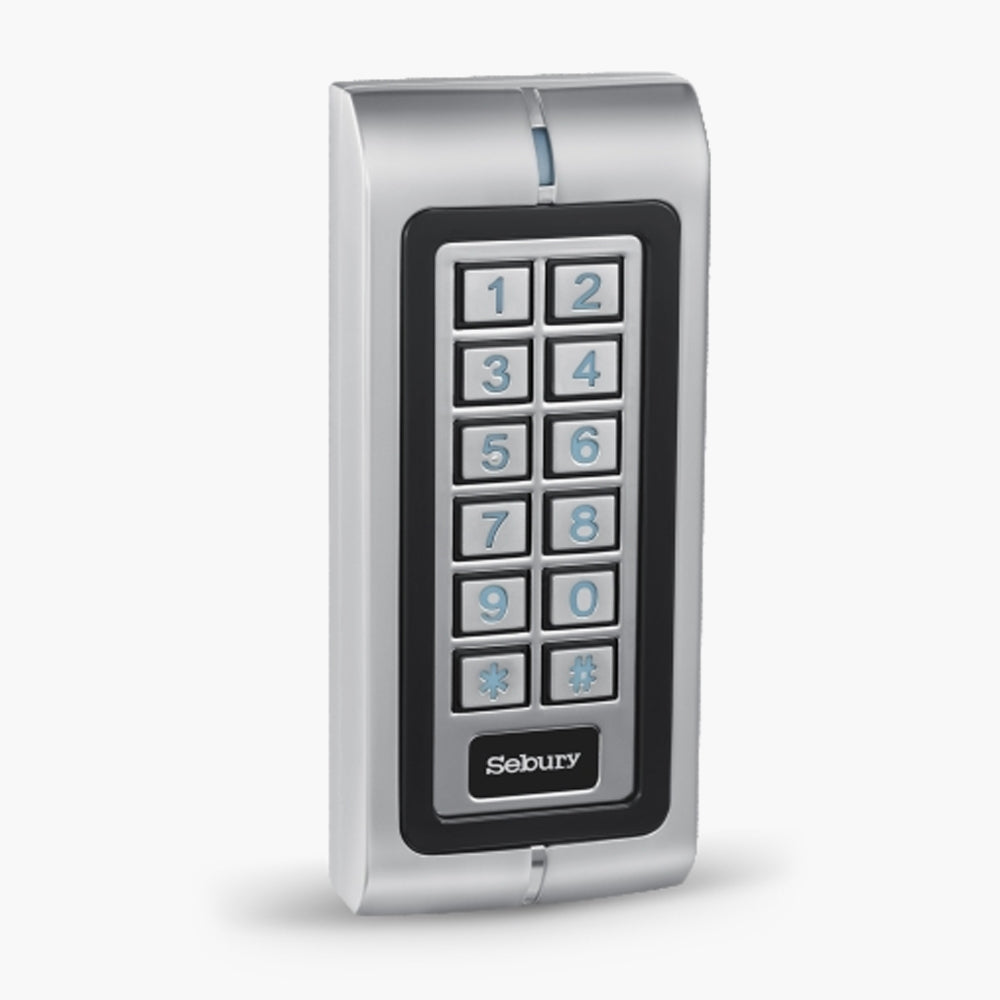

W1-A Slimline Keypad

The Sebury W1-A Slimline Keypad is ideal for access control of gates and doors. It is anti-vandal, waterproof and supports PIN, Card or PIN+Card.

Features

• Metal structure, anti-vandal, more secure, waterproof design
• Backlight keypad, convenient for operating in night.
• Support 3 Modes Access: Card, PIN, Card+PIN.
• Two relay option
• Pulse mode, toggle mode
• Supports door bell connection
• Very low power consumption ( ≤35mA), long service life and stable performance.
• Protective Properties: IP65 fully-potted. with anti-disassemble, alarm function, anti-static interference 15KV.

Specifications

• Operating Voltage: 12-18V AC/12-24V DC
• Card Type 125KHz EM
• PIN length 4 digits
• Up to 12000 Users
• Adjustable Door Relay Time: 1～99s
• Static Current: ≤35mA
• Card Read Rang: 3-6cm> Reader Induction Time: ≤0.1s
• Operating Temperature: -40℃～60℃
• Operating Humidity: 0-95%
• Lock Output Load: 1A
• Alarm Output Load: 3A
• Antistatic: 15KV
• IP Grade: IP65
• Wiring Length: 90-100cm
