Surface Mount Electric Strike

Name: Surface Mount Electric Strike
Brand: Locinox
SKU: MODULEC-SF-R-BLK
Price: 380.0 AUD
Availability: InStock

$380.00

Brand:

Locinox

SKU:

MODULEC-SF-R-BLK

Product Type:

Swing Gate Hardware

Surface mounted electric strike with a narrowed stop plate for insert locks.

Version:

Fail Open Fail Closed

Variant

More information

Extended Description

Surface-mounted electric strike with a narrowed stop plate for insert locks. A quick installation is guaranteed: no more drilling or laser-cutting the gate profile. The black anodized housing ensures corrosion and scratch-free use for many years. It can be connected to both 12V – 24V and AC/DC. Modulec-SF is available in two versions: E (Emissa – Fail Close) and R (Ruptura – Fail Open).

Tech Specifications

Specifications

Tested up to 500.000 movements
Fast and easy fixing with Quick-Fix
Resistance to pressure on the latch bolt: 300 kg
Easy left or right changing
Corrosion-resistant: black anodized aluminium housing

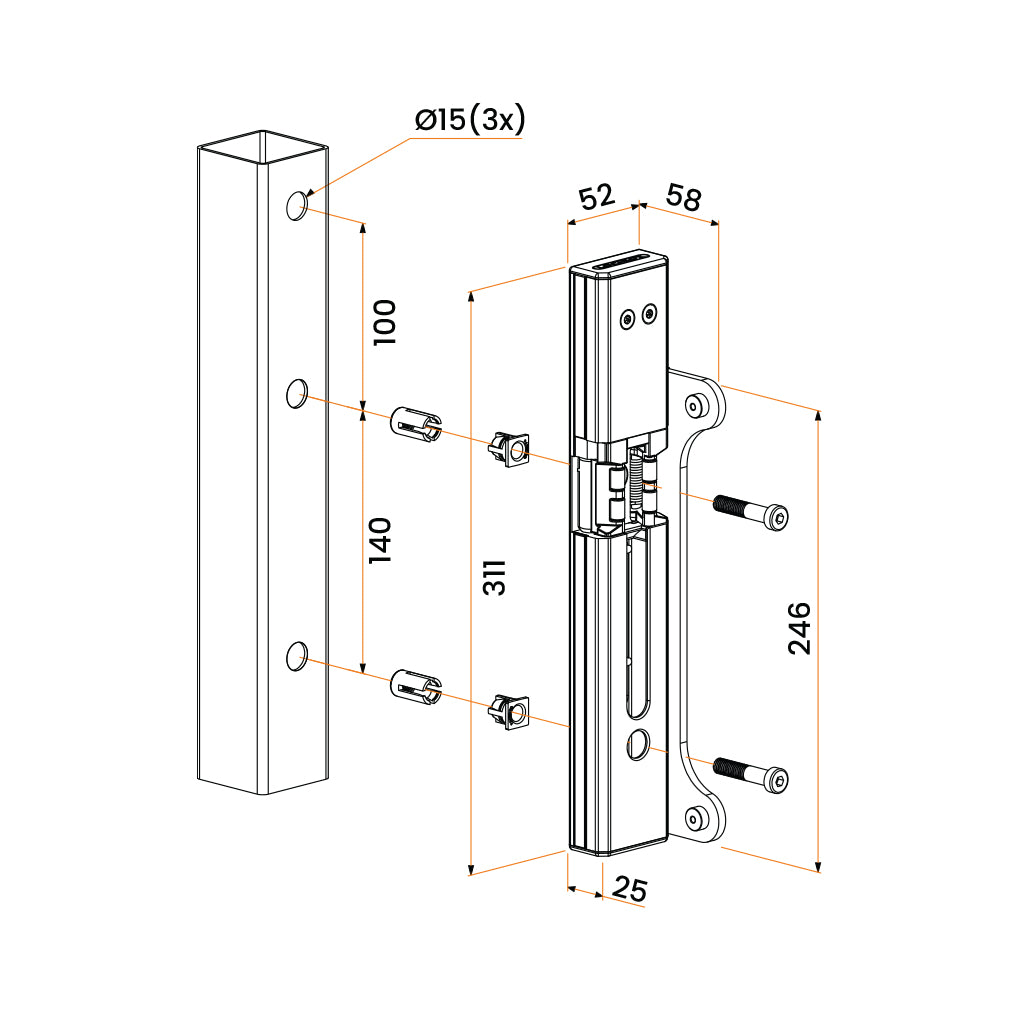

Adjustable for gate profiles: 40-60 mm width
Voltage: 12V-24V AC/DC
Consumption: 12V - 1,25A / 24V - 0,62A
Power: 15W

Documents

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Locinox Hardware.

Download Installation Guide
