Surface Mounted Mag Lock

Name: Surface Mounted Mag Lock
Brand: Locinox
SKU: MAGMAG-3000-BLK
Price: Hide Price By BSS AUD
Availability: InStock

$472.16

Brand:

Locinox

SKU:

MAGMAG-3000-BLK

Product Type:

Swing Gate Hardware

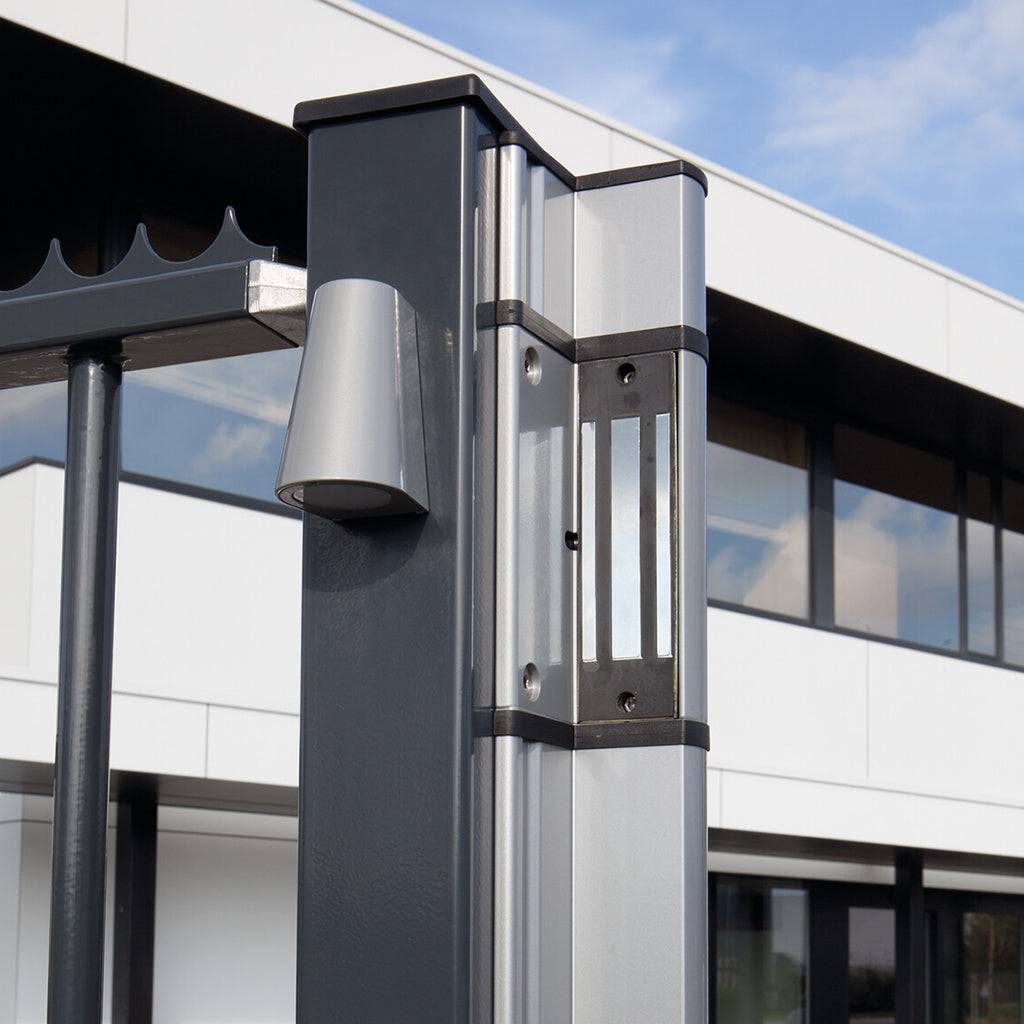

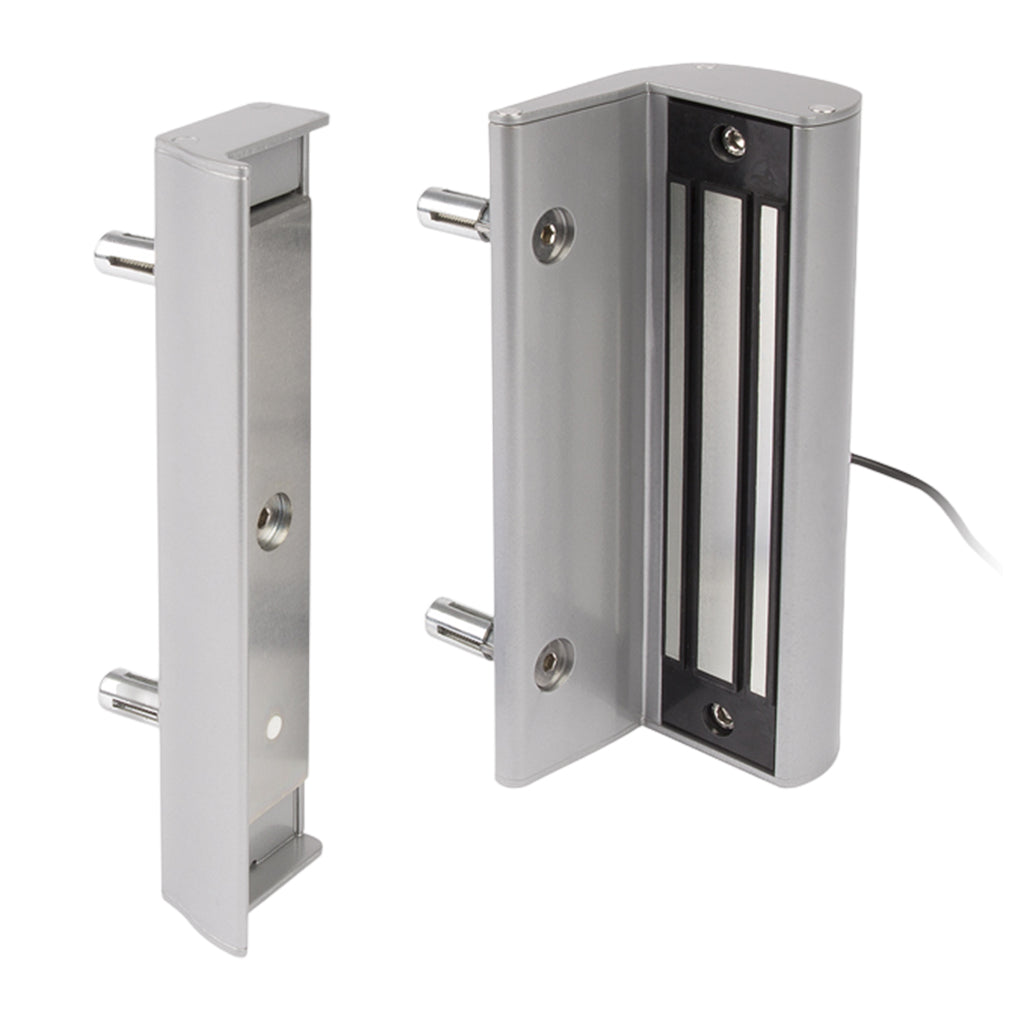

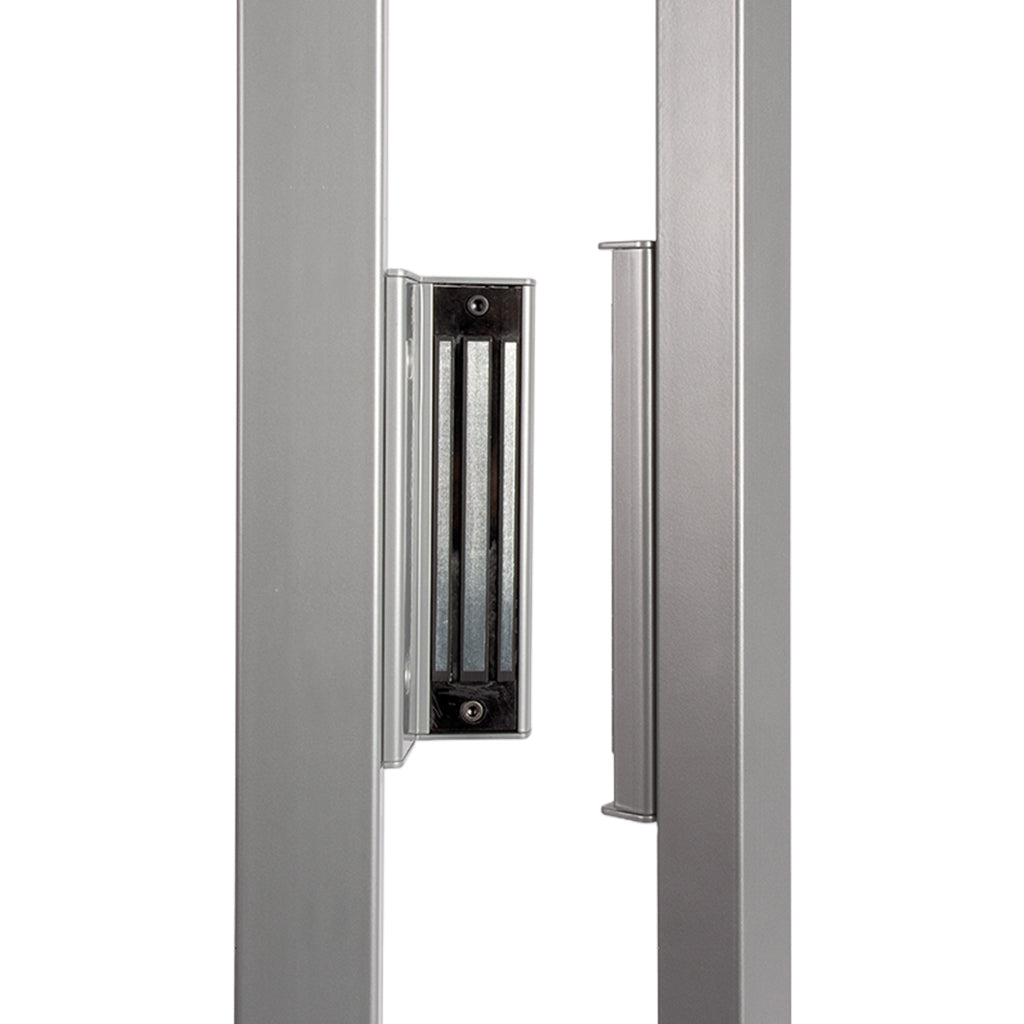

Surface mounted magnetic lock fits pedestrian gates or single swing gates with square profiles of 40 - 80mm. 300kg holding force, dual voltage: 12V DC or 24V DC.

Colour:

Black

Variant

More information

Extended Description

Created for pedestrian or single swing gates where power is not available at the receiving post. The MAGMAG3000 is a high-performance, screw-on electromagnetic lock designed specifically for outdoor gate and access control applications. It's built for trade installers who value quick, clean, no-weld mounting and long-term durability in harsh weather. IP68-rated engineered specifically for extreme outdoor conditions, fully weatherproof and dust-proof.

Watch the installation and demo videos below.

Tech Specifications

Specifications:

500h salt spray resistant! SGS certified (ISO 9227)
Special two-layer protective coating developed for outdoor use
SGS Certified
Powder-coated aluminium housing
Anti-residual magnetism kick-off system
The raised edge on the magnet housing makes it impossible to put a crowbar between the magnet and the armature plate
Fail open
Fast and easy fixing by means of 5 holes with Quick-Fix
Current MAGMAG3000: 500 mA / 12 V or 250 mA / 24 V
Voltage: 12V / 24V DC
MAG3000: Minimal pulling force: 3000N (300 kg)
Guaranteed holding force tested on every magnetic lock
IP68 rated - Extremely resistant to water and dust

Documents

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Locinox Hardware.
