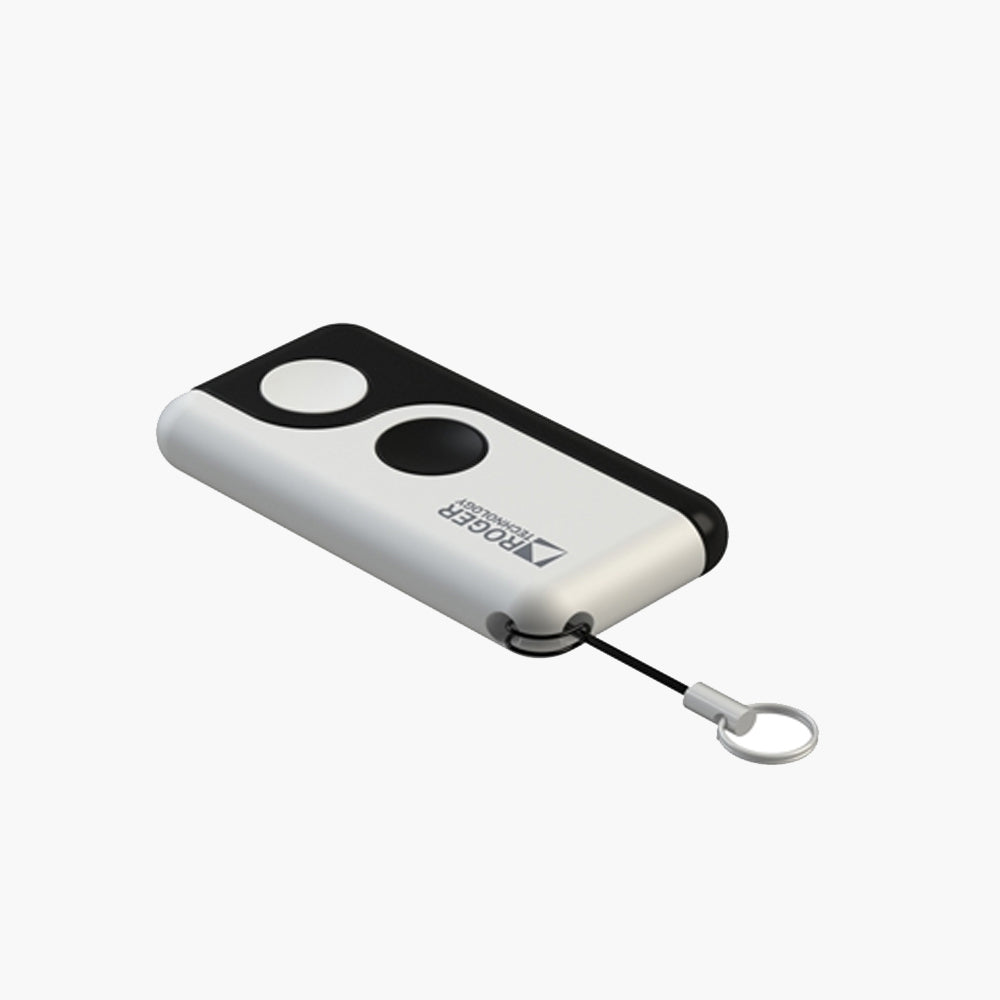

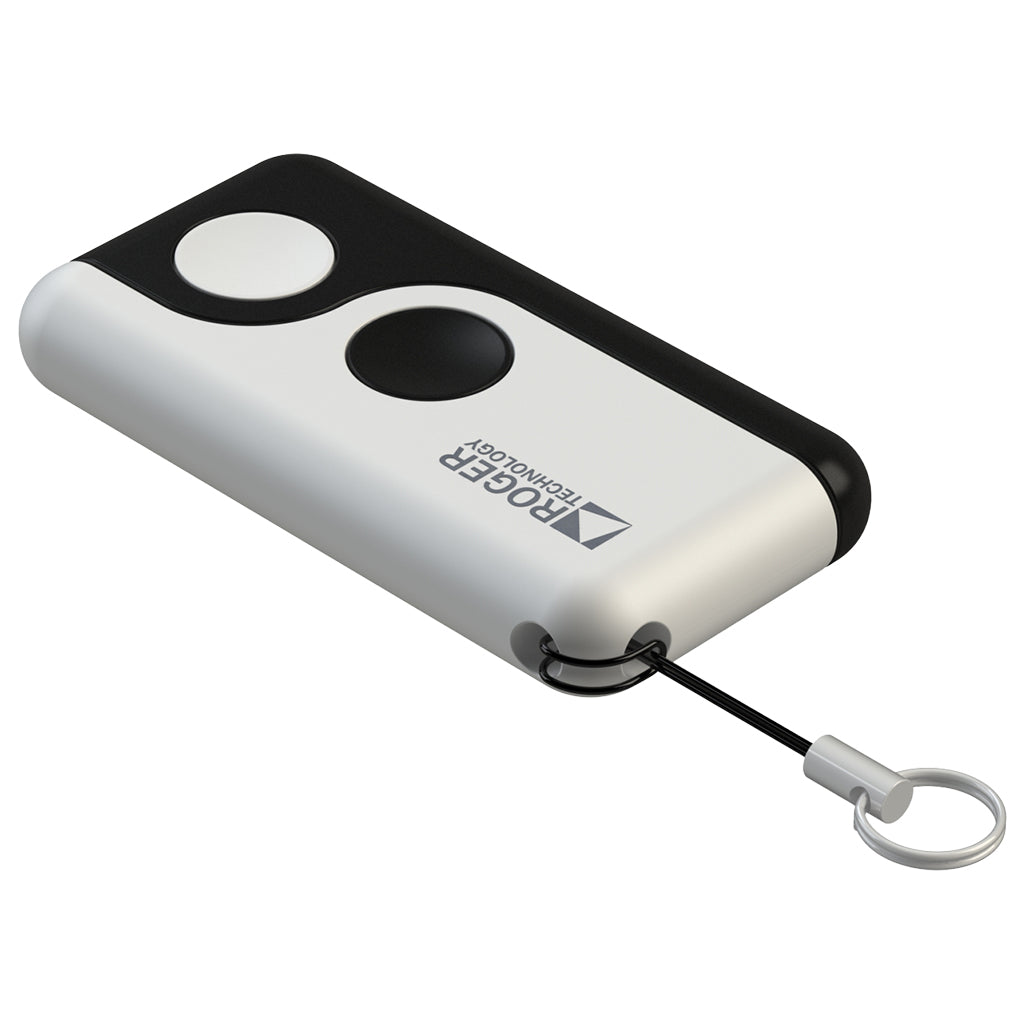

Synus Remote

SYNUS is the new remote from Roger Technology. It is a universal control system, for residential, multi-dwellings, commercial and industrial locations. Thanks to its easy activation and installation, SYNUS can be combined with all Rolling Code and Fixed Code radio receivers.

Features

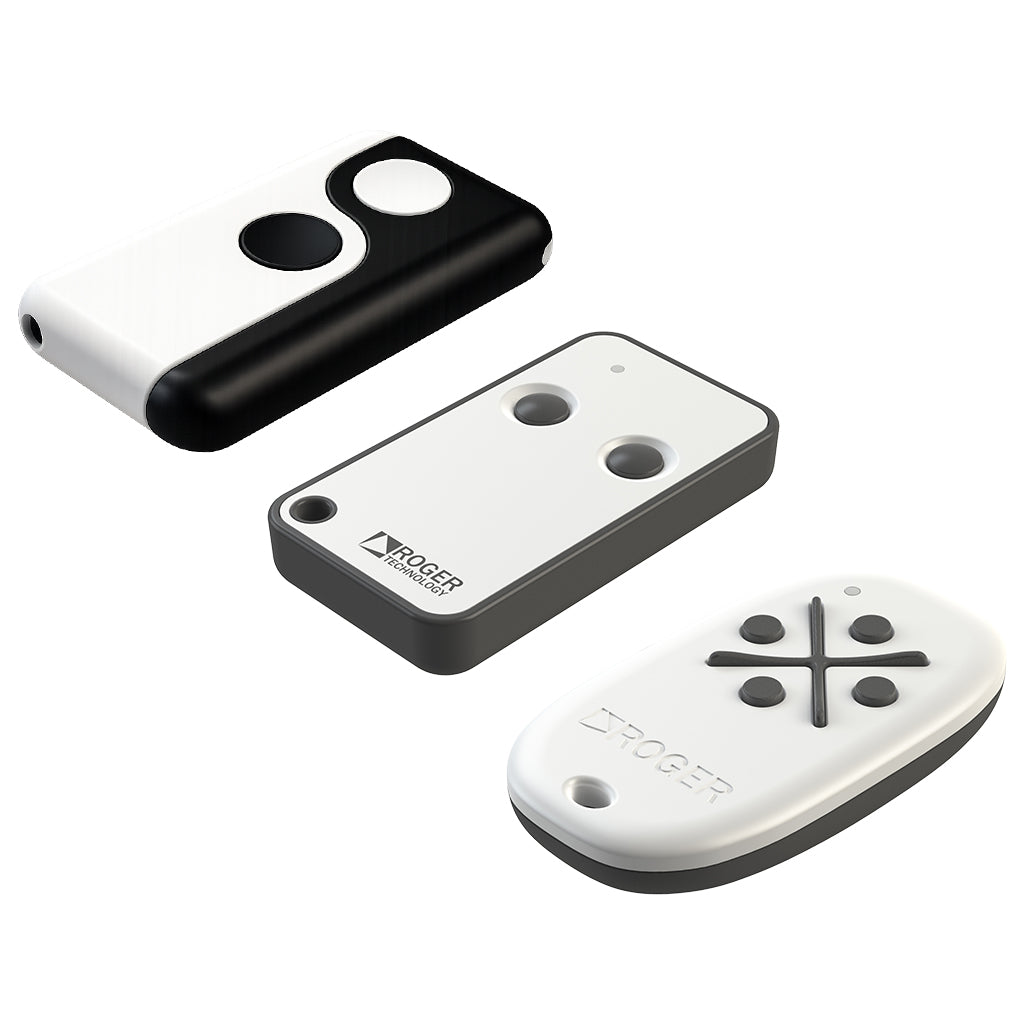

• The “copy” function works with E80 and M80 series with 2 or 4 channels, allowing it to be used for existing installations as well as new ones.
• SYNUS can be used with all Roger automation and is equipped with the innovative BI-CODE technology. This allows programming the SYNUS remote control with all Roger Technology radio receivers - both Rolling Code and Fixed Code - by keeping the two codes in memory. Switching from one code to another, already stored in SYNUS is a matter of seconds.

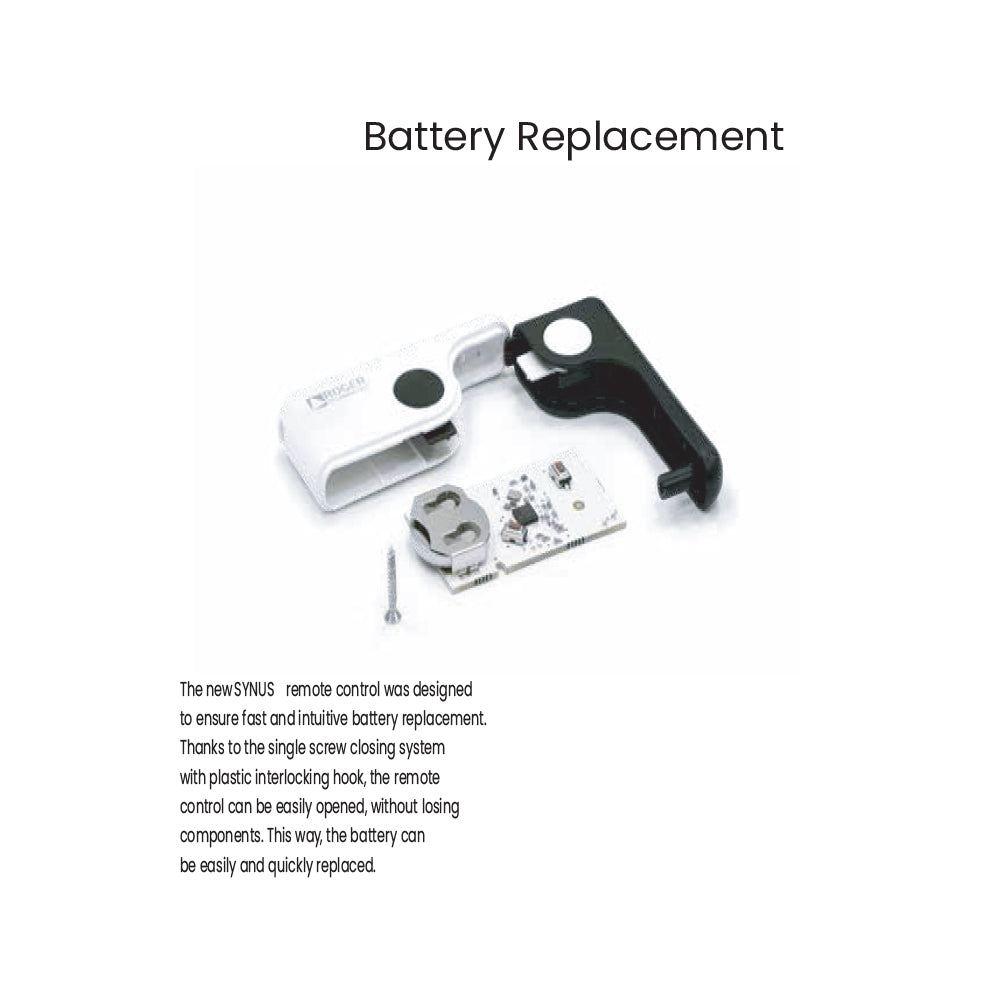

• Fast and intuitive battery replacement. Thanks to the single screw closing system with a plastic interlocking hook, the remote control can be easily opened, without losing components. This way, the battery can be easily and quickly replaced.

SYNUS Specifications:

• Max Range 150m
• Copy Function - fixed code only
• Frequency - 433.92MHz
• 2 Channel

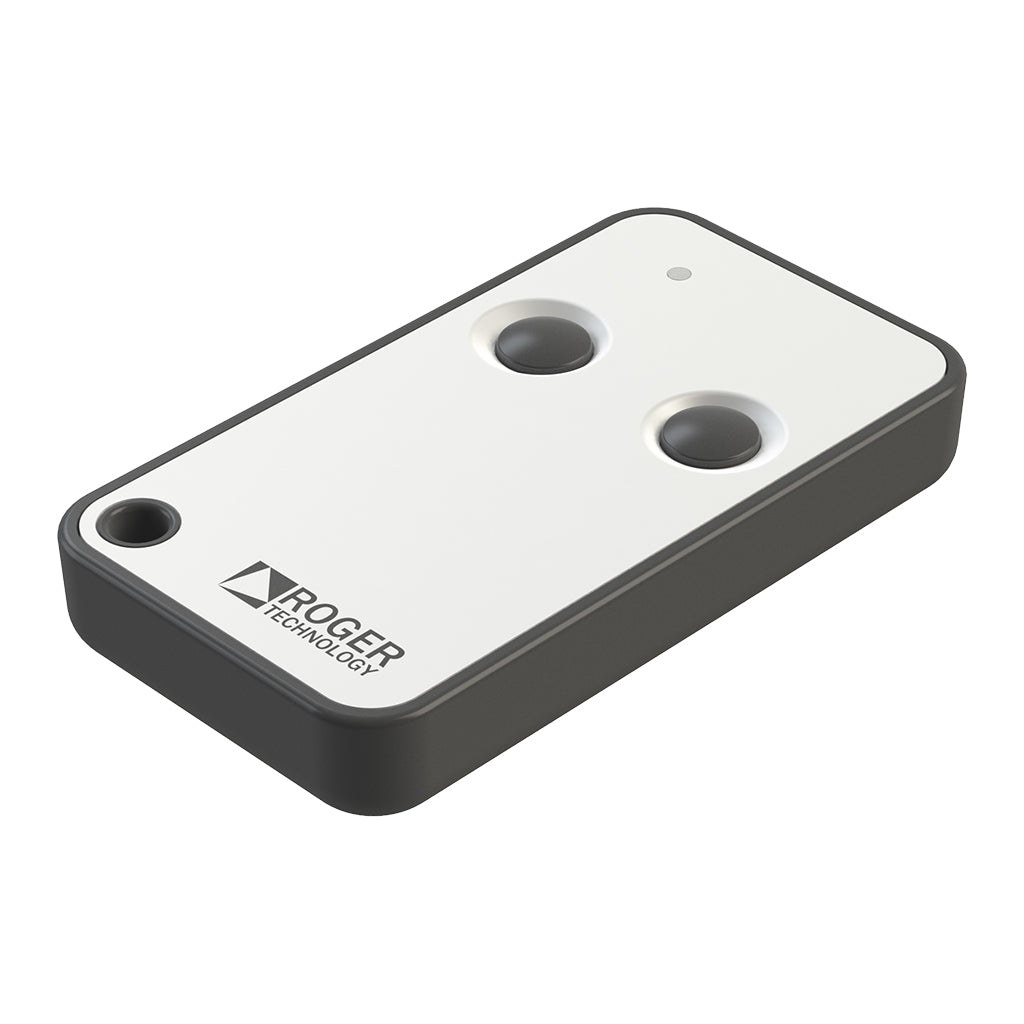

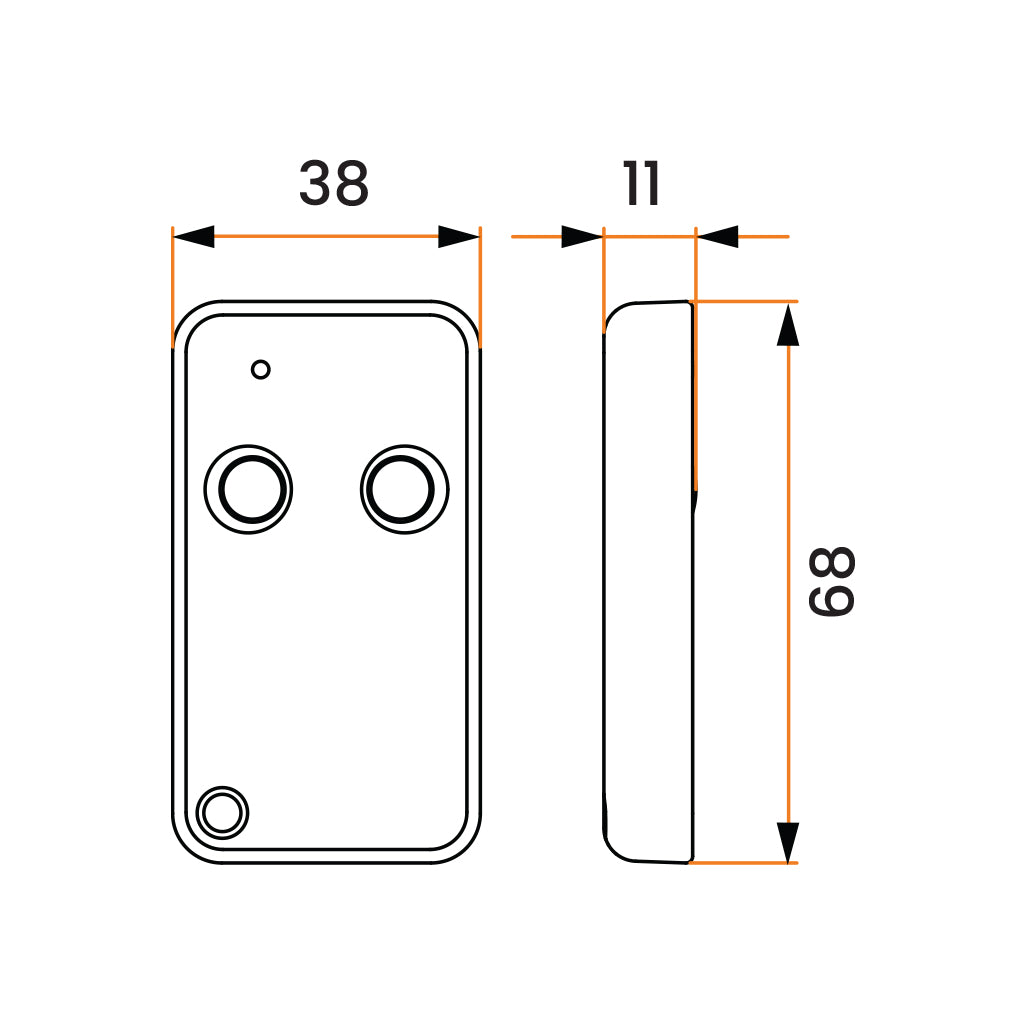

E80 Specifications:

• Number of Channels: 2
• Codification: Fixed code
• Modulation: AM/ASK
• Carried Frequency: 433.92MHz
• Number of Combinations: 65,536
• Radio for Copy: Yes
• Maximum Range: 150m (open field)
• Standard Power: 3V DC
• Absorption: 12mA
• Battery: CR2032 3V
• Operating Temperature: -10°C to +55°C

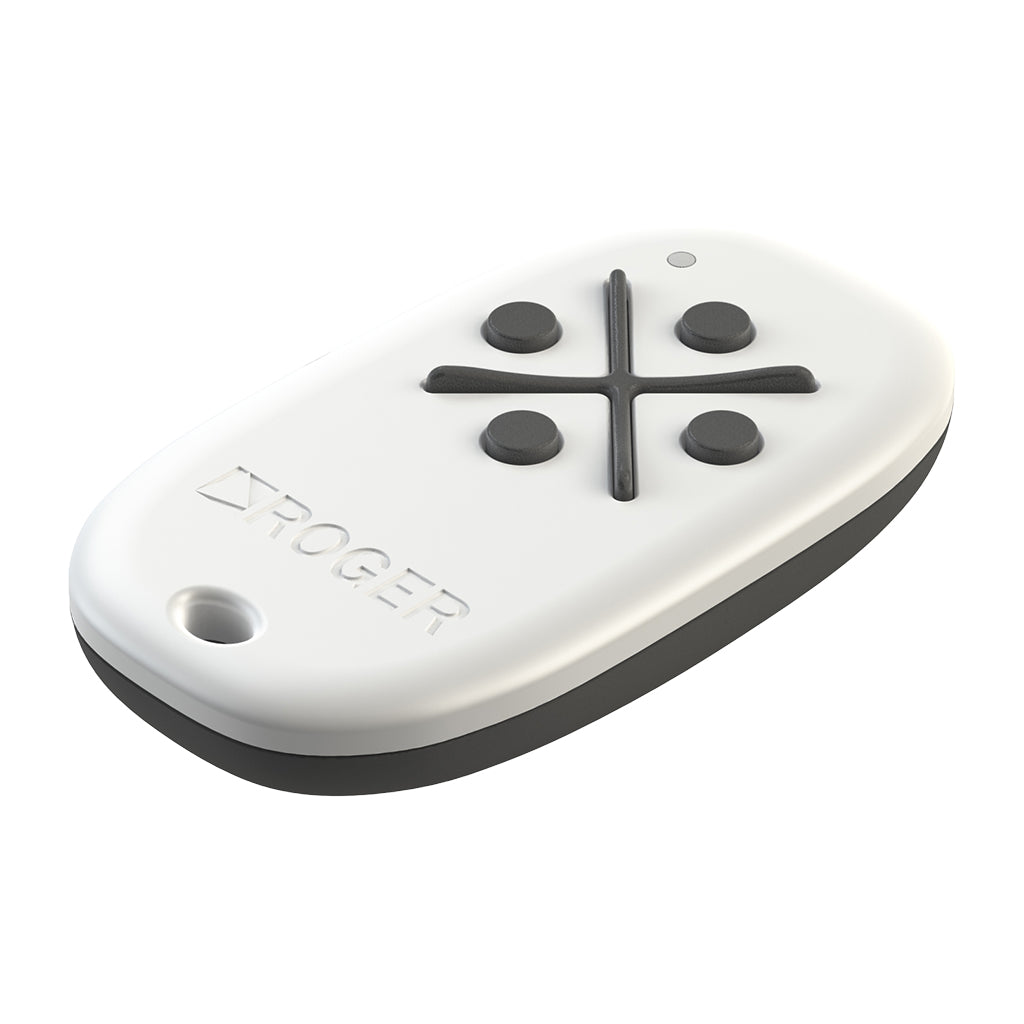

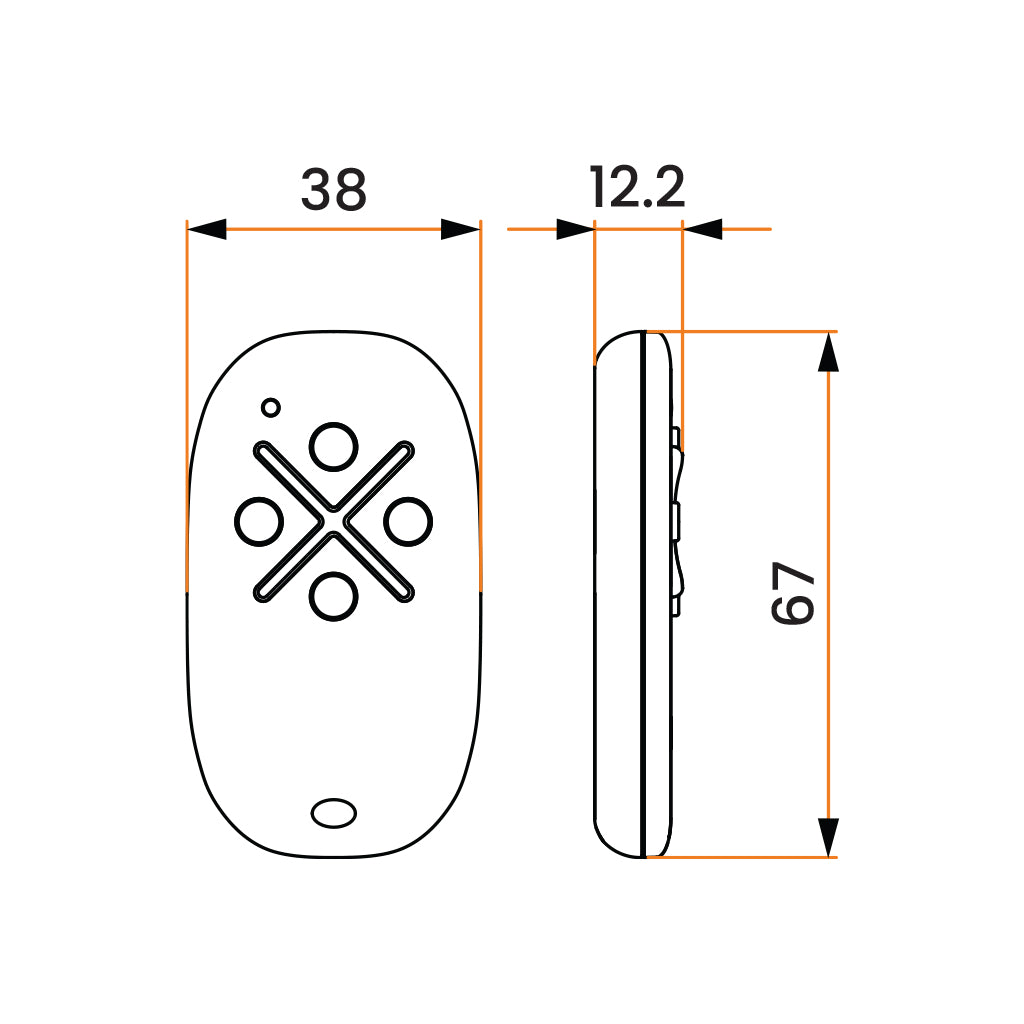

M80 Specifications:

• Number of Channels: 4
• Codification: Fixed code
• Modulation: AM/ASK
• Carried Frequency: 433.92MHz
• Number of Combinations: 65,536
• Radio for Copy: Yes
• Maximum Range: 150m (open field)
• Standard Power: 3V DC
• Absorption: 12mA
• Battery: CR2032 3V
• Operating Temperature: -10°C to +55°C

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing our range.

• Download Remotes Manual
• Download SYNUS Manual
• Download Remote Brochure
• Download Receiver Manual
