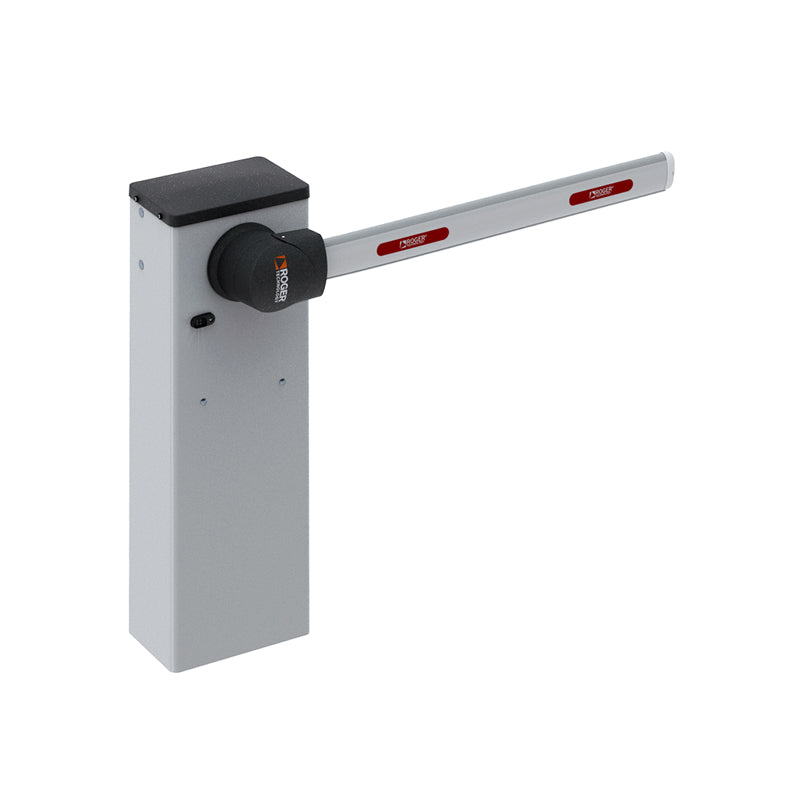

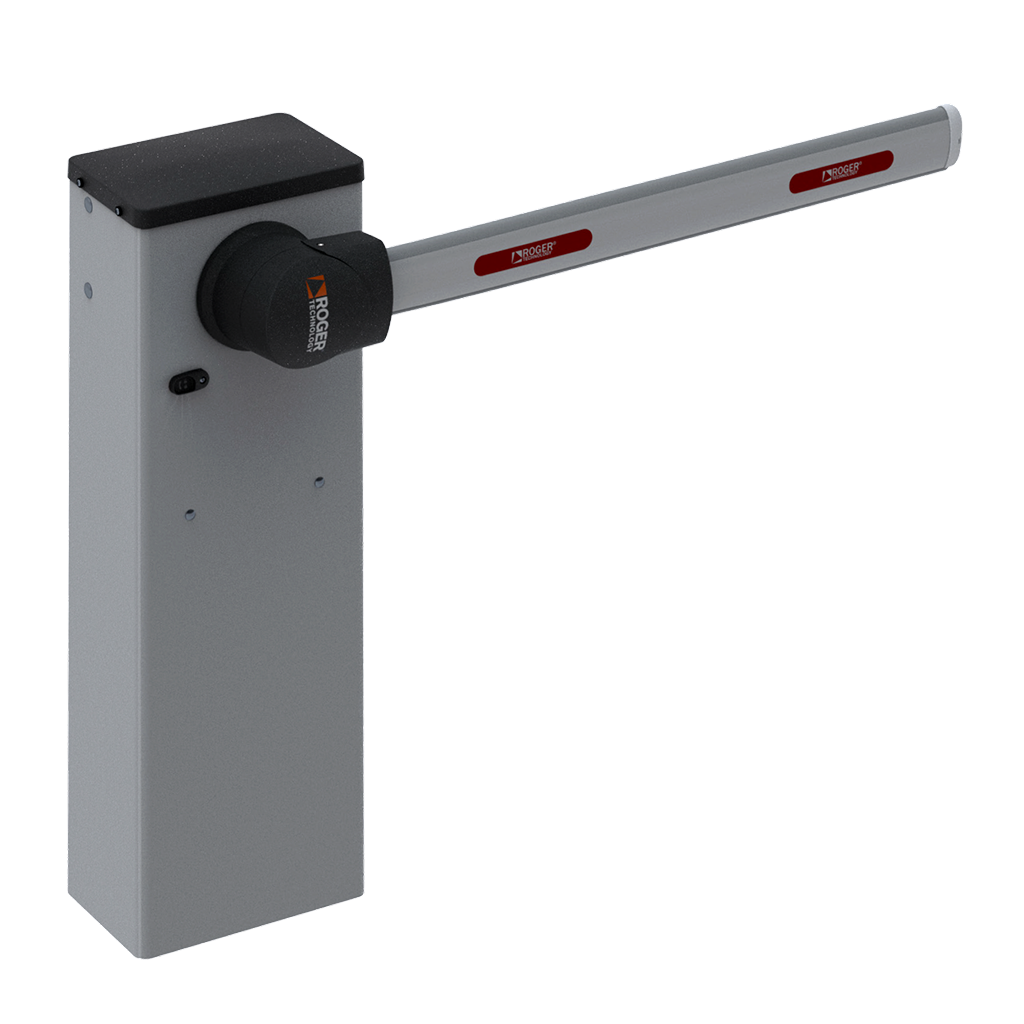

The Way 004, 100% Duty Cycle

Name: The Way 004, 100% Duty Cycle
Brand: Roger Automation
SKU: SET-WAY-004
Price: Hide Price By BSS AUD
Availability: InStock

Brand:

Roger Automation

Product Type:

Barrier Arms

The Roger Way 004 Barrier BRUSHLESS 24V DC for 3–4m booms with control unit, 4096 PPR sensored encoder, and complete mounting hardware.

Type:

4m

Variant

Contact for Pricing

More information

Extended Description

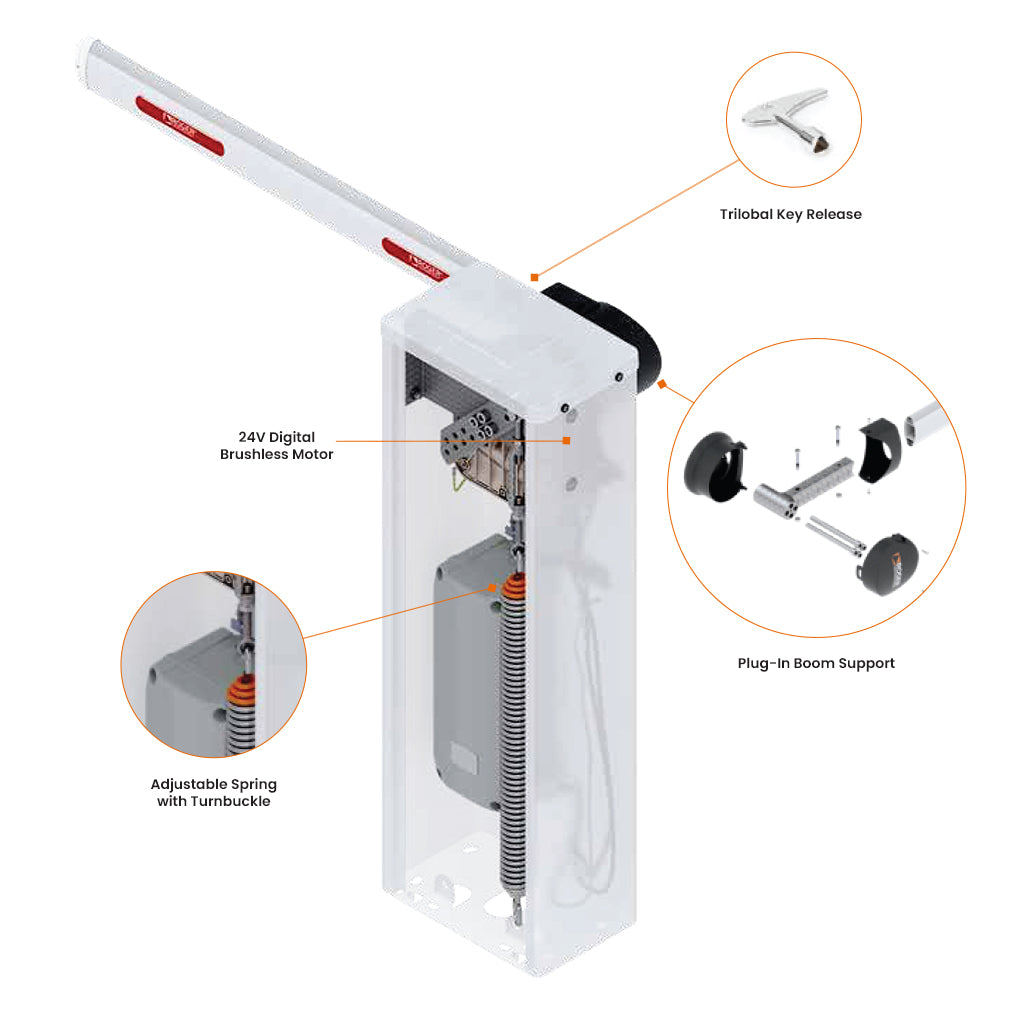

Barrier BRUSHLESS 24V DC for 3 or 4 m booms, with control unit and SENSORED digital magnetic encoder at 4096 PPR, irreversible, complete with ﬁxing plate with tie rods, screws boom fixing flanges.

Tech Specifications

Specifications

Barriers: Up to 4m long
Power Line Supply: 230V AC - 50/60Hz
Motor Power Supply: 24V DC
Electrical Absorption: 0-15A
Power Rating: 180W
Frequency Of Use: Continue
Torque: 56 Nm
Operating Temperature: - 20 + 55 C°
Protection Level: IP54
Reductor Type: Irreversible
Opening Time: 4÷12 sec
Onboard Control Unit: B70/1T
Encoder: Digital native encoder + magnetic digital SENSORED, 4096 PPR
Accessories Power Supply: 24V DC
Release System: Trilobal key
Batteries Recovery: Available (optional)
