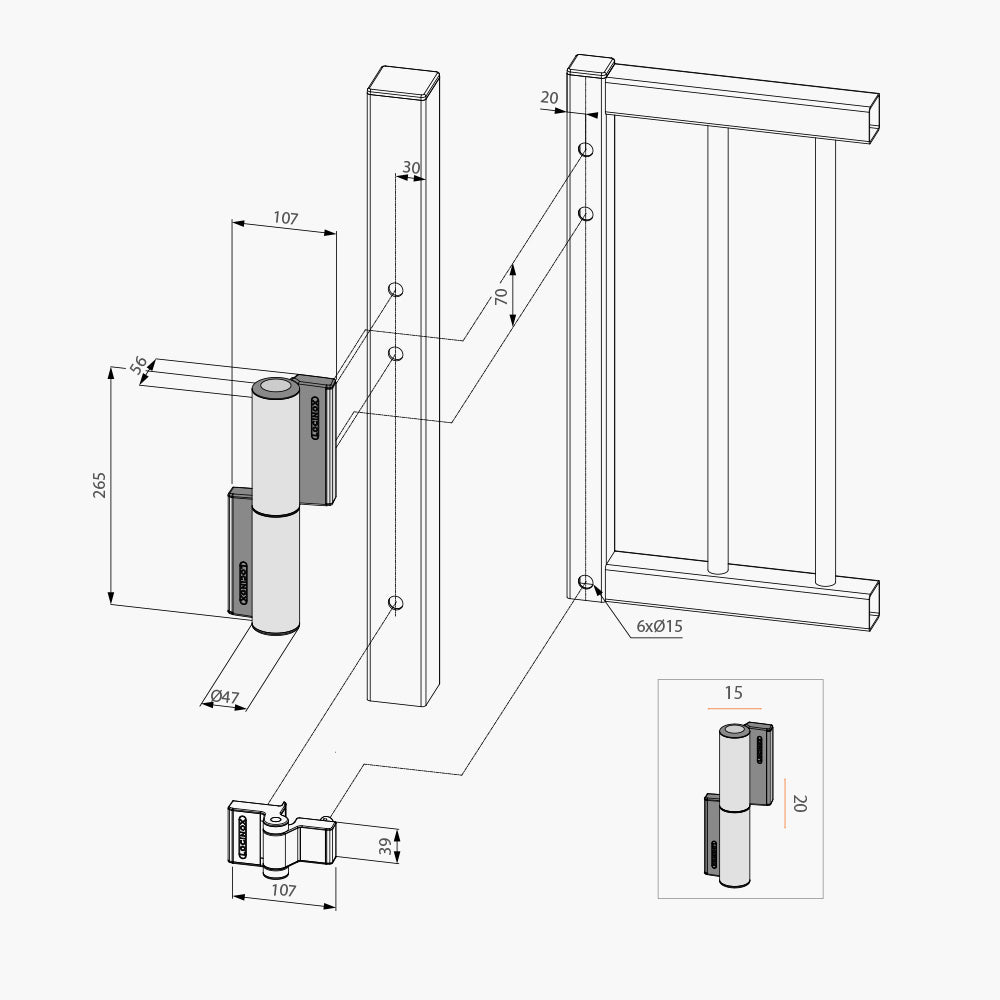

Tiger Self Closing Hinge - Dimensions | Edgesmith

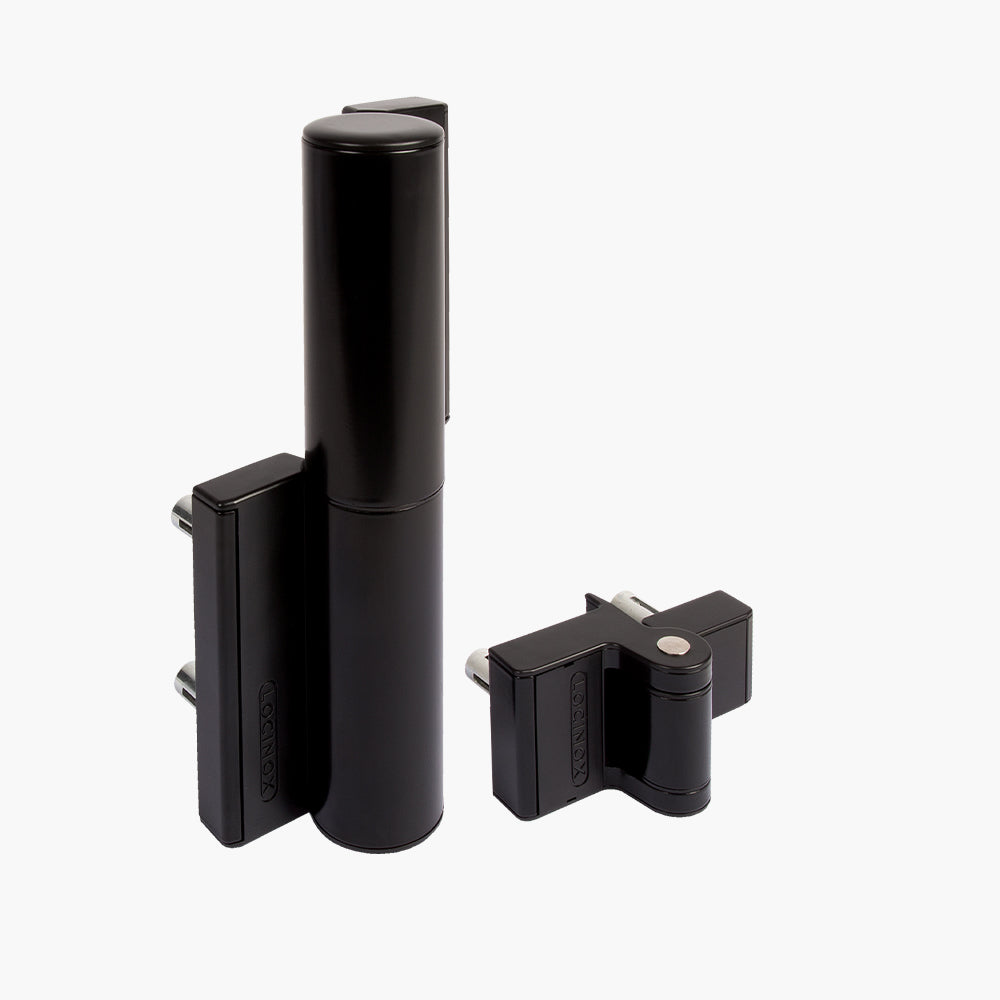

Tiger Hinge Closer

Name: Tiger Hinge Closer
Brand: Locinox
SKU: TIGER-BLK
Price: 581.82 AUD
Availability: InStock

$581.82

Brand:

Locinox

SKU:

TIGER-BLK

Product Type:

Swing Gate Hardware

The Tiger hinge offers a 180° self-closing mechanism with a hydraulic system that allows for precise speed adjustments and a controlled final snap closure. Encased in a powder-coated aluminium housing and equipped with advanced high-tech components, it operates flawlessly in all weather conditions. Available only in black.

Colour:

Black

Variant

More information

Extended Description

180° self-closing hydraulic hinge with precise adjustments on speed and final snap. The aluminium powder coated housing and unique high-tech components allow the Tiger to function perfectly in any weather situation. We highly recommend the Tigerdrill for an even more efficient installation. The Puma hinge is included.

Tech Specifications

Specifications:

Automatic 180° closure with adjustable closing speed and final snap
Aesthetic design
Powder coated aluminium housing
Closing speed unaffected by humidity and temperature changes
For left and right turning gates
Fast and easy fixing with Quick-Fix
15 mm horizontal adjustability
20 mm vertical adjustability
Easy to open: Max. 14 Nm
Hinge gap adj. from 10 to 25 mm

Documents

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing.

Videos

Tiger Hinge Closer

$581.82
