Vehicle Exit Probe

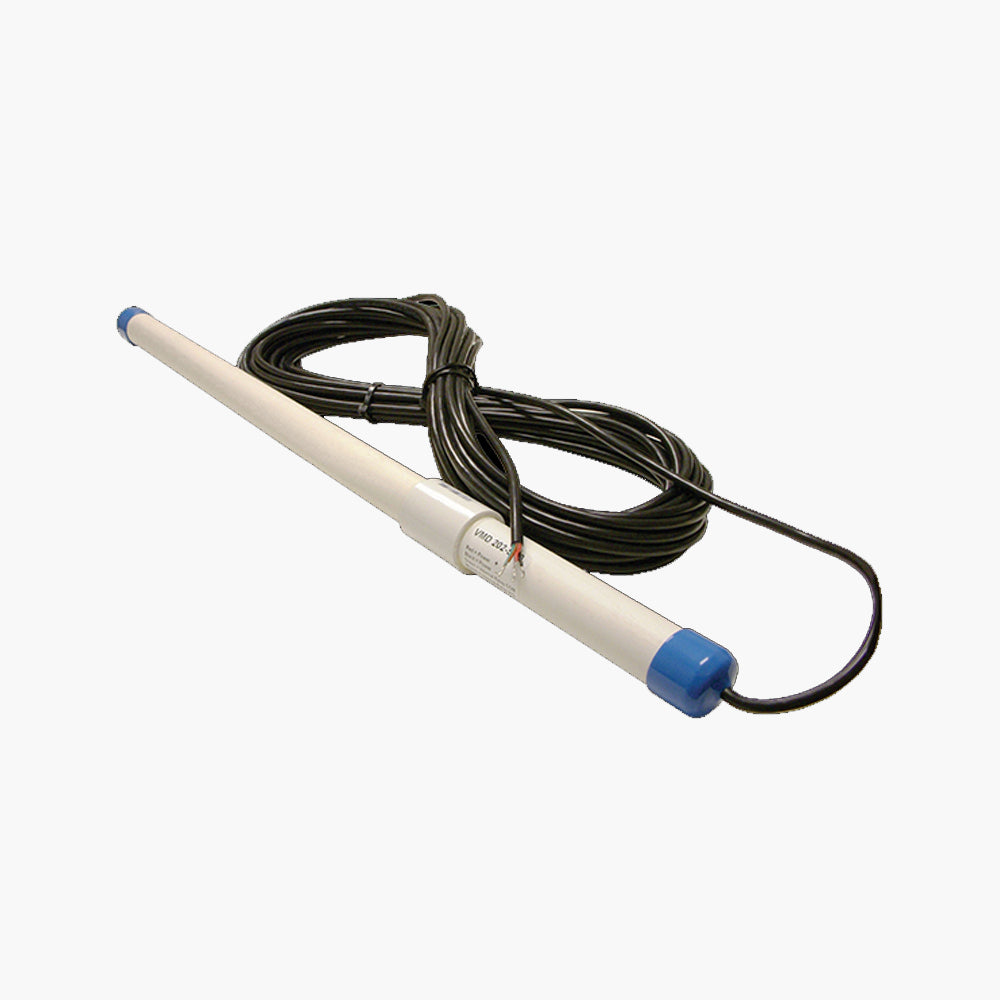

The VMD202 is a compact, single-piece vehicle motion detector that operates by detecting changes in the magnetic field that occur near the probe. It has a detection range up to 3m at a minimum speed of 10 kph. The VMD202 will only detect a moving vehicle and will not detect a stationary vehicle. It may be used as a free exit sensor to allow gates to open and guests to exit without the use of a key fob or passcode. The VMD202 may also be wired to notify a home automation system or security system that a vehicle is moving down a driveway. This vehicle motion detector features a detachable sensitivity remote and a 30m cable.

Specifications

• Power: 12-41 VDC or 8-29 VAC,
• Standby Current: 0.25 mA,
• Detection Current 12mA,
• Range Sensitivity 3m @ 10kph minimum speed,
• Cable Length 30m

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing our range.

• Download VMD202 Installation Guide
