Venus Pedestrian Gate Operator

Name: Venus Pedestrian Gate Operator
Brand: Locinox
SKU: VENUS-S-BLK
Price: 2211.82 AUD
Availability: InStock

Request Price

Brand:

Locinox

SKU:

VENUS-S-BLK

Product Type:

Gate Automation

Venus is the world's first true motorised operator designed specifically for outdoor pedestrian gates.

Style:

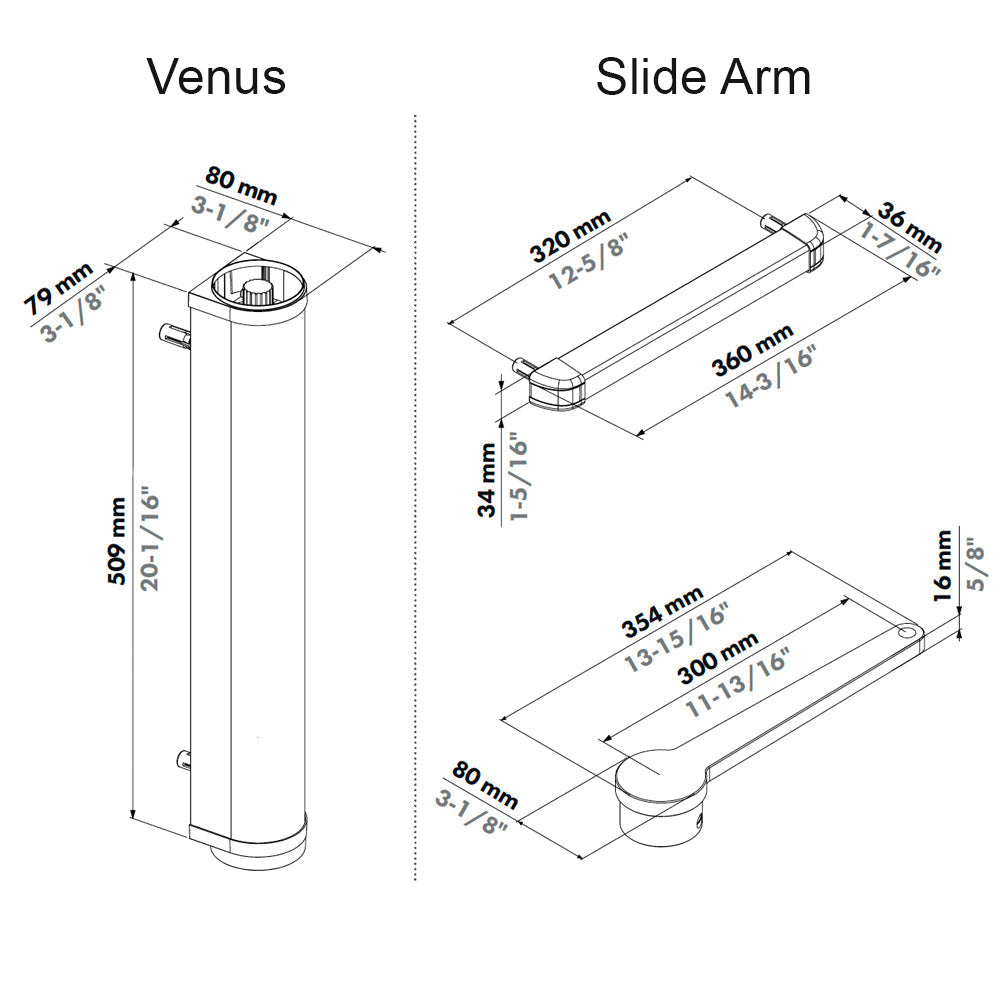

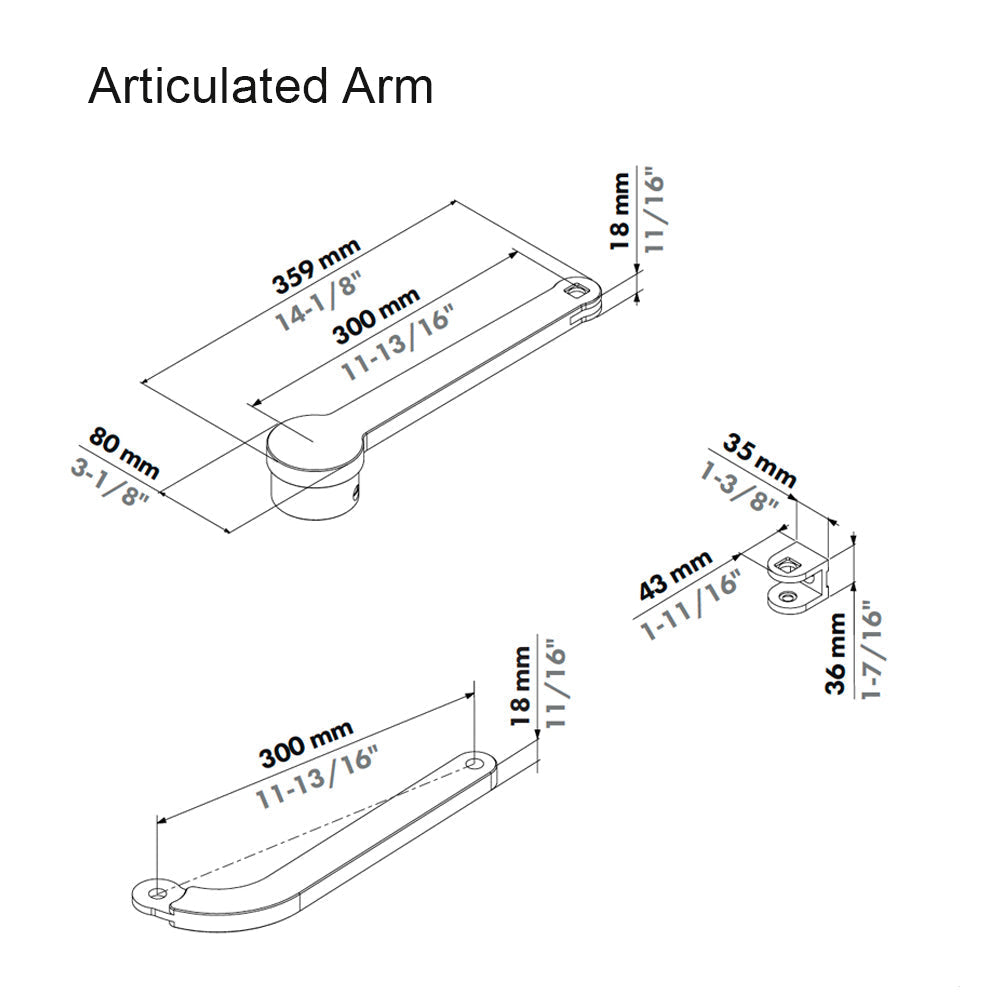

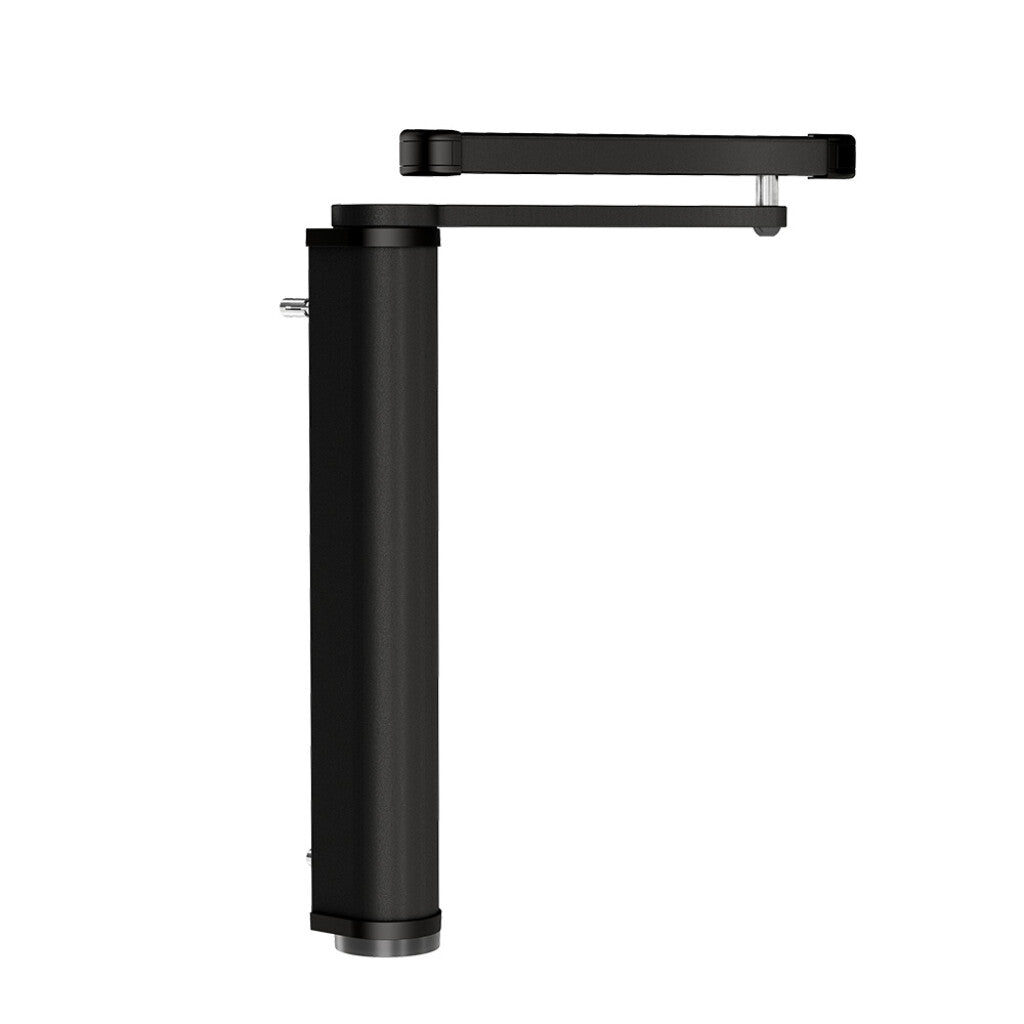

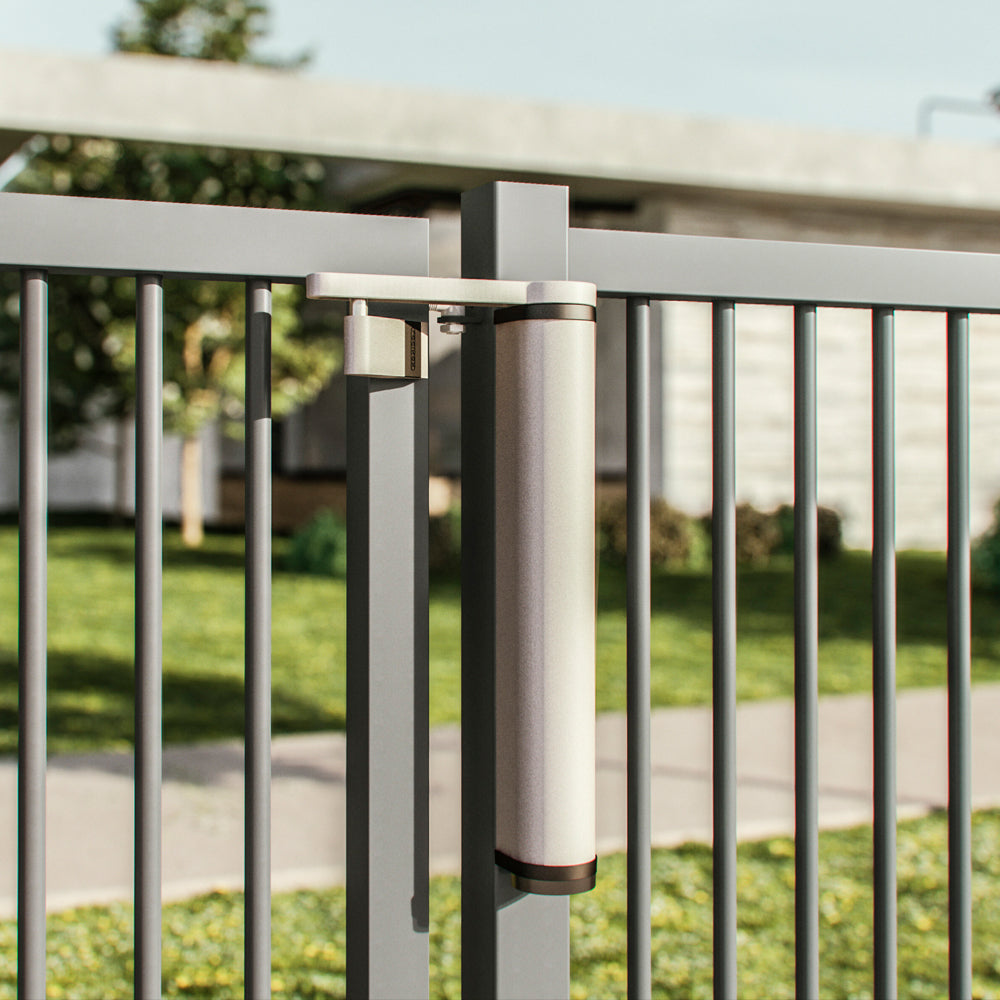

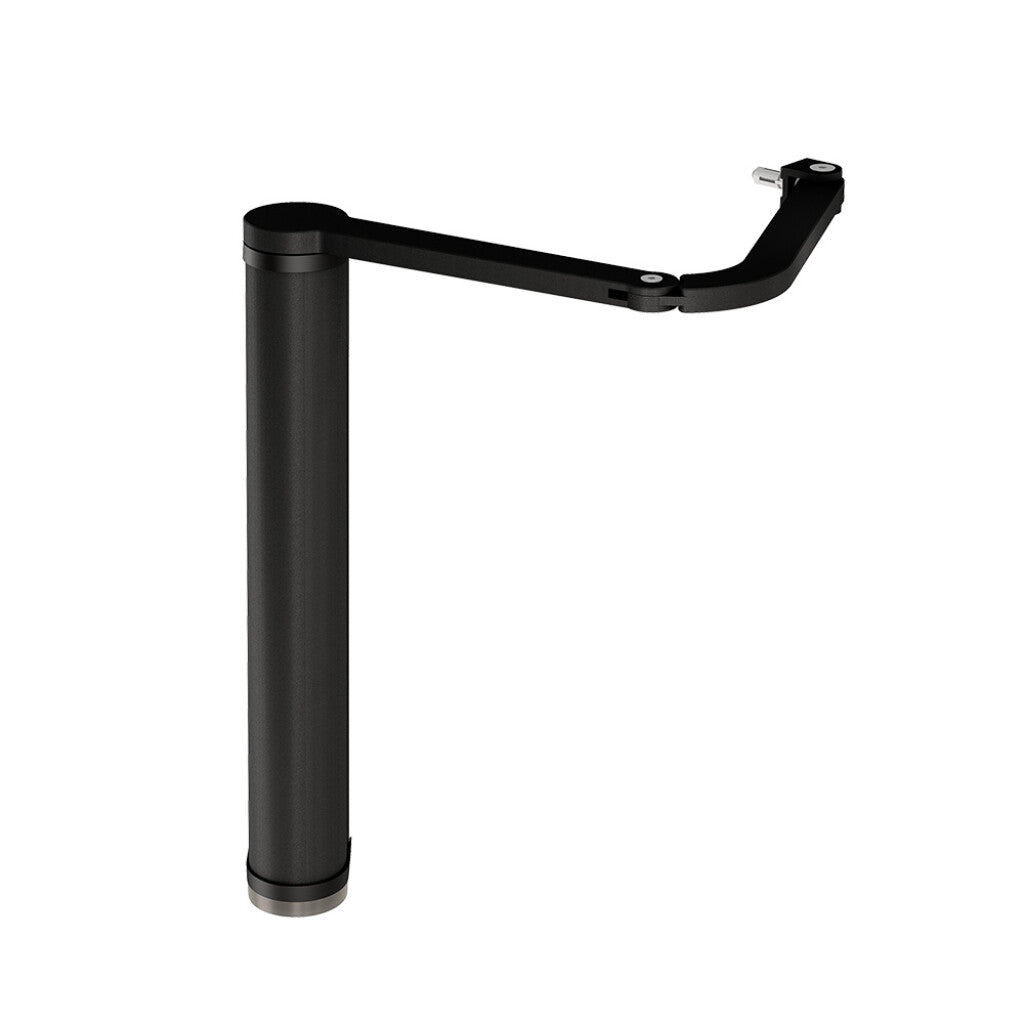

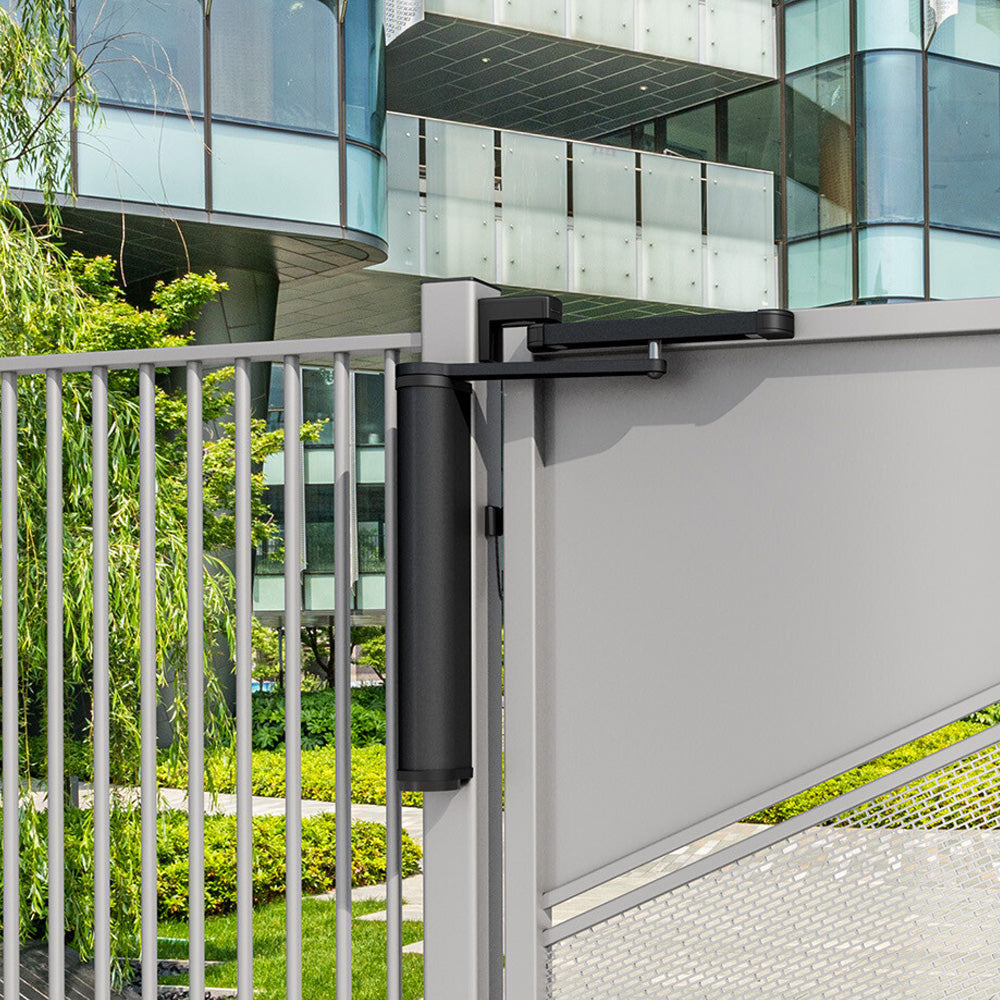

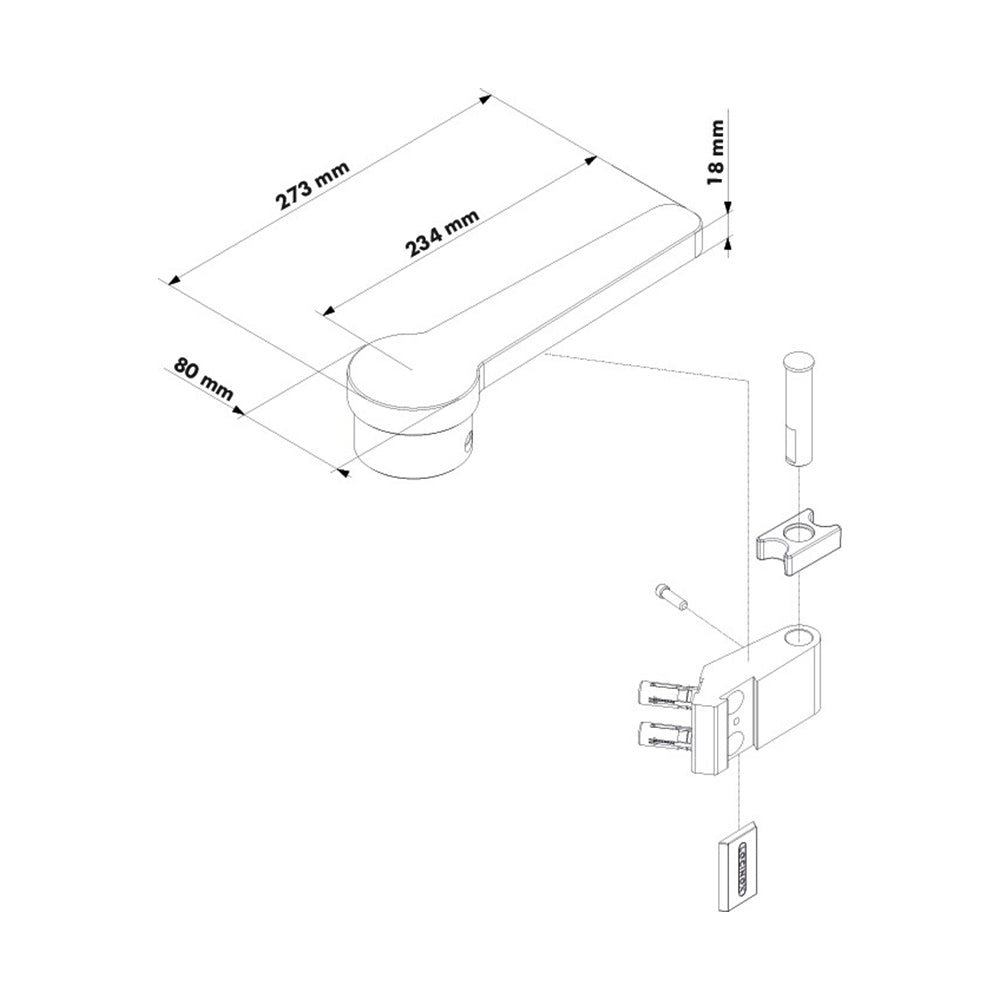

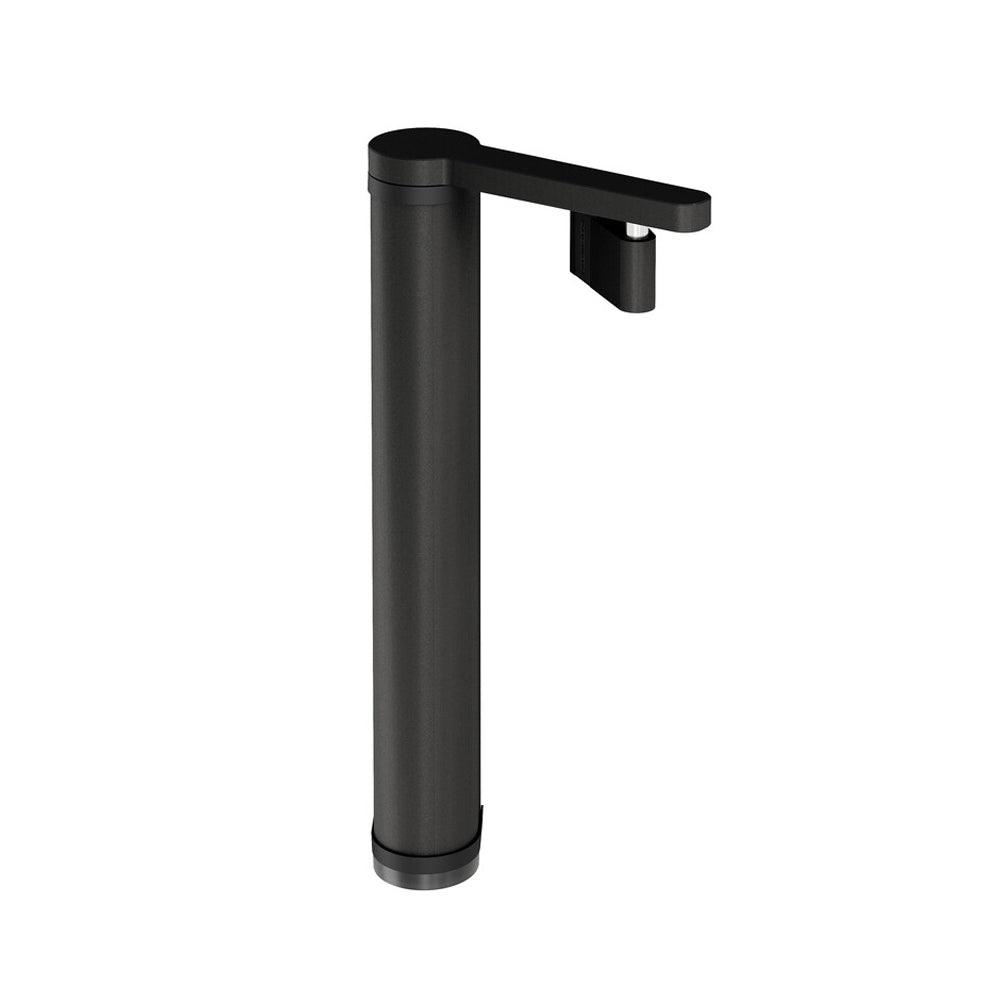

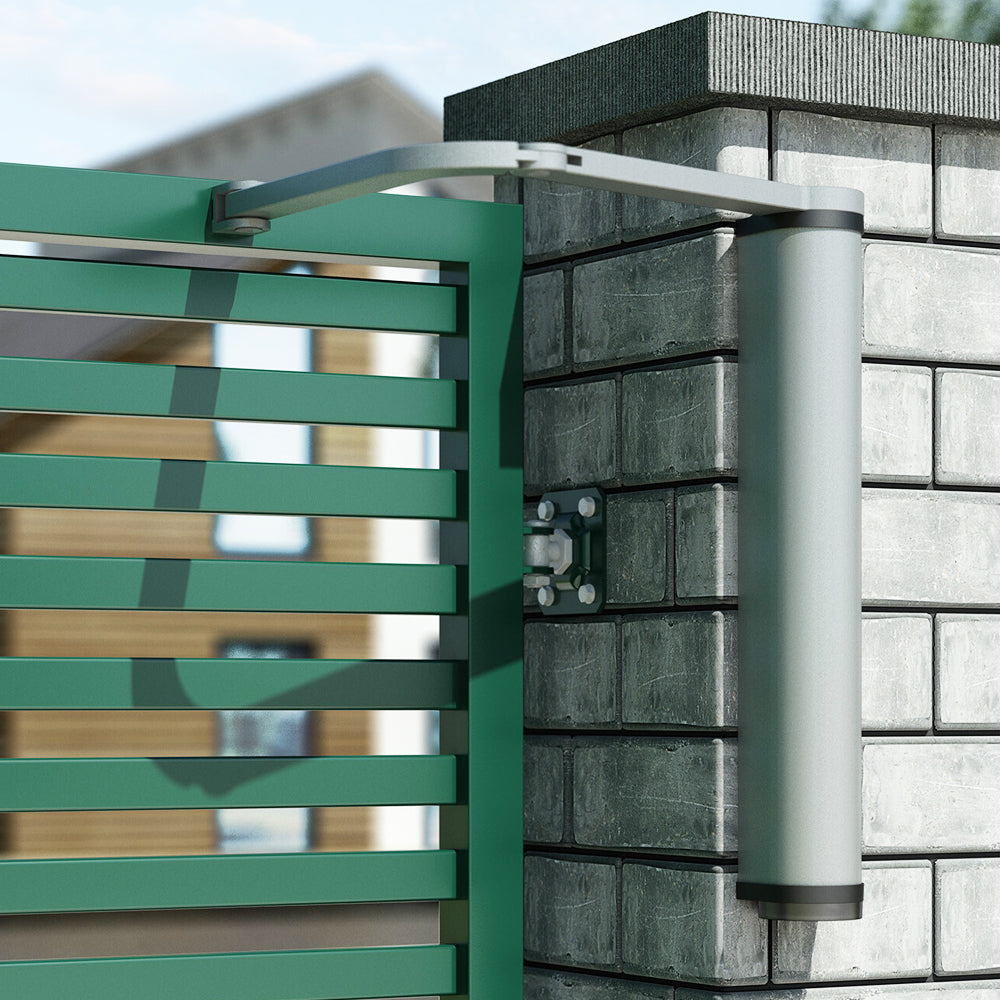

Sliding Arm (VENUS-S-BLK) Articulated Arm (VENUS-A-BLK) Compact Arm for 180° hinges (VENUS-G-BLK)

Colour:

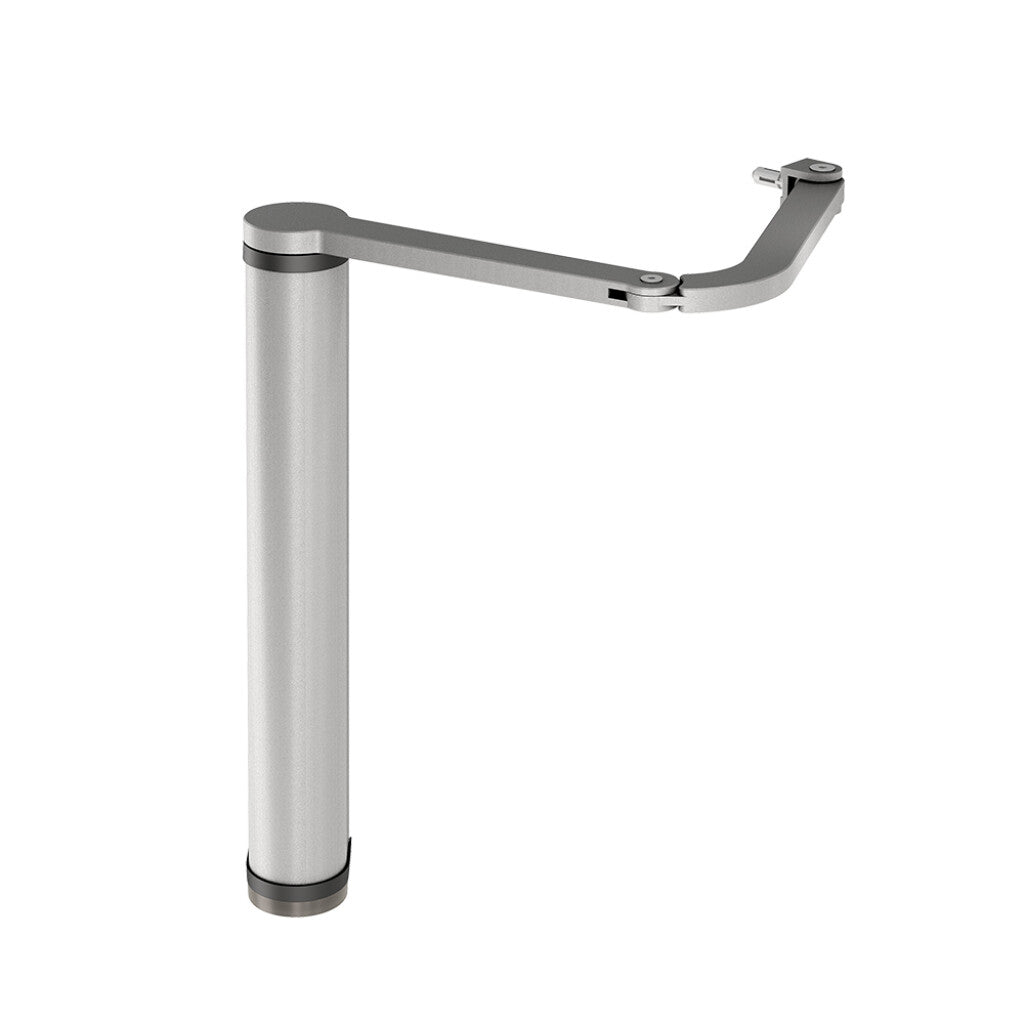

Black Silver

Variant

More information

Extended Description

Venus is an all-in-one motorised gate closer for pedestrian swing gates.
VENUS's push-and-go feature allows for easy activation with a gentle push, automatically opening and closing the gate afterward. Perfect for when your hands are full or you can't apply much force.

Ideal for wheelchair access, VENUS adjusts with variable waiting and closing times.
See the Venus Functions video (below) for an overview of the opening functions.

Thanks to its integrated obstacle detection feature, the VENUS will reopen the gate and ensure it is fully closed only when everything and everyone has safely passed through.

The compact gate operator with built-in controller can easily be installed on any type of post and hinge thanks to three different arm types.

Venus is compliant with EU safety standards EN-16005, and EN-12453 for doors and gates.

Tech Specifications

The Venus motorised gate operator features include:

3 Output connectors

Electric lock
Courtesy light
External Flashlight
Aux 24V

3 Input connectors

Control device
Safety device

Motion settings

Push/Pull and Go (On/Off)
Pause time (default = 5s)
Number of retries after collision (default = 3)

Light settings

Courtesy light timer (default = 30s)
Pre-flash time (default = 0s)
Flashlight brightness (High/Low/Off)
Warning ON during pause time (default = Off)

Specifications

Pedestrian gates to 1400 mm wide and 100 kg
Integrated warning light
Automated obstacle detection with reverse function
Reversible motor for easy manual use - combined with a lock
Integrated electronics (compact design without add-on boxes)
Input power supply: 115V AC ±10% (60Hz) to 230V AC ±10% (50Hz)
Motor: Brushless 24V DC
150 Nm torque
Fits 80 mm profiles (60mm with Venus adaptor plate)
Steel gear box
Anodised aluminium cover
2 different arm options for installation
Easy mounting with Quick-Fix
Compact and vandal-proof design
