Way 005, 100% Duty Cycle

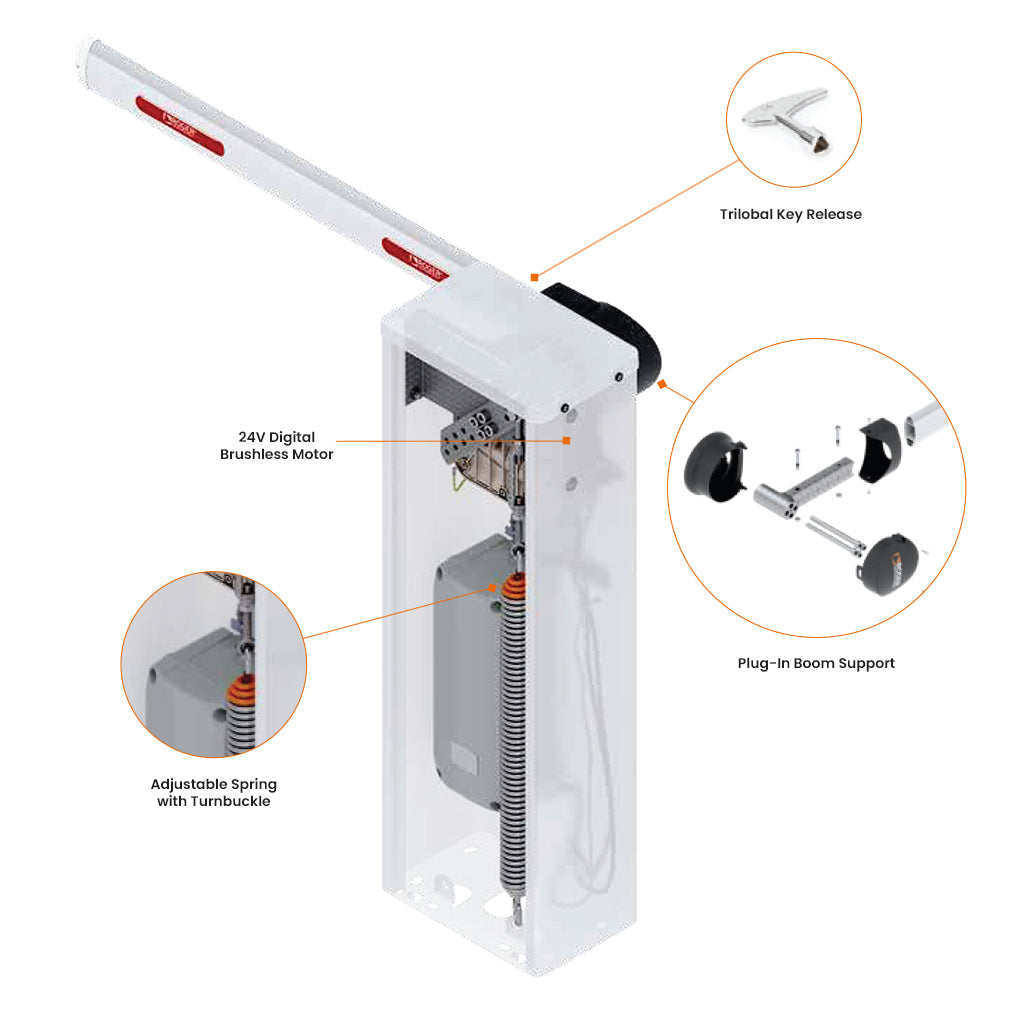

The Roger WAY Line barrier is a powerful automatic barrier arm and are ideal for commercial applications. Capable of operating an arm from 5m, 100% duty cycle. It has a compact 24V brushless motor that delivers the smoothest torque application in the market, prolonging the life of the gearing, beam and other mechanical parts. Being low voltage, the operator is inherently safer than high voltage operators and has the additional benefit that there are multiple power options.

Specifications

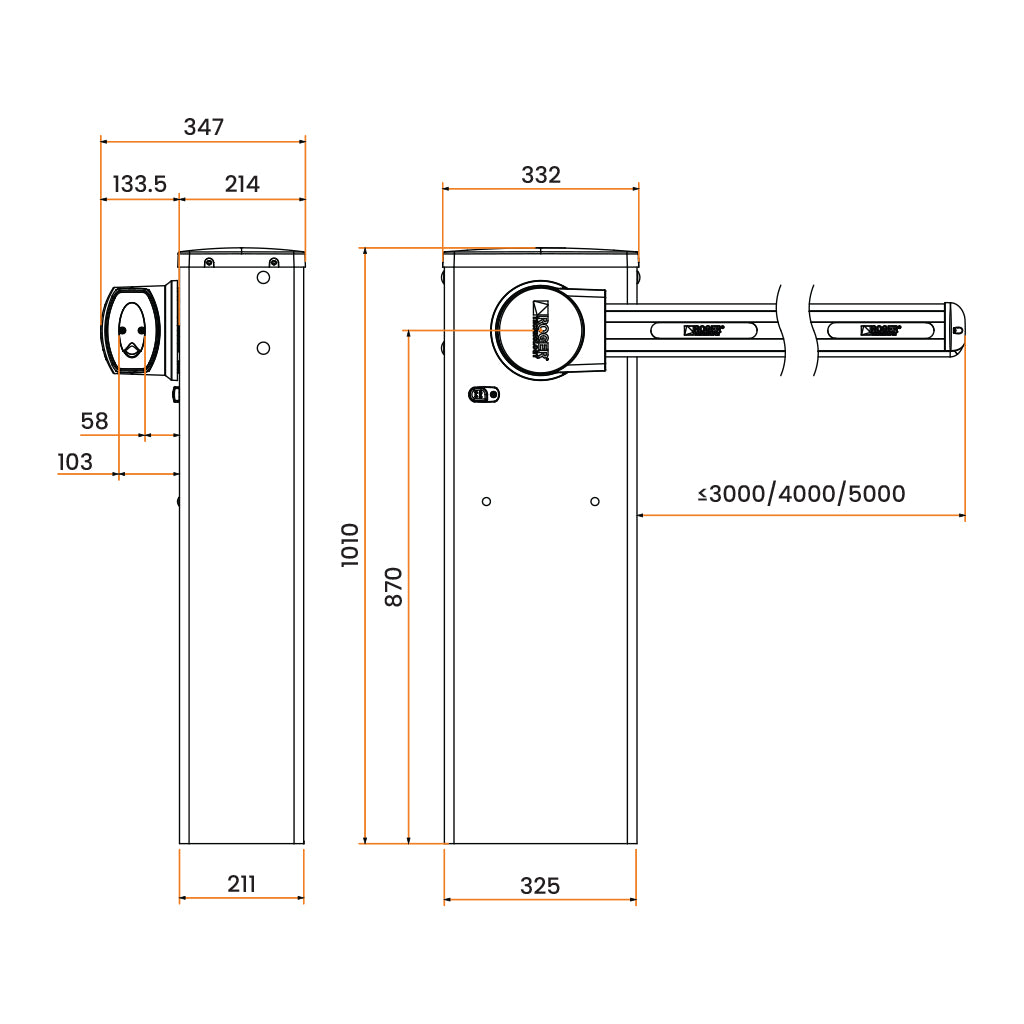

• Barriers: Up to 5m long
• Power Line Supply: 230V AC - 50/60Hz
• Motor Power Supply: 24V DC
• Electrical Absorption: 0-15A
• Power Rating: 180W
• Frequency Of Use: Continuous
• Torque: 56 Nm
• Operating Temperature: -20 + 55C°
• Protection Level: IP54
• Reductor Type: Irreversible
• Opening Time: 5÷17 sec
• Onboard Control Unit: B70/1T
• Encoder: Digital native encoder + magnetic digital SENSORED, 4096 PPR
• Accessories Power Supply: 24V DC
• Release System: Trilobal key
• Batteries Recovery: Available (optional)

Edgesmith's technical support provides you with the support you need to have confidence when specifying or installing Roger Automation.

• Download WAY 004 Feature and Benefits
• Download Operator Manual
• Download Fixing Base Manual
• Download Operator Brochure
• Download Control Board Manual
