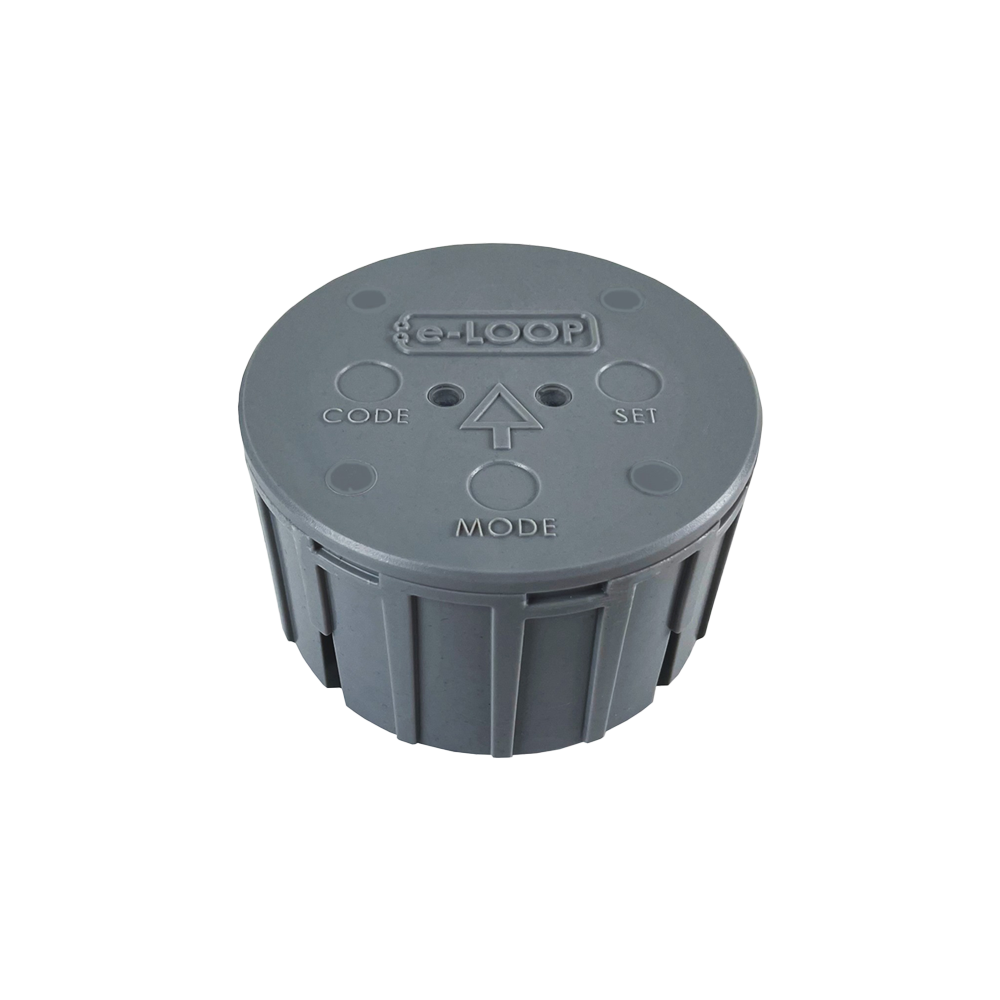

e-Loop Inground Presence Mode

The e-Loop inground wireless sensor features 360-degree radar protection.

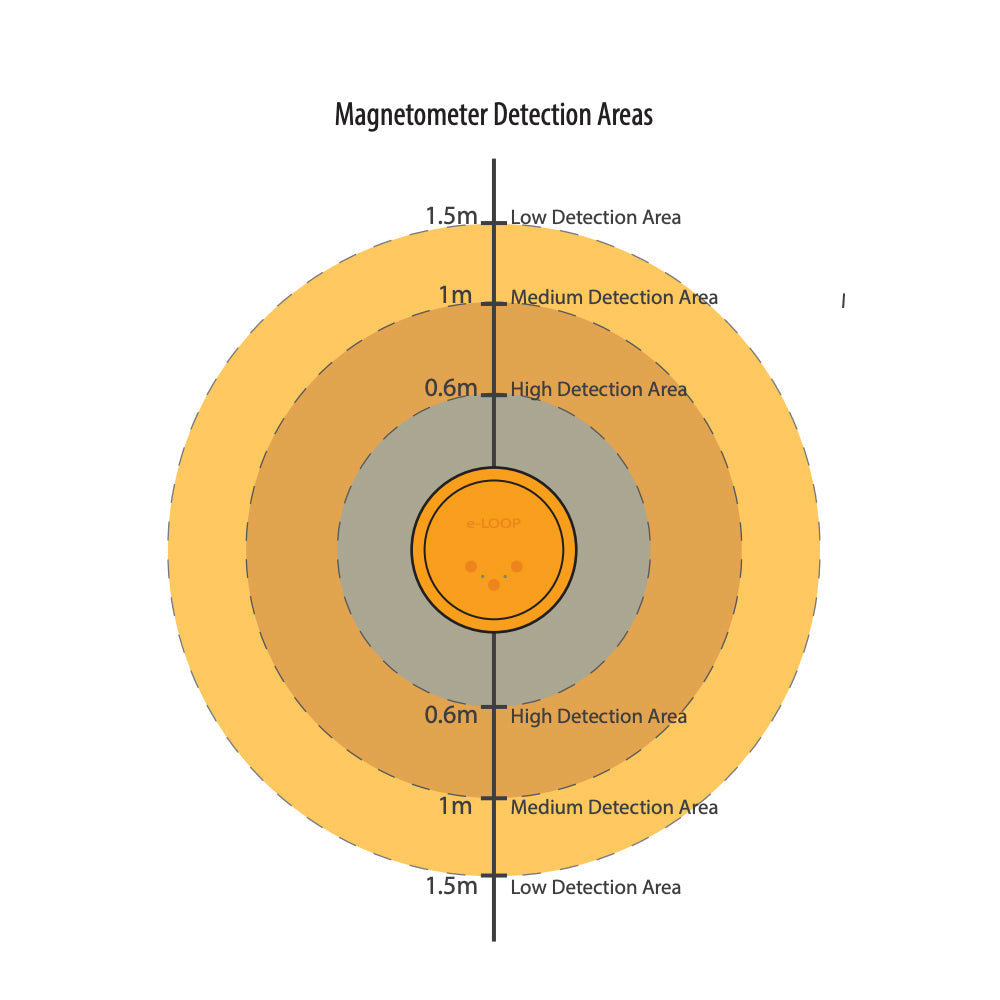

The Commercial Wireless Vehicle Detection System relies on magnetometer sensors to detect approaching vehicles. Once a vehicle is detected, the e-loop switches to radar mode.

The Presence Mode sensors can detect vehicles that have come to a stop above the e-loop. The additional radar feature utilises a two-way radio communication protocol to ensure reliable operation. When the magnetometer sensor senses an oncoming vehicle, the transceiver relay is engaged, and a confirmation is sent back to the e-Loop. If the magnetic field drops below the set threshold, the radar checks for the presence of a vehicle. If no vehicle is detected, an unlatch command is sent to the relay, and the transceiver confirms this to the e-loop. If for any reason the confirmation is not received, multiple attempts are made to ensure safe operation. You can adjust radar settings using the e-diagnostics remote, allowing changes to parameters such as Dead Zone, Sensor Distance, Sensitivity, Magnetic Field Release Level, and Confirmation Mode.

Kit Contains

• Inground e-Loop module
• 12-24VDC single channel transceiver
• 2 x dyna bolts

Note: The gate or door controller must have a dedicated open input and auto close function enabled.

Features

• Lower power consumption/3-axis magnetometer for vehicle detection
• 8 Hz sampling rate
• Auto-calibration
• Exit/Entry detection mode
• Fast and simple installation - Quick non-permanent installation
• Up to 6 years of battery life (Battery life is dependent on many factors, including daily activations, time used per activation, radar range, and external conditions.)
• Compact design
• Compatible with various gates
• Dual Sensor Technology
• Magnetic Field and Radar Detection
• The e-Loop Exit serves as a straightforward replacement for wired inductive loops, offering not only convenience but also cost savings and enhanced reliability.

Features

• Dual sensing technology
• Range to 50m
• High-security 128-bit encryption
• Quick and easy installation, flush into the driveway
• 14500 mA lithium battery giving up to 10 years of battery life
• Top access for changing the battery
• Not affected by ground movement

Installation in 3 Simple Steps

• Code in the e-Loop
• Core bore 89-92mm hole 70mm deep and secure using flexible mastic
• Calibrate the e-Loop... and you’re ready to operate in less than 30 minutes
